Classic House Plan with Elegant Brick Exterior and Bonus Over Garage

Plan 710086BTZ

  • 3,590

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This classic one-story house plan has an elegant brick exterior with an open and covered front porch giving this home a classic look.
  • The foyer opens onto the vaulted grand room with a warm and welcoming fireplace and beautiful built-in cabinets. A keeping room to the right comes with a secondary fireplace and views onto the vaulted covered back porch.
  • The kitchen features a workhorse island and double ovens, perfect for the entire family to enjoy.
  • Two guest bedrooms are on the rear of the home and share a spacious Jack-and-Jill bath.
  • The master suite has a sitting area looking out to the backyard, large master bath and walk-in closet.
  • Optional bonus space is also available on the second floor, creating extra square footage for a guest suite, office or recreation room.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

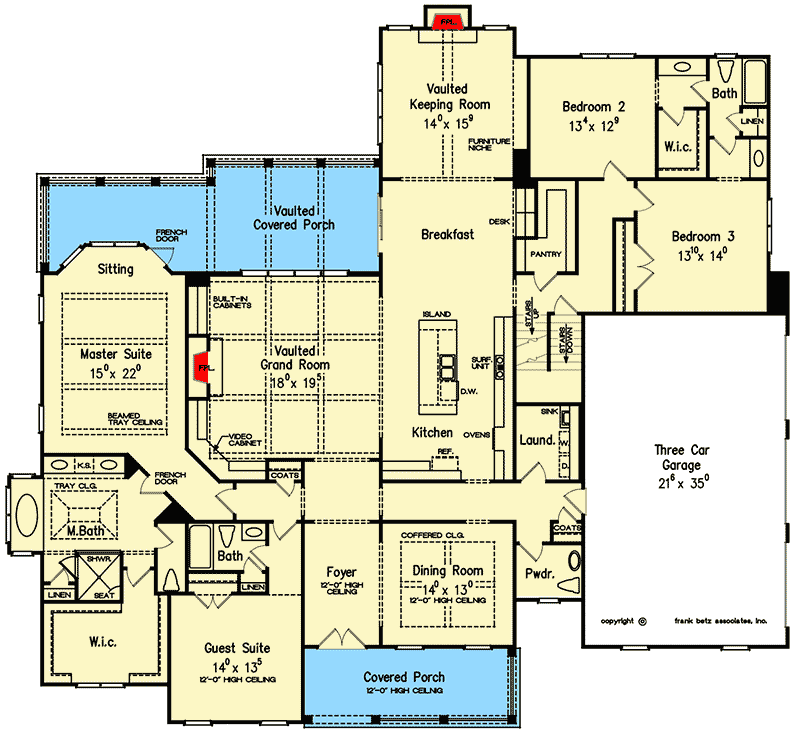

Classic House Plan with Elegant Brick Exterior and Bonus Over Garage - 710086BTZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

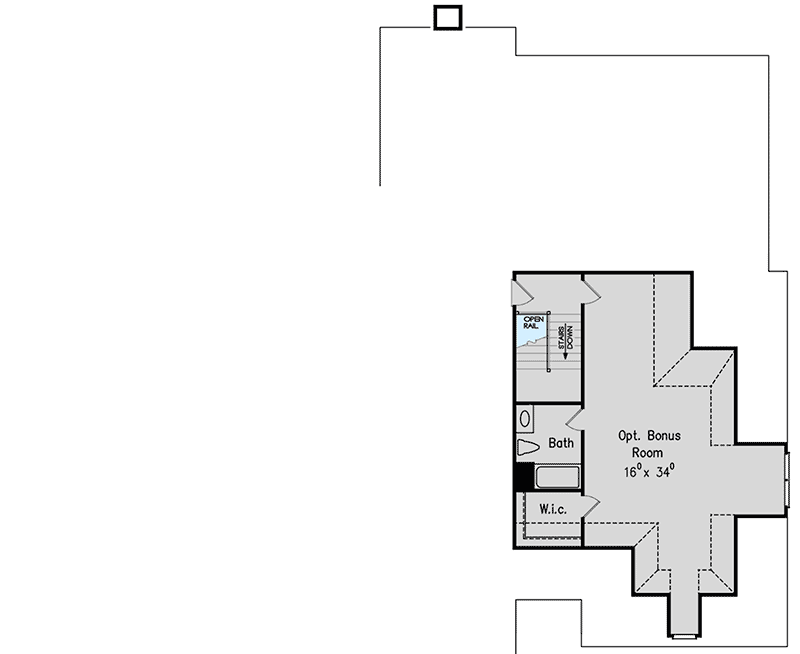

Classic House Plan with Elegant Brick Exterior and Bonus Over Garage - 710086BTZ floor plan - Bonus Level

Classic House Plan with Elegant Brick Exterior and Bonus Over Garage

  • 3,590

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 3,590 sq. ft.
  • 1st Floor: 3,590 sq. ft.

Dimensions

  • Width: 83' 0"
  • Depth: 76' 4"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 770 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
