Plan 80685PM

Classic Mountain Cabin

Name: Plan 80685PM: Classic Mountain Cabin
Brand: Architectural Designs
SKU: 80685PM
Price: 1255.0 USD
Availability: InStock

Heated S.F.

1,440

Beds

Baths

1.5

Stories

Floor Plan

Wood shakes, a covered front porch and a side screened porch add charm to this Mountain home plan.
The main living space is all open, making the space seem larger.
The big fireplace encourages your family to gather around. Across from it, sliding doors take you to a great screened porch with views on three sides.
Two bedrooms and the main bath are on the first level while two more bedrooms and a half bath are upstairs.

Please note this plan is designed to the National Building Code of Canada.

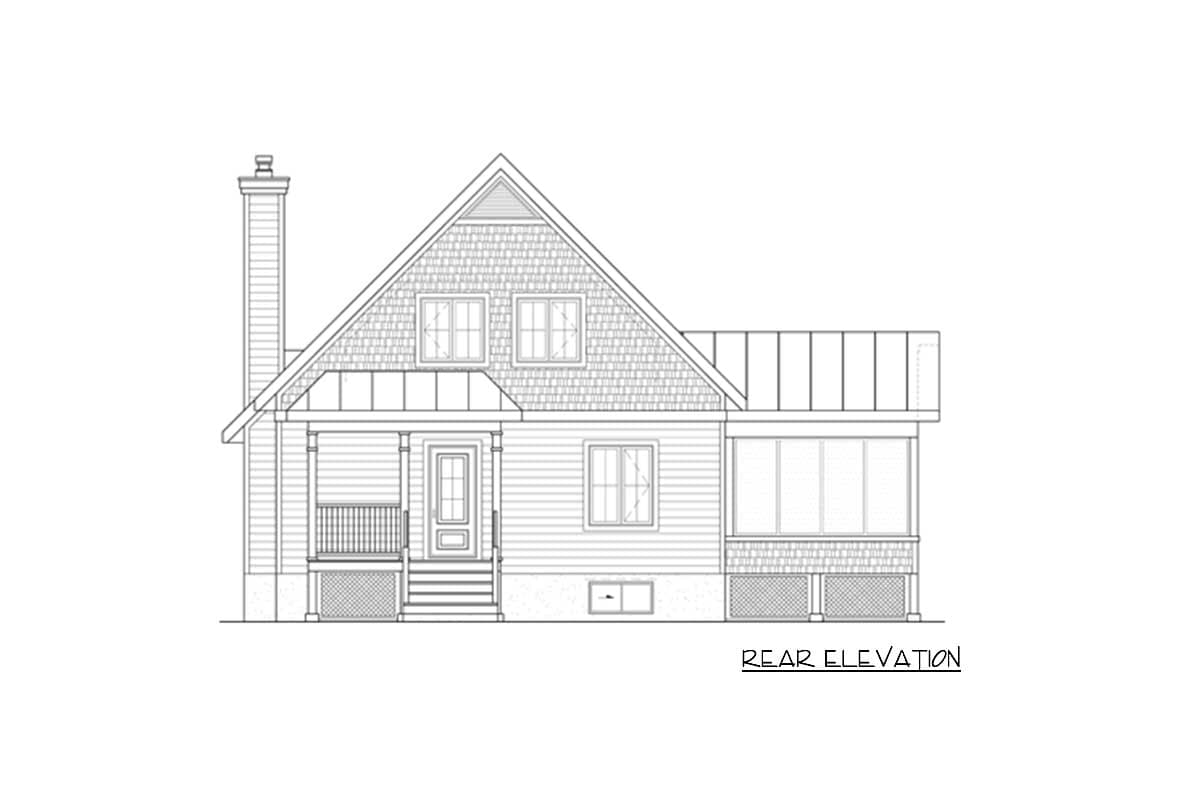

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

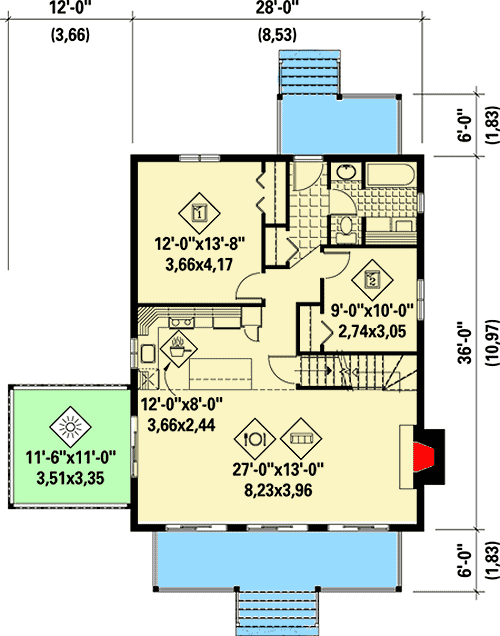

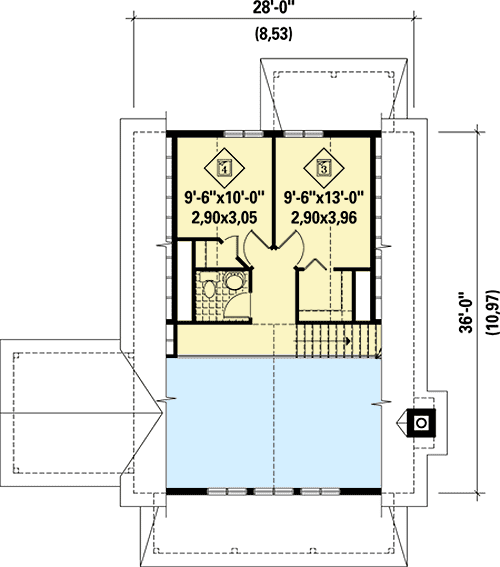

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
