Plan 5723HA

Classic Ranch With Expansive Porch

Pageloader

Classic Ranch With Expansive Porch

Plan 5723HA

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • With a wide porch in front and a deck in back, the living area of this classic ranch home plan is greatly expanded to the outdoors.
  • Further appeal is created by a split bedroom arrangement. Vaulted ceilings in both the master bedroom and the living room increase the sense of space.
  • An eating peninsula separates the kitchen from the dining area which is all inclusive in one large open living area.
  • Two bedrooms share a bath on the other side of the house from the master bedroom.
  • Ceilings: 8' standard.
  • Foundation: basement. Plans also included for crawl space.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan

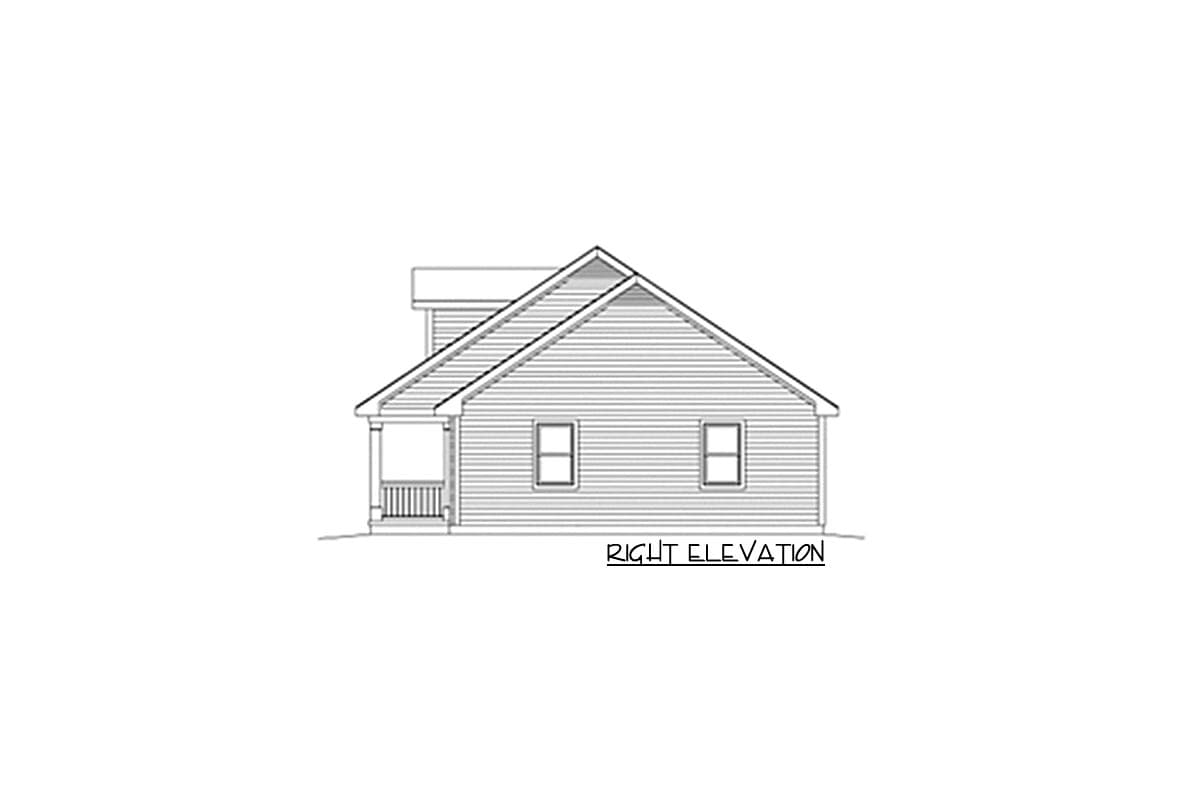

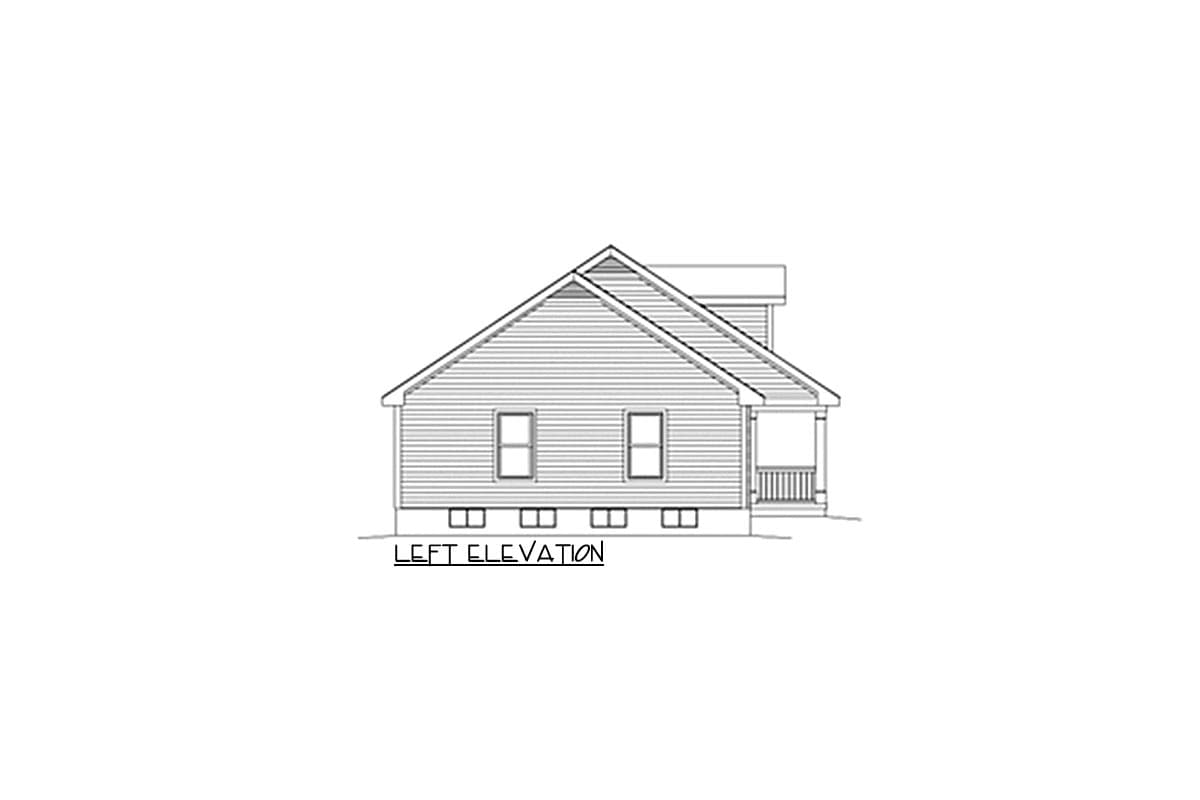

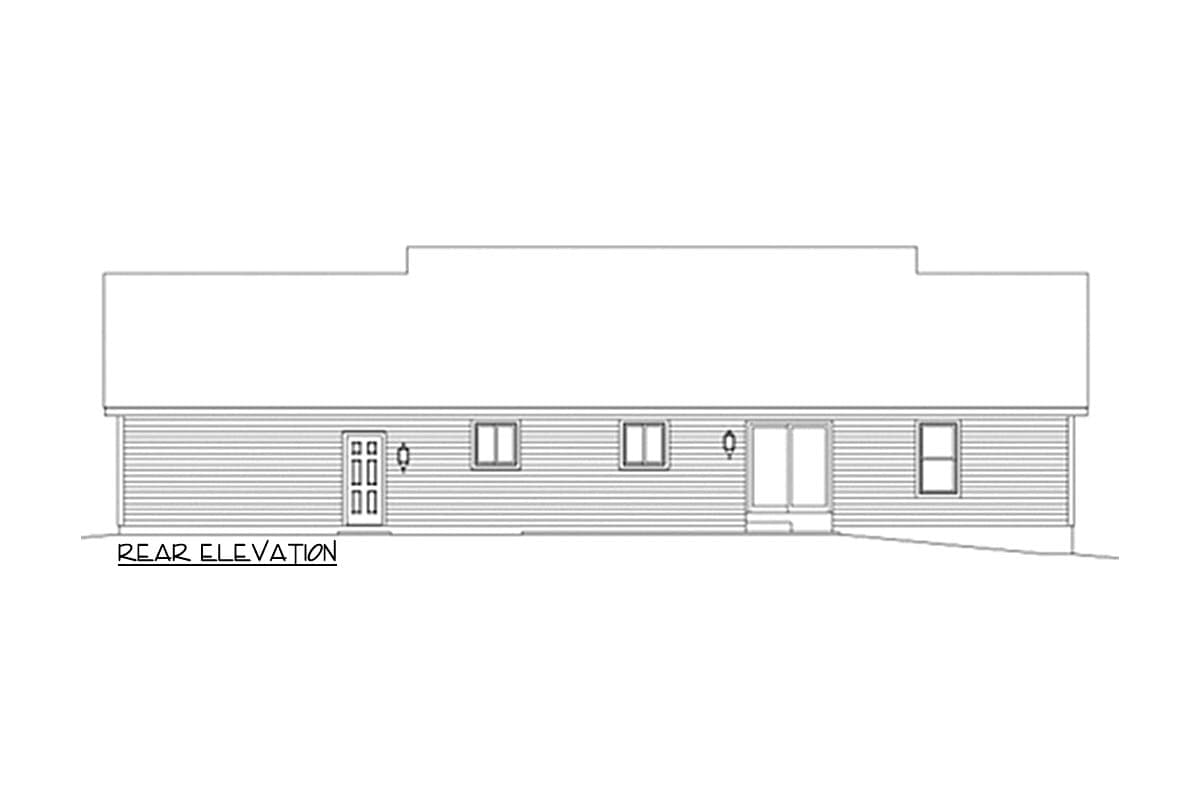

  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Floor Plan

Plan details

Architectural Style



Classic Ranch With Expansive Porch

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $825
  • 5 Sets $875
  • Reproducible Set $875
  • 8 Sets $950
  • CAD $1,725
  • View all purchase option online

About This Plan

  • With a wide porch in front and a deck in back, the living area of this classic ranch home plan is greatly expanded to the outdoors.
  • Further appeal is created by a split bedroom arrangement. Vaulted ceilings in both the master bedroom and the living room increase the sense of space.
  • An eating peninsula separates the kitchen from the dining area which is all inclusive in one large open living area.
  • Two bedrooms share a bath on the other side of the house from the master bedroom.
  • Ceilings: 8' standard.
  • Foundation: basement. Plans also included for crawl space.

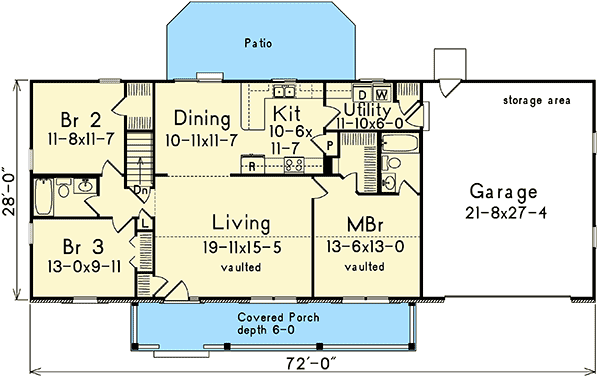

Floor Plans

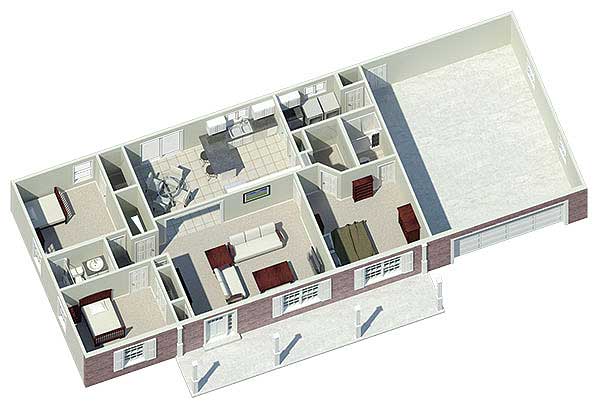

  • Main Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,400 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • Basement Unfinished: 1,400 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 72' 0"
  • Depth: 28' 0"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
