Clipped Gable Craftsman Home Plan

Plan 89956AH

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Craftsman 2-story house plan has three clipped gables and an entry porch flanked by columns.
  • You can see the 2-story great room from the foyer. A fireplace anchors the back wall and is flanked by windows.
  • The kitchen features an island and direct access to the dining area.
  • Three bedrooms, including the master are located on the second floor.
  • The master has a private bath and walk-in closet.he two additional bedrooms share the bathroom off the hallway.
  • VIDEO: See this house plan from all angles in our YouTube video

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

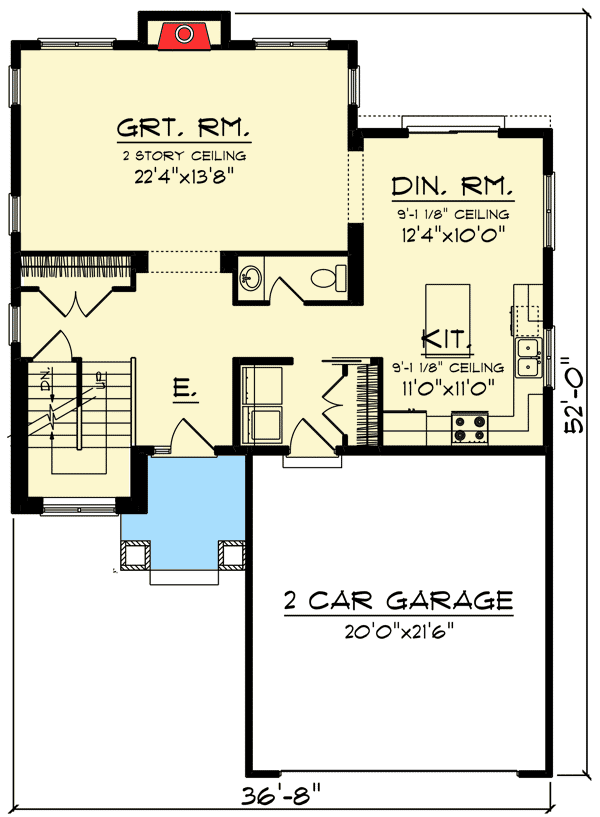

Clipped Gable Craftsman Home Plan - 89956AH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

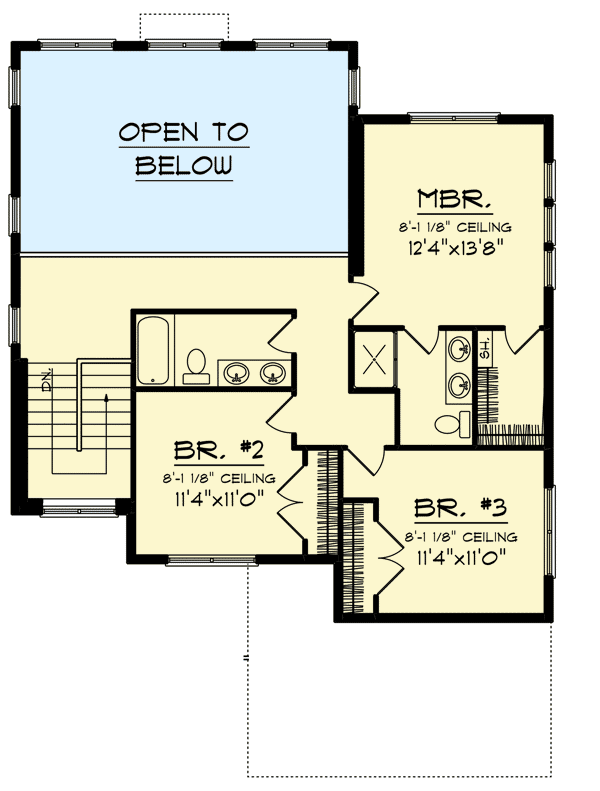

Clipped Gable Craftsman Home Plan - 89956AH floor plan - 2nd Floor

Architectural Style

Clipped Gable Craftsman Home Plan

  • 1,844

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,844 sq. ft.
  • 1st Floor: 994 sq. ft.
  • 2nd Floor: 850 sq. ft.

Dimensions

  • Width: 36' 8"
  • Depth: 52' 0"
  • Max ridge height: 31' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
