Coastal Contemporary 5-Bedroom House Plan with First-Floor Master and Outdoor Kitchen

Name: Plan 660028JMD: Coastal Contemporary 5-Bedroom House Plan with First-Floor Master and Outdoor Kitchen
Brand: Architectural Designs
SKU: 660028JMD
Price: 4450.0 USD
Availability: InStock

Heated S.F.

4,087

Beds

Baths

4.5

Stories

Cars

Floor Plan

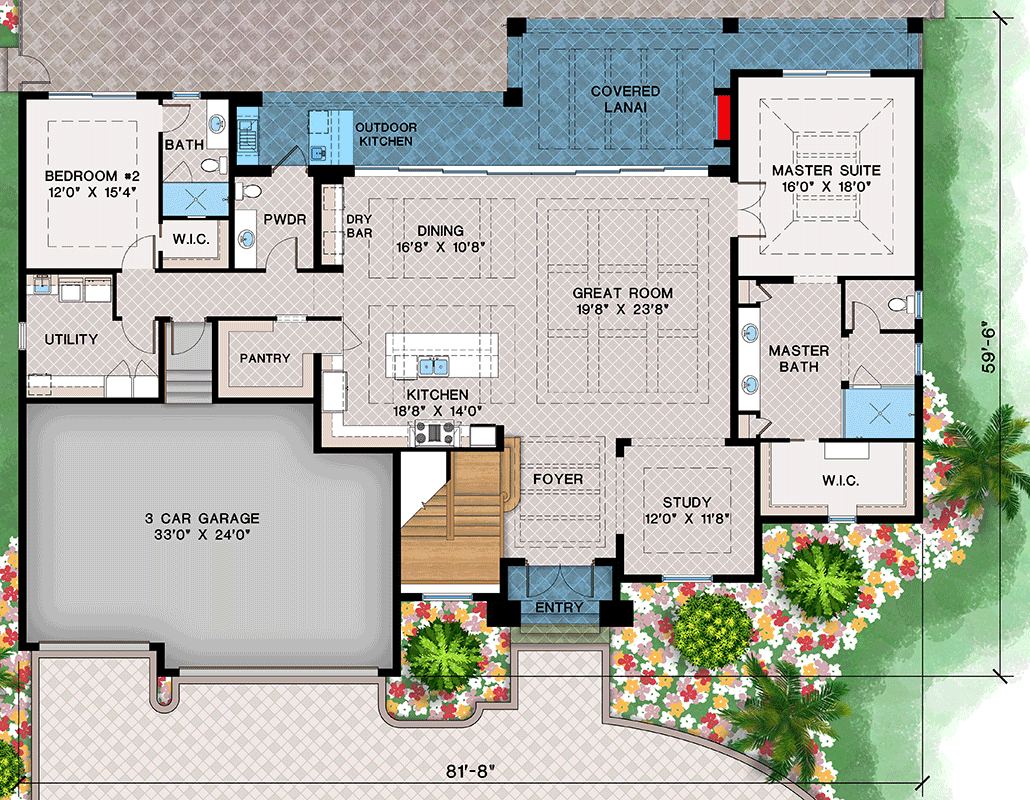

Main Level

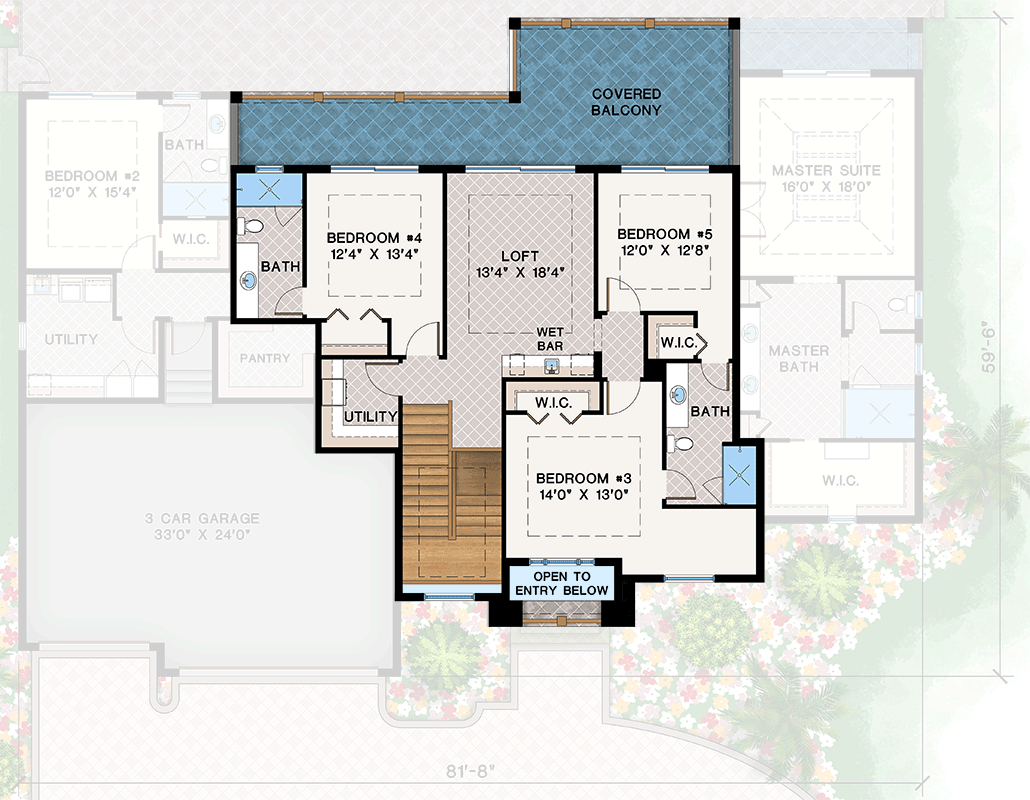

2nd Floor

Plan Details

This 4,087 sq. ft. Coastal Contemporary house plan offers five bedrooms, four full baths, one half bath, and a generous 808 sq. ft., three-car garage, presenting a refined approach to luxury coastal living.
Beyond the welcoming covered entry, discover an expansive open-concept layout where a spacious great room seamlessly connects to the kitchen and dining area, while a dedicated study provides a quiet retreat on the main level.
The gourmet kitchen is a chef's dream, featuring a large island, a practical butler walk-in pantry, and a convenient dry bar, flowing effortlessly into the dining area which extends toward the vibrant outdoor living spaces.
The luxurious first-floor master suite is privately tucked away, boasting a generous walk-in closet and a spa-like bath with dual sinks and a walk-in shower, while an additional bedroom suite on the main level offers flexible guest accommodations. Upstairs, three more spacious bedrooms, each with direct bath access and walk-in closets, provide comfort and privacy for family or guests.
An upstairs central loft featuring a wet bar creates an ideal space for recreation and relaxation, while practical amenities such as two dedicated utility rooms ensure efficiency and convenience throughout the home.
Experience exceptional outdoor living on the expansive covered lanai, complete with a summer kitchen and an outdoor fireplace, perfect for al fresco dining and enjoying the coastal breeze. An upstairs covered balcony offers another serene retreat for morning coffee or evening stargazing.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
