Coastal Contemporary House Plan with Four Bedrooms and Expansive Lanai

Name: Plan 65789BS: Coastal Contemporary House Plan with Four Bedrooms and Expansive Lanai
Brand: Architectural Designs
SKU: 65789BS
Price: 3454.27 USD
Availability: InStock

Heated S.F.

4,781

Beds

Baths

5.5

Stories

Cars

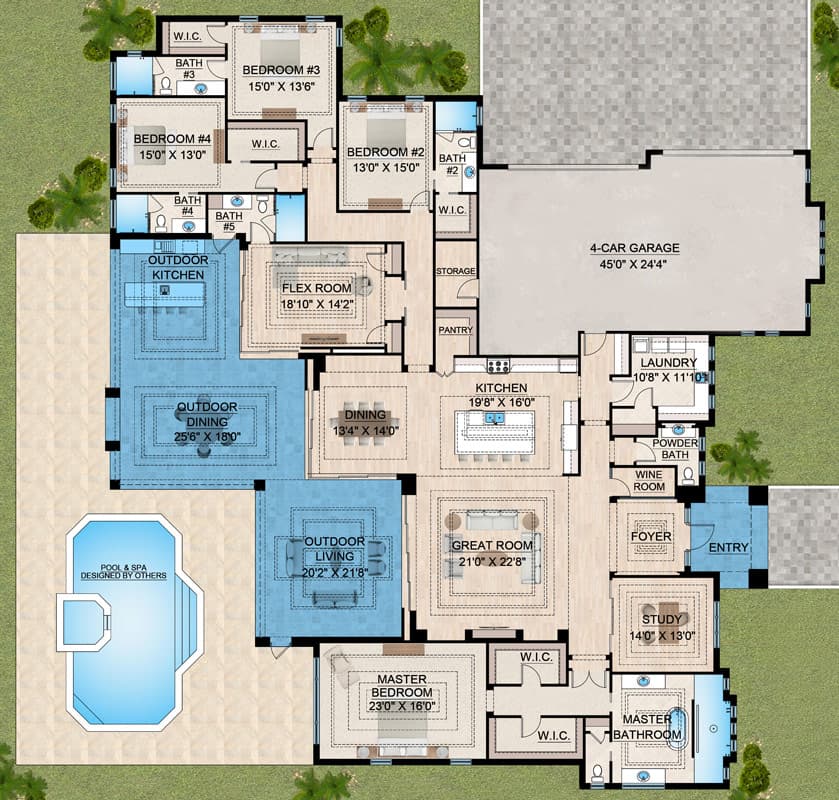

Floor Plan

Plan Details

This stunning 4,781 square foot coastal contemporary residence features four bedrooms, five full baths, one half bath, and a spacious four-car garage.
The striking facade blends clean lines and modern textures, welcoming guests into a grand entry that opens directly into a bright, airy floor plan.
The central living space is designed for seamless transitions, connecting a sophisticated formal dining room and a specialized wine room to the heart of the home.
A private primary suite is strategically separated from the three secondary bedrooms to ensure maximum tranquility and comfort for all residents.
The layout also includes a dedicated library for quiet study and a versatile flex room that adapts easily to changing lifestyle needs.
Massive sliding glass doors blur the lines between indoor and outdoor living, opening to a sprawling 1,260 square foot lanai complete with an outdoor kitchen for alfresco dining.

What's Included

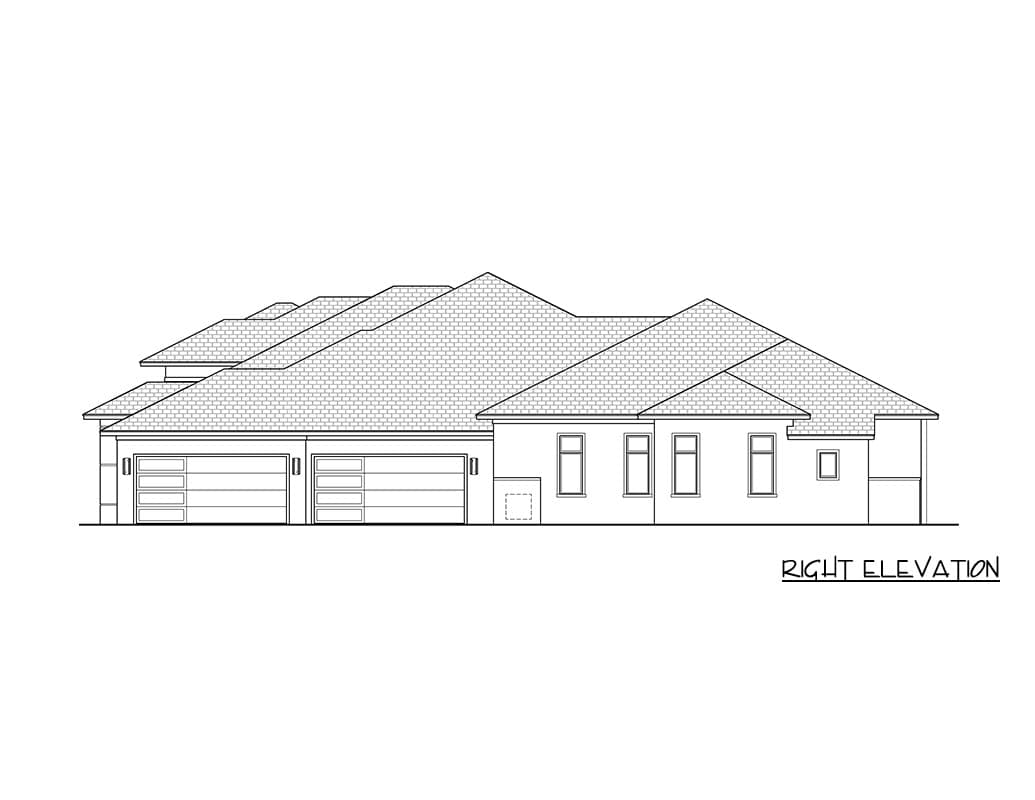

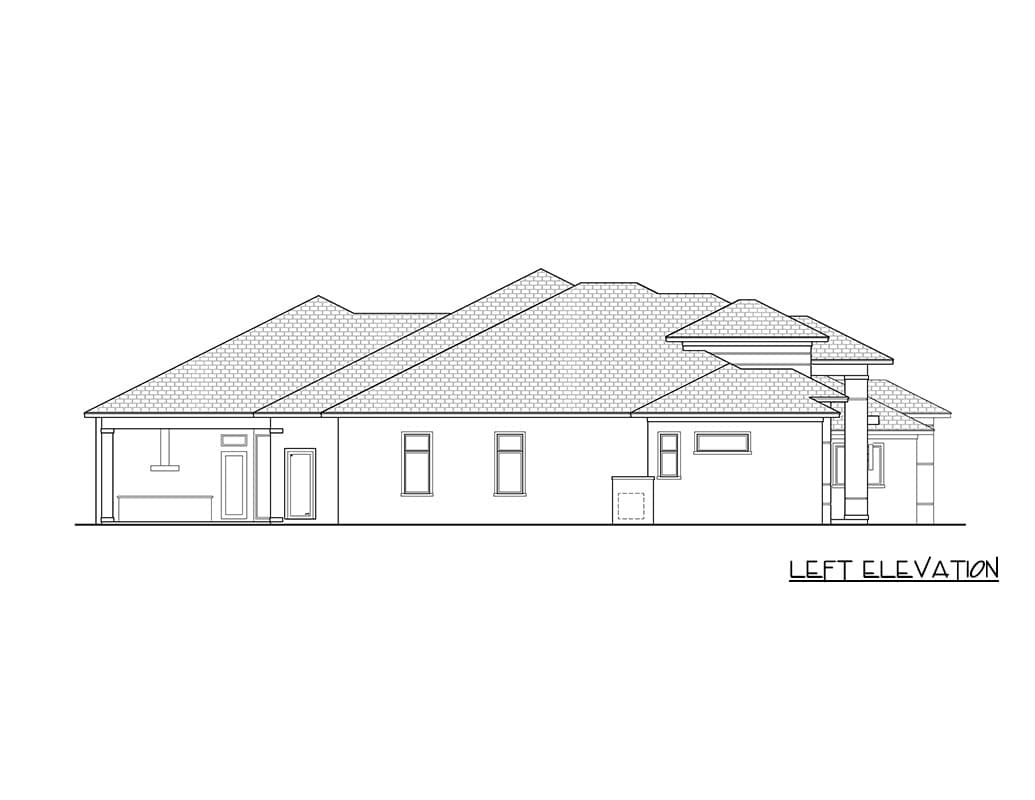

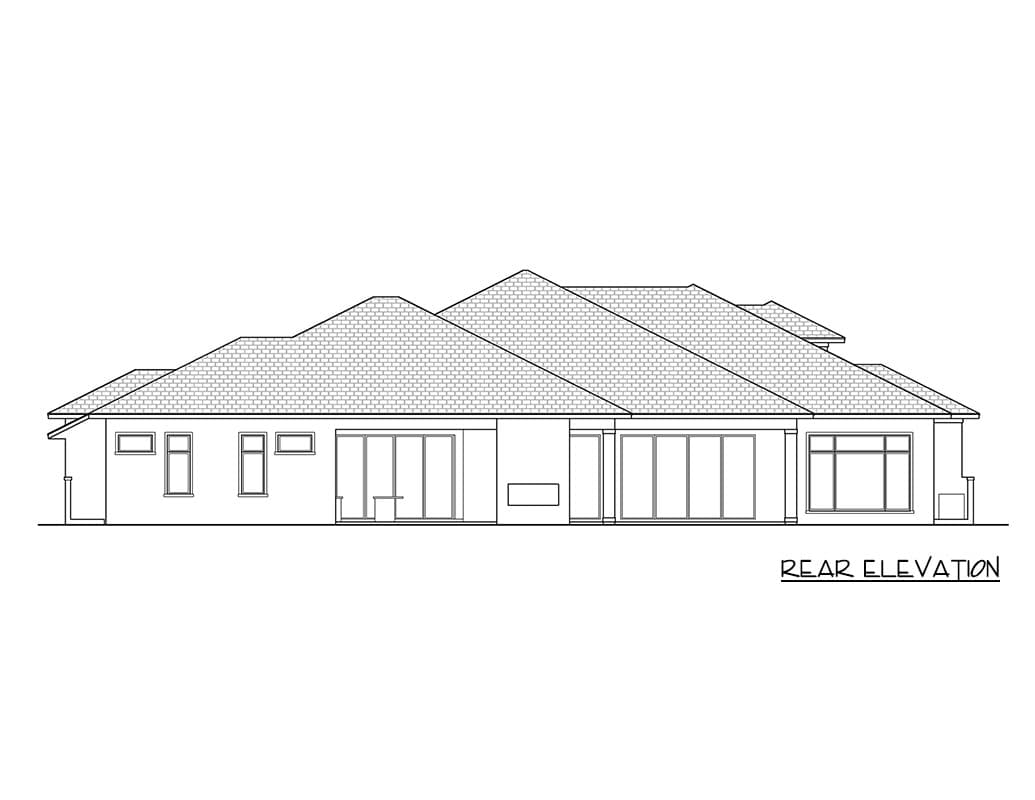

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
