Plan 66318WE

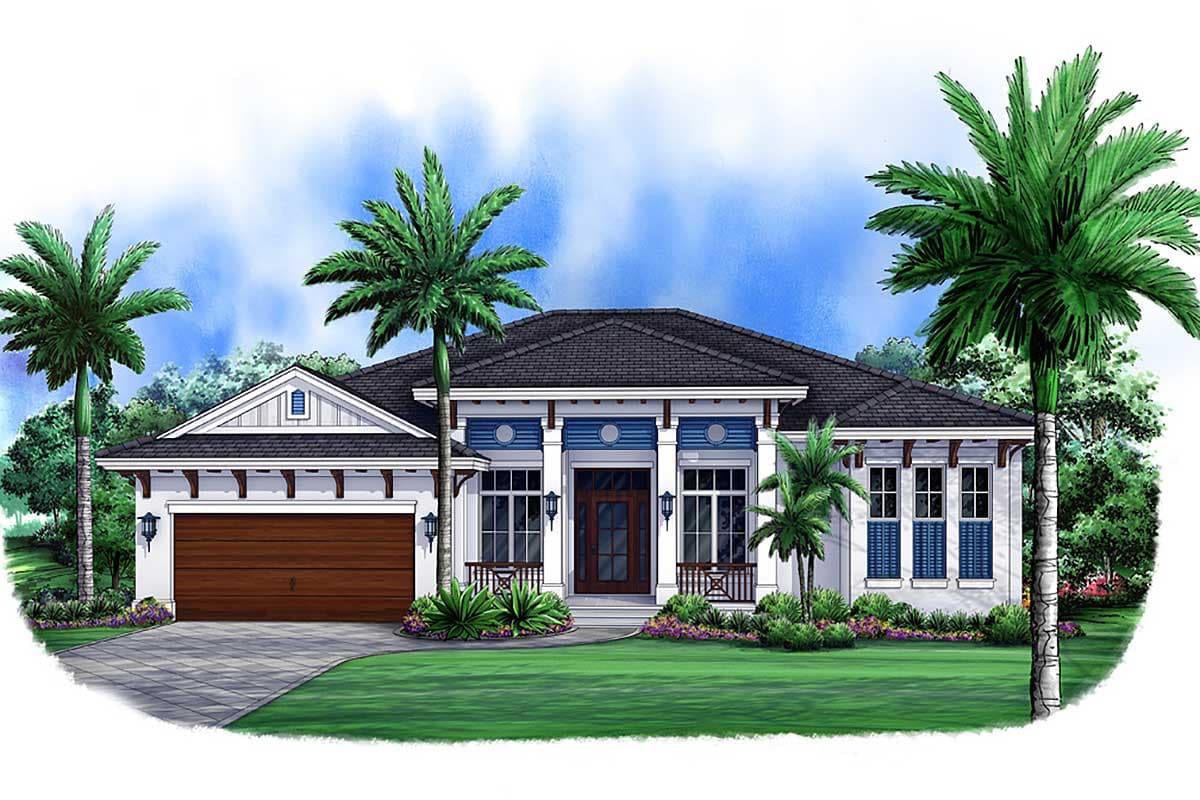

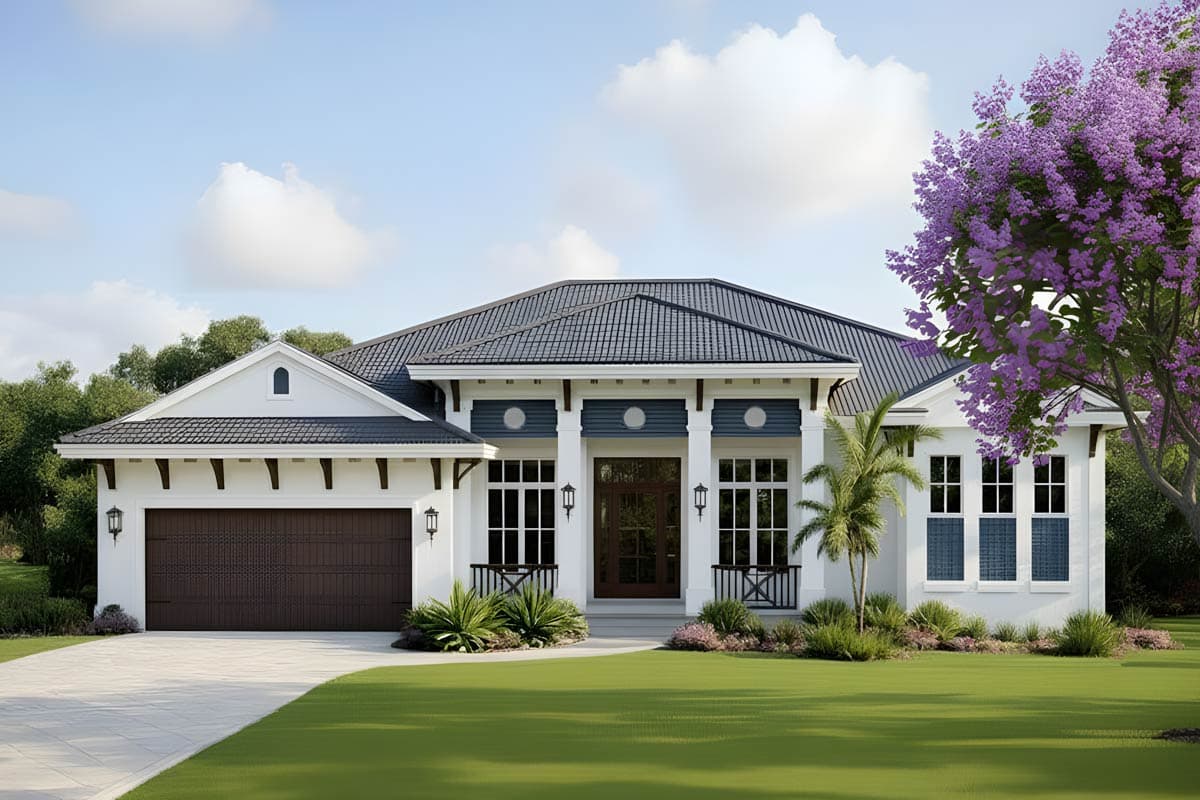

Coastal Contemporary House Plan with Lanai and Split Bedrooms

Heated S.F.
2,526
Beds
3
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 66318WE

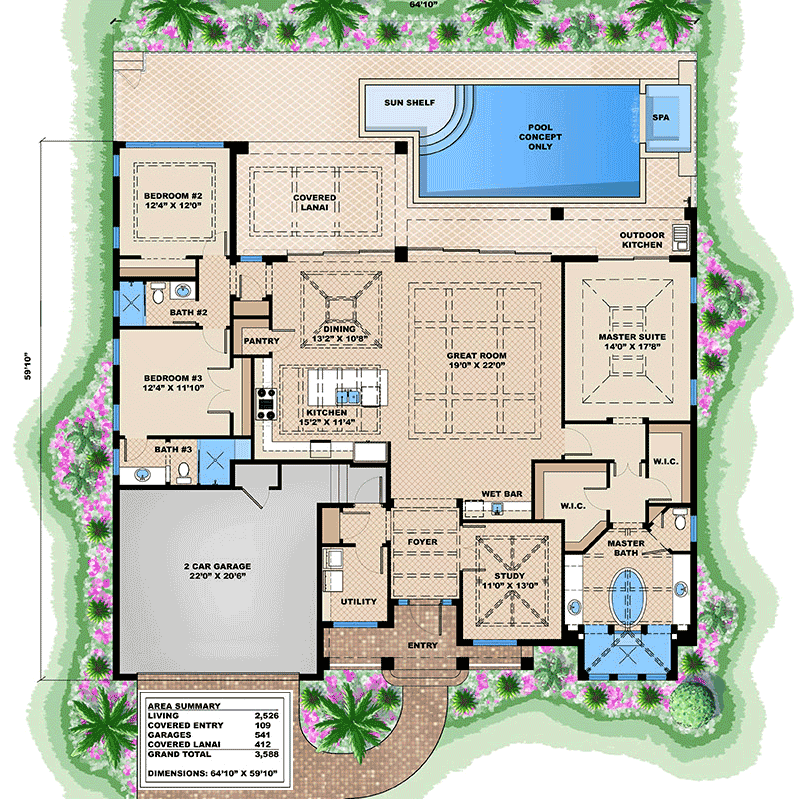

Main Level
Main Level

Plan 66318WE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 66318WE: Coastal Contemporary House Plan with Lanai and Split Bedrooms - Floor Plan - Main Level - Coastal Contemporary, Florida-Style, Southern

Plan Details

  • This 2,526 sq. ft. Coastal Contemporary house plan offers three bedrooms and three full bathrooms, complemented by an attached 541 sq. ft. two-car garage, all presented in a sophisticated Southern Florida-style aesthetic.
  • Stepping through the grand front entry, you are greeted by a coffered 12-foot foyer that immediately opens into an expansive, open-concept layout. A dedicated library or study provides a serene space for work or quiet contemplation, positioned thoughtfully near the entry.
  • The heart of the home features a spectacular great room and a gourmet kitchen, both boasting impressive 12-foot coffered ceilings, designed for seamless flow and effortless living. A convenient wet bar enhances entertaining, while a practical mudroom and main-level laundry ensure daily functionality.
  • The primary suite, a luxurious retreat on the first floor, offers privacy and comfort. Its split bedroom design places secondary bedrooms on the opposite side of the home, providing quiet sanctuaries for family or guests.
  • Embrace outdoor living with a generous 412 sq. ft. lanai, perfect for enjoying the coastal breeze. This space is thoughtfully designed to accommodate an outdoor kitchen, making al fresco dining and entertaining a delightful reality.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,526 sq. ft.

1st Floor

2,526 sq. ft.

Entry

109 sq. ft.

Lanai

412 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

64' 10"

Depth

59' 10"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

541 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Lanai

12' 0''

Bedroom 2

Coffered

10' 0''

Bedroom 3

10' 0''

Foyer

Coffered

12' 0''

Kitchen

Coffered

12' 0''

Great Room

Coffered

12' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Florida-Style

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Wet Bar
