Plan 31501GF

Coastal Duplex with Porches

Heated S.F.
4,436
Units
2
Width
Depth

Floor Plan

Plan 31501GF

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 31501GF

M-F 9am-5pm EST |

1-203-761-8500

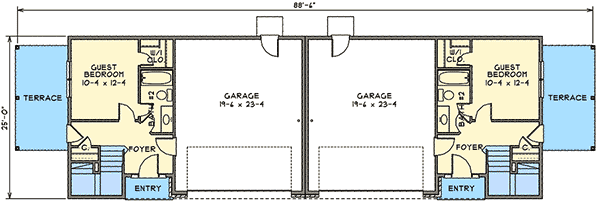

Main Level

Plan 31501GF: Coastal Duplex with Porches - Floor Plan - Main Level

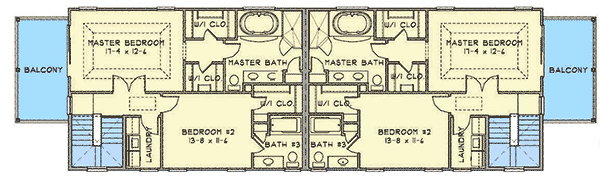

2nd Floor

Plan 31501GF: Coastal Duplex with Porches - Floor Plan - 2nd Floor

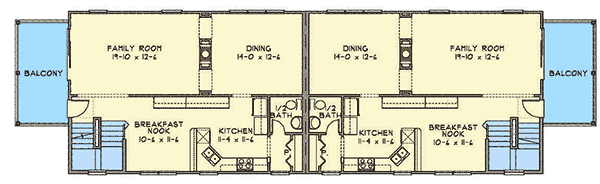

3rd Floor

Plan 31501GF: Coastal Duplex with Porches - Floor Plan - 3rd Floor

Plan Details

  • This coastal duplex house plan has a shingle exterior and porches on each end giving it great curb appeal.
  • Each unit has 2,218 square feet of living divided as follows: 386 square feet on the ground floor and 916 square feet on both the second and third floors.
  • Stairs are contained in the tower-like features on each end. Both units have great outdoor space on all levels.
  • Each unit has a 496 square foot 2 car garage.
Unit A
Heated Area
2,218Sq. Ft.
386 Sq. Ft. LL
916 Sq. Ft. 1st
916 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
1Half Bath
Cars
Drive Under
496 Sq. Ft.
Dimensions
25'width
73'depth
35'height
Unfinished Areas
496 Sq. Ft. Garage
Unit B
Heated Area
2,218Sq. Ft.
386 Sq. Ft. LL
916 Sq. Ft. 1st
916 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
1Half Bath
Cars
Drive Under
496 Sq. Ft.
Dimensions
25'width
73'depth
35'height
Unfinished Areas
496 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,436 sq. ft.

Lower Level

772 sq. ft.

1st Floor

1,832 sq. ft.

2nd Floor

1,832 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 6"

Depth

25' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

992 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Special Features

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,436 sq. ft.

Lower Level

772 sq. ft.

1st Floor

1,832 sq. ft.

2nd Floor

1,832 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 6"

Depth

25' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

992 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Special Features

Master Suite - Sitting Area

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Photo Gallery
