Plan 65656BS Coastal European House Plan with Large Outdoor Living Area and Elevator

Coastal European House Plan with Large Outdoor Living Area and Elevator

Plan 65656BS

  • 4,799

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A grand open-concept living area that flows onto the outdoor living space makes this Coastal European house plan ideal for entertaining.
  • The open and airy kitchen hosts a large island and a walk-in pantry that serves as a second kitchen, while spacious service areas can accommodate even the most active families.
  • A library and study frame the foyer and lend quieter spaces to enjoy.
  • The master bedroom occupies the left side of the main level and includes two walk-in closets and a freestanding tub in front of an oversized shower in the ensuite.
  • Each of the second-level bedrooms offer access to a balcony, and a generous bonus room can be enjoyed by all.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

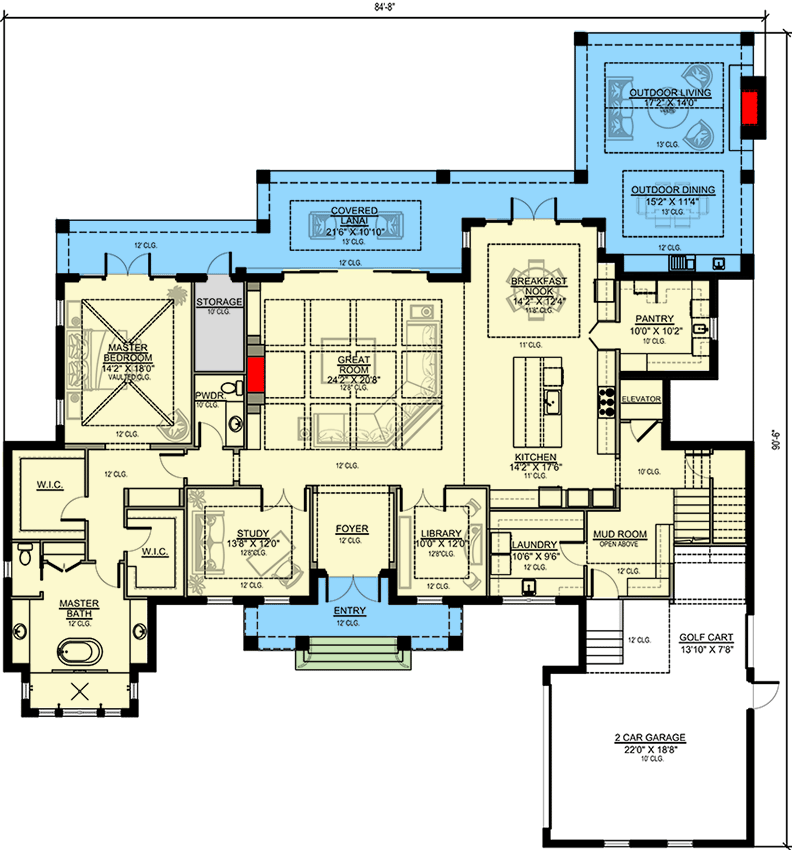

Coastal European House Plan with Large Outdoor Living Area and Elevator - 65656BS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

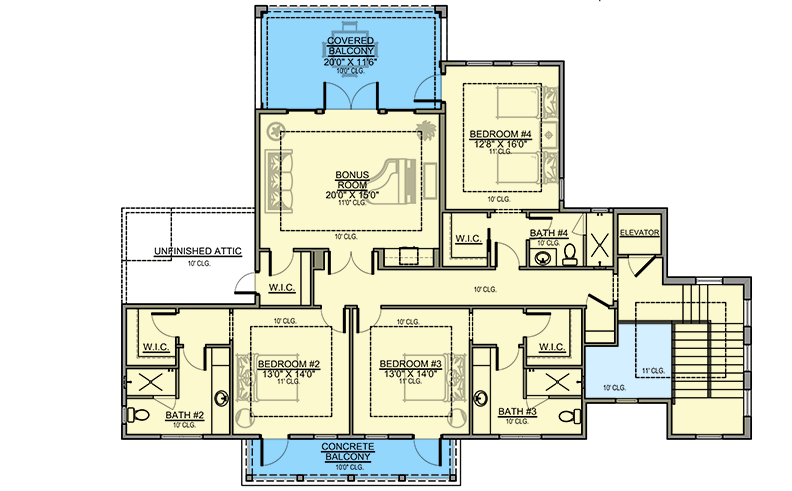

Coastal European House Plan with Large Outdoor Living Area and Elevator - 65656BS floor plan - 2nd Floor

Plan details

Coastal European House Plan with Large Outdoor Living Area and Elevator

  • 4,799

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,320
  • PDF - Single-Build $4,320
  • View all purchase option online

About This Plan

  • A grand open-concept living area that flows onto the outdoor living space makes this Coastal European house plan ideal for entertaining.
  • The open and airy kitchen hosts a large island and a walk-in pantry that serves as a second kitchen, while spacious service areas can accommodate even the most active families.
  • A library and study frame the foyer and lend quieter spaces to enjoy.
  • The master bedroom occupies the left side of the main level and includes two walk-in closets and a freestanding tub in front of an oversized shower in the ensuite.
  • Each of the second-level bedrooms offer access to a balcony, and a generous bonus room can be enjoyed by all.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,799 sq. ft.
  • 1st Floor: 3,041 sq. ft.
  • 2nd Floor: 1,758 sq. ft.
  • Lanai: 980 sq. ft.
  • Balcony / Veranda: 368 sq. ft.
  • Entry: 150 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 84' 8"
  • Depth: 90' 6"
  • Max ridge height: 33' 3"

Garage

  • Type: Attached
  • Area: 666 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
