Plan 62793DJ
Coastal Living Home Plan with Lookout Tower
Heated S.F.
1,924
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

  • Live out your coastal dreams with this coastal house plan complete with its own lookout tower.
  • Once you step inside this amazing coastal home, you'll find a well thought out open floor plan on the main level that includes a dining room at the base of the lookout tower. The home's kitchen includes a large kitchen island and a walk-in pantry. The family room is warmed by a fireplace and has great ocean views through 3 large windows.
  • On the second floor, you will find 3 bedrooms. The master suite includes his/her vanities and a walk-in closet. Bedrooms 2 and 3 share a jack and jill bathroom. Just a short walk up the spiral staircase and you'll be enjoying the amazing views in the lookout tower.
  • Back on the main level, the home includes a 2 car detached garage that has a fish cleaning station on the rear.

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

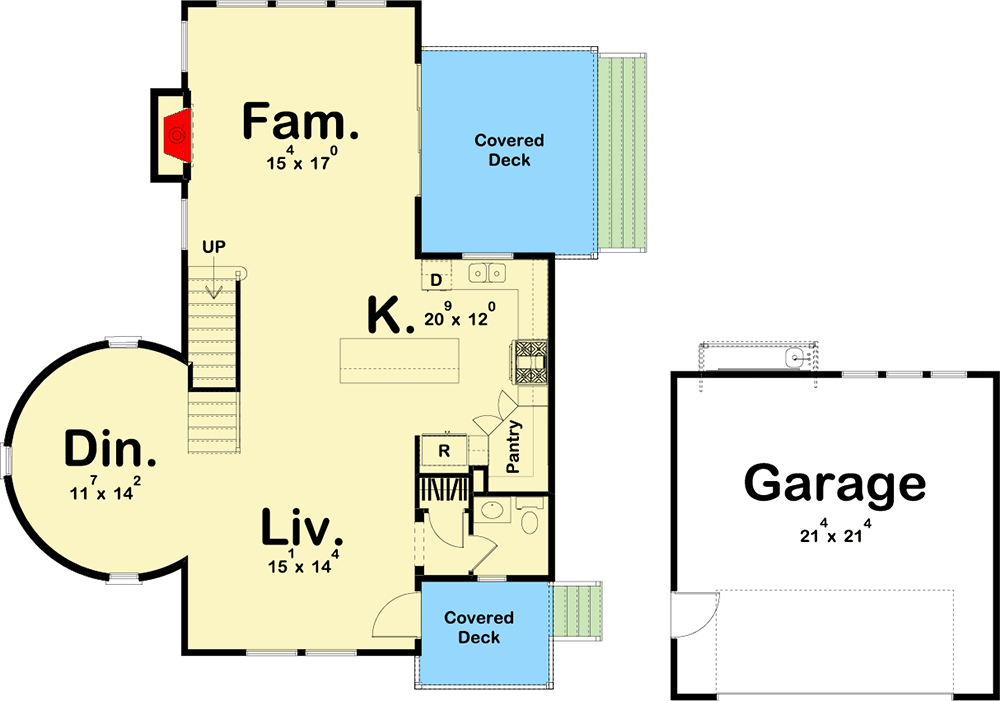

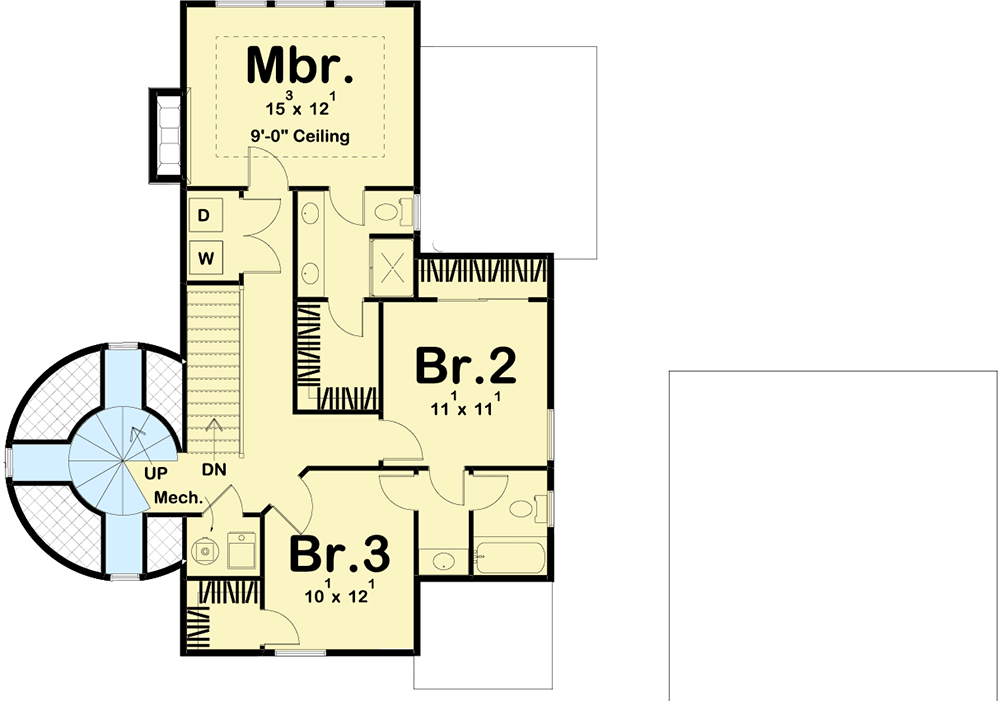

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Coastal Living Home Plan with Lookout Tower

  • 1,924

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,924 sq. ft.
  • 1st Floor: 1,063 sq. ft.
  • 2nd Floor: 861 sq. ft.

Dimensions

  • Width: 67' 0"
  • Depth: 47' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
