Coastal Shingle Style House Plan with Apartment Option

Heated S.F.
3,099
Beds
3 - 5
Baths
3.5 - 4.5
Stories
2
Cars
2
Client Photos

Floor Plan

Plan 654000KNA

Main Level
Main Level
2nd Floor
2nd Floor
Optional First Floor Bay Window (included)
Optional First Floor Bay Window (included)
Optional Second Floor (included)
Optional Second Floor (included)
Optional Lower Level Layout (+$ Paid Option)
Optional Lower Level Layout (+$ Paid Option)

Plan 654000KNA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

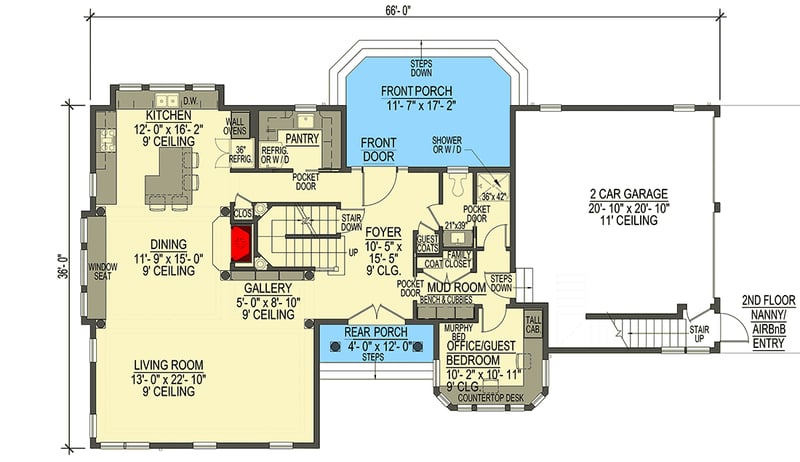

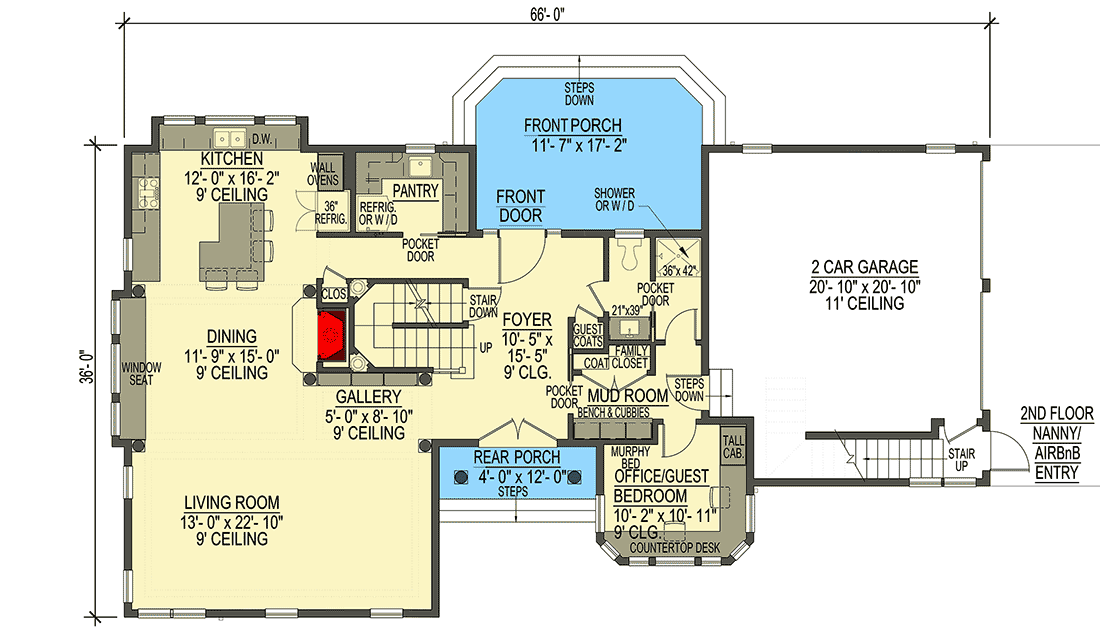

Plan 654000KNA: Coastal Shingle Style House Plan with Apartment Option - Floor Plan - Main Level - Coastal, Shingle

2nd Floor

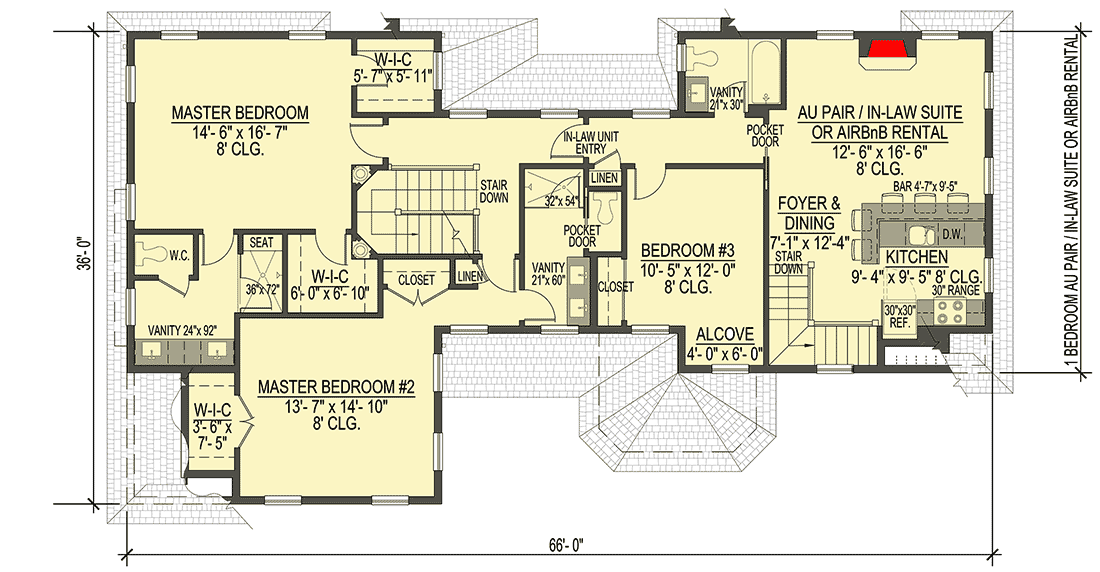

Plan 654000KNA: Coastal Shingle Style House Plan with Apartment Option - Floor Plan - 2nd Floor - Coastal, Shingle

Optional First Floor Bay Window (included)

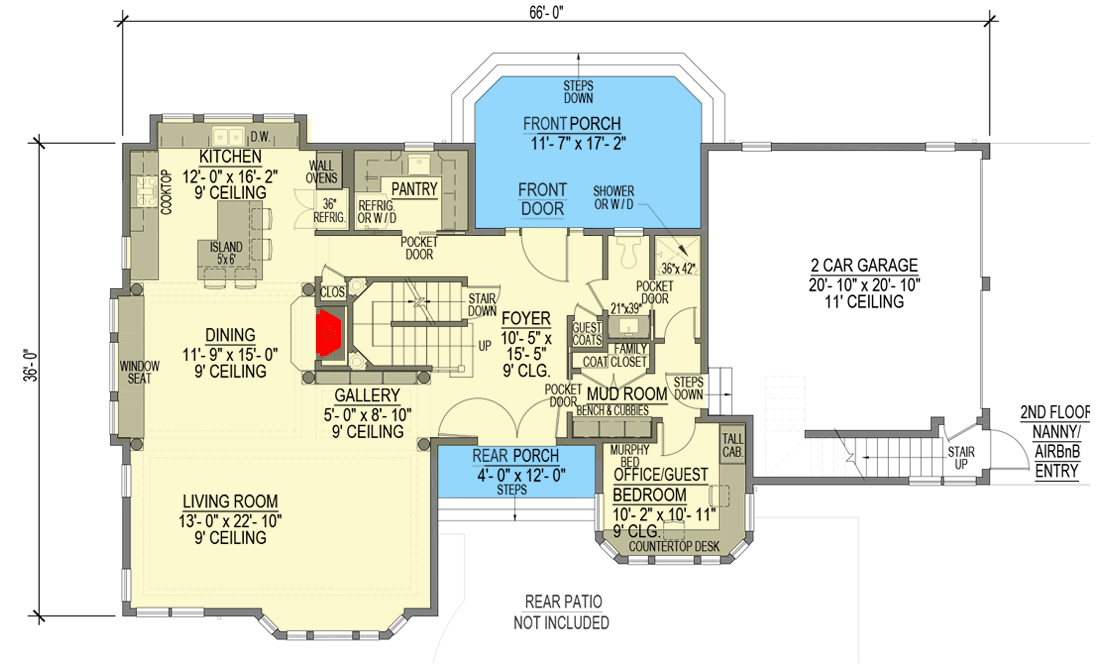

Plan 654000KNA: Coastal Shingle Style House Plan with Apartment Option - Floor Plan - Optional First Floor Bay Window (included) - Coastal, Shingle

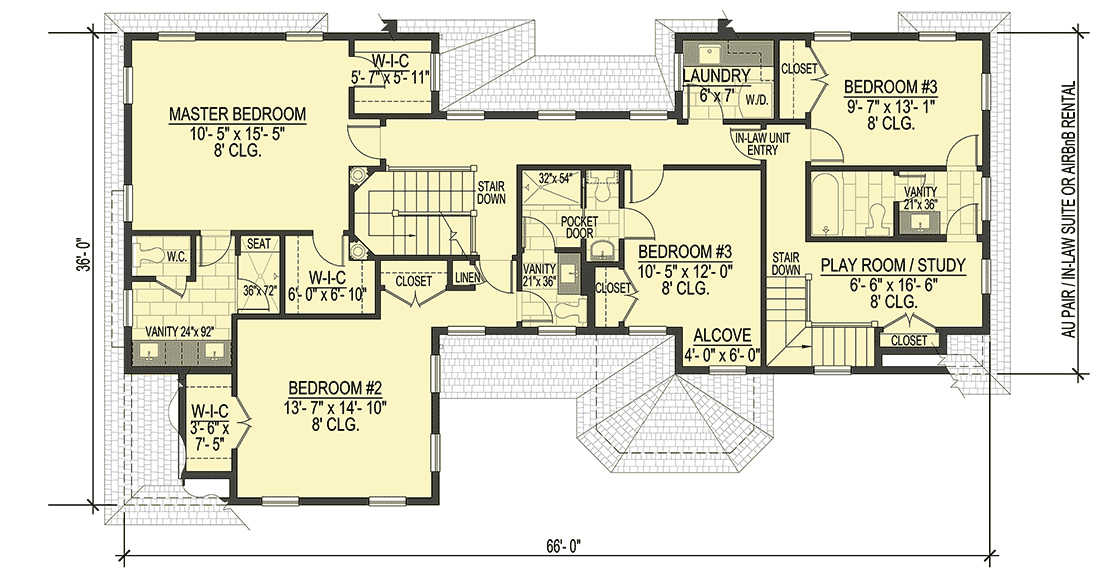

Optional Second Floor (included)

Plan 654000KNA: Coastal Shingle Style House Plan with Apartment Option - Floor Plan - Optional Second Floor (included) - Coastal, Shingle

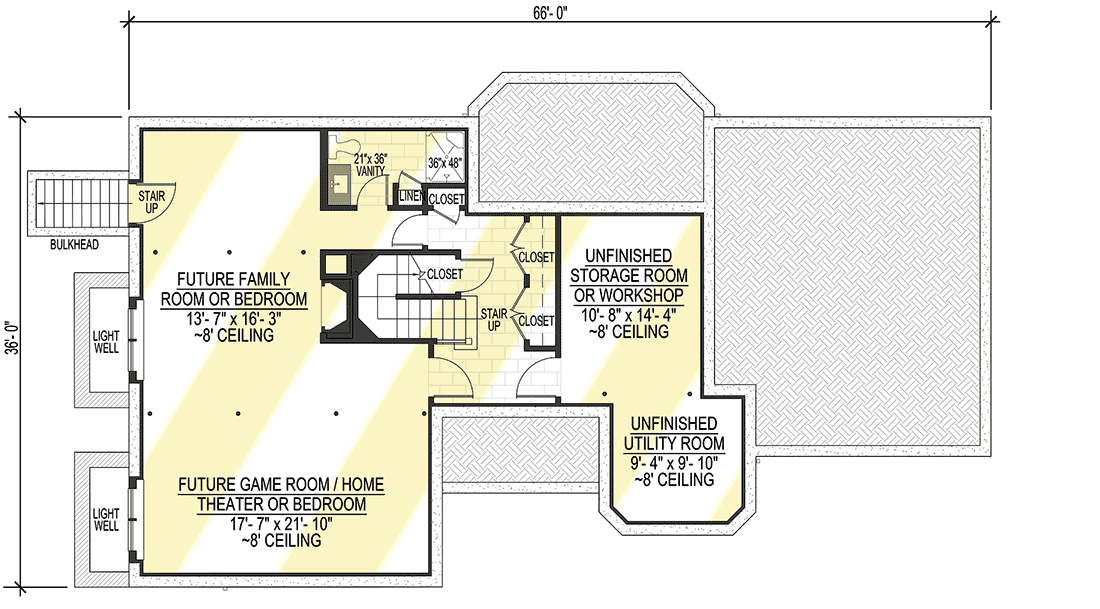

Optional Lower Level Layout (+$ Paid Option)

Plan 654000KNA: Coastal Shingle Style House Plan with Apartment Option - Floor Plan - Optional Lower Level Layout (+$ Paid Option) - Coastal, Shingle

Plan Details

  • Designed to take advantage of water views to the back, this shingle-style house plan gives you the flexibility of having two separate, second-floor layouts: one with a playroom, and the other with an apartment layout.
  • Enjoy rearward views from the living room, which opens to the dining area and kitchen. A built-in window seat and fireplace add character to the open floor plan, and the spacious kitchen provides plenty of workspace.
  • A built-in bench and cubbies are located across from a coat closet in the mudroom, just steps away from the 2-car garage, and neighboring a home office, or guest bedroom.
  • Both of the second-level, master bedrooms include a 4-fixture bath and 2 closets. Finish the second level with an au pair / in-law / short-term rental space that includes a kitchen, bedroom, and living area, or choose to utilize the space for 2 additional bedrooms and playroom.
  • The unfinished basement totals 1,338 sq. ft. -  upgrade your purchase with the Lower Level Layout option to get a floor plan layout to finish the space with a game room/home theater, family room, and workshop.
