Plan 42395DB

Colonial House Plan with Bonus Space

2,050 3 2.5 2 2
Print
Compare
...

Colonial House Plan with Bonus Space

Plan 42395DB

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The T-shaped open floor plan of this Colonial house plan gives you wide sight lines that make the space feel much larger.
  • Need some alone time?  Escape to the quiet study off the foyer.
  • A large master bedroom lies up on the second floor and offers a private bathroom with two sinks and  a generous walk-in closet with his and her sections.
  • Bonus space at the end of the hall adds an extra 192 square feet of living space.
  • Related Plan: Get a different exterior with house plan 42396DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

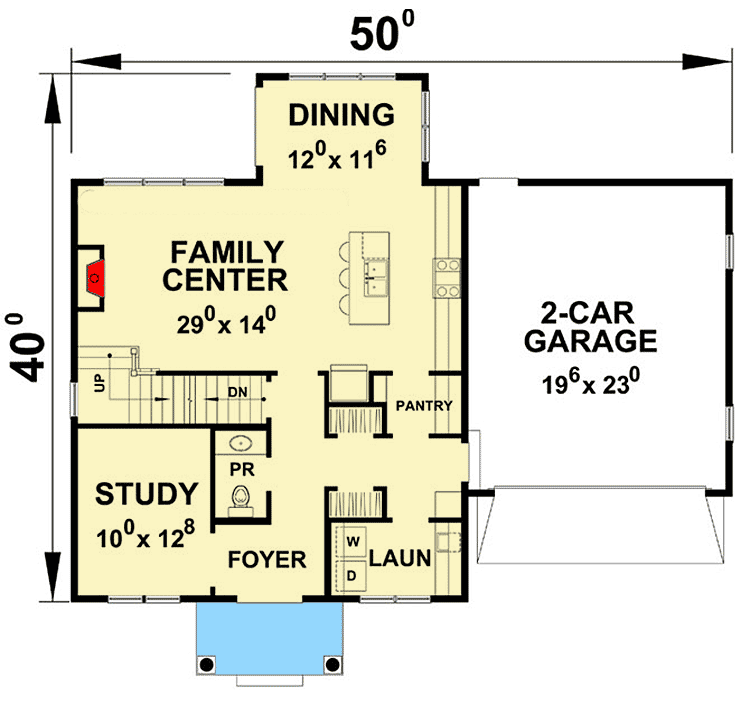

Main Level

Reverse Floor Plan
Colonial House Plan with Bonus Space - 42395DB floor plan - Main Level

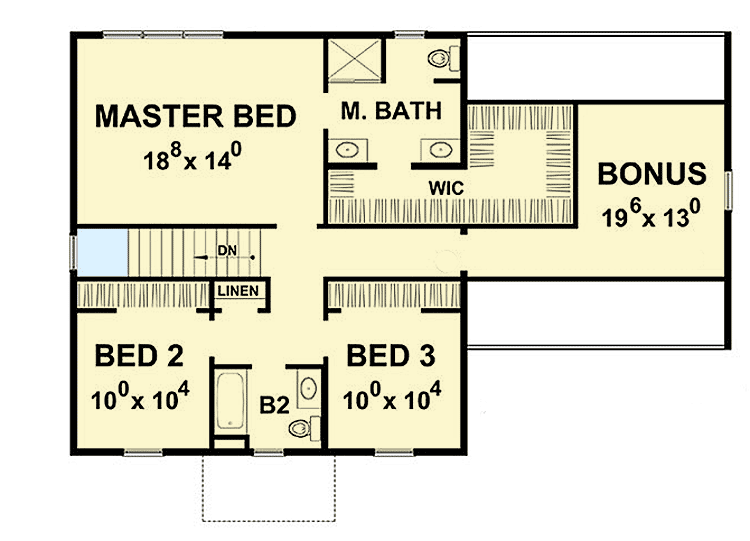

2nd Floor

Reverse Floor Plan
Colonial House Plan with Bonus Space - 42395DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,050 sq. ft.
  • 1st Floor: 1,064 sq. ft.
  • 2nd Floor: 986 sq. ft.
  • Bonus: 192 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

Special features



Colonial House Plan with Bonus Space

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $650
  • PDF - single-use $985
  • 4 Sets $1,060
  • 5 Sets $1,110
  • 5 Sets PLUS $1,155
  • 8 Sets $1,180
  • PDF - multi-use $1,485
  • CAD $1,724
  • CAD - multi-use $2,224
  • View all purchase option online

About This Plan

  • The T-shaped open floor plan of this Colonial house plan gives you wide sight lines that make the space feel much larger.
  • Need some alone time?  Escape to the quiet study off the foyer.
  • A large master bedroom lies up on the second floor and offers a private bathroom with two sinks and  a generous walk-in closet with his and her sections.
  • Bonus space at the end of the hall adds an extra 192 square feet of living space.
  • Related Plan: Get a different exterior with house plan 42396DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,050 sq. ft.
  • 1st Floor: 1,064 sq. ft.
  • 2nd Floor: 986 sq. ft.
  • Bonus: 192 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Plan 42395DB
View this and more for this plan by visiting www.architechtecturaldesigns.com/42395DB
|
