Plan 29859RL Colonial Style Garage Apartment

760 1 1 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Colonial Style Garage Apartment

Plan 29859RL

  • 760

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

  • We took the garage that is attached to plan 29832RL and made it its own plan. And we like the results.

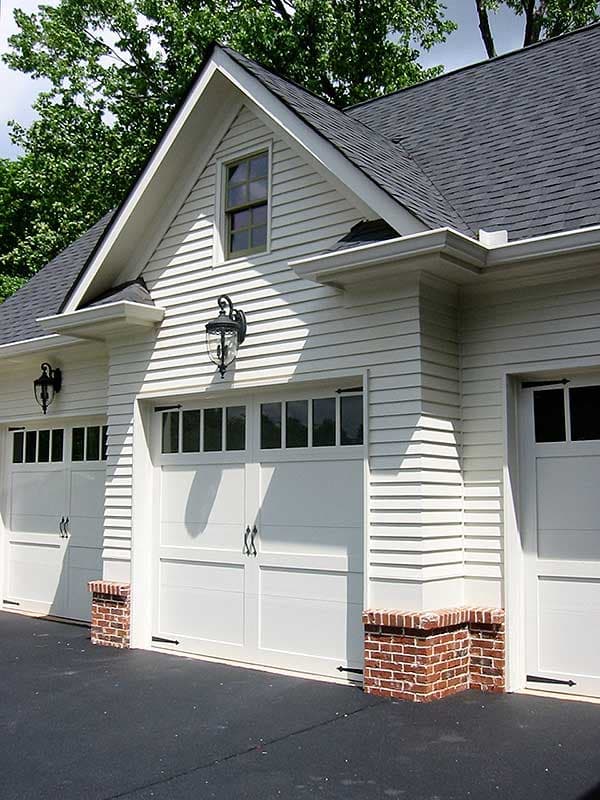

  • This traditional design has 3 bays and a Colonial style elevation. Each bay has a 9 foot wide garage door and the middle bay exceeds 23 feet in depth.
  • Upstairs, the guest house is bright and welcoming with a full kitchen that is open to the great room.
  • The bedroom has a full bath and walk-in closet.
  • The garage level has a 9 foot wall height and the guest house upstairs has an 8 foot wall height.
  • Related Plan: See the house that this originally came from with house plan 29832RL.

Each plan set includes the following:

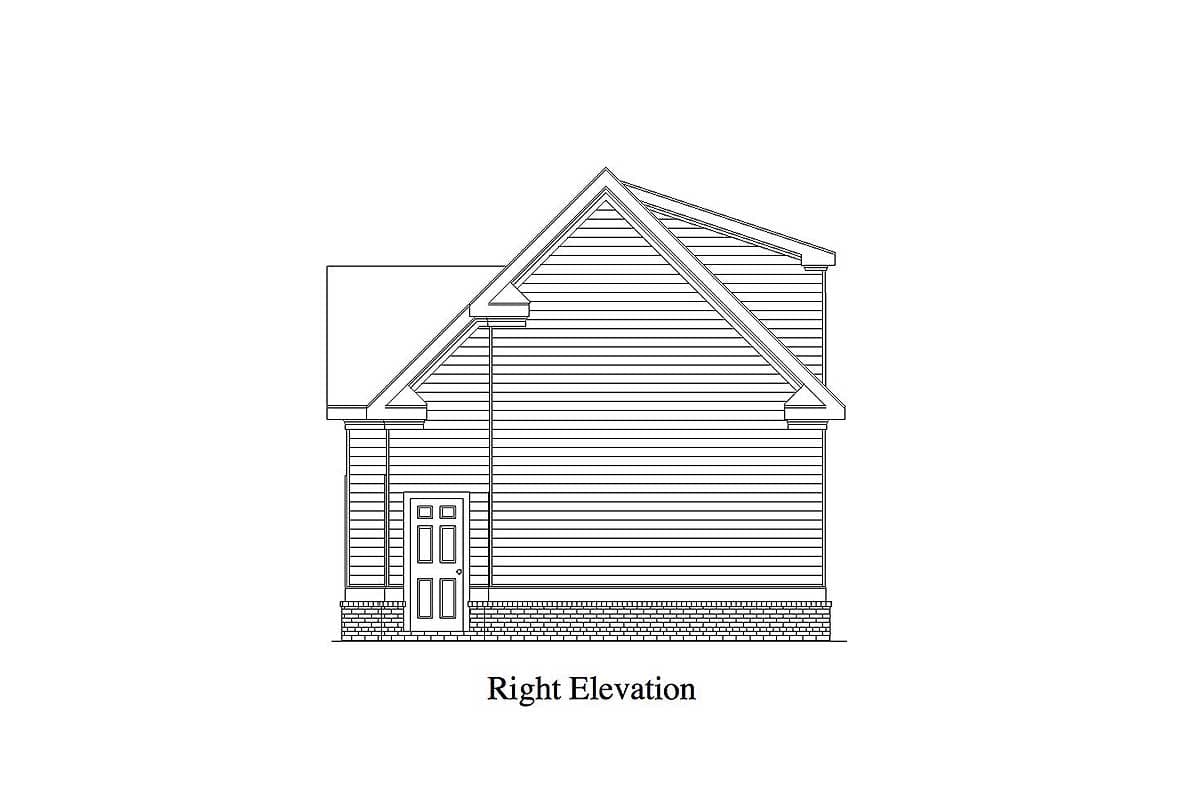

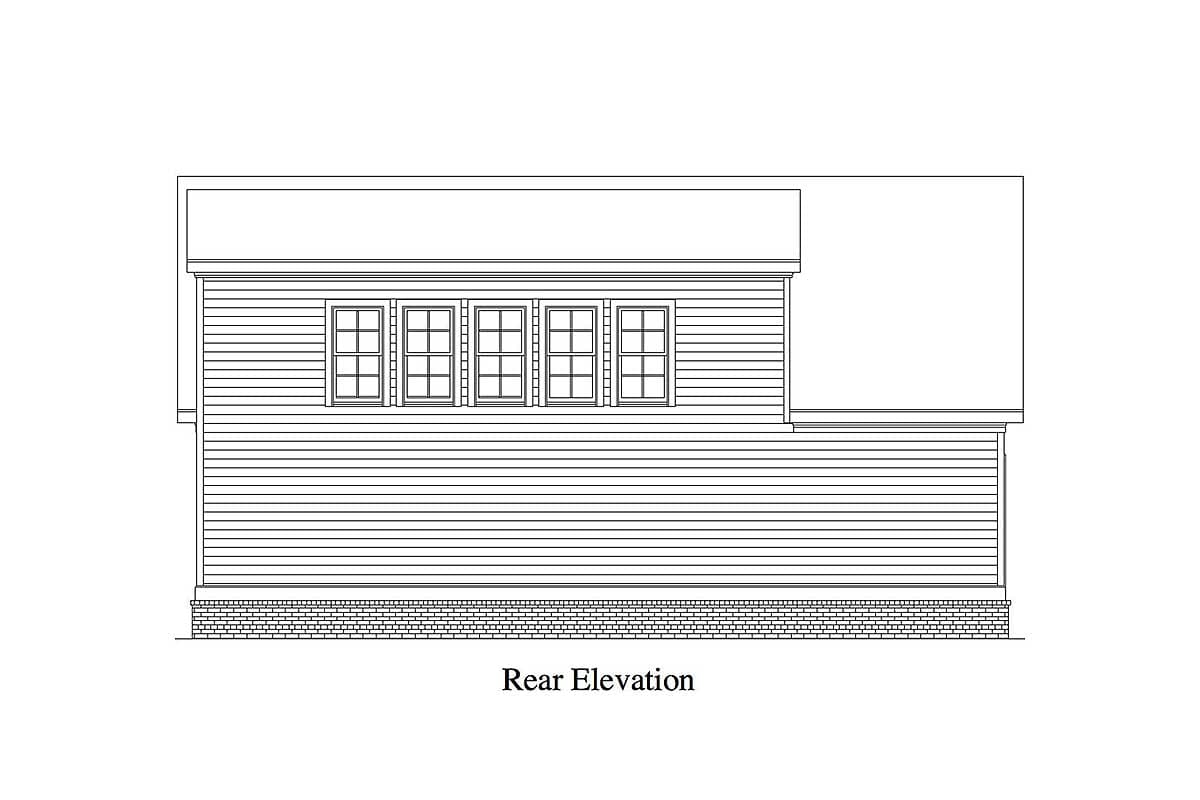

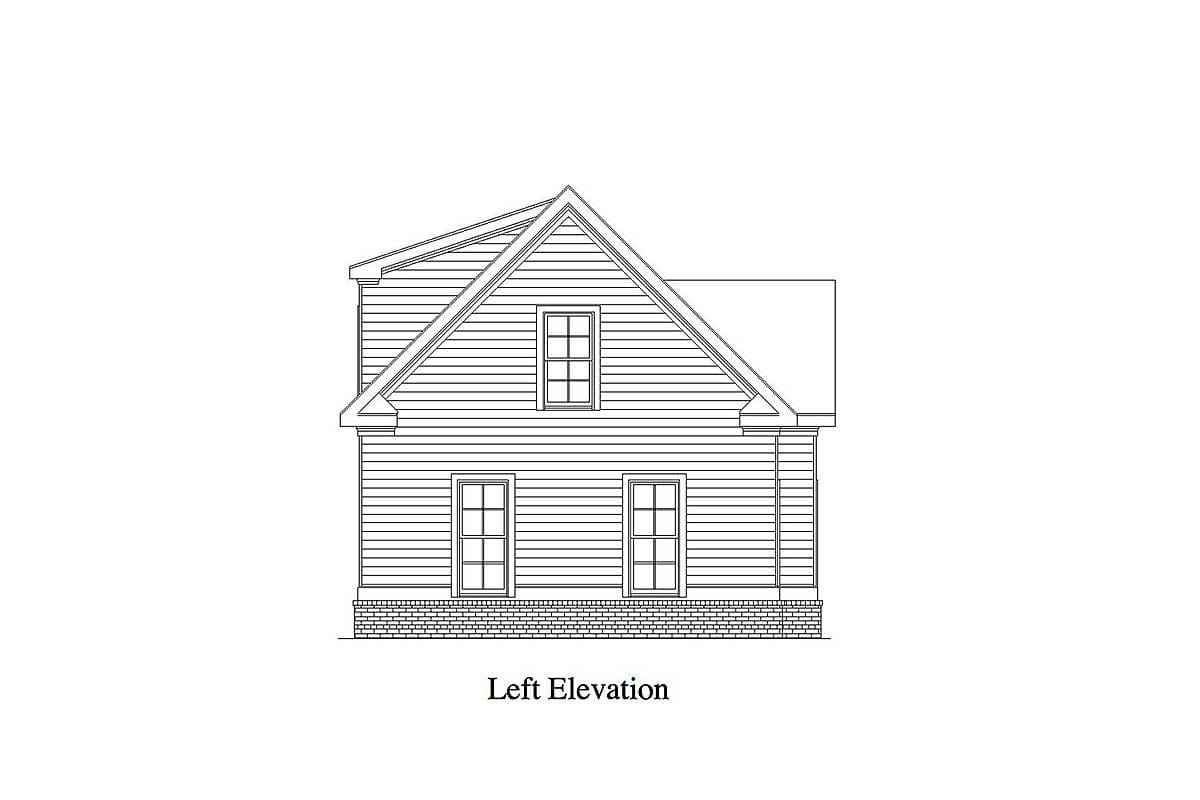

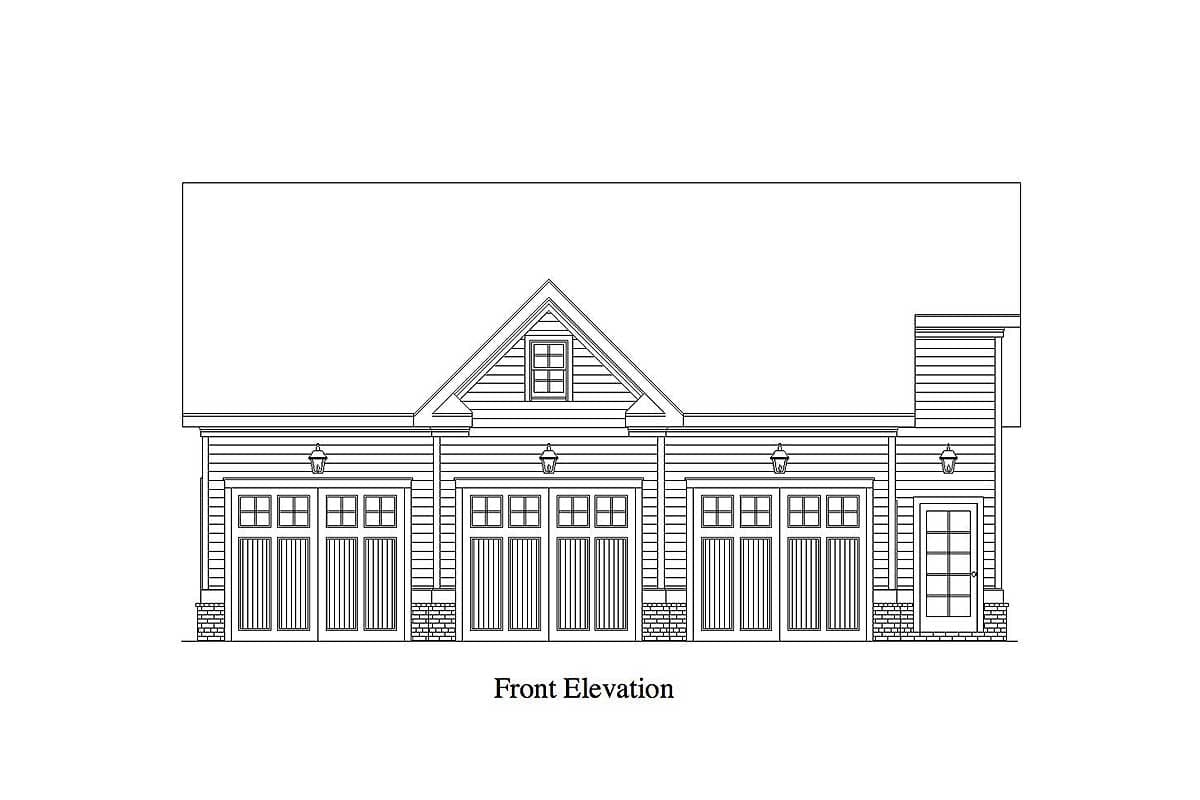

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

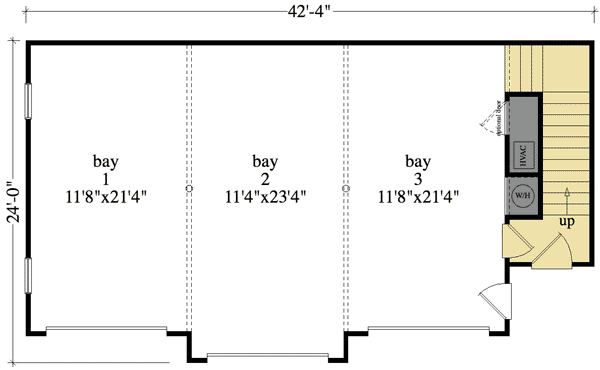

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Colonial Style Garage Apartment - 29859RL floor plan - Main Level

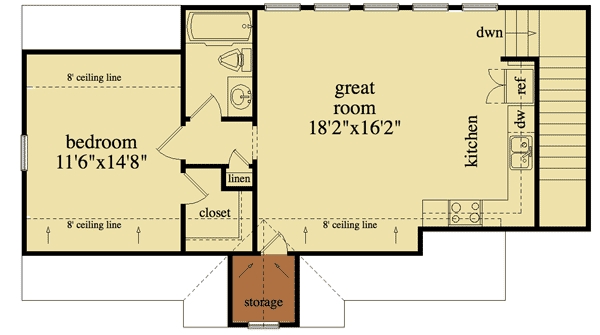

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Colonial Style Garage Apartment - 29859RL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 760 sq. ft.
  • 1st Floor: 88 sq. ft.
  • 2nd Floor: 672 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 4"
  • Depth: 24' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Detached
  • Area: 763 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Colonial Style Garage Apartment

  • 760

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $500
  • 5 Sets + PDF $650
  • PDF - Unlimited Build $800
  • CAD - Single-Build $1,000
  • View all purchase option online

About This Plan

  • We took the garage that is attached to plan 29832RL and made it its own plan. And we like the results.
  • This traditional design has 3 bays and a Colonial style elevation. Each bay has a 9 foot wide garage door and the middle bay exceeds 23 feet in depth.
  • Upstairs, the guest house is bright and welcoming with a full kitchen that is open to the great room.
  • The bedroom has a full bath and walk-in closet.
  • The garage level has a 9 foot wall height and the guest house upstairs has an 8 foot wall height.
  • Related Plan: See the house that this originally came from with house plan 29832RL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 760 sq. ft.
  • 1st Floor: 88 sq. ft.
  • 2nd Floor: 672 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 4"
  • Depth: 24' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Detached
  • Area: 763 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
Plan 29859RL
