Plan 3933ST
Color and Texture
Heated S.F.
2,904
Beds
3-4
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Plan Details
  • The combination brick and stone material add color and texture to the exterior of this beautiful one level home.
  • The open Foyer boasts an 11' ceiling height and offers views to the formal dining room and through the Great Room to the rear covered deck. A beamed ceiling tops the Great Room at a 12' height and a fireplace and built-ins decorate one wall.
  • A breakfast area, sitting area and stylish kitchen create a family center where an angled counter provides seating and is open to the Great Room. A butler's pantry offers convenience for serving to the dining room.
  • Split bedrooms offer privacy to the master bedroom suite where a 10' ceiling height, luxurious dressing area and access to the rear covered deck pampers the homeowner.
  • A library with built-in shelving and angled walls provides an area dedicated for organized work at home.

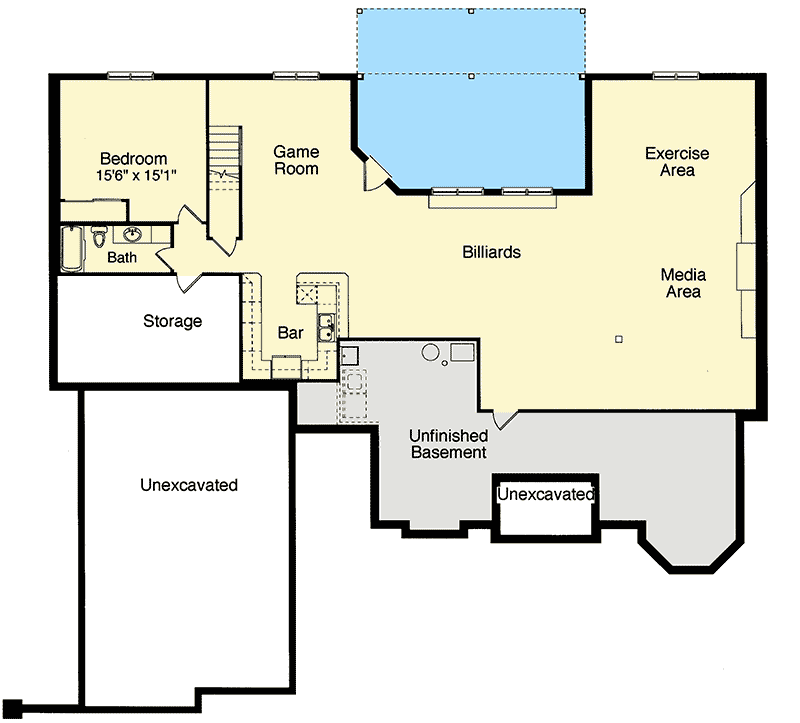

  • The walk-out basement enjoys a 9' ceiling height and shows finished rooms including spacious entertaining area and a fourth bedroom and full bath.
What's Included
  • General notes and specifications

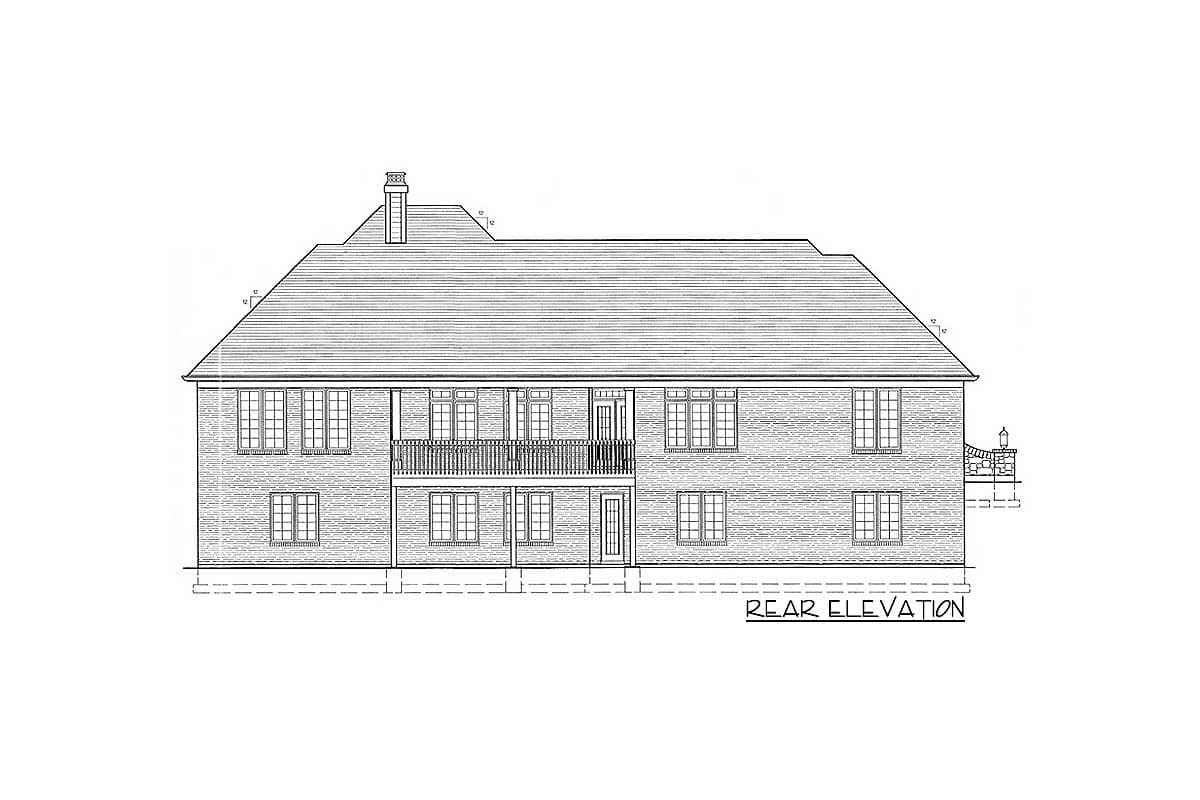

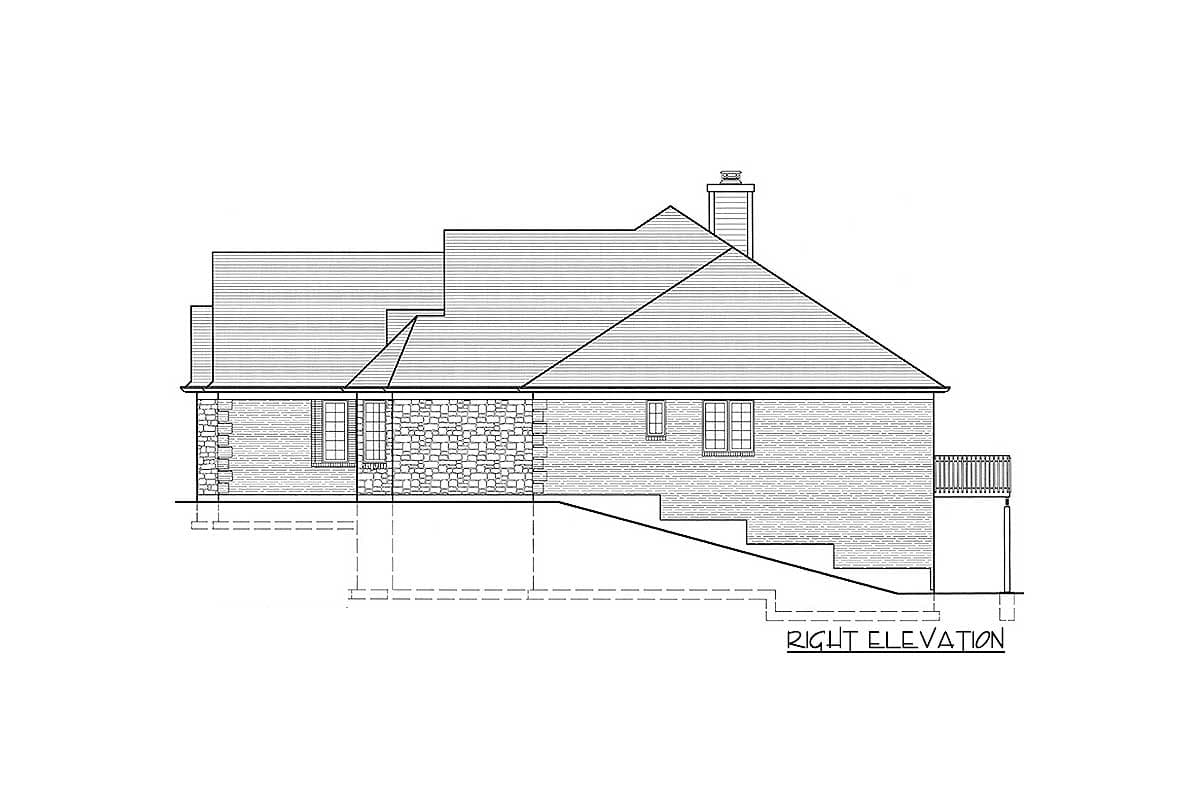

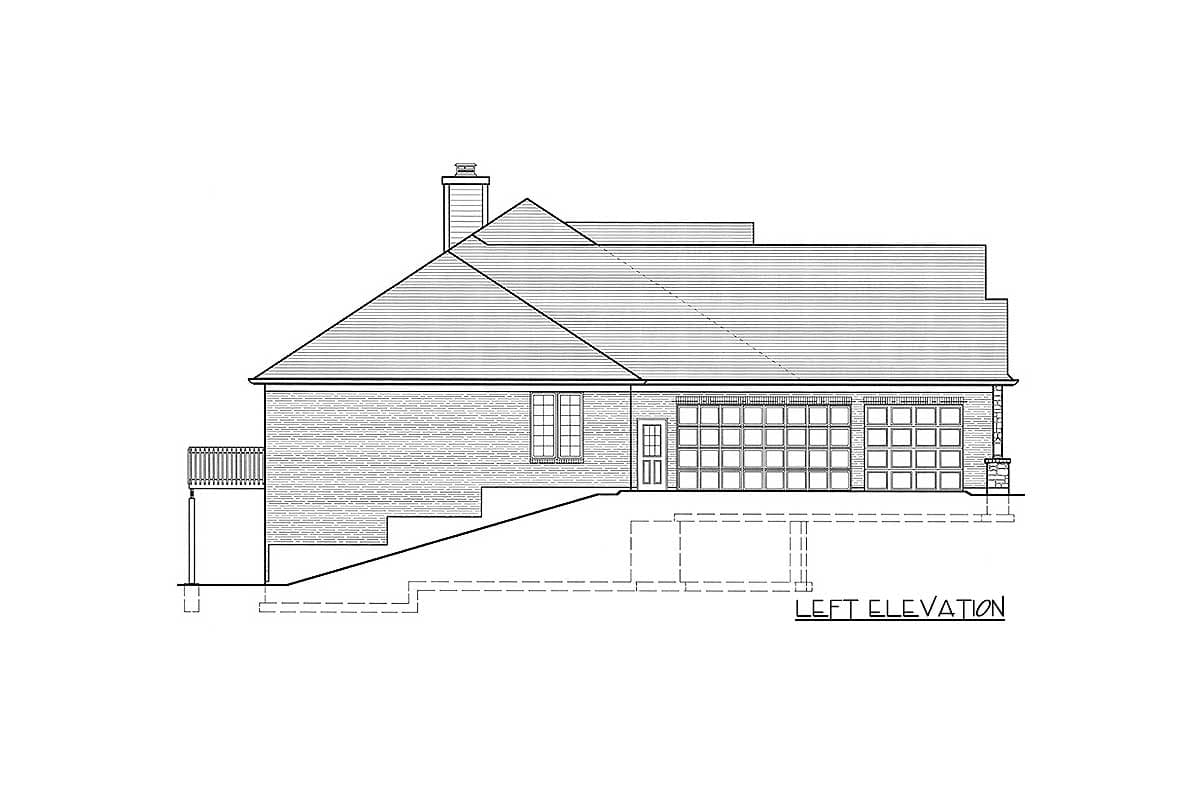

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details

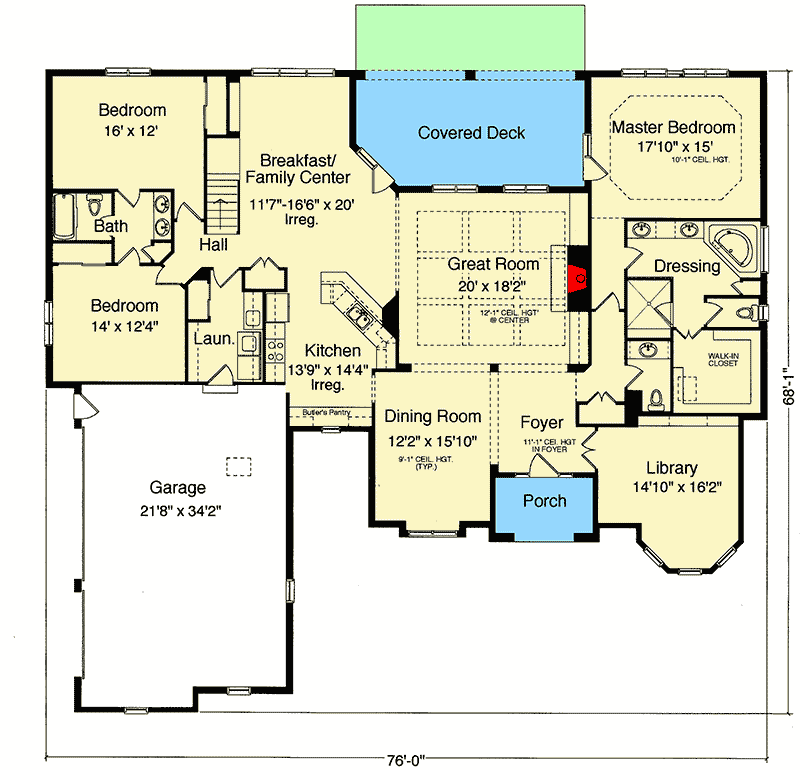

  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Color and Texture

  • 2,904

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,904 sq. ft.
  • 1st Floor: 2,904 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 68' 1"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 728 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
