Comfortable 3 Bed Ranch Home Plan

Plan 62533DJ

  • 1,877

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 Bed Ranch home plan is as beautiful as it is comfortable. With 1,877 square feet of finished living space, your family will enjoy lots of room.
  • The main ceiling height is 9' and the great room bumps up to 10'.
  • Everything is right at your fingertips in the efficient kitchen, including a walk-in pantry.
  • The master bedroom tray ceiling goes from 9' to 10' and the big walk-in closet and private bathroom are added perks.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

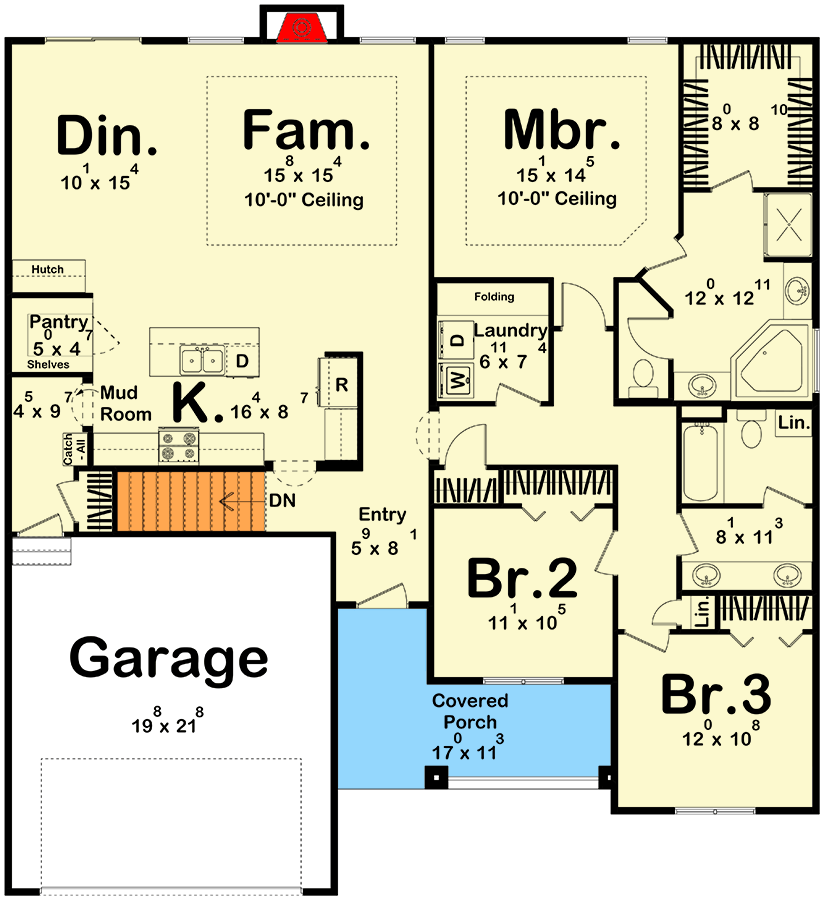

Comfortable 3 Bed Ranch Home Plan - 62533DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,877 sq. ft.
  • 1st Floor: 1,877 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 52' 8"
  • Max ridge height: 25' 1"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Comfortable 3 Bed Ranch Home Plan

  • 1,877

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,600
  • CAD - Single-Build $1,600
  • CAD - Unlimited Build $2,100
  • View all purchase option online

About This Plan

  • This 3 Bed Ranch home plan is as beautiful as it is comfortable. With 1,877 square feet of finished living space, your family will enjoy lots of room.
  • The main ceiling height is 9' and the great room bumps up to 10'.
  • Everything is right at your fingertips in the efficient kitchen, including a walk-in pantry.
  • The master bedroom tray ceiling goes from 9' to 10' and the big walk-in closet and private bathroom are added perks.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,877 sq. ft.
  • 1st Floor: 1,877 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 52' 8"
  • Max ridge height: 25' 1"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
