Plan 42399DB

Comfortable Colonial House Plan

2,050 3 3 2 2
Pageloader

Comfortable Colonial House Plan

Plan 42399DB

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This comfortable Colonial house plan has plenty of room for a study, three bedrooms and a bonus room on the second floor.
  • The open floor plan fits right in with today's lifestyle.
  • Sliding glass doors in the dining area lead out to the backyard.
  • The well-organized mud room area has two closets and a pantry close by the laundry room.
  • On the upper floor, the large master suite has a huge walk-in closet and triple windows to bring in light.
  • The bonus room is yours to do with as you wish.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

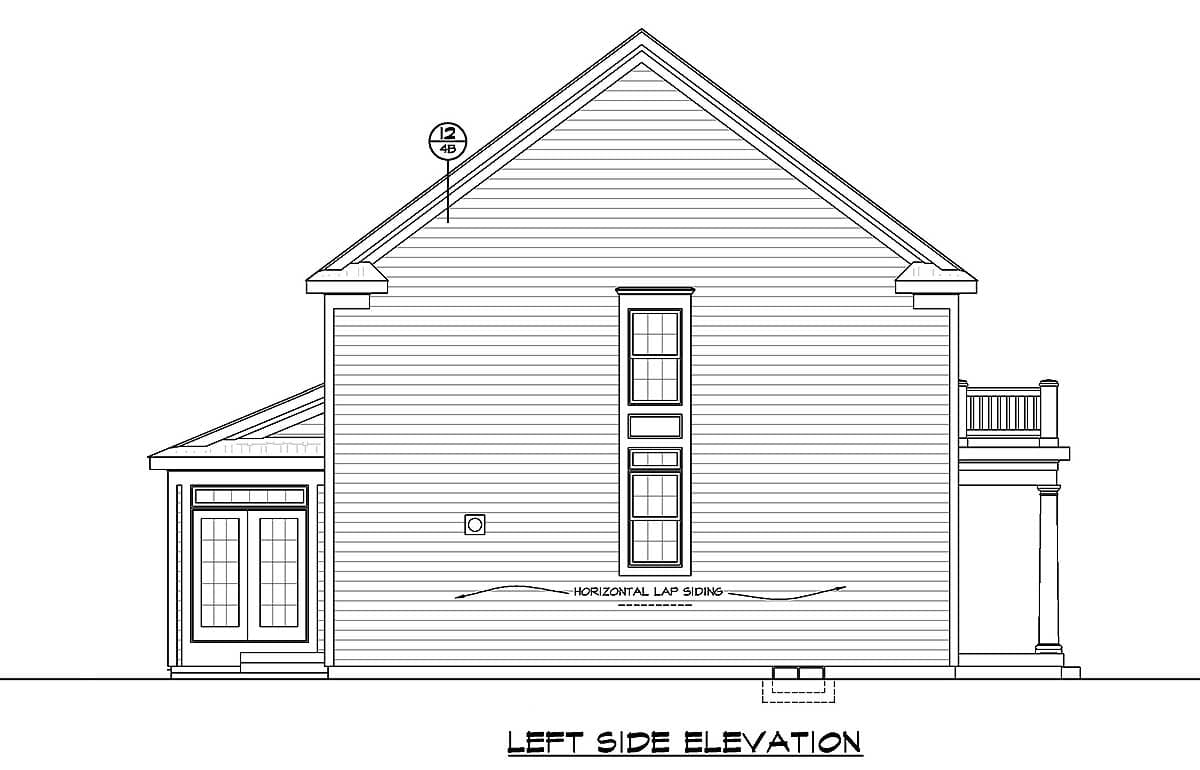

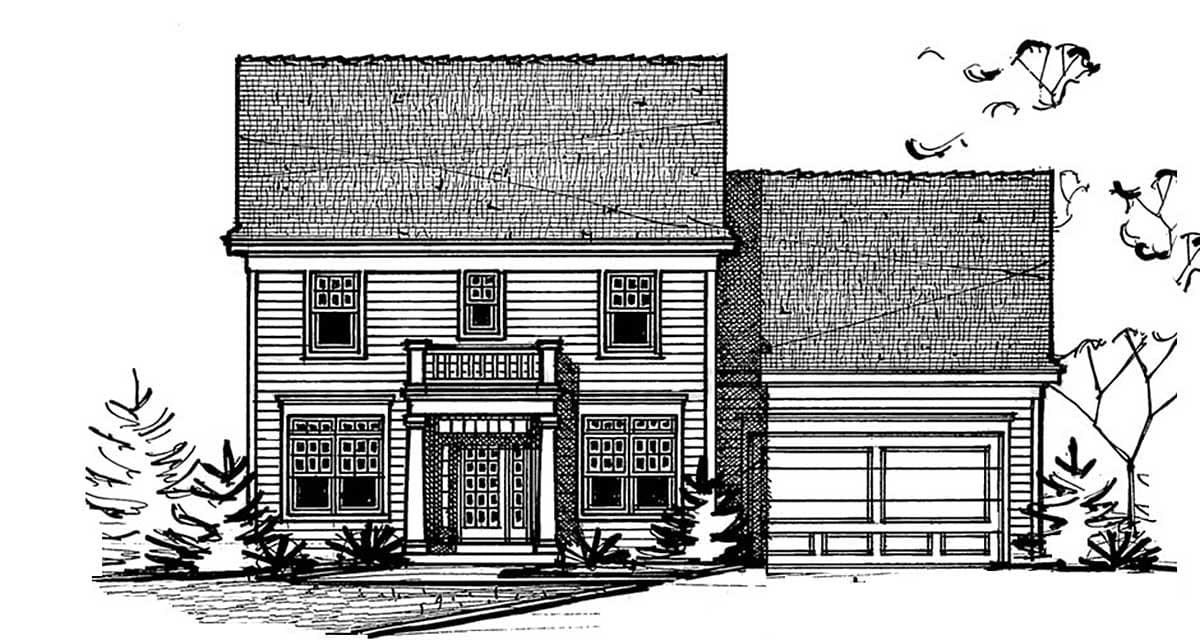

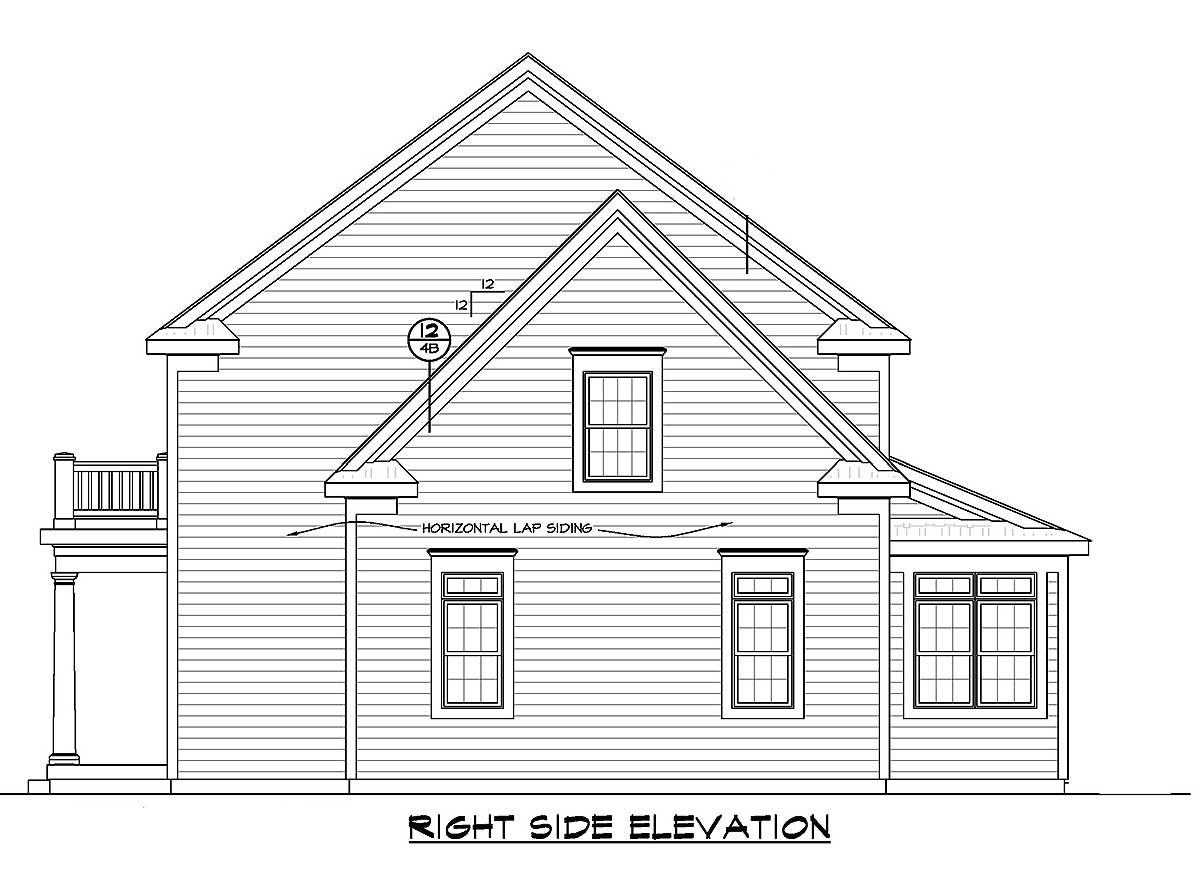

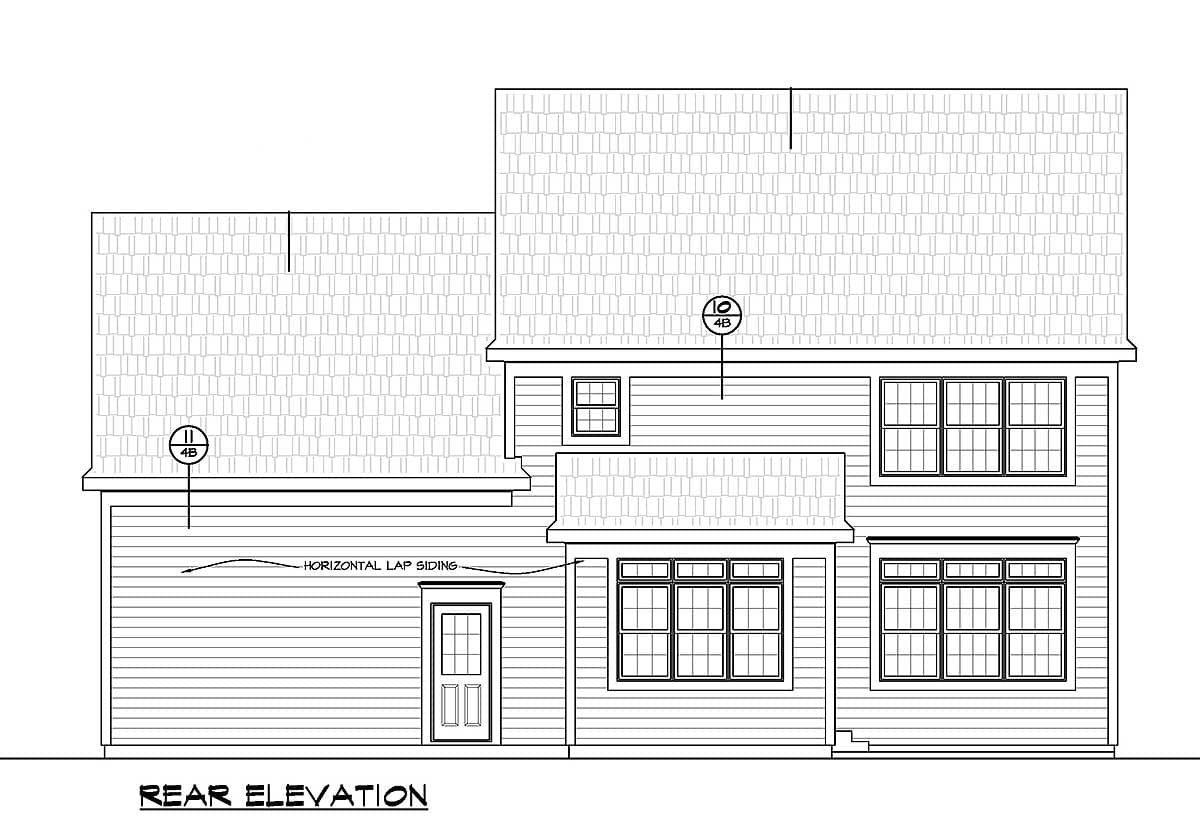

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Comfortable Colonial House Plan

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $985
  • 4 Sets $1,060
  • 8 Sets $1,180
  • PDF - multi-use $1,485
  • CAD $1,724
  • CAD - multi-use $2,224
  • View all purchase option online

About This Plan

  • This comfortable Colonial house plan has plenty of room for a study, three bedrooms and a bonus room on the second floor.
  • The open floor plan fits right in with today's lifestyle.
  • Sliding glass doors in the dining area lead out to the backyard.
  • The well-organized mud room area has two closets and a pantry close by the laundry room.
  • On the upper floor, the large master suite has a huge walk-in closet and triple windows to bring in light.
  • The bonus room is yours to do with as you wish.

Floor Plans

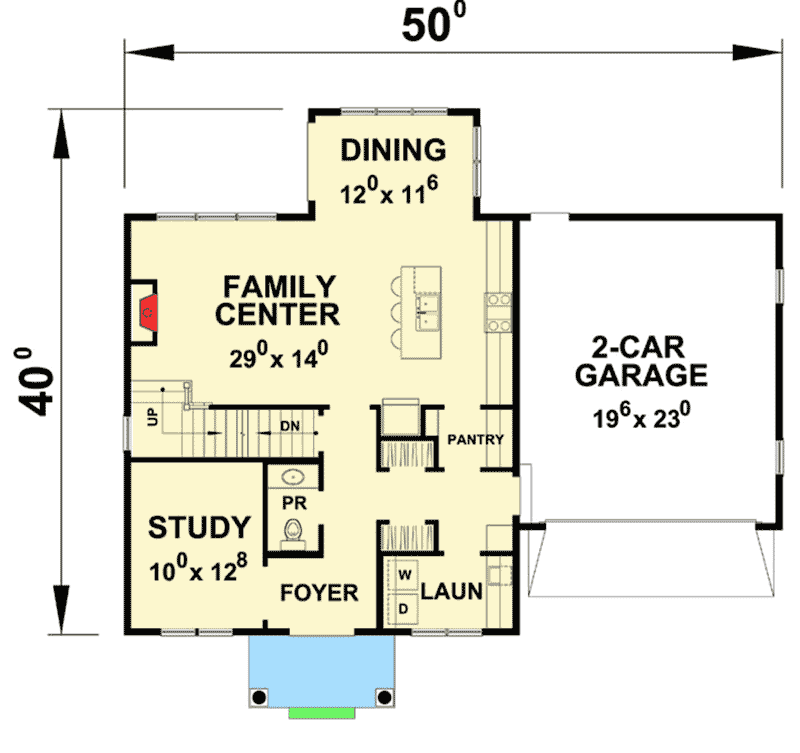

  • Main Level

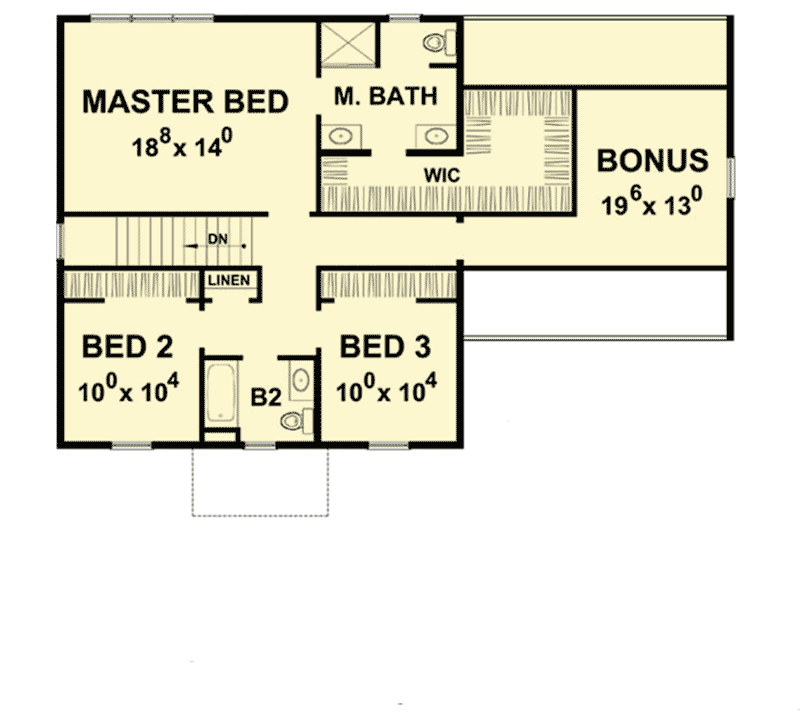

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,050 sq. ft.
  • 1st Floor: 1,064 sq. ft.
  • 2nd Floor: 986 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

  • Colonial
  • Traditional

Special features

  • 2nd Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • PDF
