Comfortable Duplex

Plan 21906DR

  • 3,266

    Heated s.f.

  • 2

    Units

  • 48' 0"

    Width

  • 36' 0"

    Depth

  • This comfortable duplex home plan has two units, each with a main level and a lower level.
  • Stairs lead up from the foyer into the main living area where you have a separate living room and an open layout kitchen/dining area.
  • The master suite is also on this level along with a four piece bathroom.
  • From the foyer you can step down to the lower level with its big rec room and the remaining two bedrooms.
  • The laundry area is conveniently combined with the bathroom.
  • Related Plan: Get an alternate version with duplex house plan 22409DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

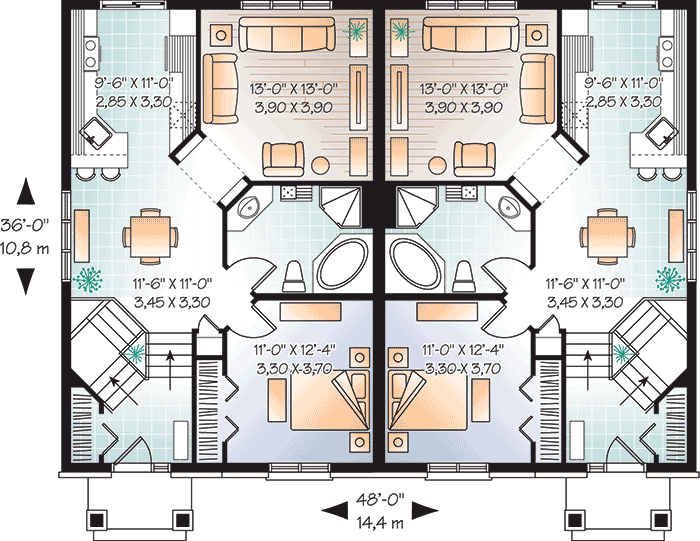

Comfortable Duplex - 21906DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

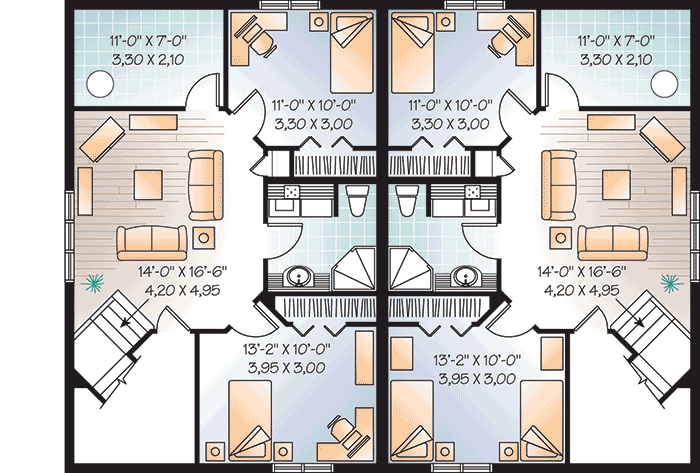

Comfortable Duplex - 21906DR floor plan - Lower Level
