Plan 92013VS
Comfortable Family Living
Heated S.F.
2,880
Beds
3-4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • A perfect little cottage, but not so little! Welcome home to this spacious living room with built-in bookcases beside the fireplace.
  • Enjoy all of the special places to get away, the master bedroom, balcony, or the study at the top of the stairs, or the bed alcove in the guest room. It all makes for comfortable family living.
  • The roof is stick framed and has a 12:12 pitch.
What's Included
  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Comfortable Family Living

  • 2,880

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

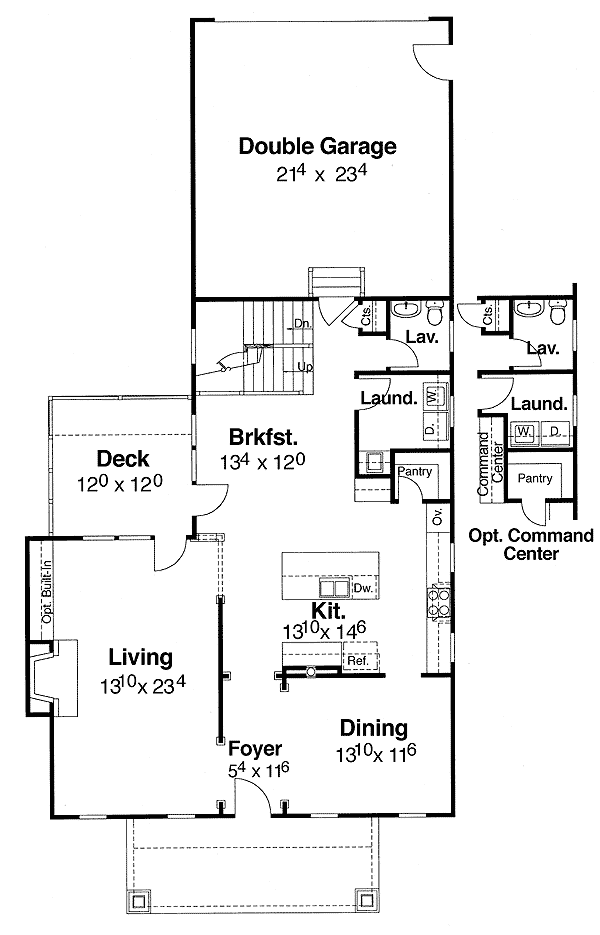

Floor Plan

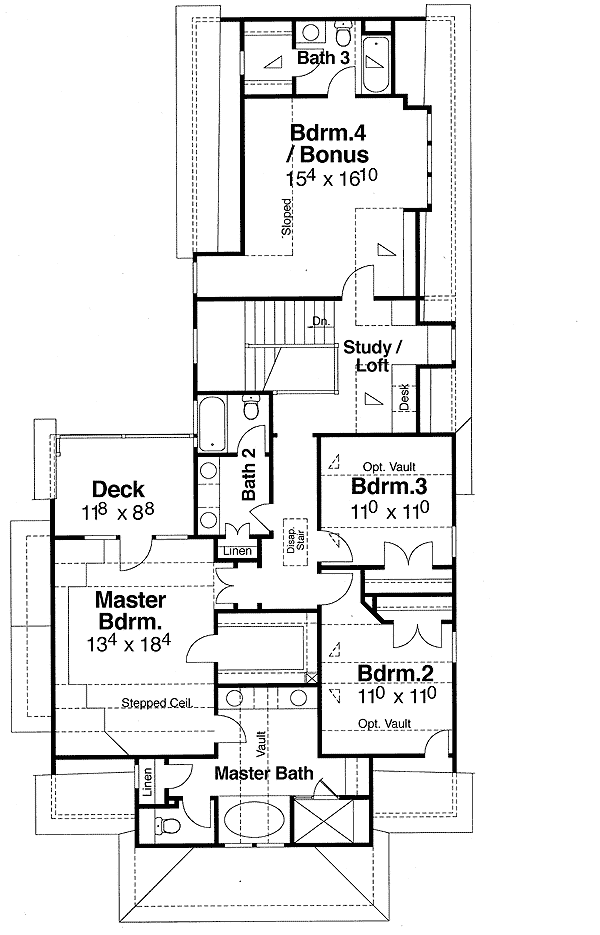

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,880 sq. ft.
  • 1st Floor: 1,294 sq. ft.
  • 2nd Floor: 1,220 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 76' 0"
  • Max ridge height: 29' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
