Plan: 5199MM

Comfortable Living

800 2 1 1
Pageloader
  • 800

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • The design and layout of this home brings back the memories of days gone by and of places we feel comfortable.
  • Enjoying the screened-in back porch in the summer makes this a most inviting home.
  • The upper window opens to the attic which is accessed by pull-down stairs and provides light and ventilation.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.
  • Related Plans: Extend Bedroom 1 with house plan 51020MM (with fireplace).
  • Need a fireplace? See house plan 5153MM.
  • Downsize to these 600 sq. ft. one-bedroom cottages: 5141MM (with fireplace) and 5194MM.
  • Get more room and an upper floor with house plans 51181MM and 51016MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

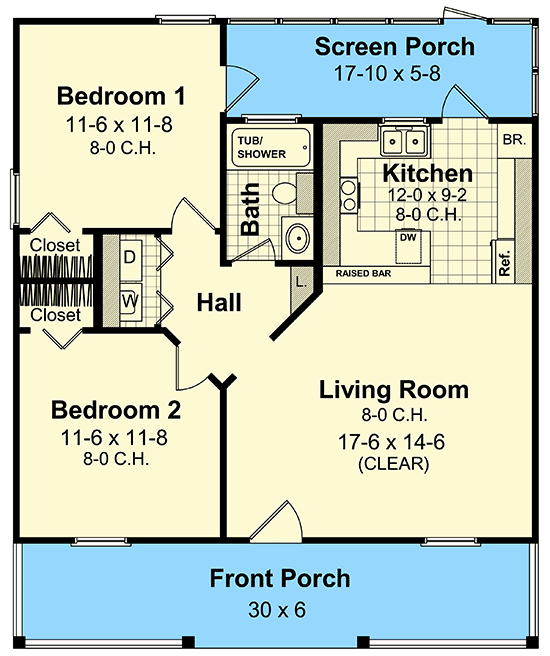

Floor Plan

Plan details

Architectural Style

Plan Collections



Comfortable Living

  • 800

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 1 Set $750
  • 5 Sets $810
  • PDF - single-use $885
  • Reproducible Set $965
  • 8 Sets $990
  • CAD $1,455
  • View all purchase option online

About This Plan

  • The design and layout of this home brings back the memories of days gone by and of places we feel comfortable.
  • Enjoying the screened-in back porch in the summer makes this a most inviting home.
  • The upper window opens to the attic which is accessed by pull-down stairs and provides light and ventilation.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.
  • Related Plans: Extend Bedroom 1 with house plan 51020MM (with fireplace).
  • Need a fireplace? See house plan 5153MM.
  • Downsize to these 600 sq. ft. one-bedroom cottages: 5141MM (with fireplace) and 5194MM.
  • Get more room and an upper floor with house plans 51181MM and 51016MM.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 800 sq. ft.
  • 1st Floor: 800 sq. ft.
  • Porch, Front: 180 sq. ft.
  • Porch, Rear: 100 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 36' 0"
  • Max ridge height: 21' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

  • Cottage
  • Country

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Tiny House
  • USDA Approved
