  • This mid-size house plan delivers comfortable living spaces all on one floor in a contemporary ranch-style with the exception of the deep bonus room upstairs. Gables and an array of multipaned windows face the street. Tapered columns on stone veneer bases highlight the covered porch.
  • Softly muted light spills into the entry through sidelights and glass in the upper door. One bedroom is immediately to the right, while an opening to the left leads to an alcove outside another bedroom and a full bathroom. Linen storage fills one end of the alcove.
  • Further along the entry hall, you pass a coat closet just before reaching the open kitchen on the right. Double doors on the left open into what could be a fourth bedroom, or home office. This room also offers easy rear access to cables linked to devices in the great room's media cabinet.
  • The kitchen's L-shaped eating bar bounds the great room on one side, and the dining room on the other. The great room has a fireplace and the dining room boasts a built-in hutch and buffet. Long stretches of counters and cabinets rim the kitchen's other two sides, linked by a walk-in closet tucked into their corner juncture.
  • A hallway off the dining area leads to the owners' suite and bonus room stairs, plus a convenient pocket bathroom and pass-through utility room linked to the Jamestown's garage. Owners' suite amenities include a large, luxurious bathroom, a roomy walk-in closet, and direct patio access.
  • The roof has a 8:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

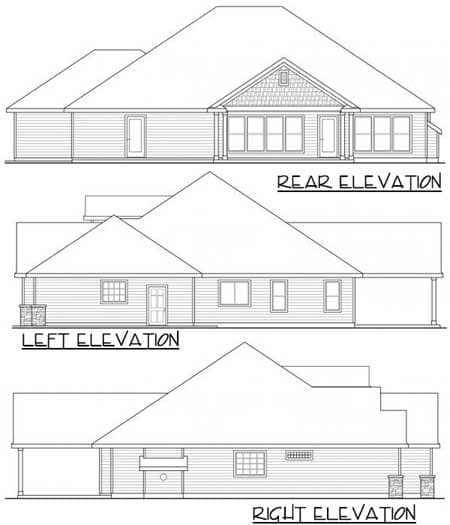

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details



Comfortable Living Spaces

  • 2,414

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • This mid-size house plan delivers comfortable living spaces all on one floor in a contemporary ranch-style with the exception of the deep bonus room upstairs. Gables and an array of multipaned windows face the street. Tapered columns on stone veneer bases highlight the covered porch.
  • Softly muted light spills into the entry through sidelights and glass in the upper door. One bedroom is immediately to the right, while an opening to the left leads to an alcove outside another bedroom and a full bathroom. Linen storage fills one end of the alcove.
  • Further along the entry hall, you pass a coat closet just before reaching the open kitchen on the right. Double doors on the left open into what could be a fourth bedroom, or home office. This room also offers easy rear access to cables linked to devices in the great room's media cabinet.
  • The kitchen's L-shaped eating bar bounds the great room on one side, and the dining room on the other. The great room has a fireplace and the dining room boasts a built-in hutch and buffet. Long stretches of counters and cabinets rim the kitchen's other two sides, linked by a walk-in closet tucked into their corner juncture.
  • A hallway off the dining area leads to the owners' suite and bonus room stairs, plus a convenient pocket bathroom and pass-through utility room linked to the Jamestown's garage. Owners' suite amenities include a large, luxurious bathroom, a roomy walk-in closet, and direct patio access.
  • The roof has a 8:12 pitch.

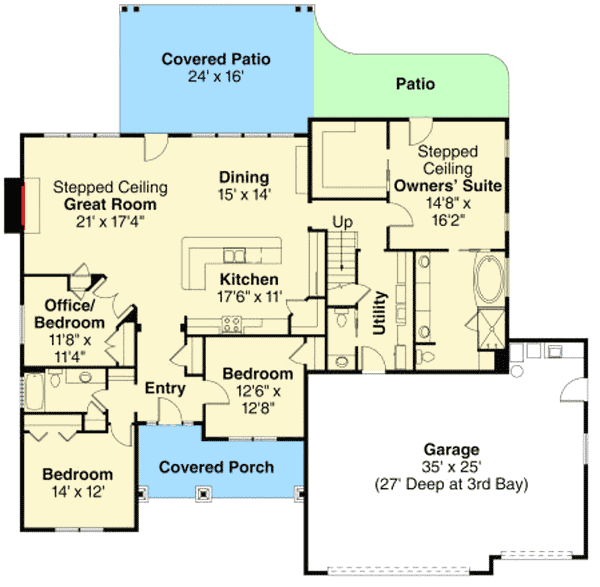

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,414 sq. ft.
  • 1st Floor: 2,414 sq. ft.
  • Bonus: 391 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 72' 0"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 935 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12

Architectural Style

  • Ranch
  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms
