Compact 2-Bedroom Multi-Family House Plan

Plan 62402DJ

This plan plants 3 trees

2,378
Heated s.f.
2
Units
78' 0"
Width
51' 0"
Depth

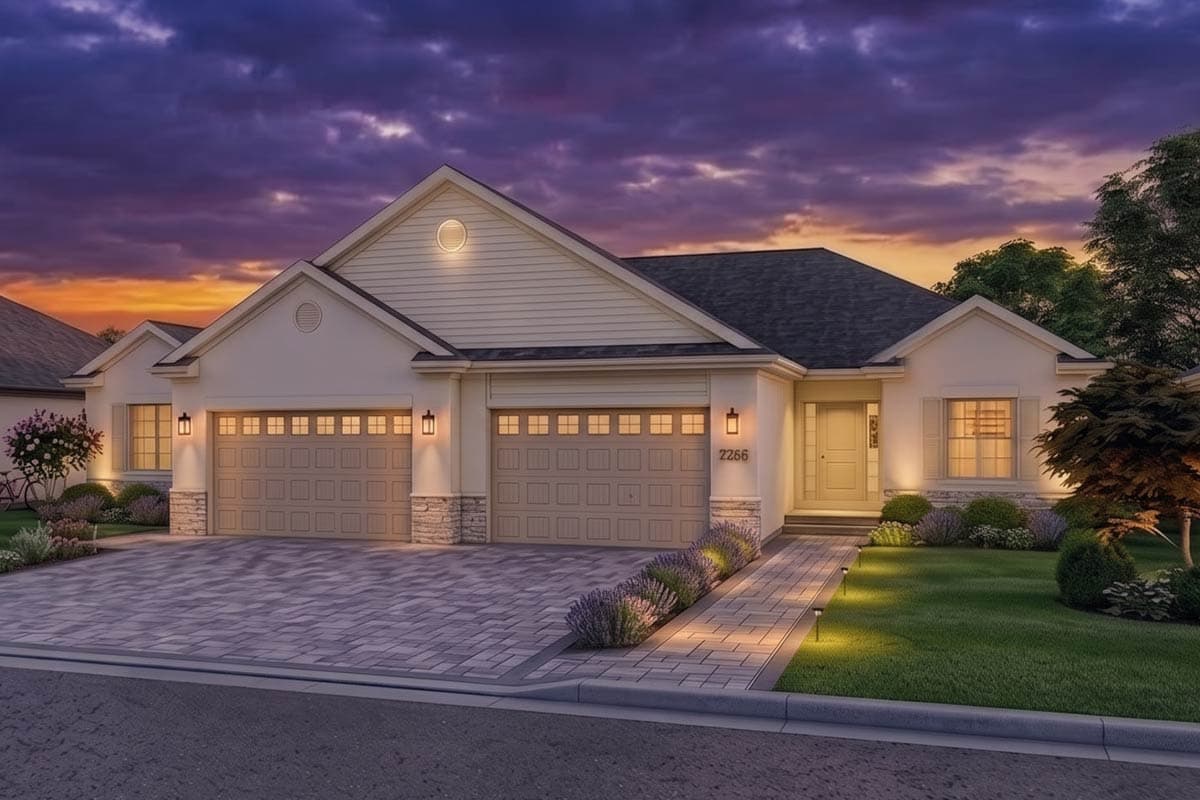

This compact, 2-bedroom, multi-family house plan with matching 1,189 sq. ft. sides, would be an ideal choice for empty-nesters. A covered front porch invites guest inside, where, with a few steps, they're welcomed into the great room with its fireplace flanked by windows. Open to the great room, the island kitchen and breakfast area stand ready to facilitate friendly gatherings.
The master suite, with 10-foot-high-ceiling in the bedroom, features a bath area with dual sinks, compartmented toilet and shower, and walk-in closet. Bedroom 2 has its own private bath. Situated just off the front entry, it could easily be used as a home office or hobby area.
On the other side of the master suite's walk-in closet wall, a laundry area lies just off the entry and allows access to the 2-car-garage.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Compact 2-Bedroom Multi-Family House Plan - 62402DJ floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,378 sq. ft.
1st Floor: 2,378 sq. ft.

Porch, Front: 50 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4

Foundation Type

Standard Foundations: Basement

Optional Foundations: Walkout, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 78' 0"
Depth: 51' 0"
Max ridge height: 20' 0"

Garage

Type: Attached
Area: 454 sq. ft.
Count: 4 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 6 on 12

Framing Type: Truss

Architectural Style

Special features
