Plan 623170DJ Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet

1,591 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet

Plan 623170DJ

  • 1,591

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

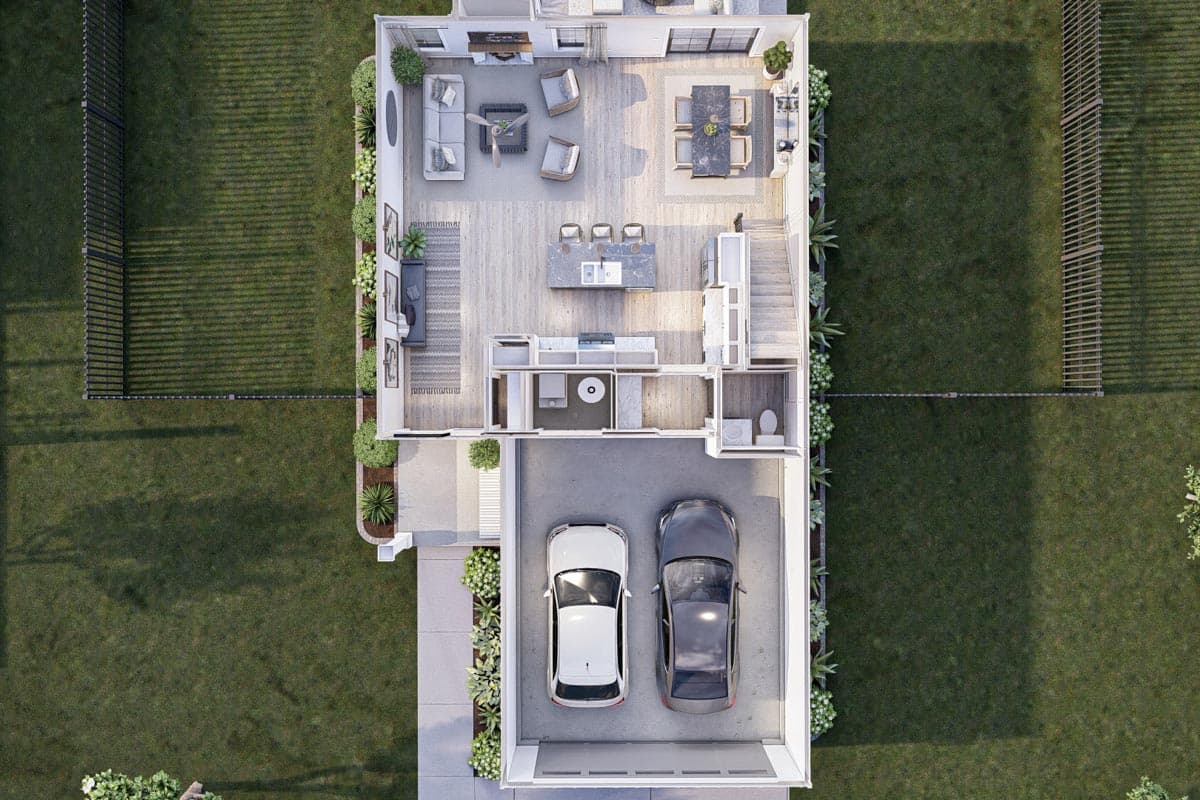

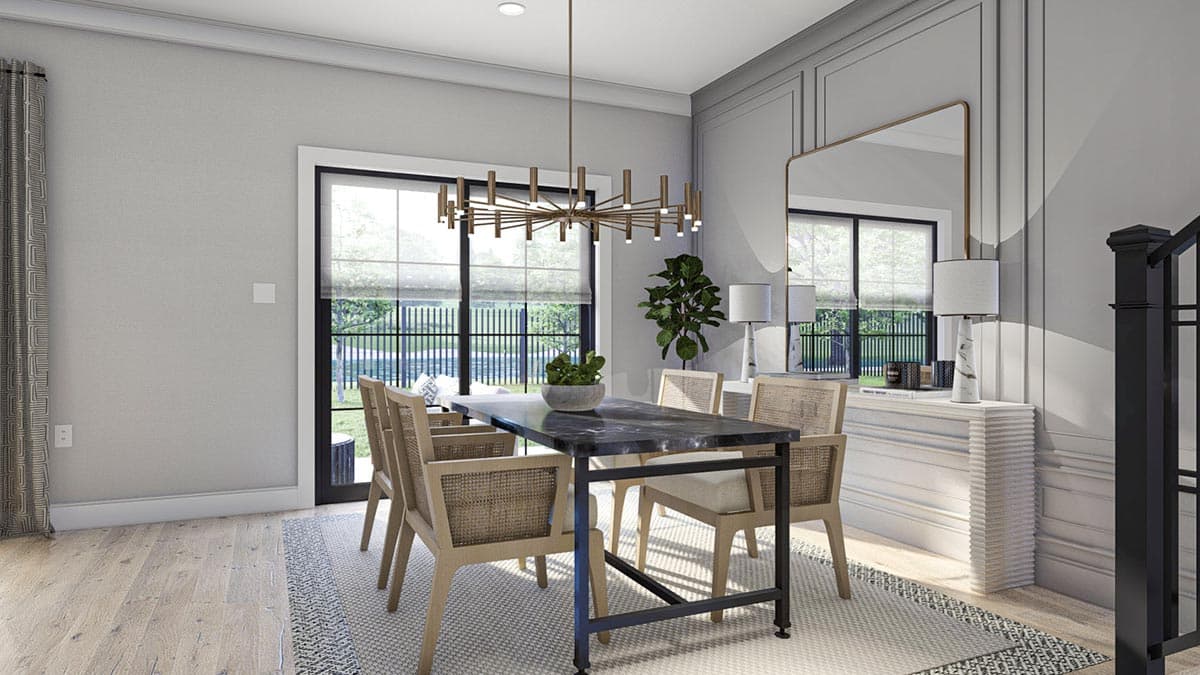

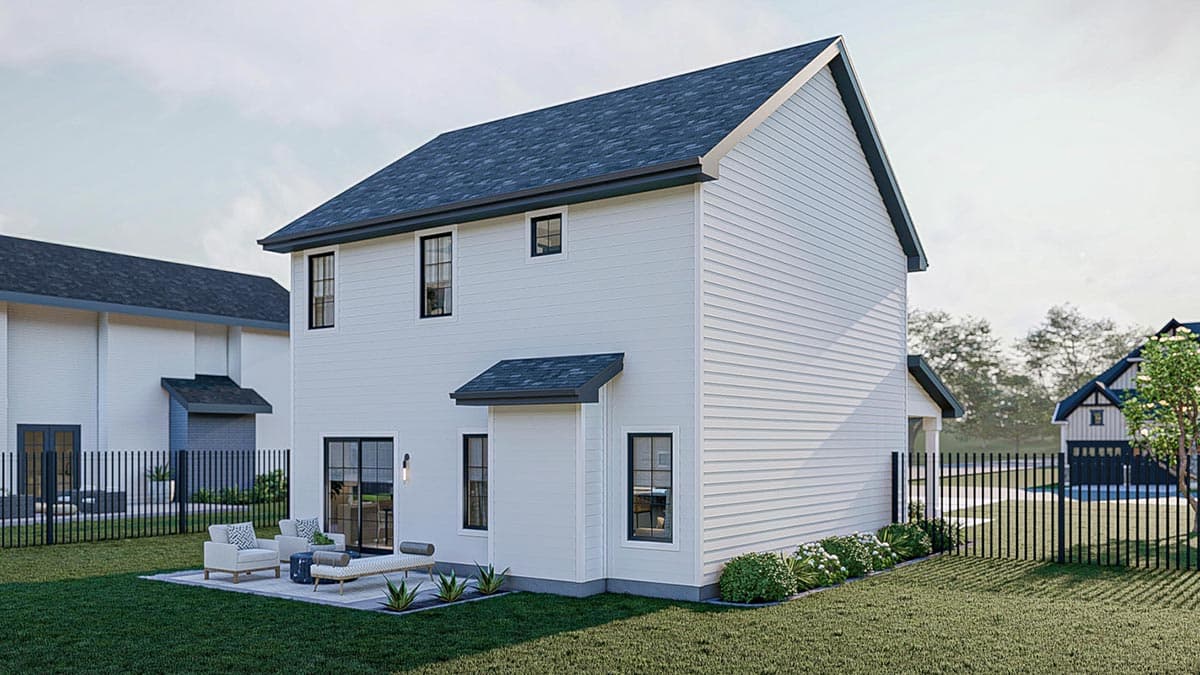

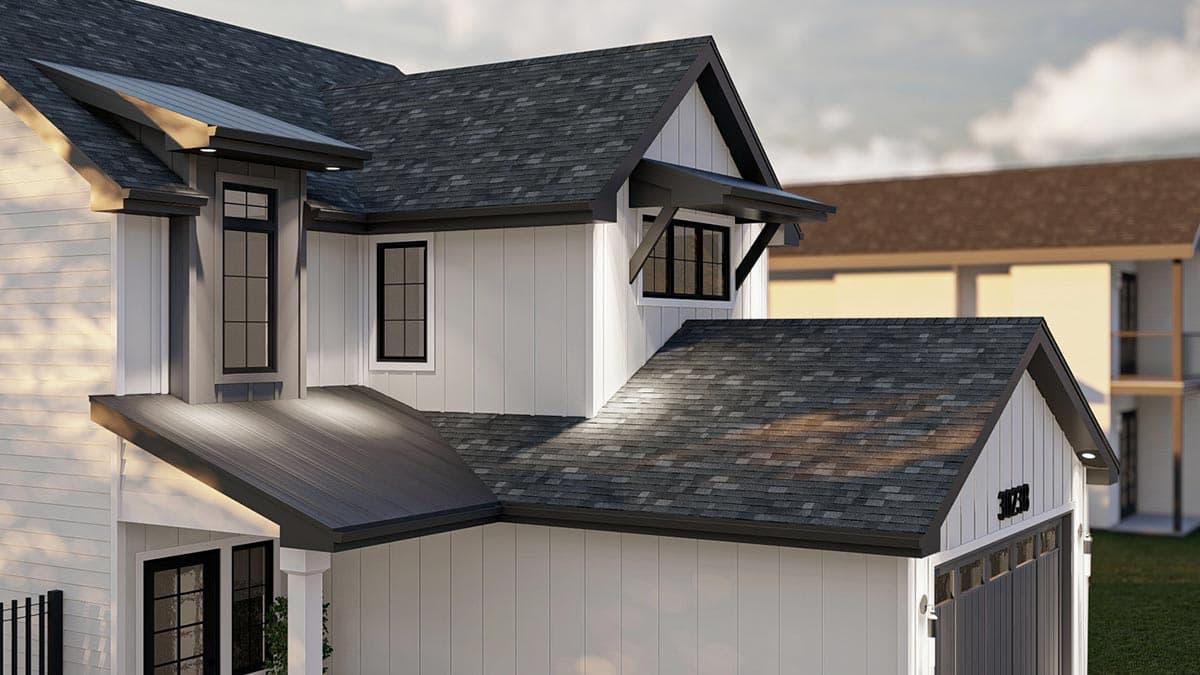

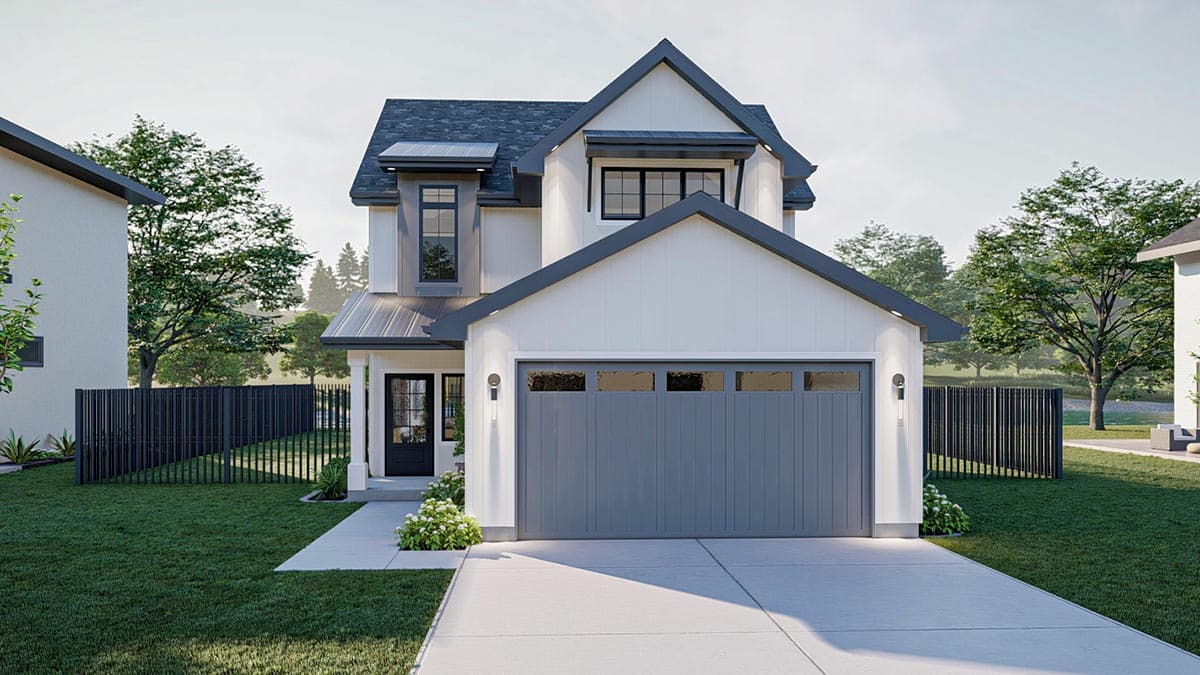

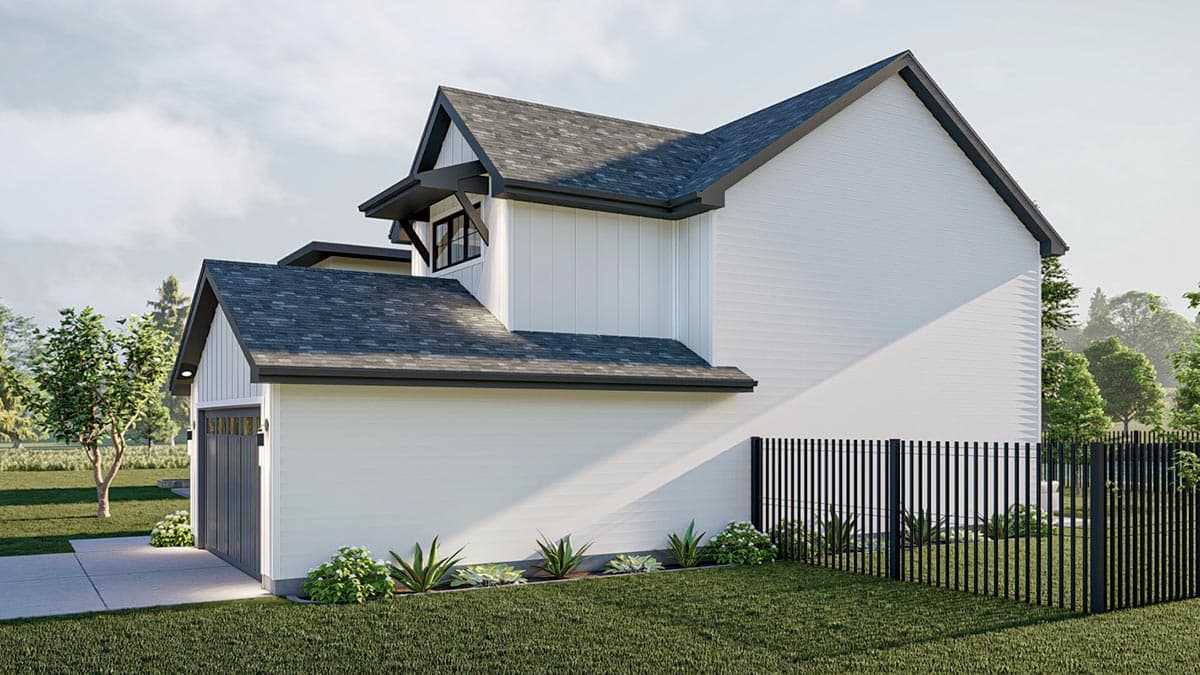

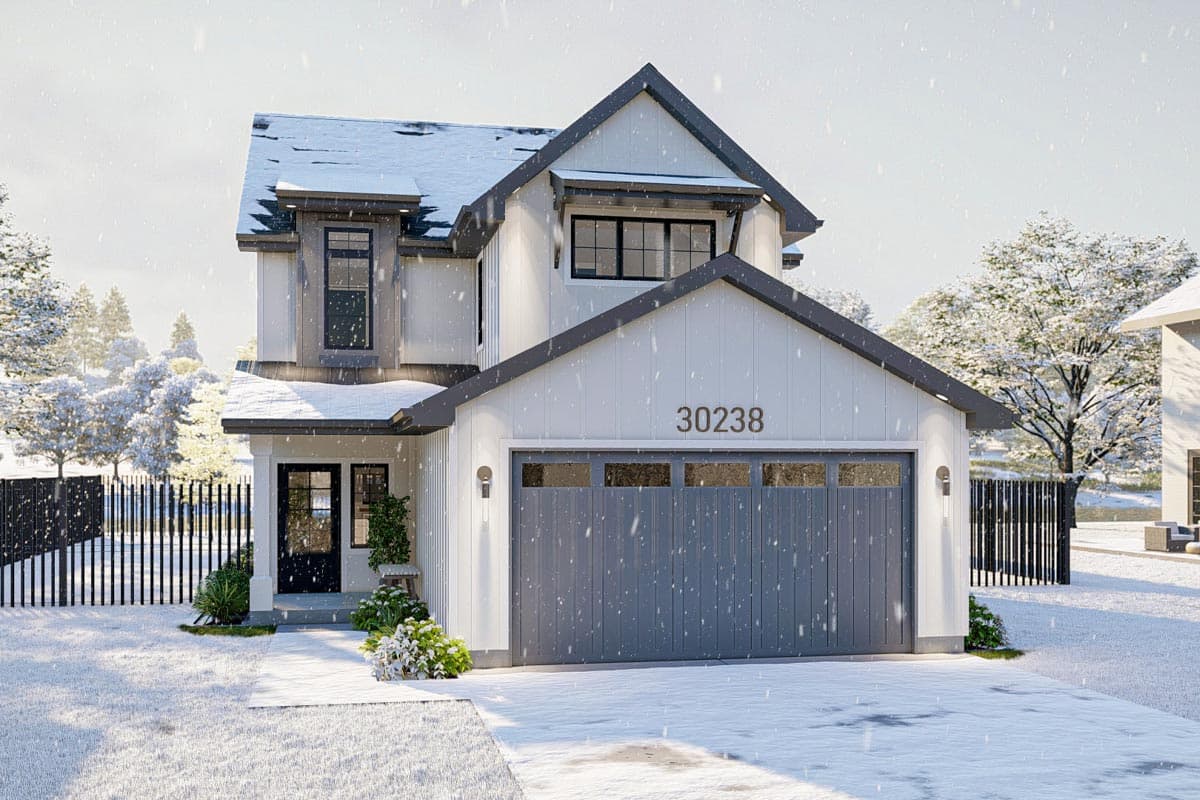

  • This compact 3-bed contemporary Craftsman-style house plan has a wide open floor plan on the main floor and gives you 1,591 square feet of two floor living with all the bedrooms on the second floor.

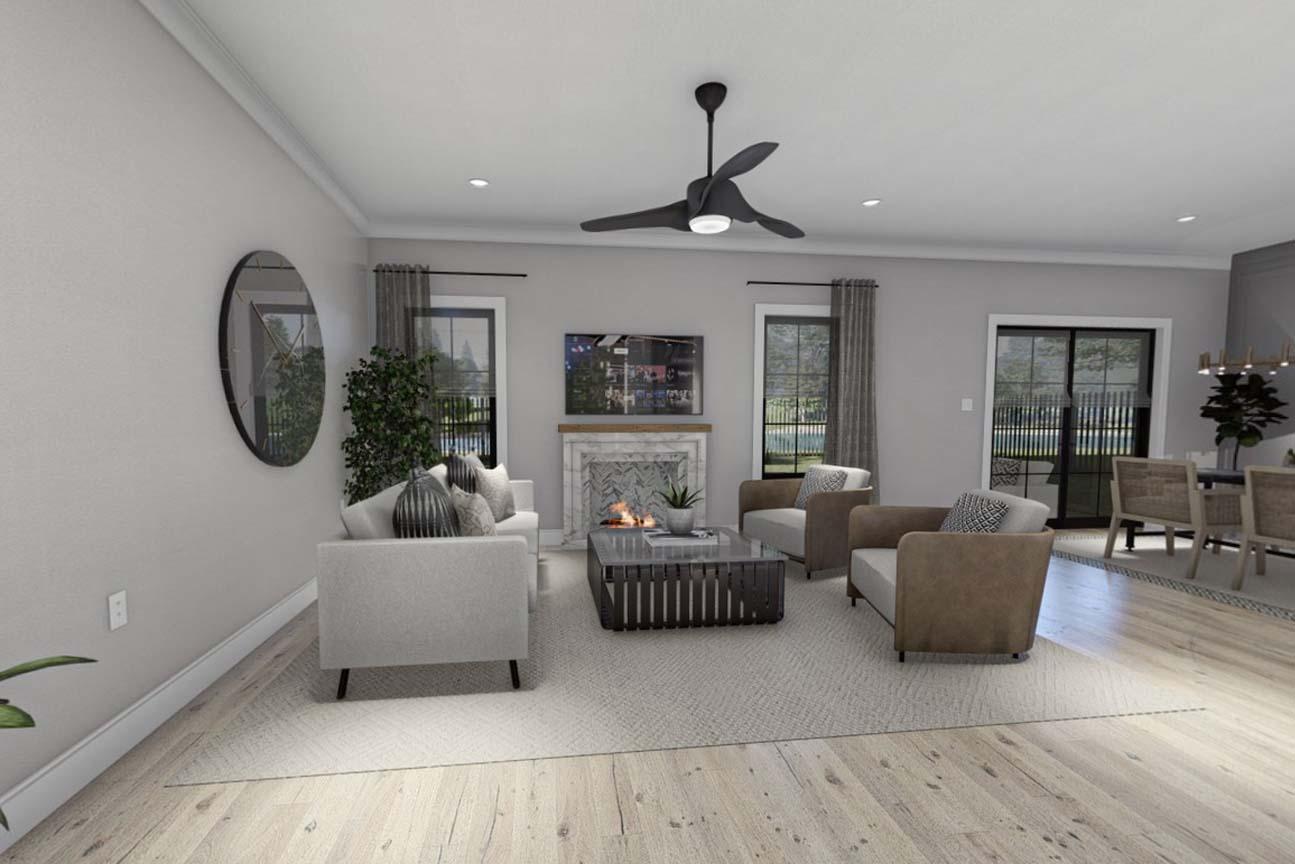

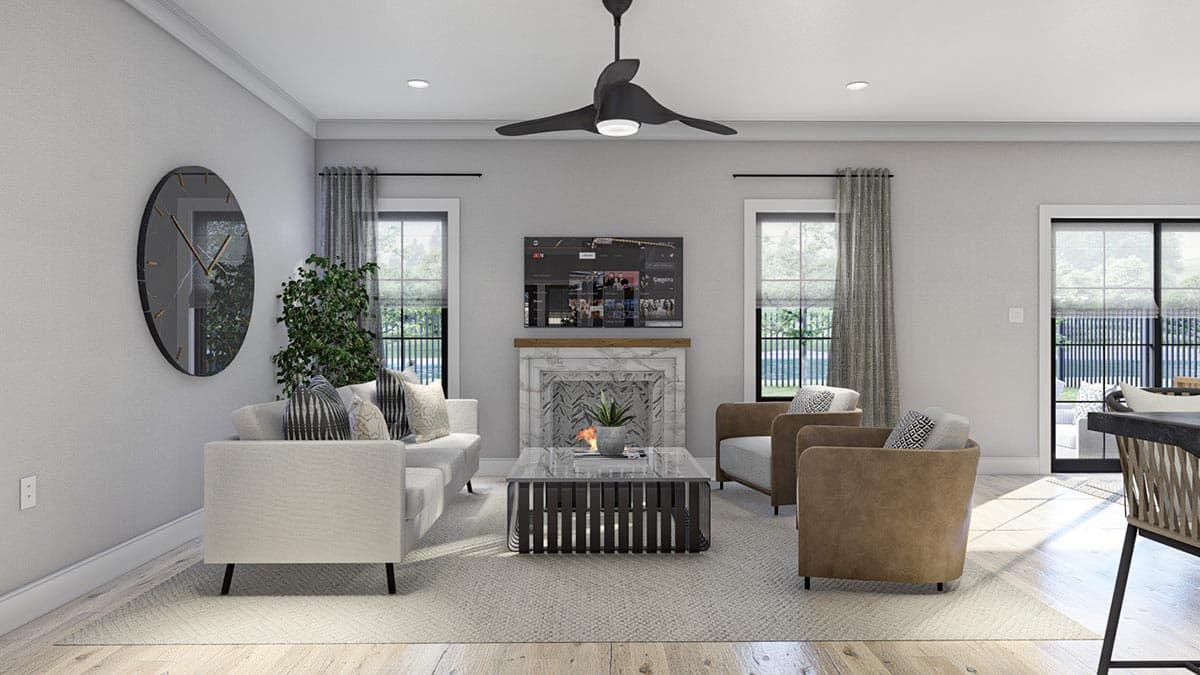

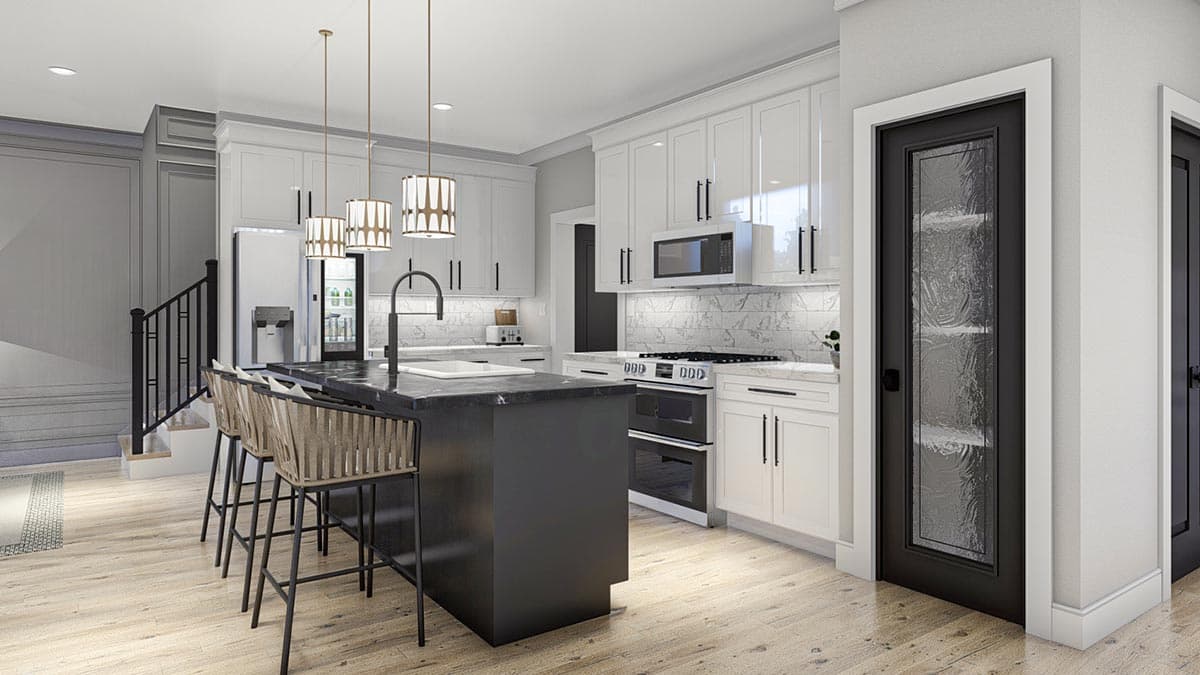

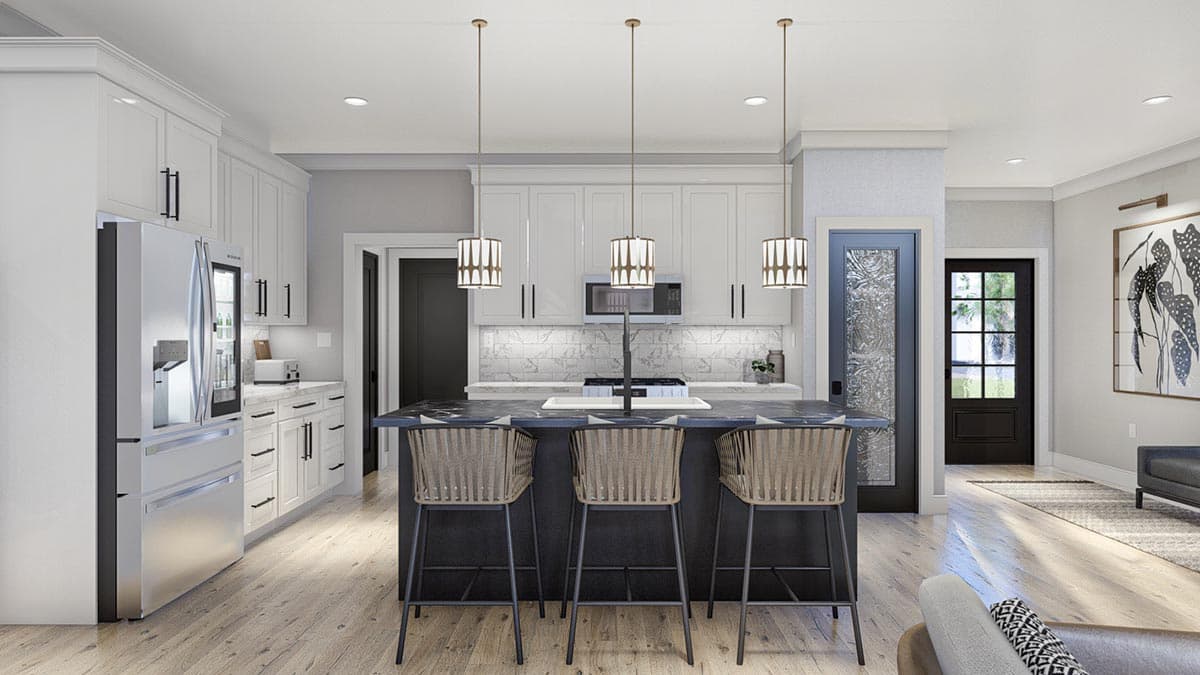

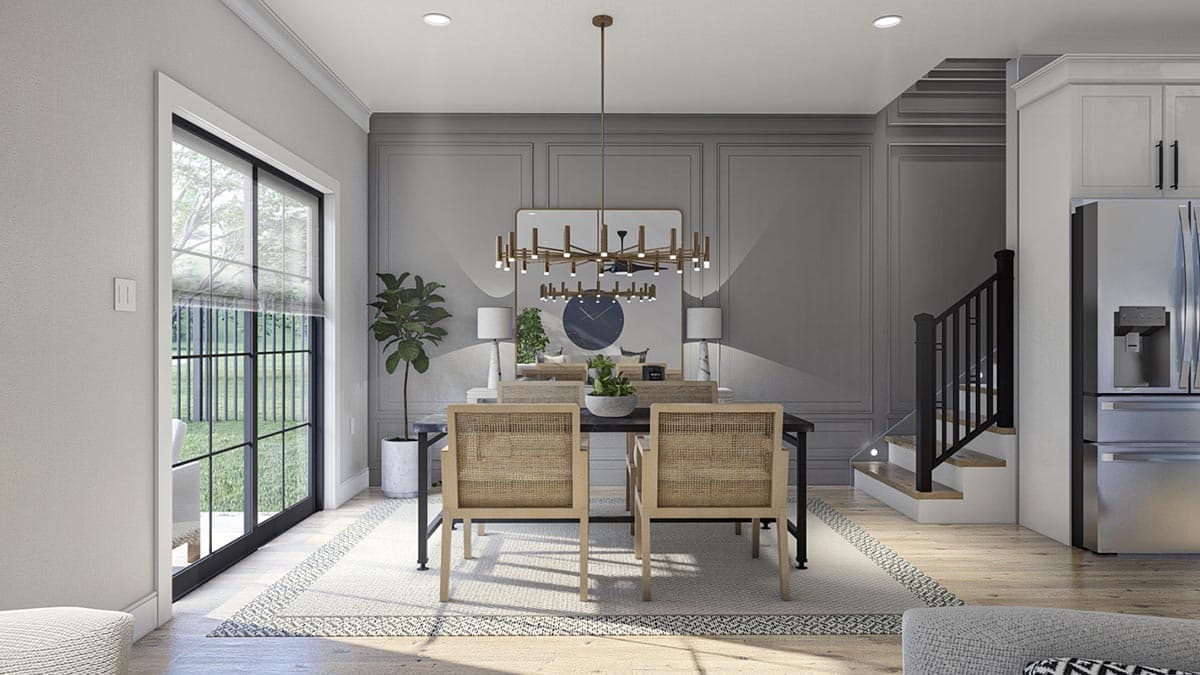

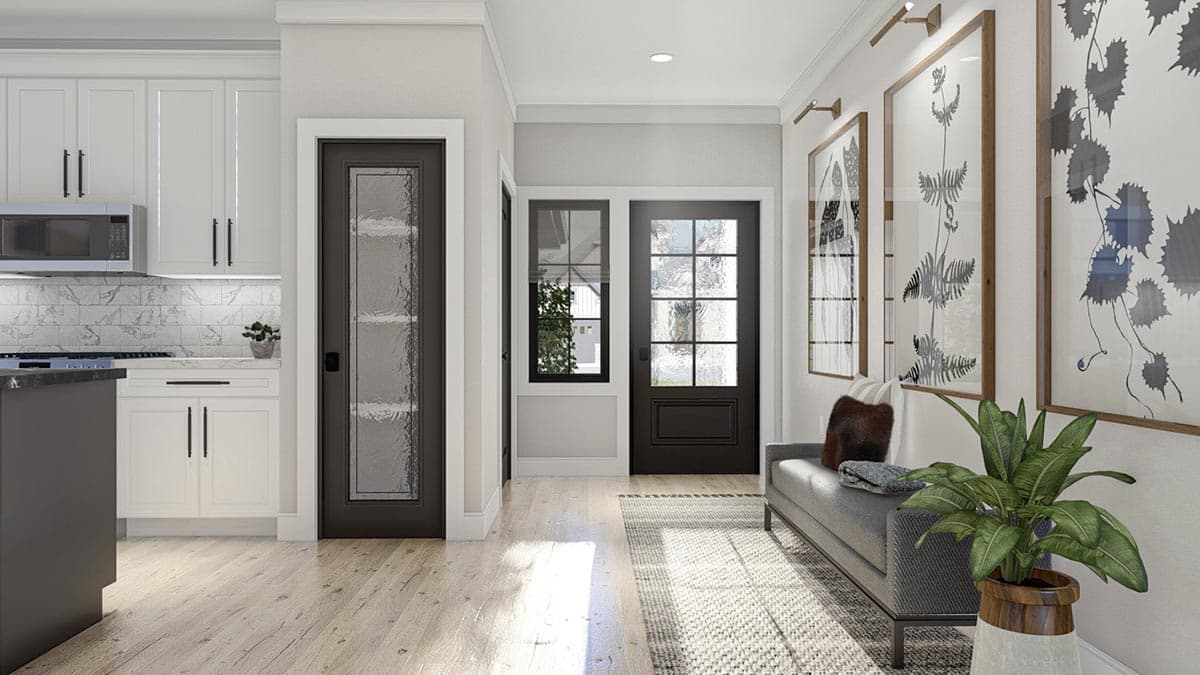

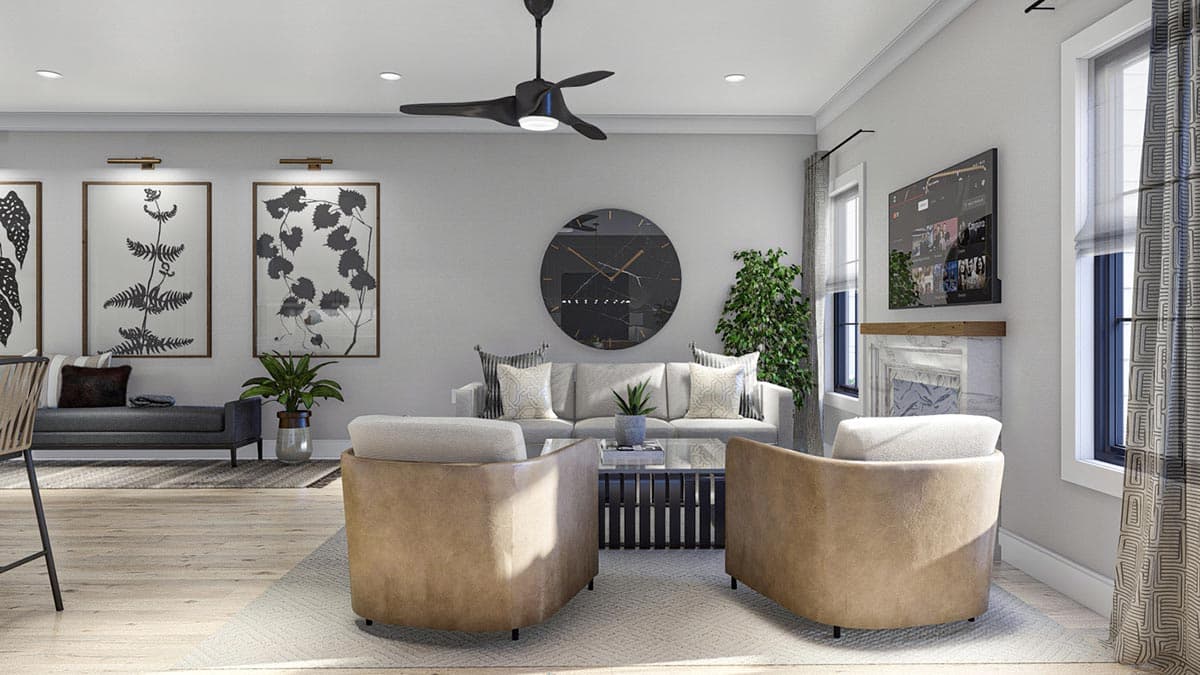

  • A fireplace on the back wall of the great room can be seen from every spot of the main floor due to the open nature of this design.

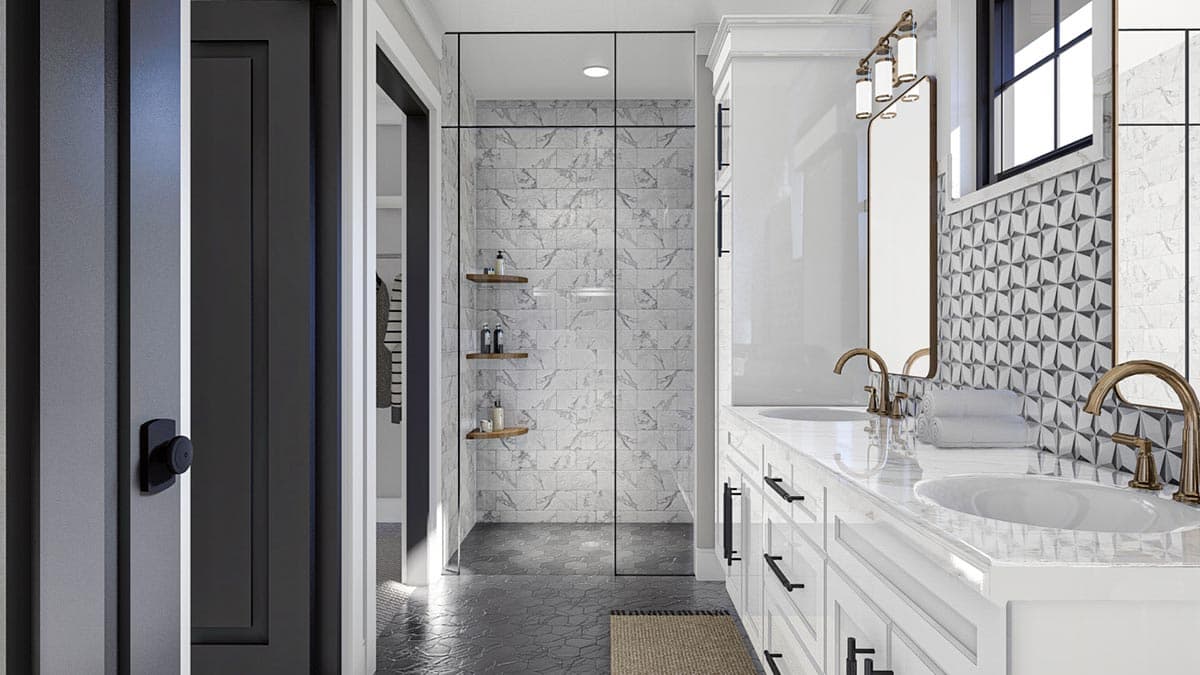

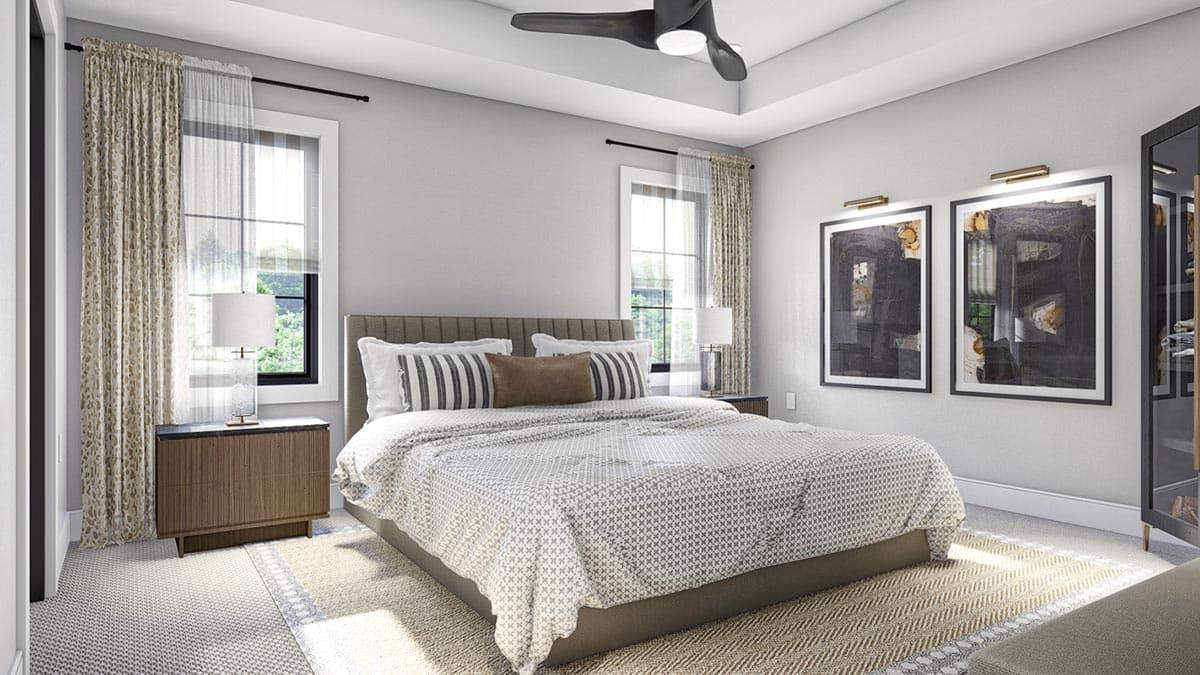

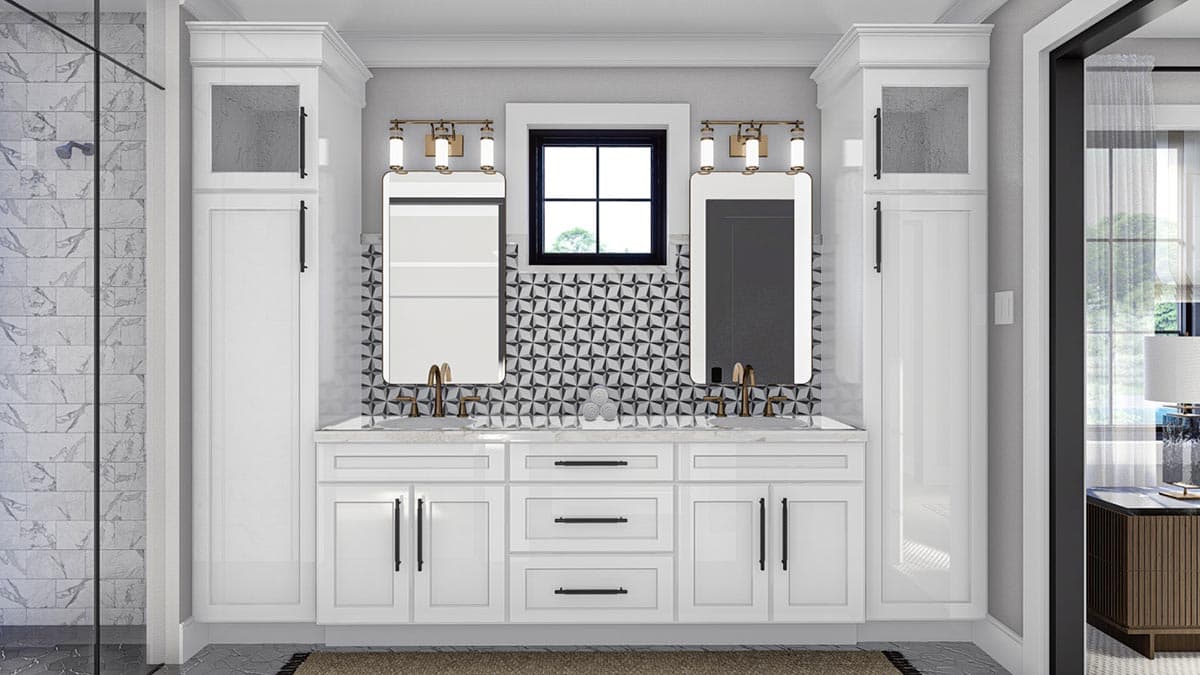

  • In addition to two full bathrooms and three bedrooms upstairs, you'll also conveniently find the laundry centrally located.
  • Related Plan: Get an alternate version with house plan 623170DJ.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

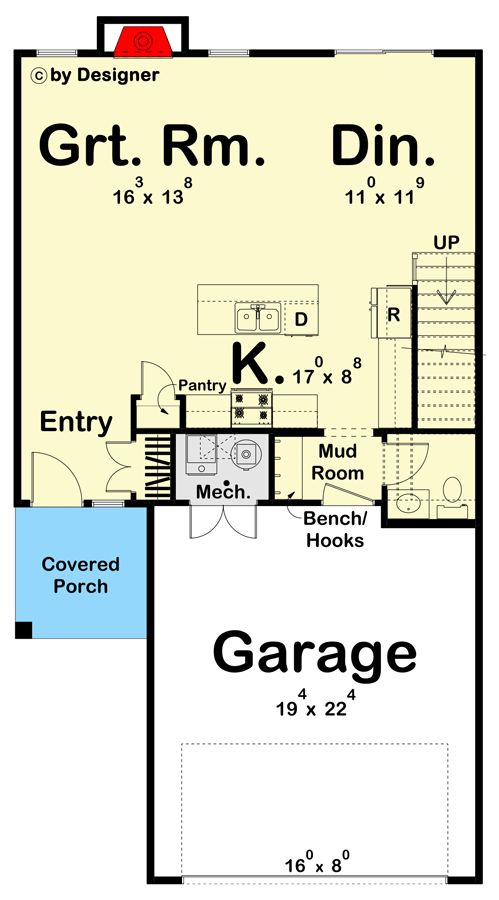

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet - 623170DJ floor plan - Main Level

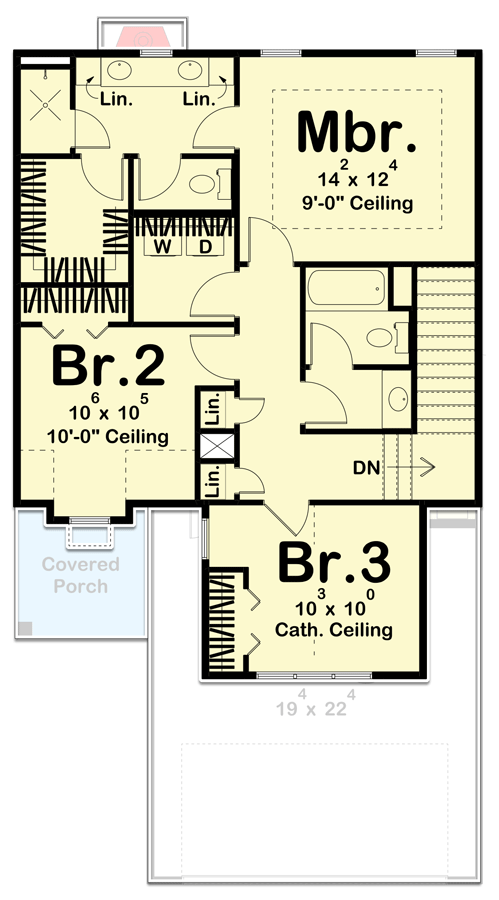

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet - 623170DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,591 sq. ft.
  • 1st Floor: 749 sq. ft.
  • 2nd Floor: 842 sq. ft.
  • Porch, Combined: 64 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 52' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 445 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet

  • 1,591

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD + PDF - Single-Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • This compact 3-bed contemporary Craftsman-style house plan has a wide open floor plan on the main floor and gives you 1,591 square feet of two floor living with all the bedrooms on the second floor.
  • A fireplace on the back wall of the great room can be seen from every spot of the main floor due to the open nature of this design.
  • In addition to two full bathrooms and three bedrooms upstairs, you'll also conveniently find the laundry centrally located.
  • Related Plan: Get an alternate version with house plan 623170DJ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,591 sq. ft.
  • 1st Floor: 749 sq. ft.
  • 2nd Floor: 842 sq. ft.
  • Porch, Combined: 64 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 52' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 445 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 623170DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623170DJ
|
