Compact 3-Bedroom Modern House Plan with Upstairs Laundry
Heated S.F.
1,406
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details

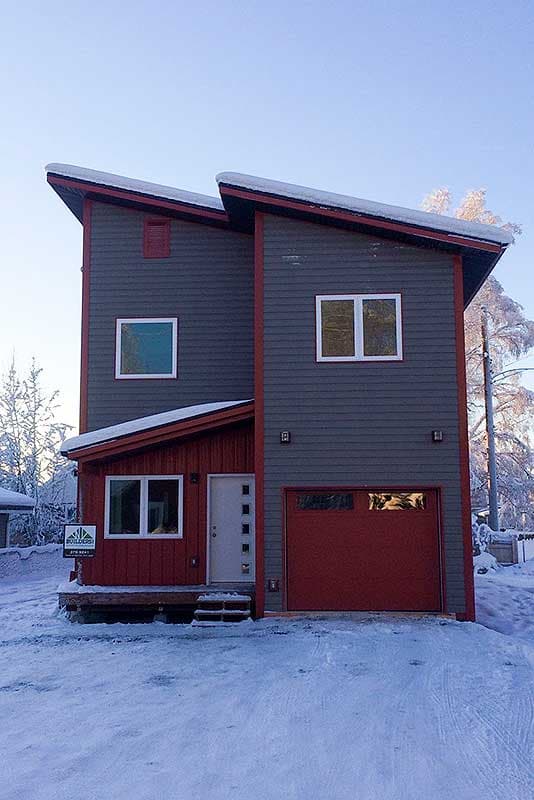

  • This compact 3-bedroom house plan is designed with your simple modern lifestyle in mind, featuring clean lines, a welcoming covered front porch, and a garage.
  • An open-concept living and dining area welcome you as you step through the door.
  • The adjacent kitchen offers maximum efficiency, boasting a breakfast bar with seating and a generously sized walk-in pantry.
  • Upstairs you'll find a well-appointed owner's suite with a 4-piece bath.
  • Two additional upper-level bedrooms share a full bath. A second-level laundry room lends convenience.
What's Included
  • General Notes

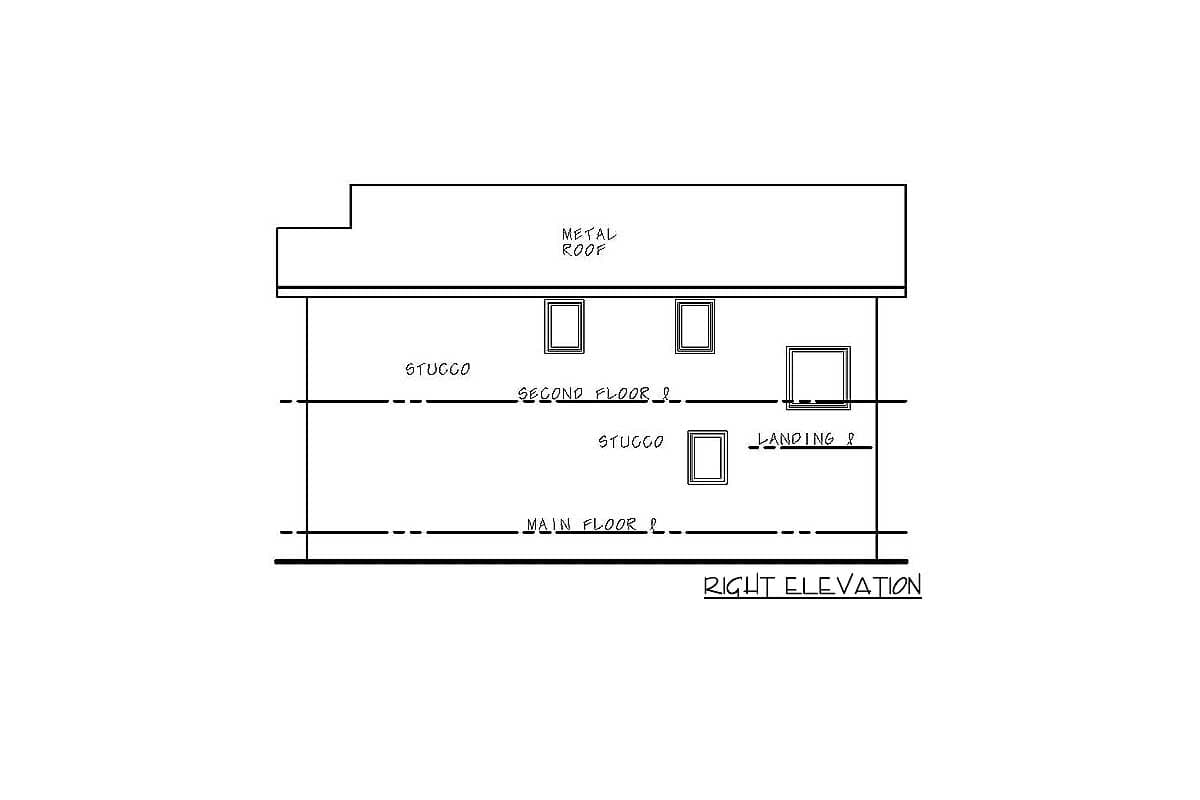

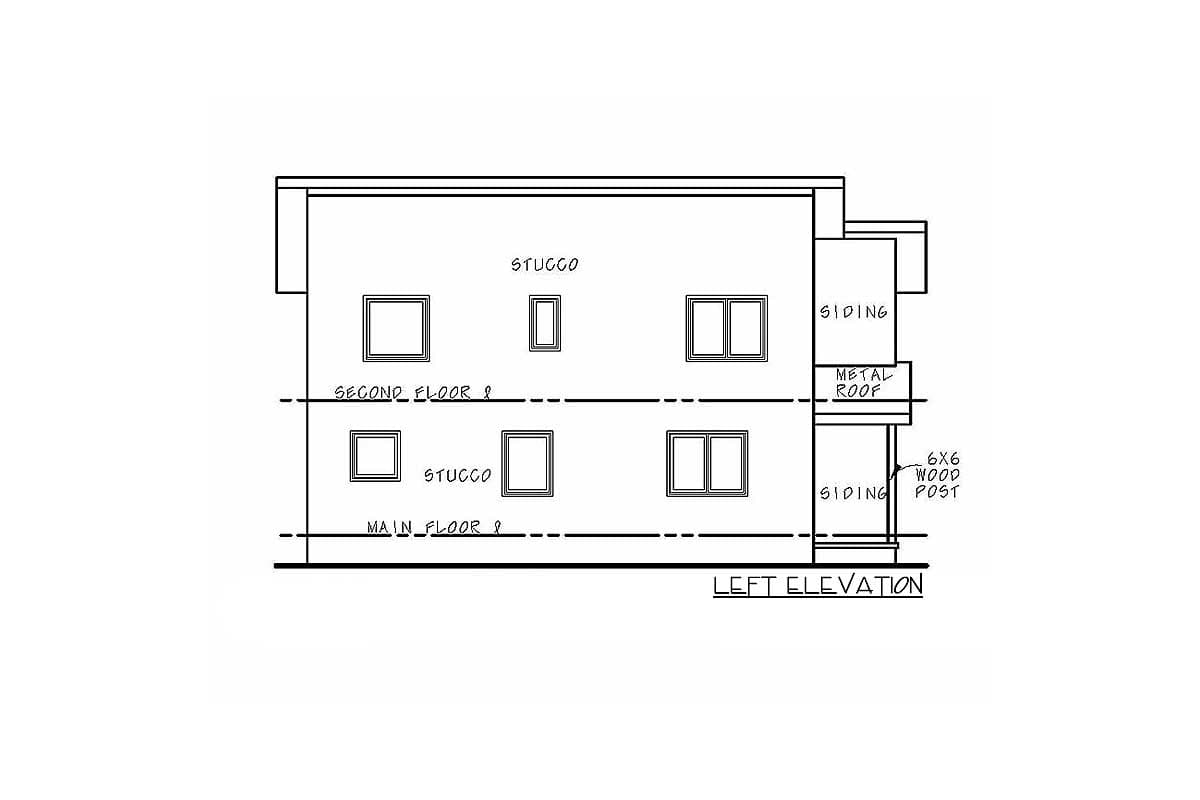

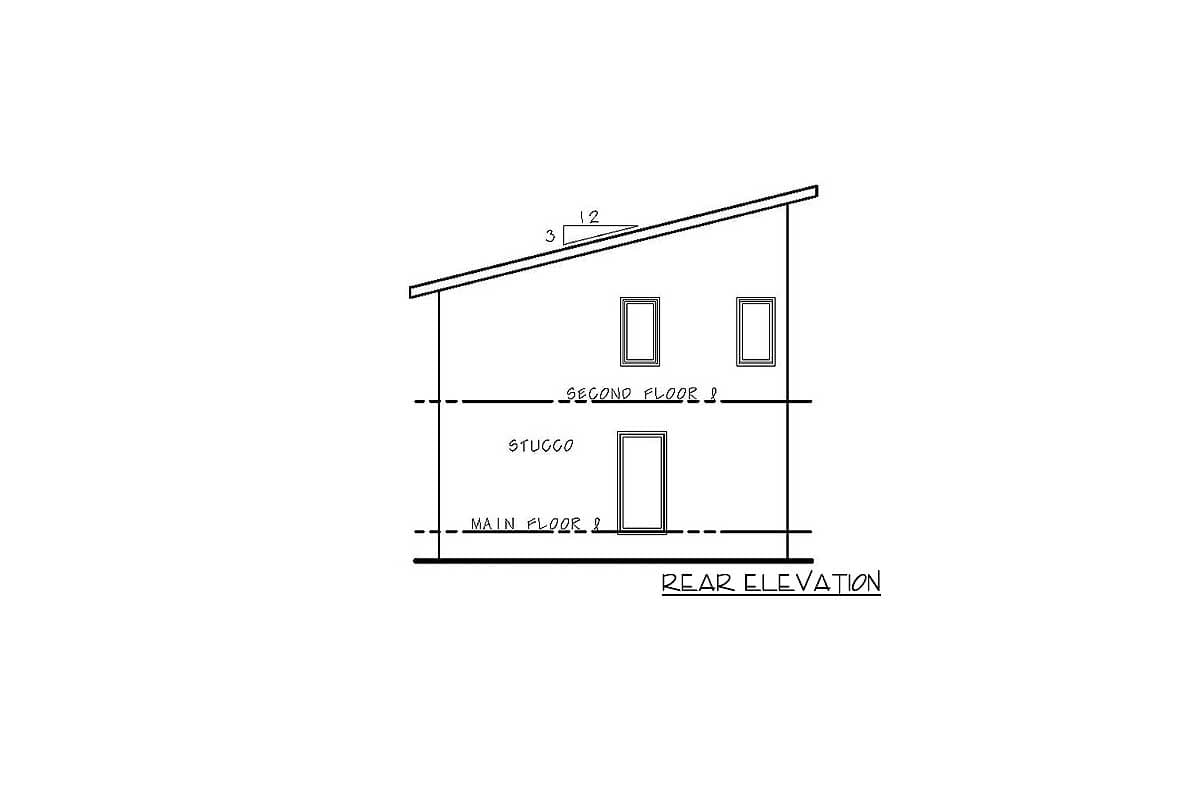

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact 3-Bedroom Modern House Plan with Upstairs Laundry

  • 1,406

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

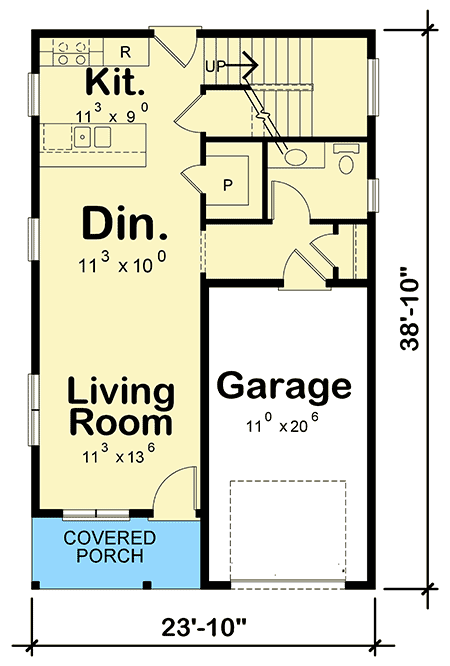

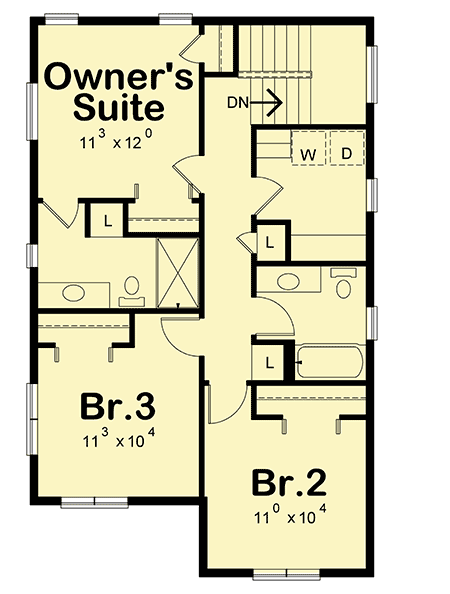

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,406 sq. ft.
  • 1st Floor: 621 sq. ft.
  • 2nd Floor: 785 sq. ft.

Dimensions

  • Width: 23' 10"
  • Depth: 38' 10"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 249 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
