Plan 68522VR
Compact and Economical
Heated S.F.
1,140
Beds
2
Baths
2.5
Stories
2
What's Included
Plan Details
  • This two-story Traditional house plan is just 20' wide, ideal for a narrow lot.
  • The well-planned layout has an open configuration designed to maximize the square footage.
  • With its simple foundation shape and roof, this home is economical to build.
  • The efficient U-shaped kitchen has a peninsula eating bar and views of the eating area and large family room.
  • Head up the stairs where each of the two bedrooms gets a private bathroom.
  • A stack washer/dryer closet save steps.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

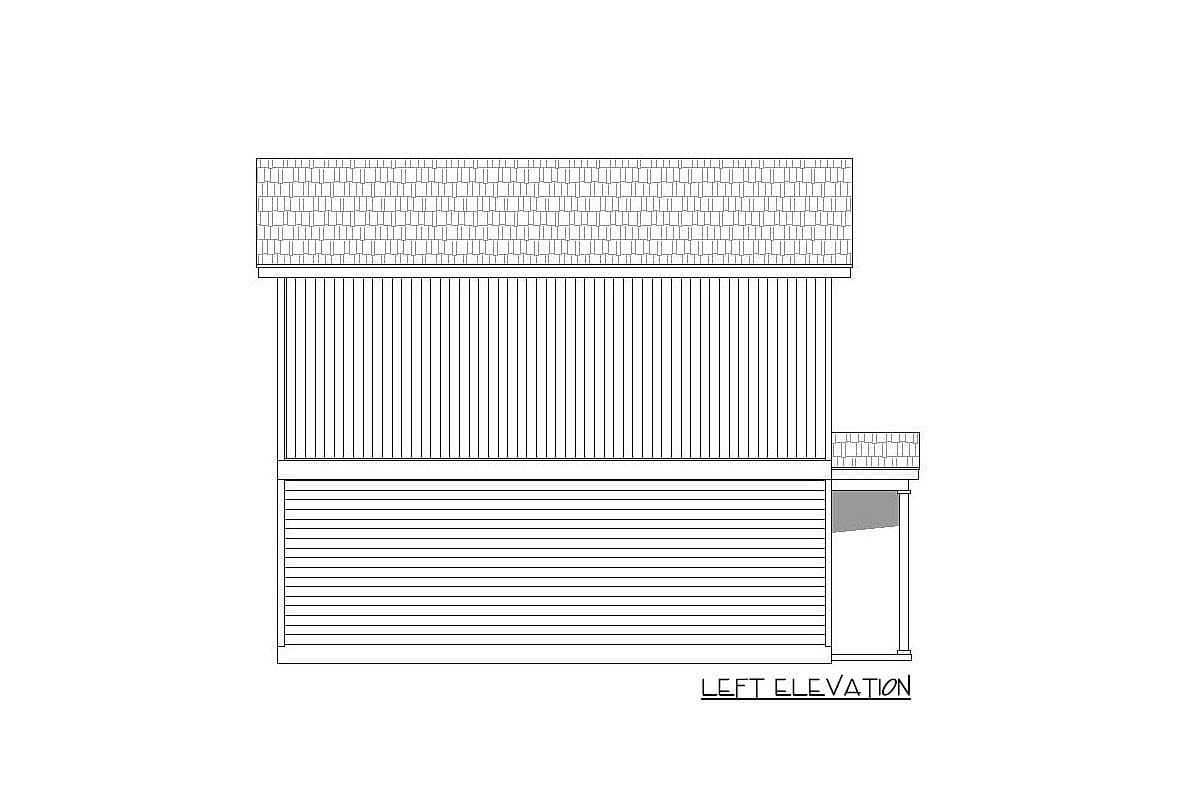

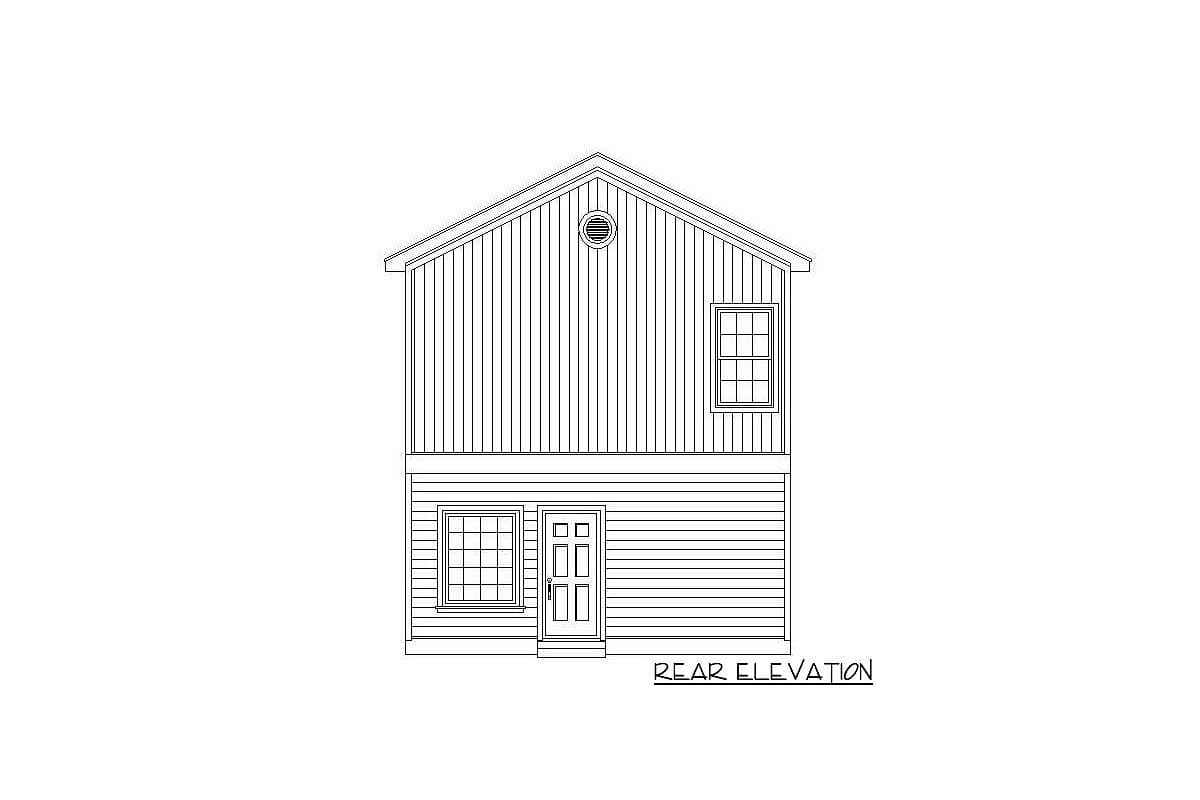

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact and Economical

  • 1,140

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

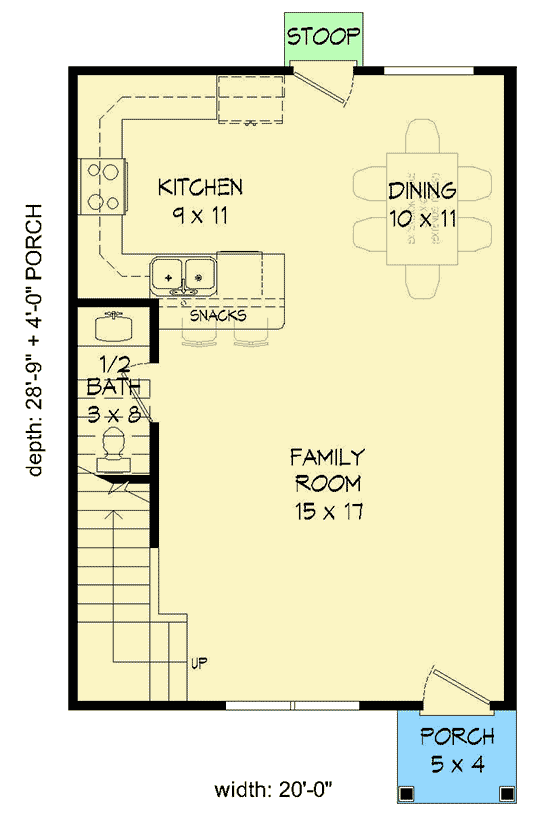

  • Main Level

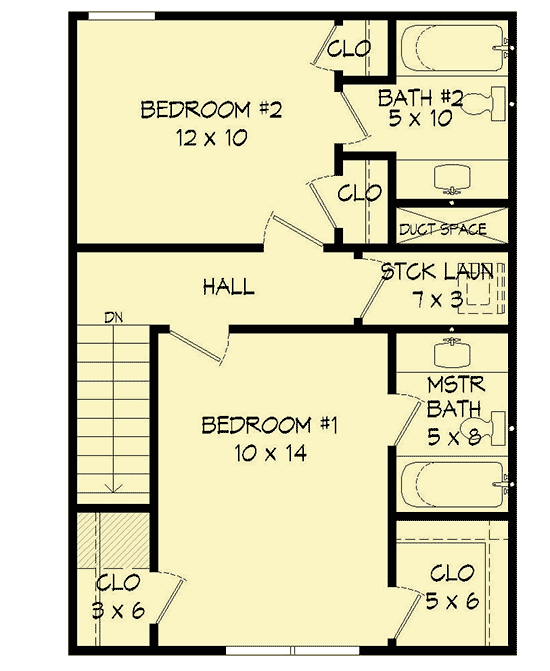

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,140 sq. ft.
  • 1st Floor: 565 sq. ft.
  • 2nd Floor: 575 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 32' 9"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
