Compact and Versatile 1- to 2-Bedroom House Plan

Plan 24391TW

  • 793

    Heated s.f.

  • 1-2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This versatile home plan is designed with your simple, modern lifestyle in mind, and includes everything you need in under 800 square feet.
  • Enjoy the outdoors in comfort on your large screened porch.
  • Inside, a vaulted living and dining area with a fireplace offer versatility. The roomy wraparound kitchen is designed for maximum efficiency.
  • The vaulted master bedroom includes a generously sized walk-in closet and attached full bath.
  • A versatile flex space or bedroom with bathroom access is filled with possibilities.

The plans include the following:

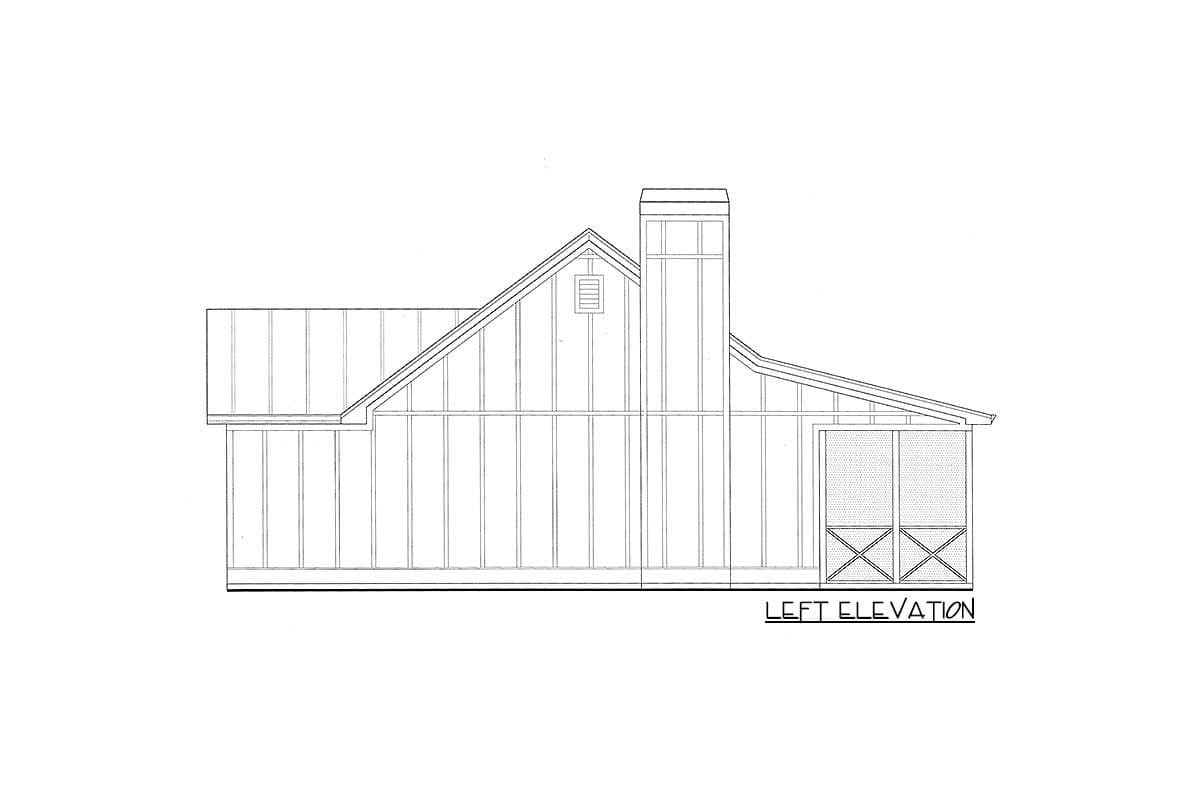

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

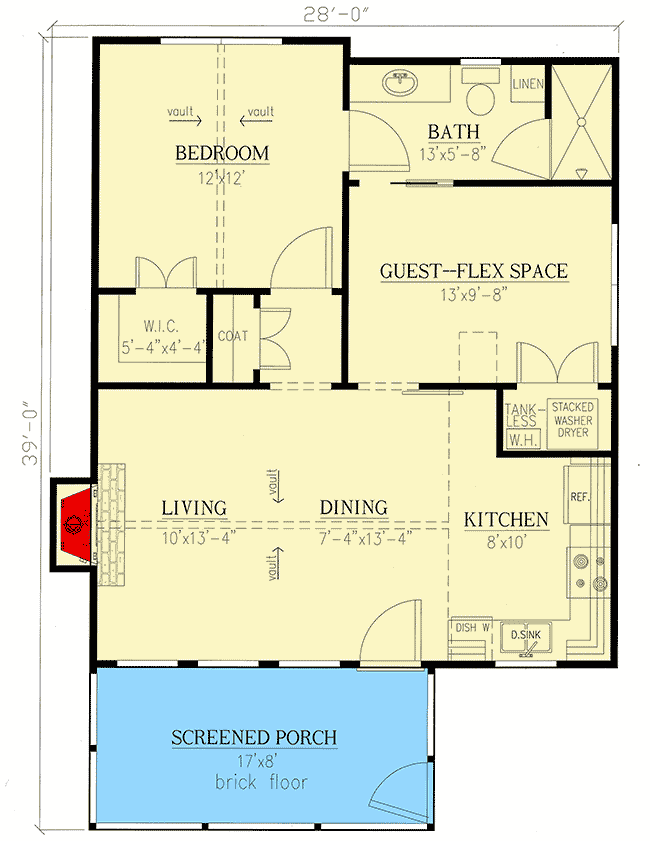

Compact and Versatile 1- to 2-Bedroom House Plan - 24391TW floor plan - Main Level
