Plan 5905ND
Compact Charm
Heated S.F.
1,404
Beds
3
Baths
2
Stories
1
Cars
1
What's Included
Plan Details
  • A charming sheltered entry porch topped by a gable dresses up the exterior of this design. Inside, nine-foot ceilings are standard, visually enlarging the modest square footage.
  • Four 8-inch boxed columns set off the dining room from the fireplaced living room where you see French doors that open to the study/second bedroom. An eating bar separates the well-designed kitchen from the dining room.
  • In back, the master suite includes a good-sized walk-in closet and a private bath with a whirlpool tub with a glass shower.
  • A hall bath, another bedroom and a laundry room off the kitchen complete the home.
  • Foundation options: slab or crawl space. Specify when ordering
  • Related Plans: Need something smaller? Downsize with house plan 59083ND (1,172 sq. ft.) in a reverse layout.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Charm

  • 1,404

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

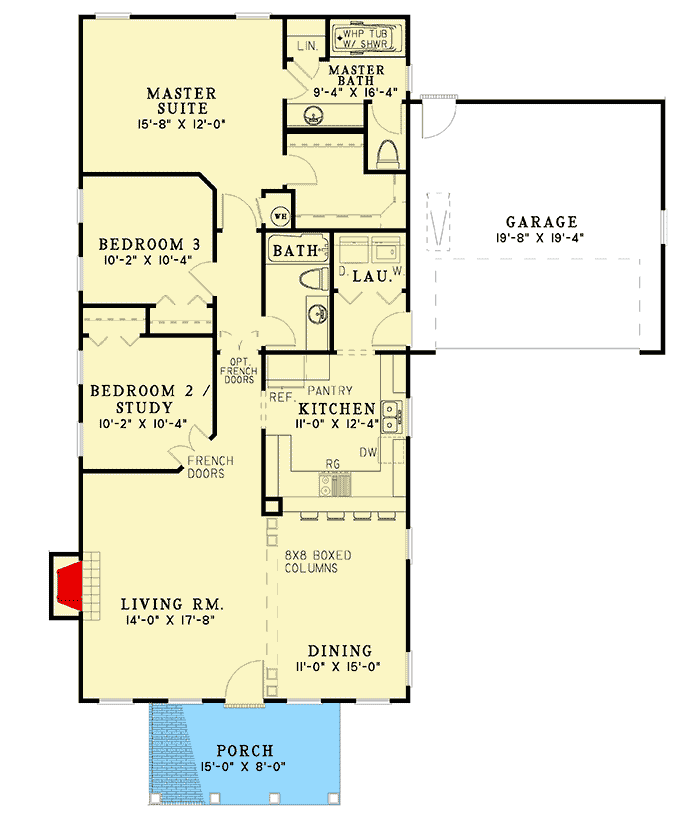

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,404 sq. ft.
  • 1st Floor: 1,404 sq. ft.

Dimensions

  • Width: 48' 4"
  • Depth: 62' 0"
  • Max ridge height: 20' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 380 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
