Plan 3024D

Compact Charmer

Heated S.F.
1,387
Beds
2
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 3024D

Main Level
Main Level
2nd Floor
2nd Floor

Plan 3024D

M-F 9am-5pm EST |

1-203-761-8500

Main Level

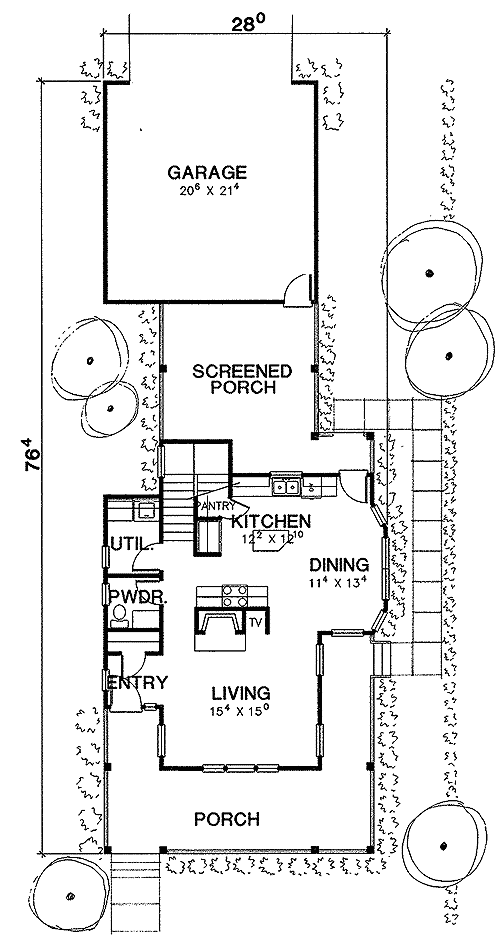

Plan 3024D: Compact Charmer - Floor Plan - Main Level - Cottage, Country, Farmhouse

2nd Floor

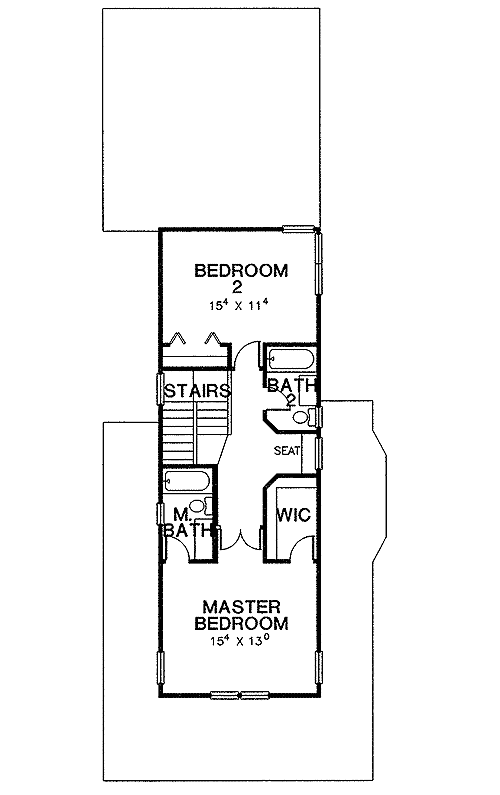

Plan 3024D: Compact Charmer - Floor Plan - 2nd Floor - Cottage, Country, Farmhouse

Plan Details

  • Traditional detailing decorates the exterior of this compact two-story design, just perfect for a long, narrow lot. Notice the rear access to the detached two-car garage, which opens to a screened porch off the dining room.
  • Stepping across the charming wrap-around porch, you step into a small entry and then the living room. Most of the first floor forms one space, divided only by a central core with a fireplace and TV space on the living room side, and a stove and counter space on the kitchen-dining side.
  • The kitchen features a walk-in pantry and a central food-preparation island.
  • On the second floor, the front-facing master suite contains a walk-in closet and a private bath. A second full bath in the hall serves the other bedroom. Next to the hall bath, a window seat offers an ideal spot to curl up and read.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,387 sq. ft.

1st Floor

706 sq. ft.

2nd Floor

681 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

76' 4"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Kitchen

9' 0''

Living Room

10' 0''

Dining Room

9' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Special Features

Laundry - Main Level

Master Suite - Upstairs

Wraparound Porch

Square Footage Breakdown

Total Heated Area

1,387 sq. ft.

1st Floor

706 sq. ft.

2nd Floor

681 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

76' 4"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Kitchen

9' 0''

Living Room

10' 0''

Dining Room

9' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Special Features

Laundry - Main Level

Master Suite - Upstairs

Wraparound Porch
