Compact Coastal Contemporary House Plan with 2 Bedrooms
Heated S.F.
1,064
Beds
2
Baths
1
Stories
1
What's Included
Plan Details

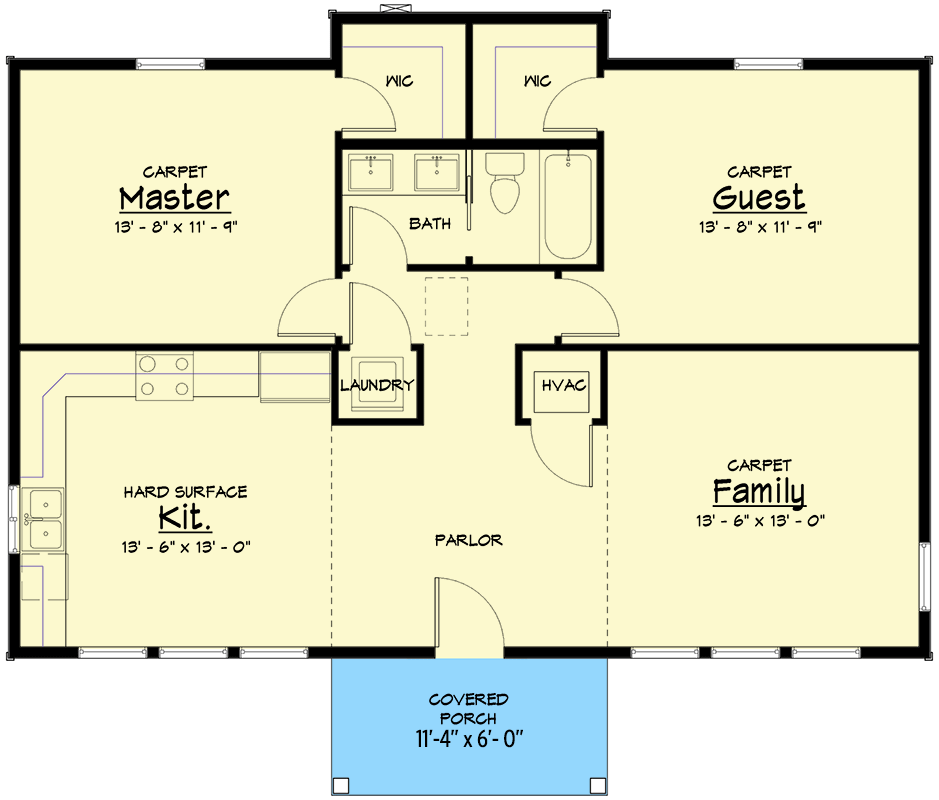

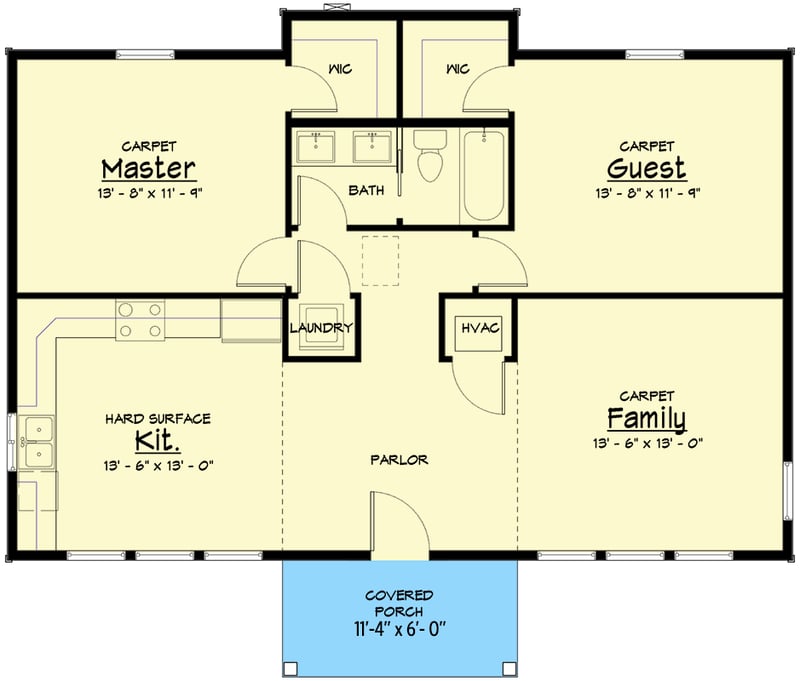

  • A shed-style roof caps this compact coastal contemporary house plan that totals 1,064 square feet of living space with 2 bedrooms and 1 compartmentalized bathroom.
  • An 11'4" by 6' porch welcomes you inside to find a parlor centered in between the family room and kitchen.
  • L-shaped uppers and lowers wrap around the kitchen with a window above the double-bowl sink.
  • The bedrooms line the rear elevation, each with a walk-in closet, and the central bathroom includes two sinks and a separate toilet / shower room.
  • A laundry closet completes the design with enough room for a stackable washer / dryer unit.
What's Included
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Coastal Contemporary House Plan with 2 Bedrooms

  • 1,064

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,064 sq. ft.
  • 1st Floor: 1,064 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 13' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
