Plan 67801MG

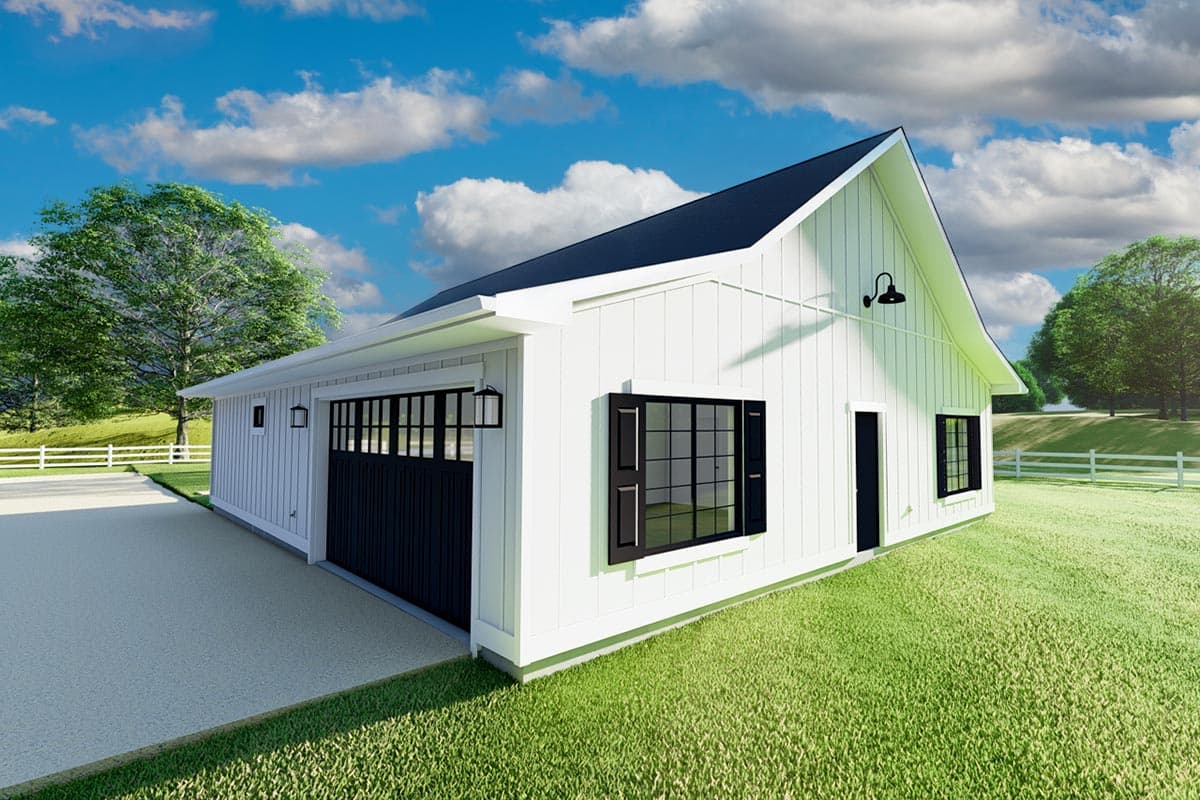

Compact Country Cottage with Full-Sized Amenities
Heated S.F.
1,226
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

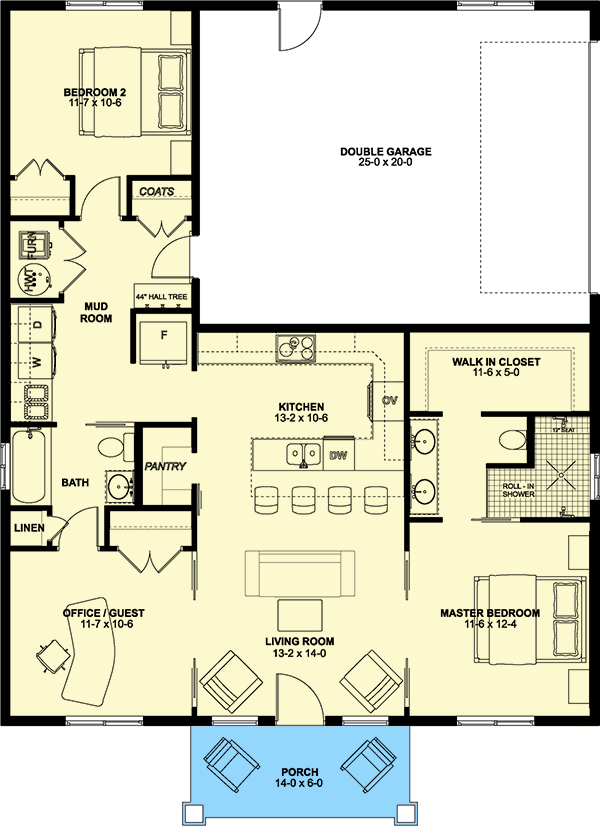

Compact Country Cottage with Full-Sized Amenities - 67801MG floor plan - Main Level
Alternate Master Bathroom Layout
Reverse Floor Plan

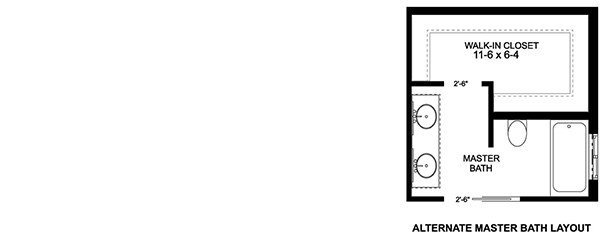

Compact Country Cottage with Full-Sized Amenities - 67801MG floor plan - Alternate Master Bathroom Layout
Plan Details

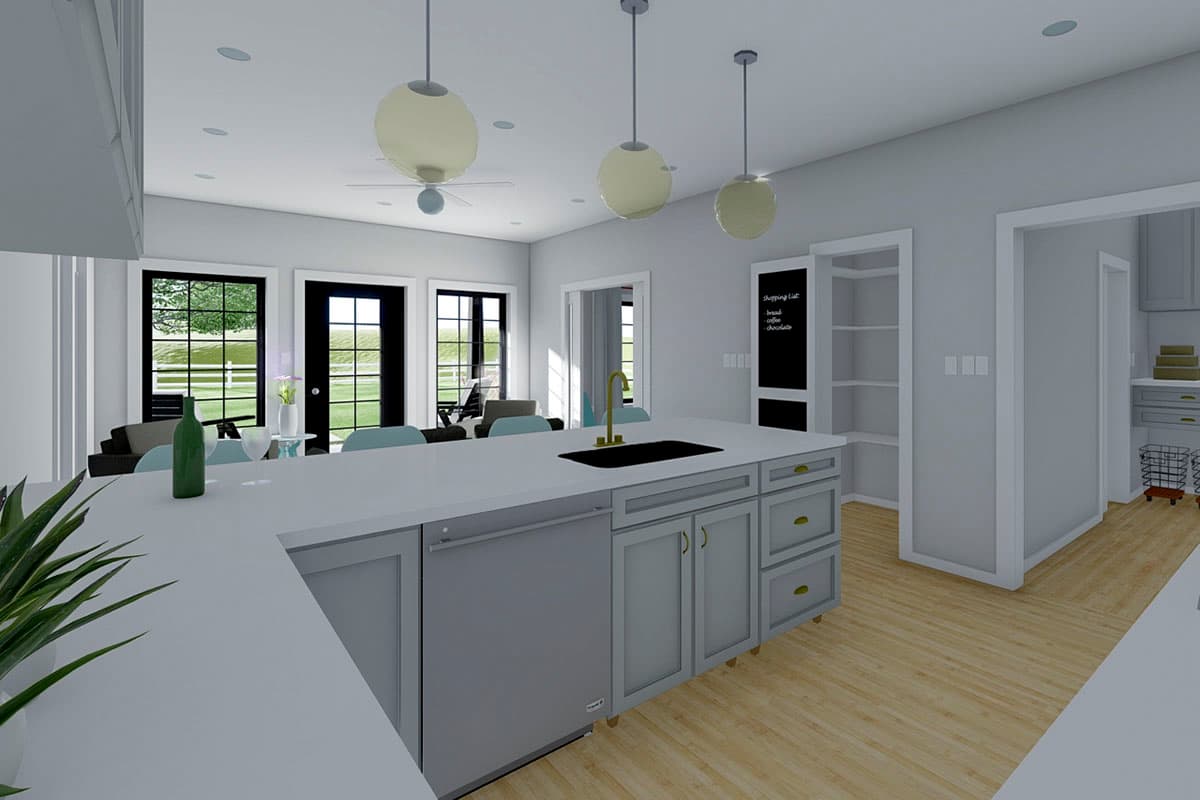

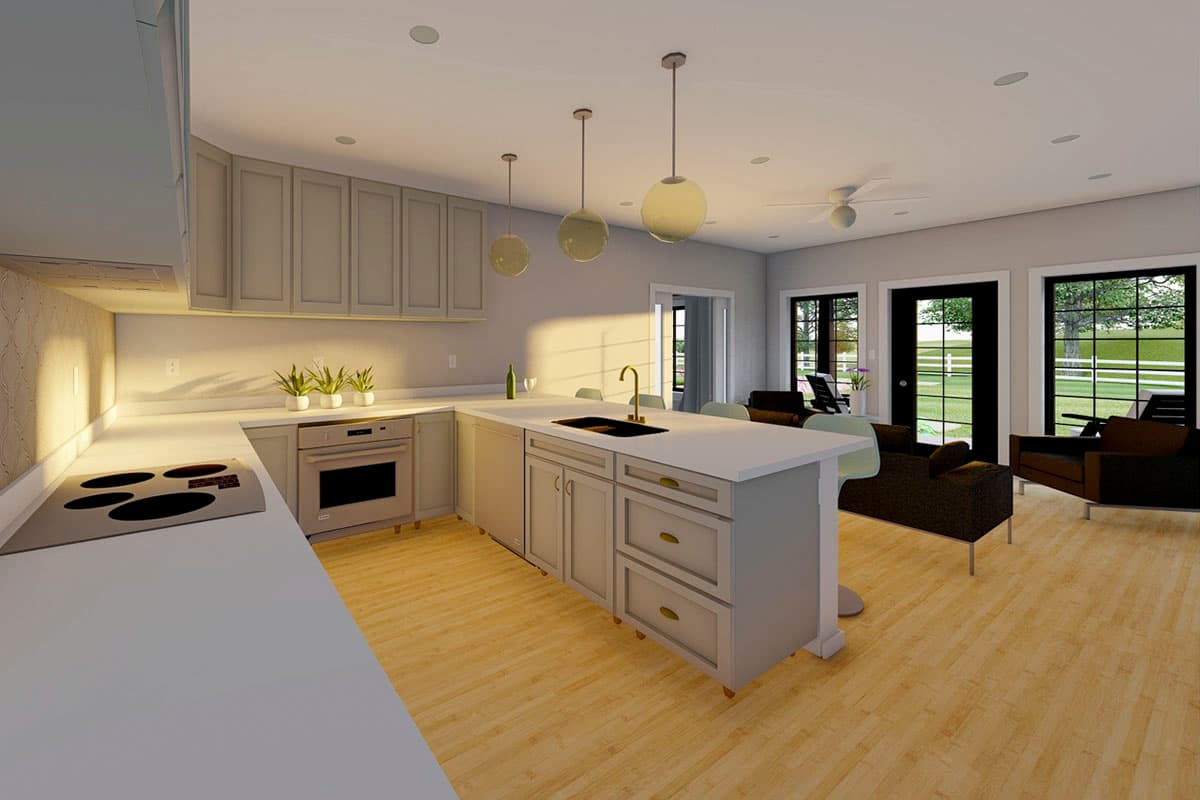

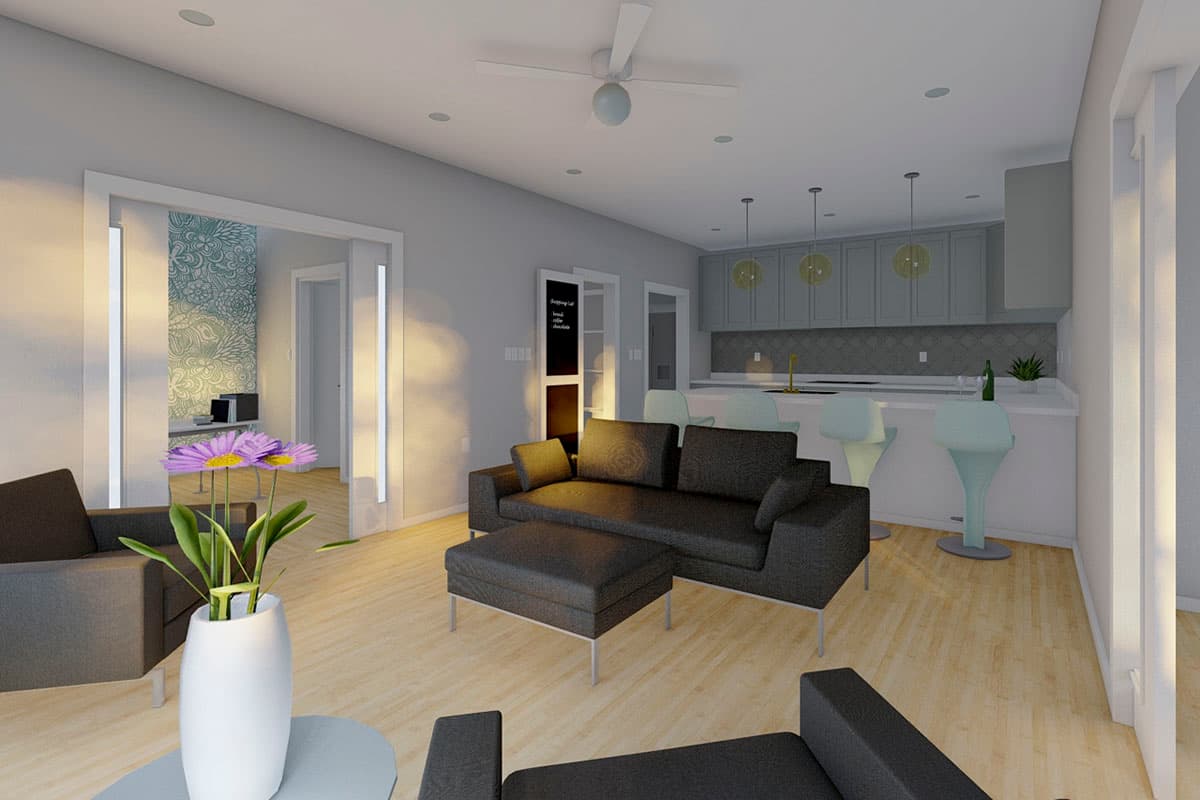

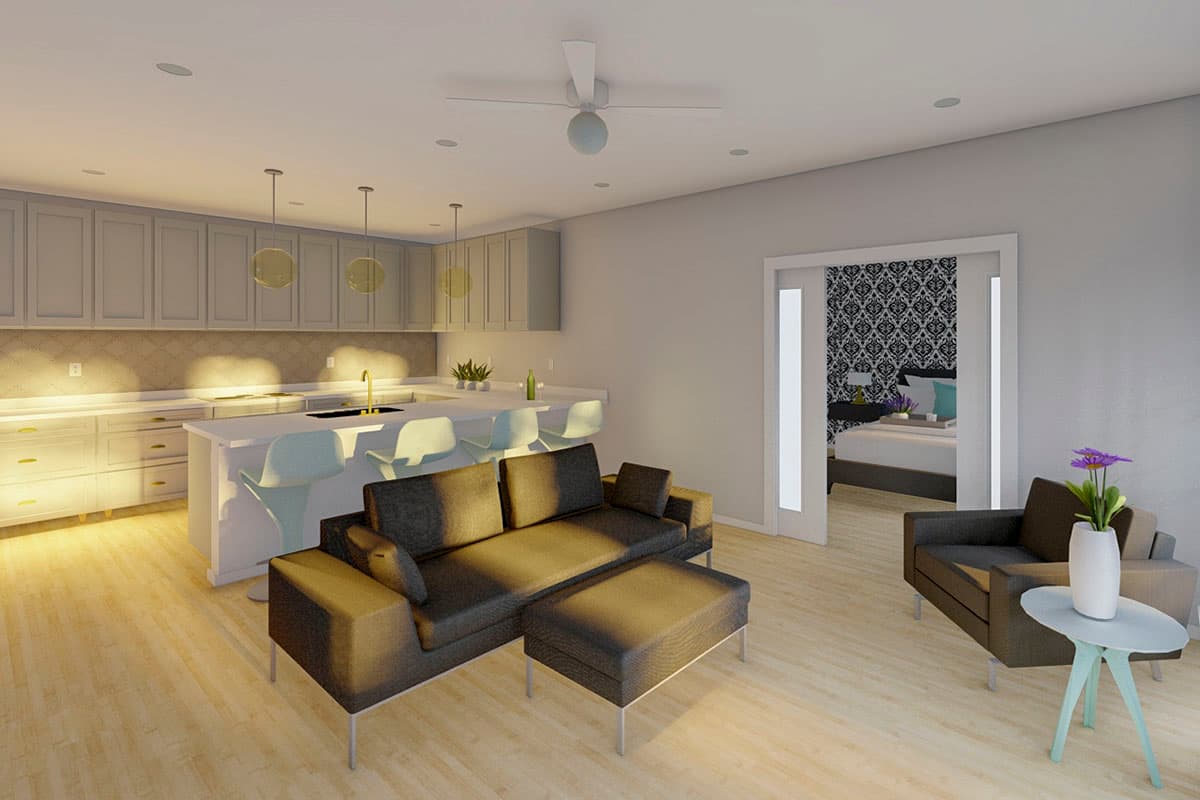

  • With a total of 1,226 square feet of living space, this compact Country Cottage features a fully equipped kitchen with seating for four at the eating bar and a walk-in pantry.
  • Throughout the design, 9' ceilings and pocket doors create a spacious and open feeling.

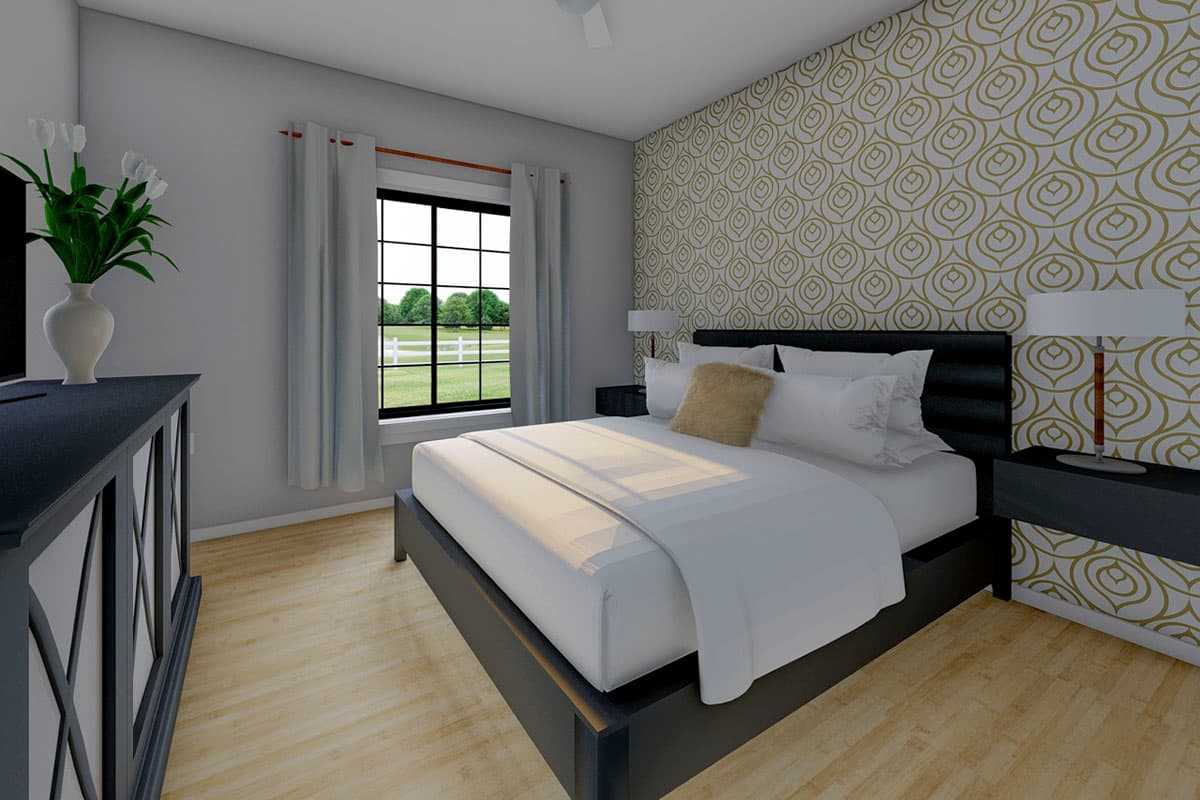

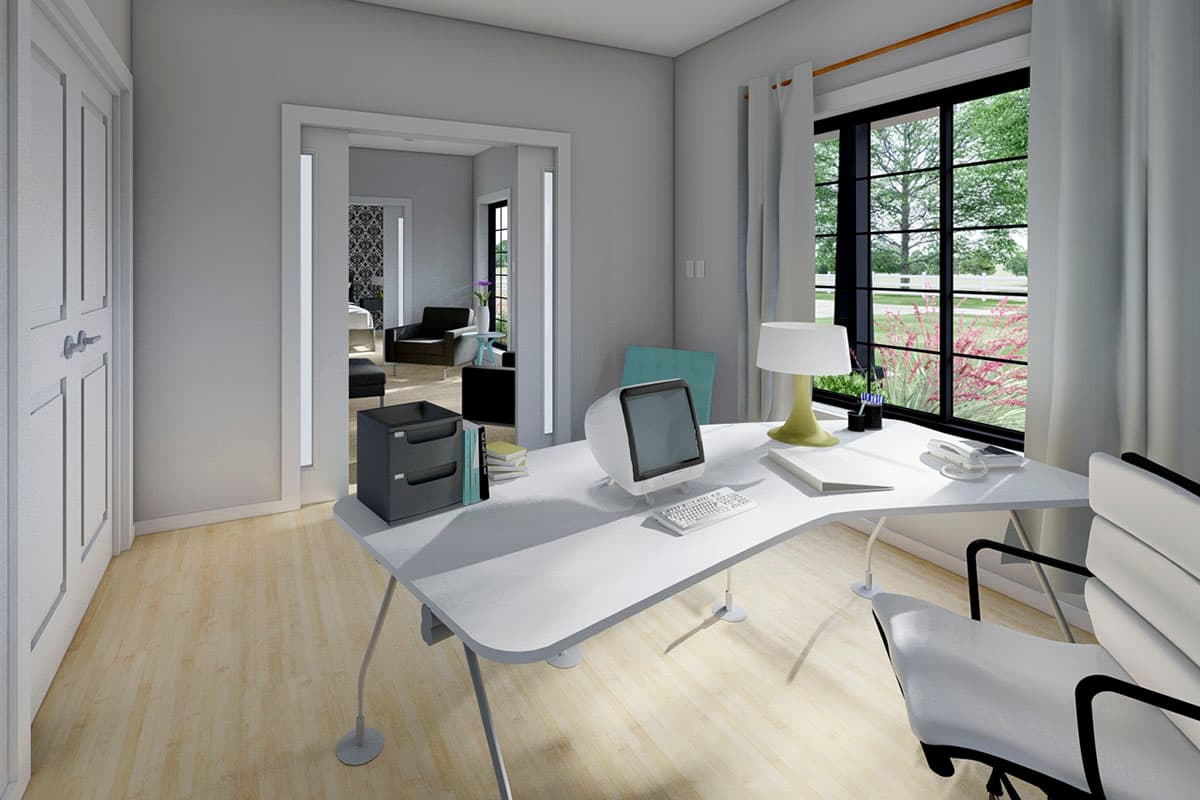

  • The pocket doors leading into the master suite and guest room can be closed for privacy purposes, or offer a large 5' wide opening.

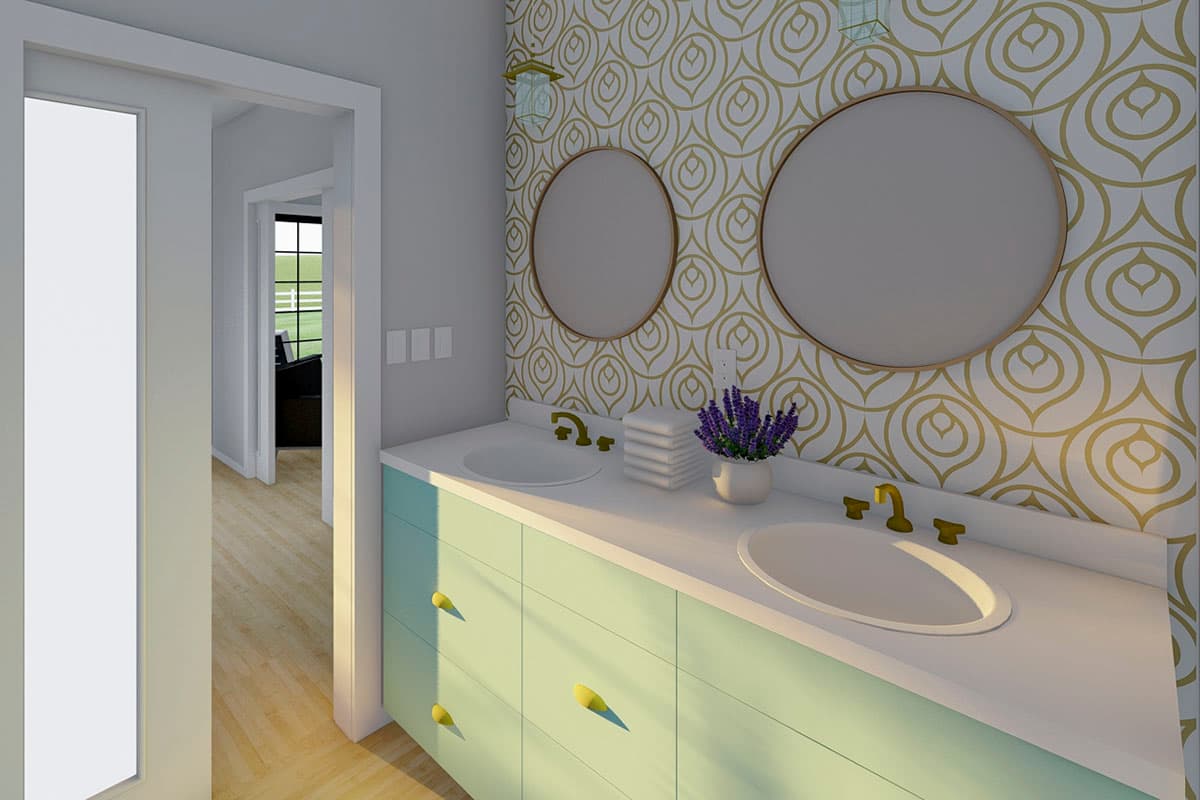

  • The deluxe master bathroom is sure to be appreciated with its modern walk-in shower that measures 6' from end to end with dual shower heads.

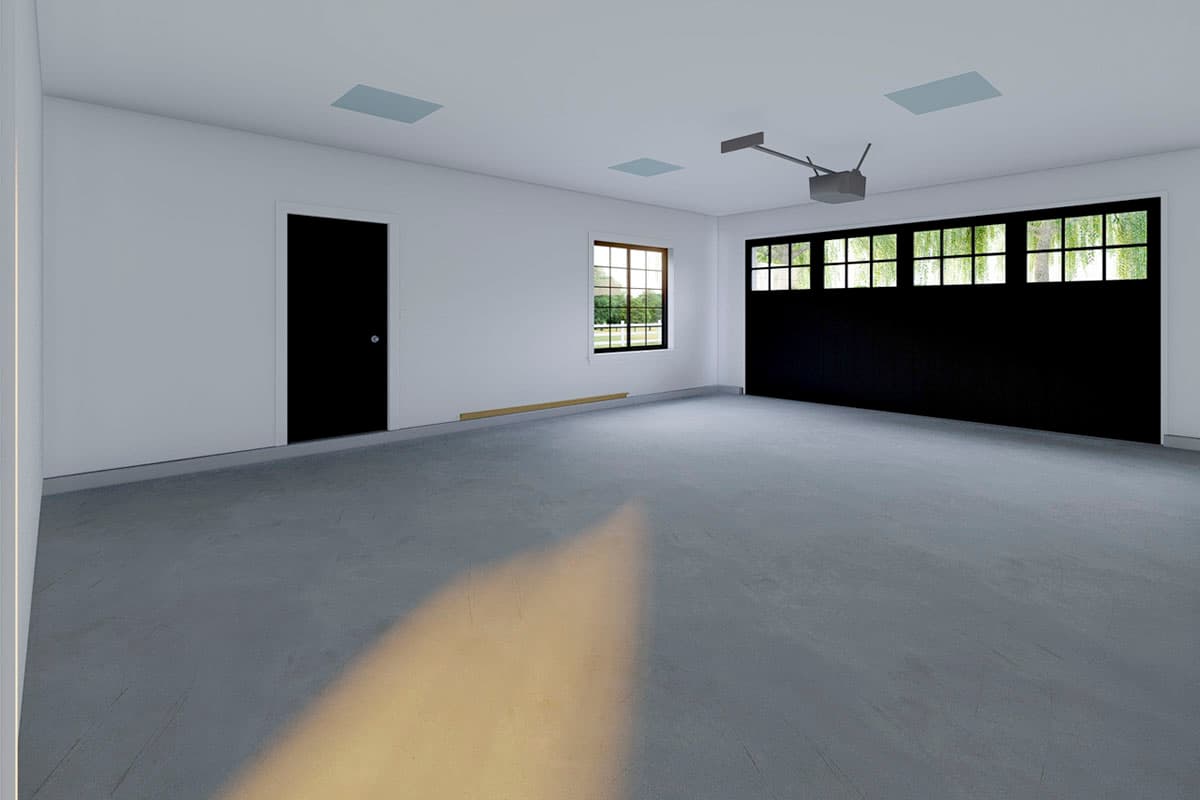

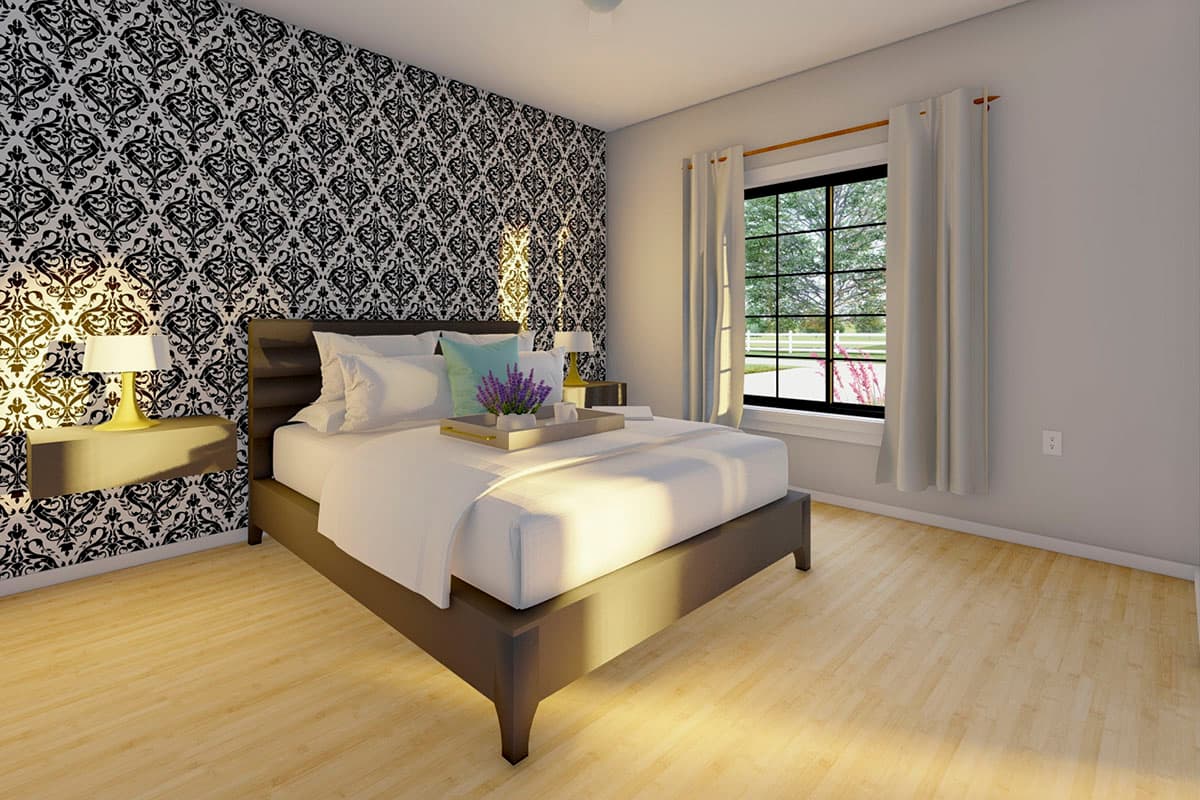

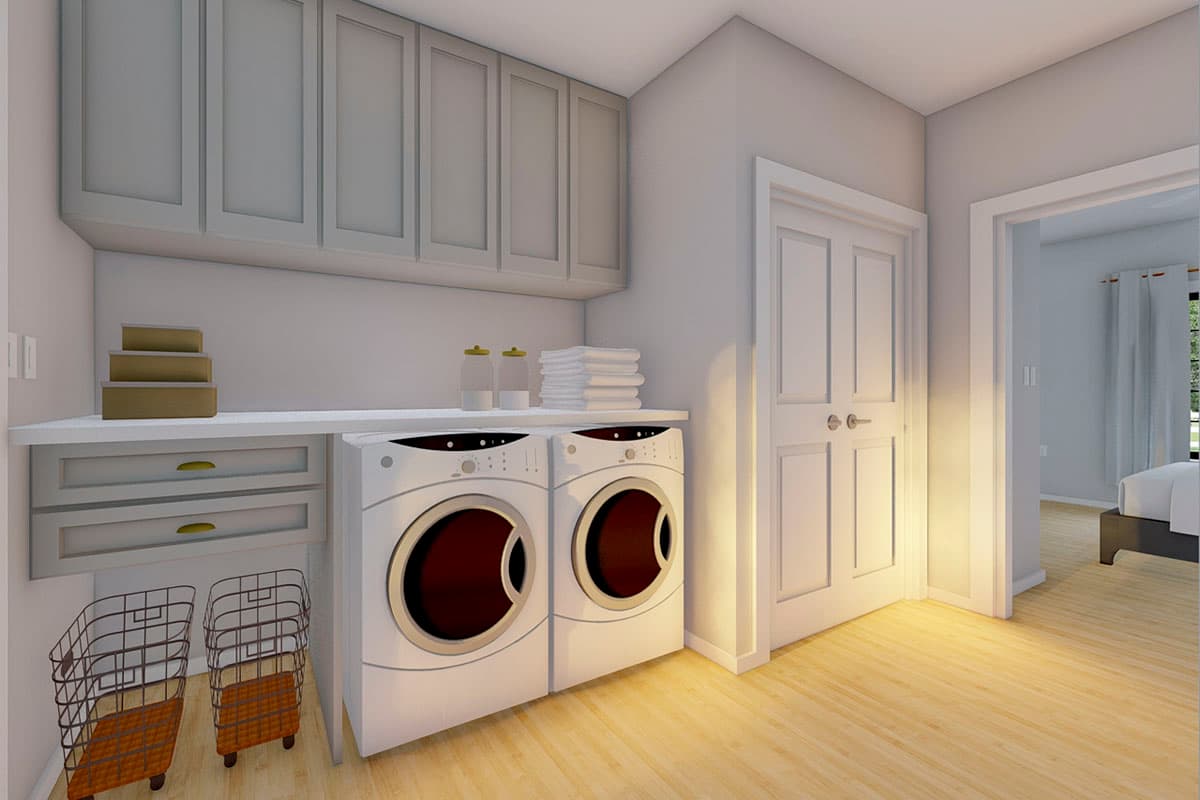

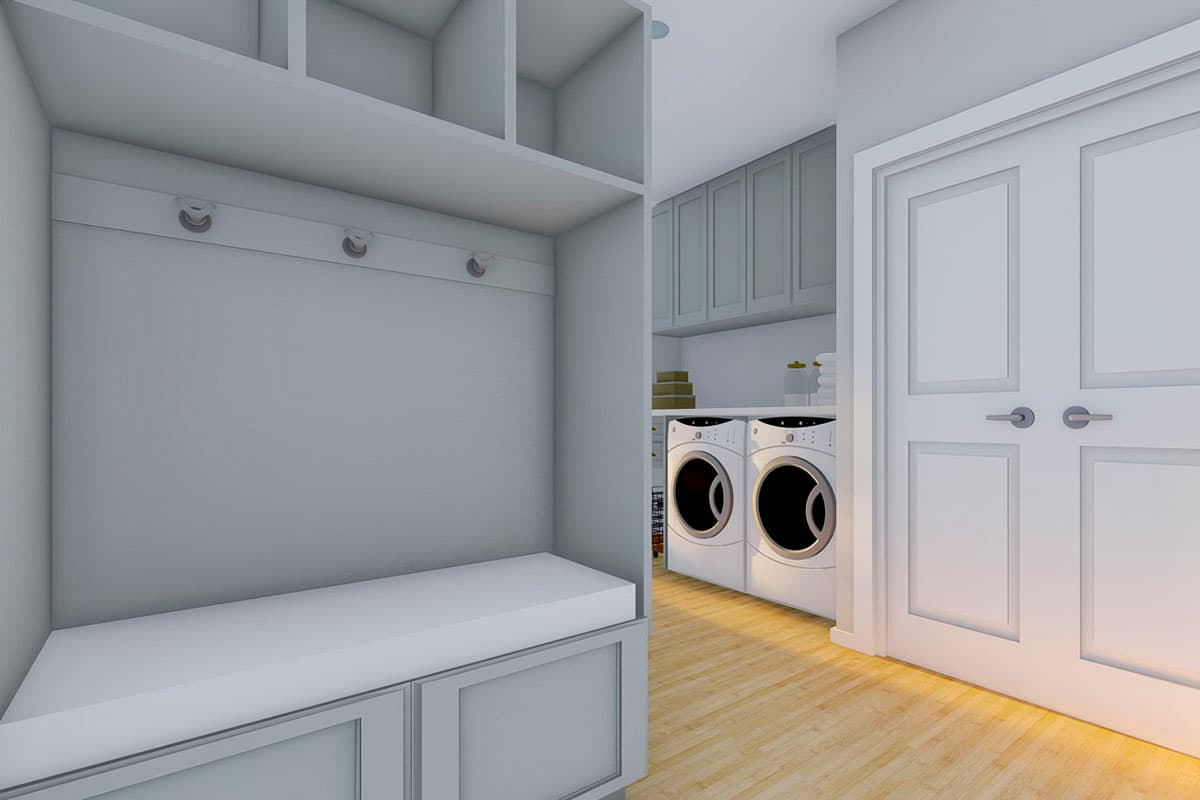

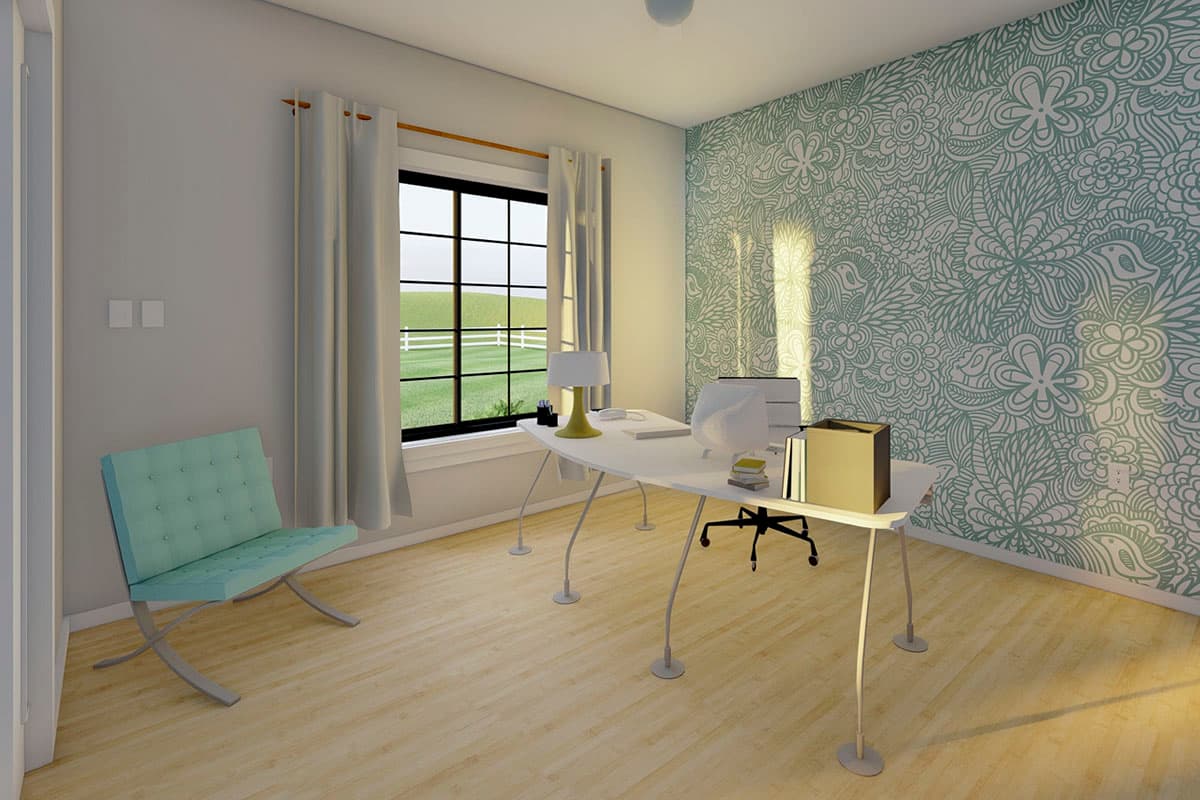

  • This design also features a third bedroom, covered front porch, an oversized double garage, and a mud / laundry room.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Country Cottage with Full-Sized Amenities

  • 1,226

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Alternate Master Bathroom Layout

Plan Details

Square Footage Breakdown

  • Total: 1,226 sq. ft.
  • 1st Floor: 1,226 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 52' 0"
  • Max ridge height: 21' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Compact Country Cottage with Full-Sized Amenities

  • 1,226

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Compact Country Cottage with Full-Sized Amenities

  • 1,226

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,226 sq. ft.
  • 1st Floor: 1,226 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 52' 0"
  • Max ridge height: 21' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8.5 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
