Plan 90210PD
Compact European Cottage
Heated S.F.
938
Beds
2
Baths
1
Stories
1
Cars
1
What's Included
Plan Details
  • From the foyer you enter the living room through double doors.
  • Columns separate the step-down dining room from the living room.
  • Two bedrooms share the large hall bath.
  • Only 34' wide, this home was designed to fit nicely on a narrow lot.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact European Cottage

  • 938

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

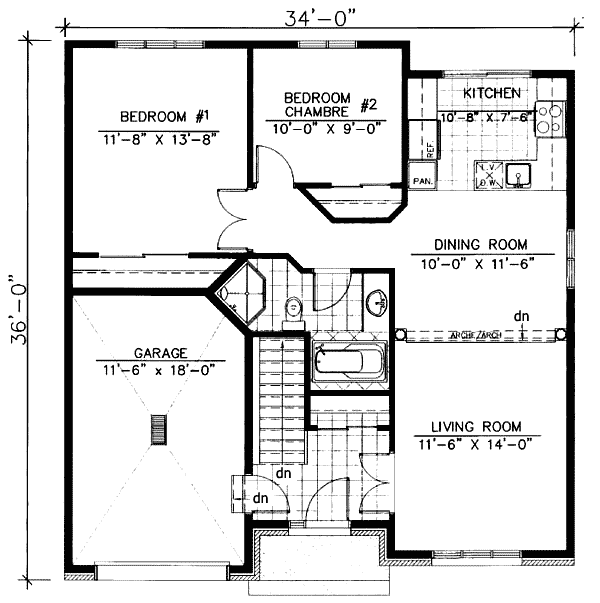

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 938 sq. ft.
  • 1st Floor: 938 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 36' 0"
  • Max ridge height: 21' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 227 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
