Plan: 90182PD

Compact European Home Plan

1,776 4 2 2 1
Pageloader

Compact European Home Plan

Plan 90182PD

  • 1,776

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

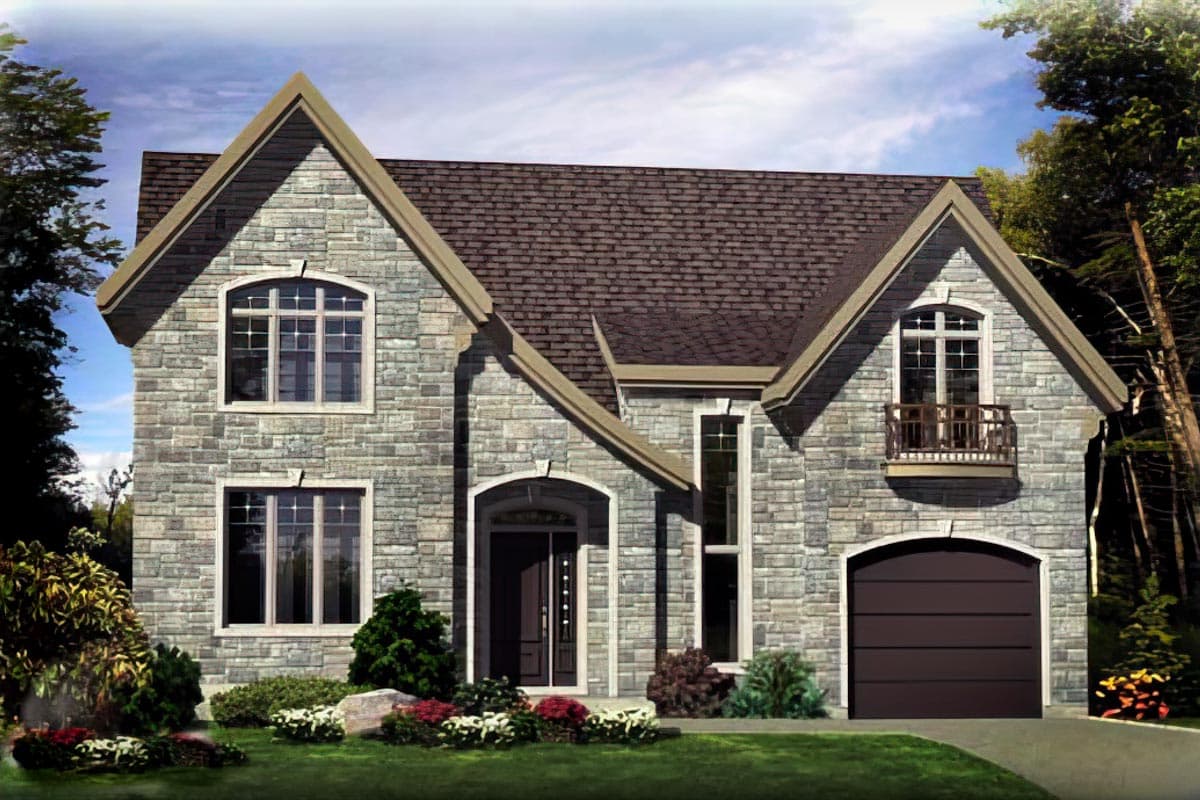

  • Only 42' wide, this attractive European home plan has a maintenance-free stone exterior.
  • The efficient kitchen has an eating bar and is open to the dining area for ease in serving.
  • A column separates the foyer from the good-sized living room.
  • Four bedrooms, including a large master suite, can be found on the second floor and an open rail allows views down into the foyer below.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details

Floor Plan

Plan details

Architectural Style

Special features

Plan Collections



Compact European Home Plan

  • 1,776

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 1 Set $948
  • 5 Sets $1,078
  • 8 Sets $1,121
  • PDF - single-use $1,213
  • Reproducible Set $1,458
  • CAD $1,807
  • View all purchase option online

About This Plan

  • Only 42' wide, this attractive European home plan has a maintenance-free stone exterior.
  • The efficient kitchen has an eating bar and is open to the dining area for ease in serving.
  • A column separates the foyer from the good-sized living room.
  • Four bedrooms, including a large master suite, can be found on the second floor and an open rail allows views down into the foyer below.

Floor Plans

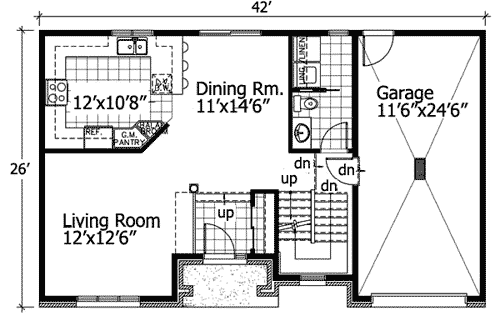

  • Main Level

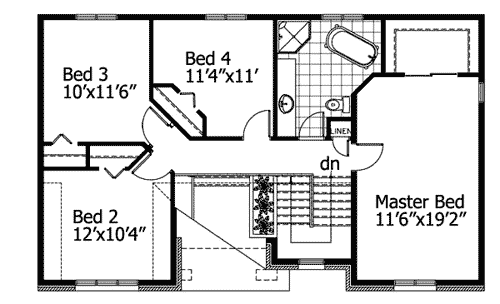

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,776 sq. ft.
  • 1st Floor: 731 sq. ft.
  • 2nd Floor: 1,045 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 26' 0"
  • Max ridge height: 29' 1"

Garage

  • Type: Attached
  • Area: 314 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Cottage
  • European
  • Traditional

Special features

  • CAD Available
  • PDF

Plan Collections

  • Canadian
  • Metric
