Compact Floor Plan with Single Side Garage

Plan 95150RW

  • 745

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Although compact in size, the sweet and simple exterior of this home plan is plentiful in charm and features a cross-gable metal roof, board and batten siding, and a single garage bay attached to the right side of the home.
  • The front door takes you directly into the heart of the home that opens into a living room. The eat-in kitchen provides enough space for a dining table that can double as a prep island.
  • The bedroom is tucked towards the rear of the home and includes a walk-in closet with a stackable washer / dryer unit.
  •  A coat closet in the mudroom and linen closet next to the full bathroom offer additional storage space.

The following details are included with this house plan:
  • Cover Page

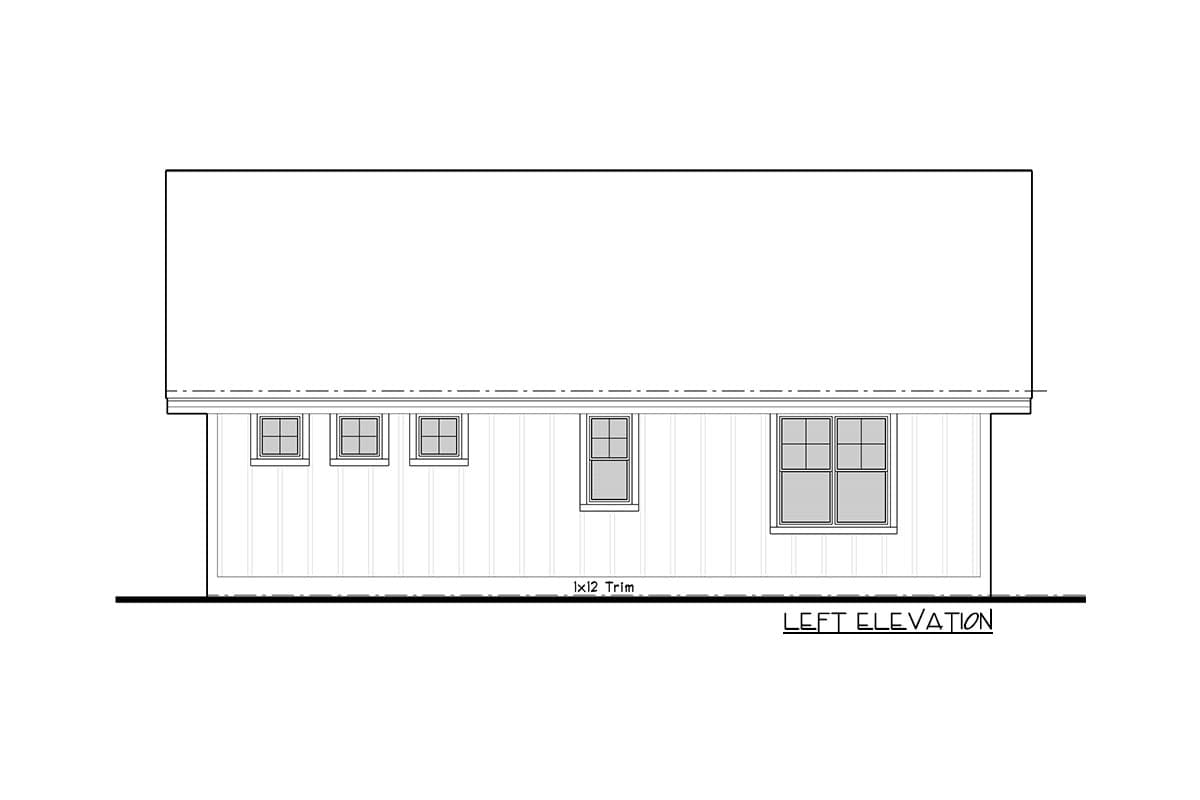

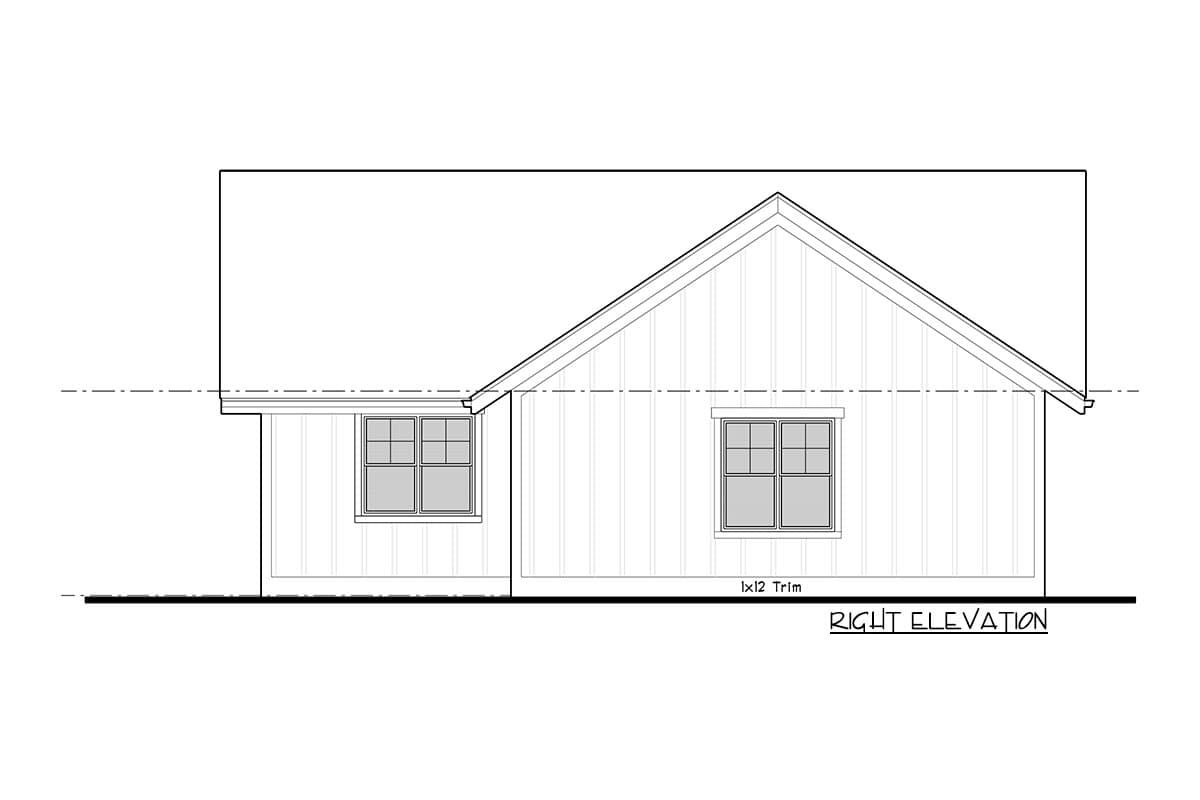

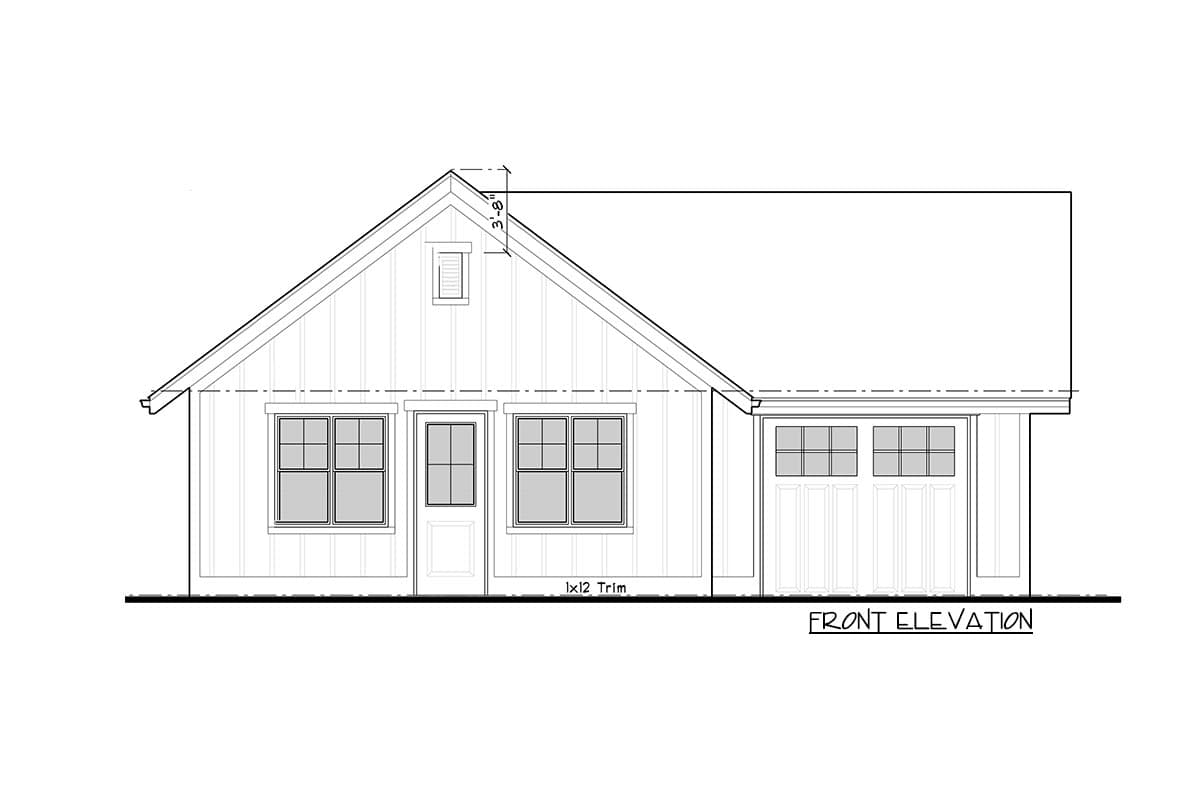

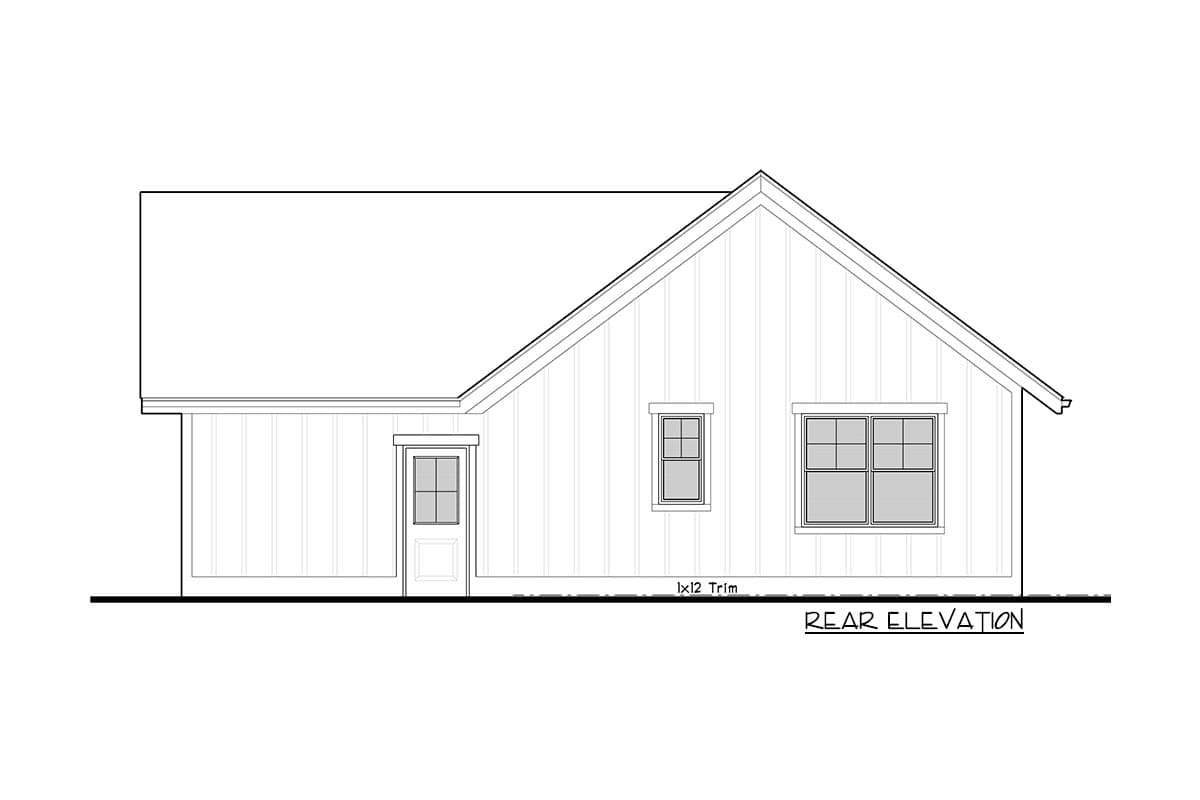

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

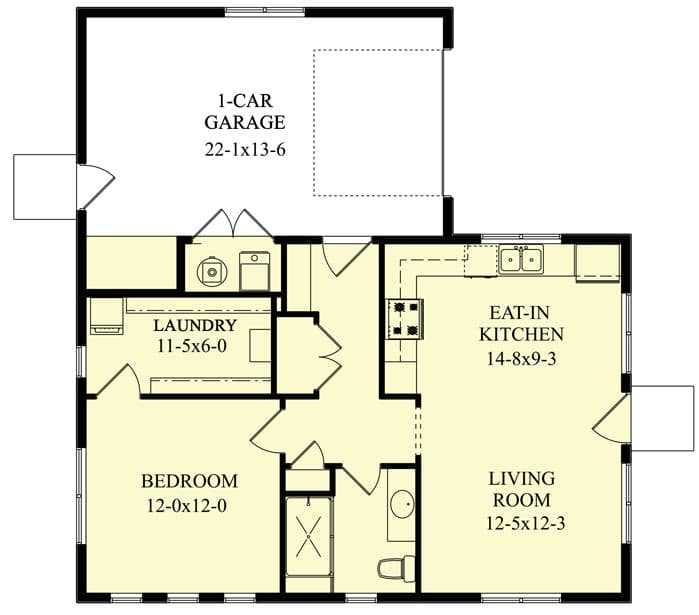

Compact Floor Plan with Single Side Garage - 95150RW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 745 sq. ft.
  • 1st Floor: 745 sq. ft.
  • Deck: 64 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 6"
  • Depth: 34' 0"
  • Max ridge height: 18' 9"

Garage

  • Type: Attached
  • Area: 342 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Compact Floor Plan with Single Side Garage

  • 745

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • PDF - Unlimited Build $2,025
  • CAD + PDF - Single Build $2,650
  • CAD - Unlimited Build $3,975
  • View all purchase option online

About This Plan

  • Although compact in size, the sweet and simple exterior of this home plan is plentiful in charm and features a cross-gable metal roof, board and batten siding, and a single garage bay attached to the right side of the home.
  • The front door takes you directly into the heart of the home that opens into a living room. The eat-in kitchen provides enough space for a dining table that can double as a prep island.
  • The bedroom is tucked towards the rear of the home and includes a walk-in closet with a stackable washer / dryer unit.
  •  A coat closet in the mudroom and linen closet next to the full bathroom offer additional storage space.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 745 sq. ft.
  • 1st Floor: 745 sq. ft.
  • Deck: 64 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 6"
  • Depth: 34' 0"
  • Max ridge height: 18' 9"

Garage

  • Type: Attached
  • Area: 342 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 95150RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95150RW
|
Need Help? 800-854-7852
|
