Compact House Plan with Special Ceilings for Every Bedroom

Plan 92057VS

  • 2,100

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • This compact house plan is less than 35' wide - ideal for your narrow lot.
  • With a covered porch in front and a big deck in back, you can enjoy outdoor living, rain or shine.
  • The living room, breakfast nook and kitchen have an open concept layout but we can always escape to the quiet study when you need to work from home.
  • Every bedroom on the second floor has either a vaulted or tray ceiling that add great appeal.
  • The master bedroom has a lovely double tray ceiling plus a large walk-in clothes closet.
  • Future space in the basement can be finished when you are ready.
  • Related Plan: Get a different exterior with house plan 92055VS.

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

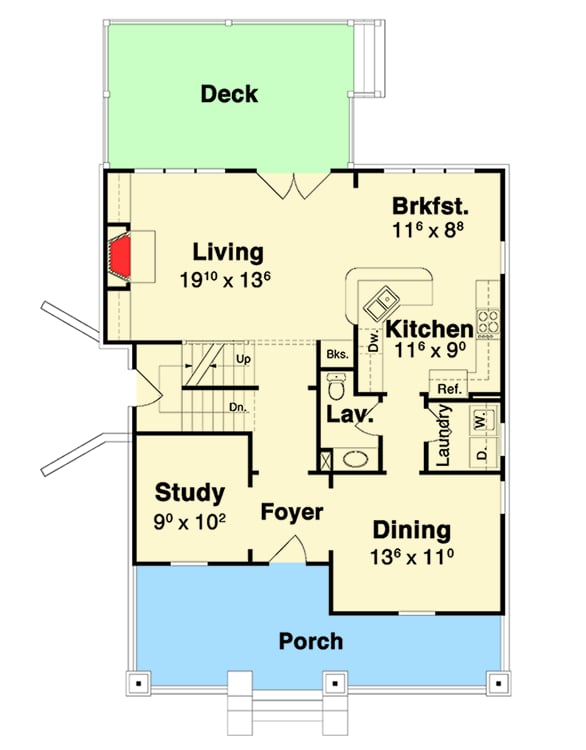

Compact House Plan with Special Ceilings for Every Bedroom - 92057VS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

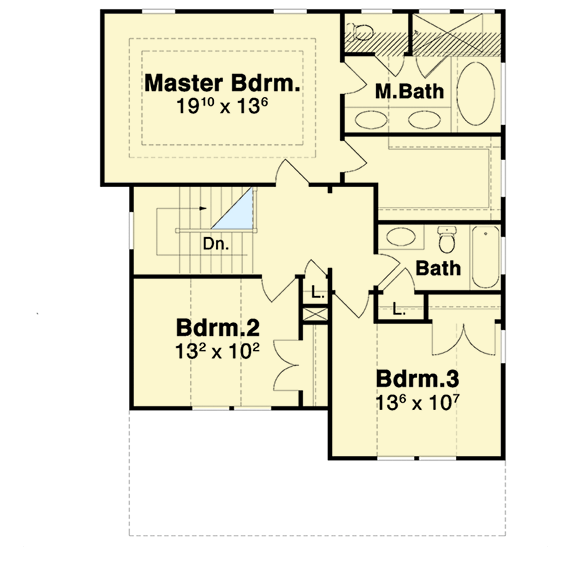

Compact House Plan with Special Ceilings for Every Bedroom - 92057VS floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

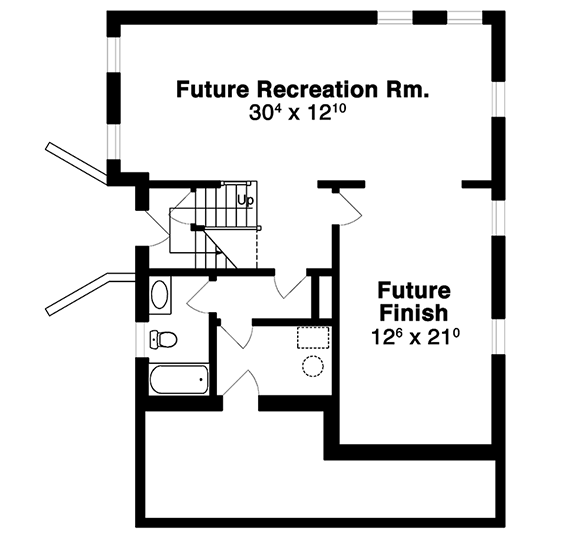

Compact House Plan with Special Ceilings for Every Bedroom - 92057VS floor plan - Basement

Compact House Plan with Special Ceilings for Every Bedroom

  • 2,100

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,100 sq. ft.
  • 1st Floor: 1,500 sq. ft.
  • 2nd Floor: 1,500 sq. ft.

Dimensions

  • Width: 34' 4"
  • Depth: 54' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
