Plan 67844MG

Compact Lake House Plan with Home Office or Flex Space - 850 Sq Ft

Heated S.F.
850
Beds
1
Baths
1
Stories
1
Tour

Floor Plan

Plan 67844MG

Main Level
Main Level
Alternate Bathroom Layout
Alternate Bathroom Layout

Plan 67844MG

M-F 9am-5pm EST |

1-203-761-8500

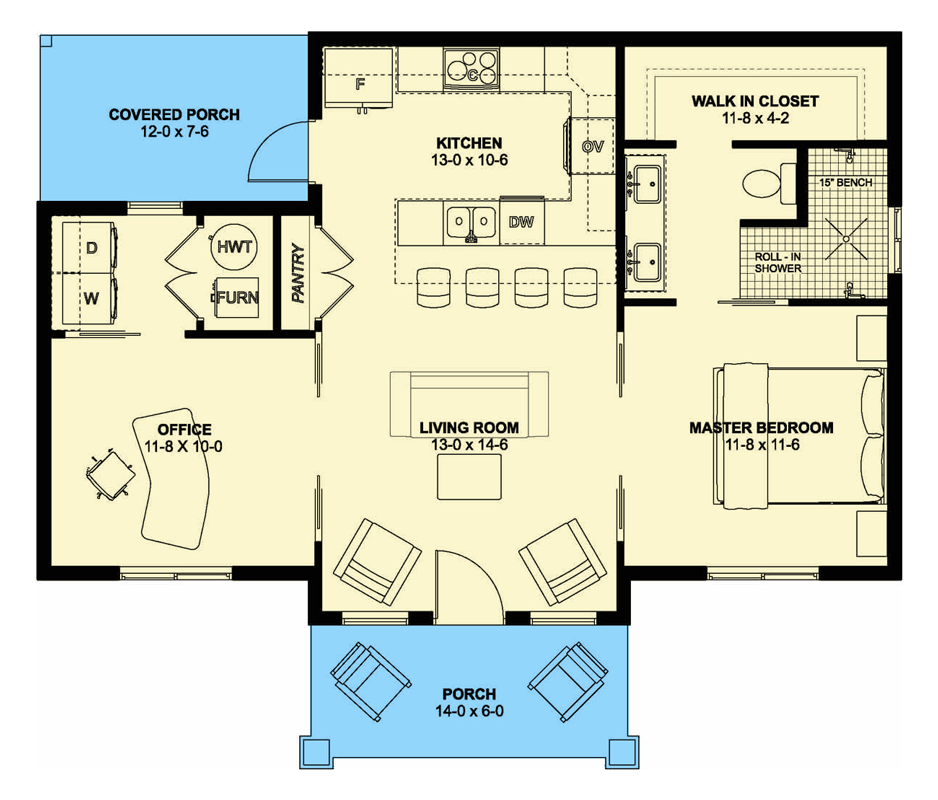

Main Level

Plan 67844MG: Compact Lake House Plan with Home Office or Flex Space - 850 Sq Ft - Floor Plan - Main Level

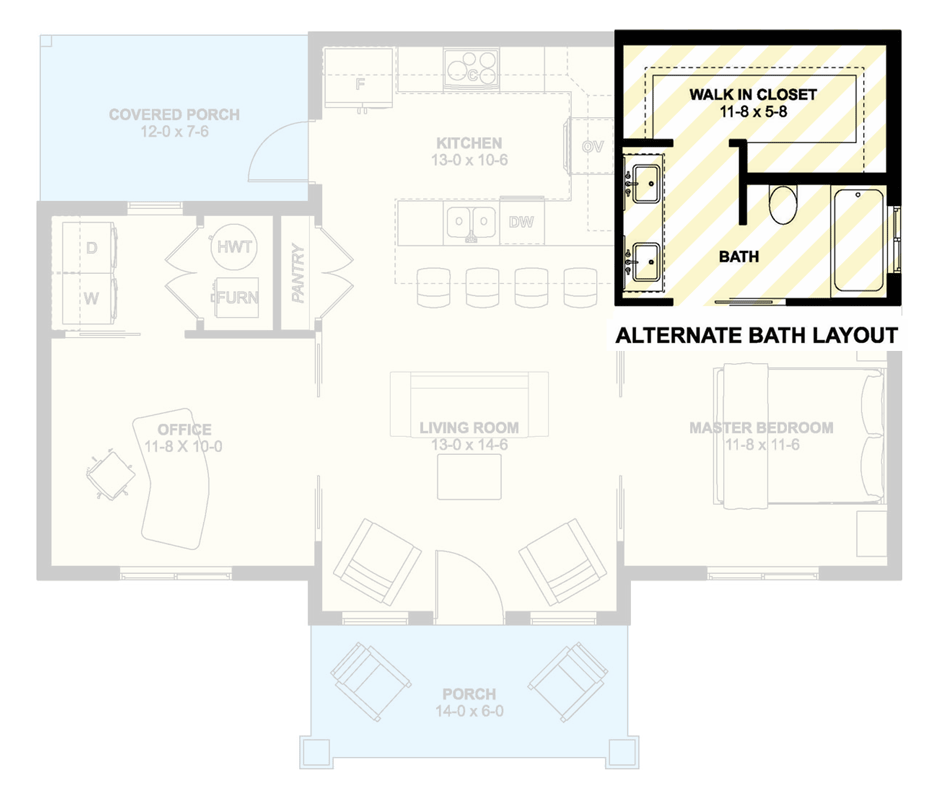

Alternate Bathroom Layout

Plan 67844MG: Compact Lake House Plan with Home Office or Flex Space - 850 Sq Ft - Floor Plan - Alternate Bathroom Layout

Plan Details

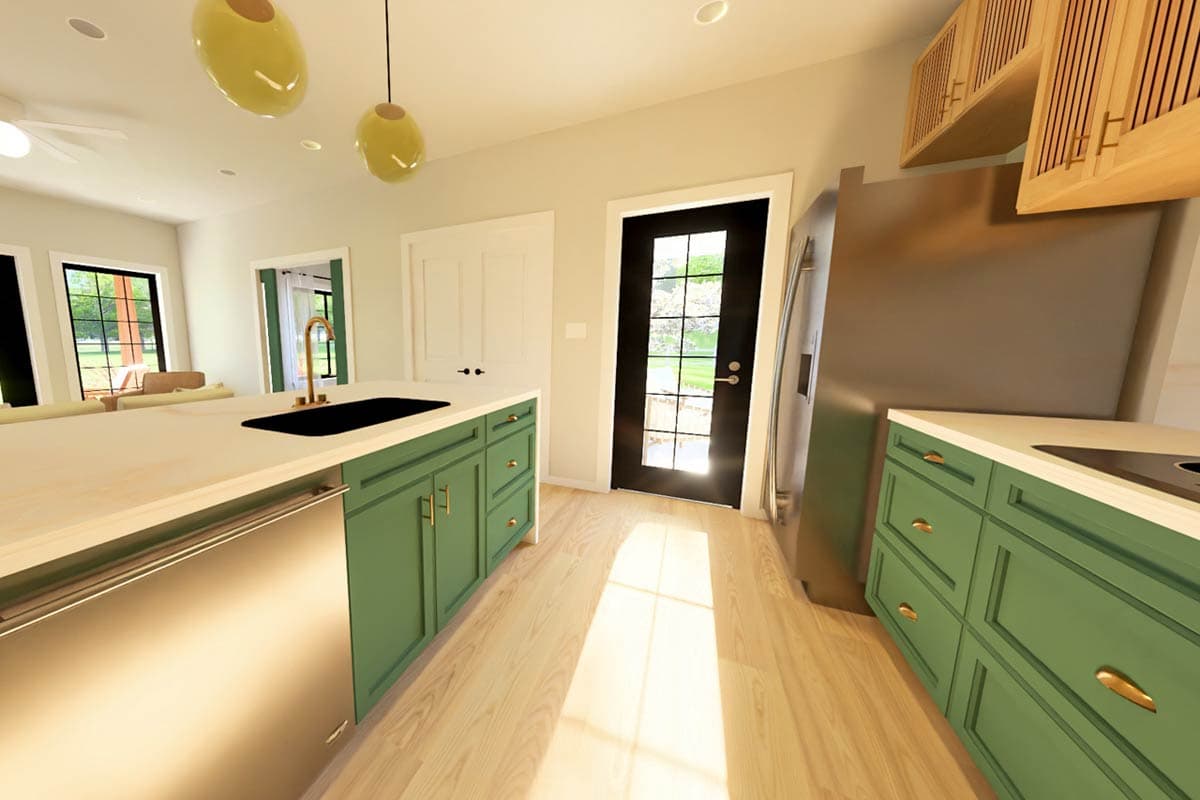

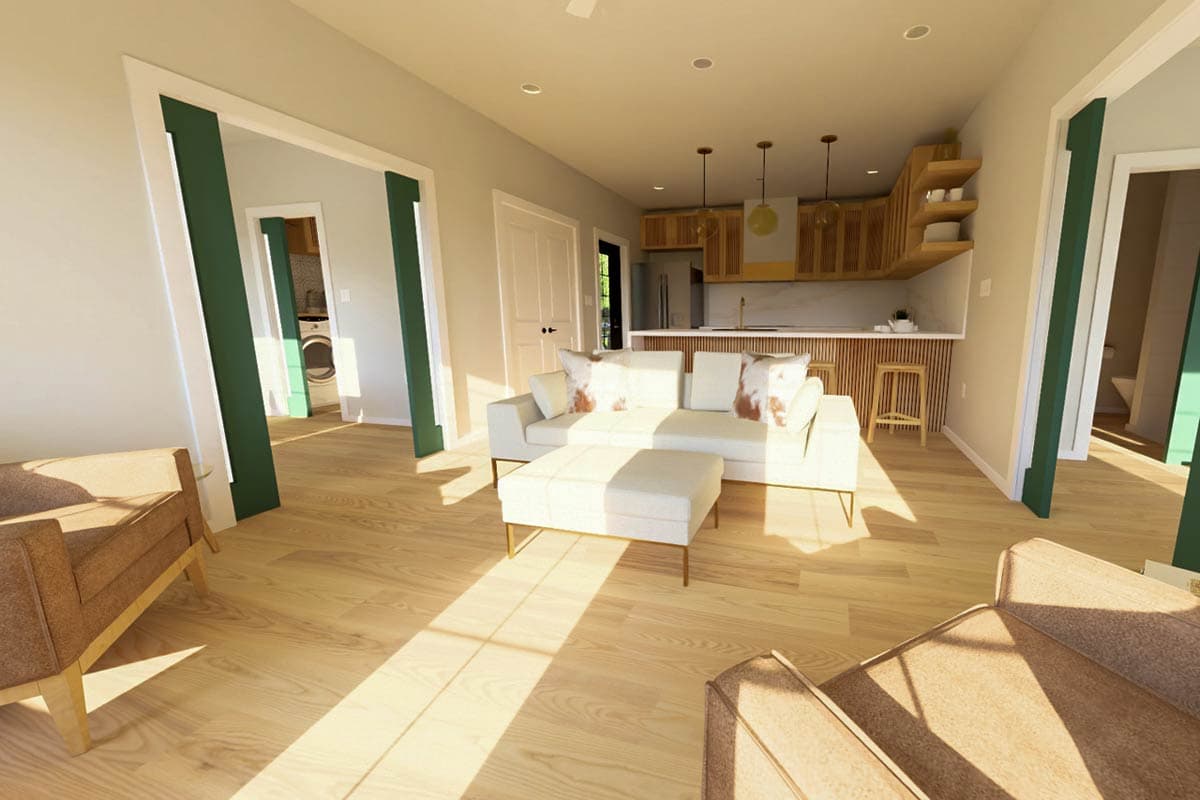

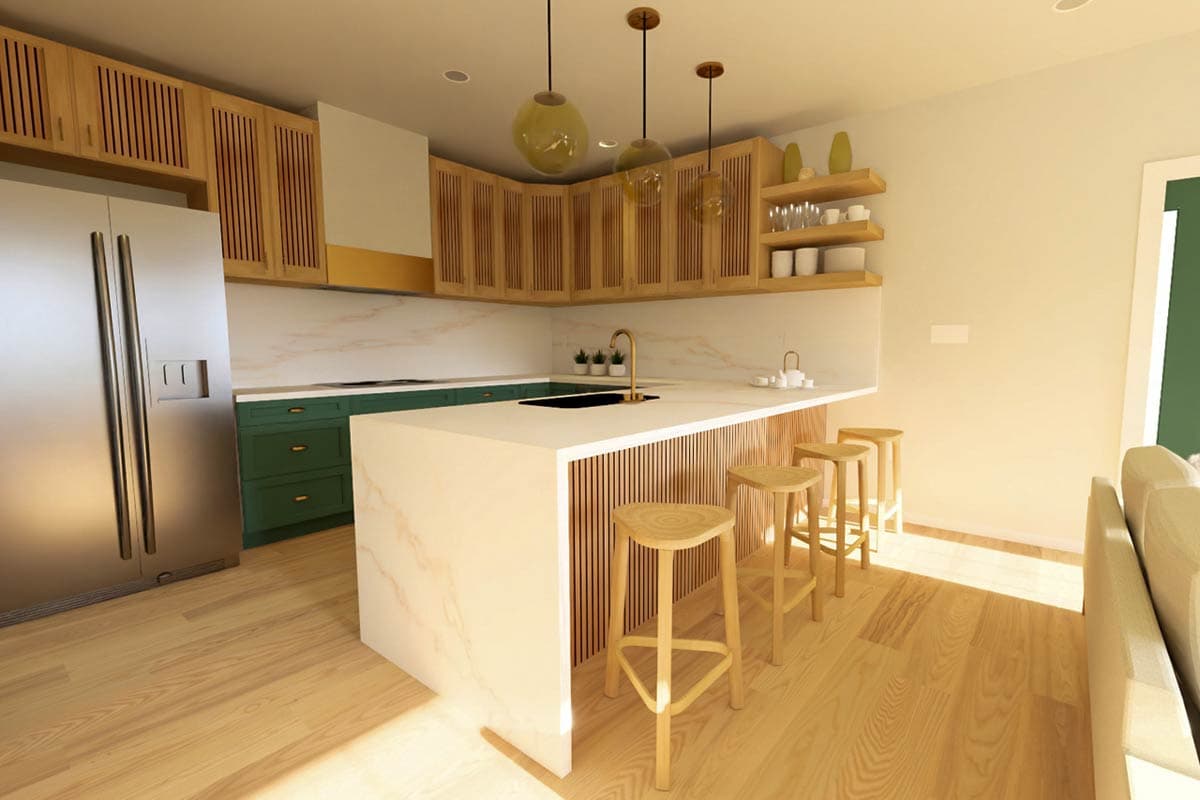

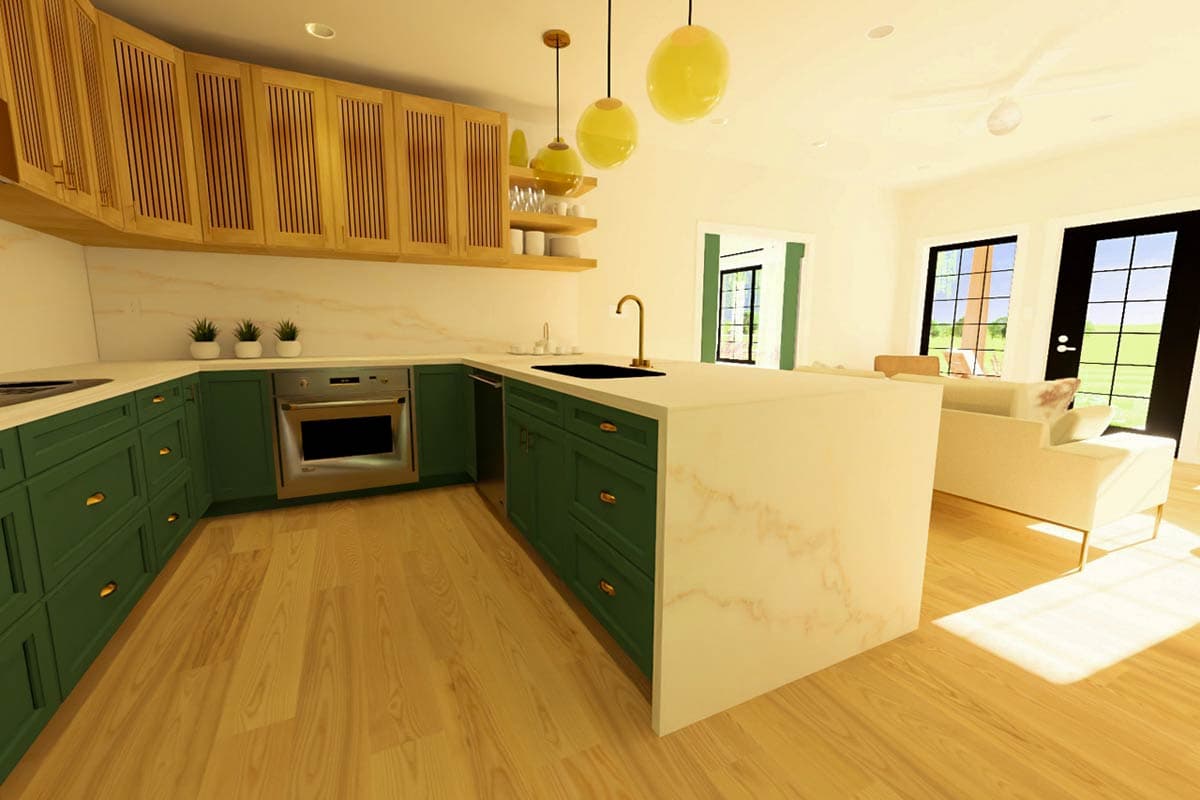

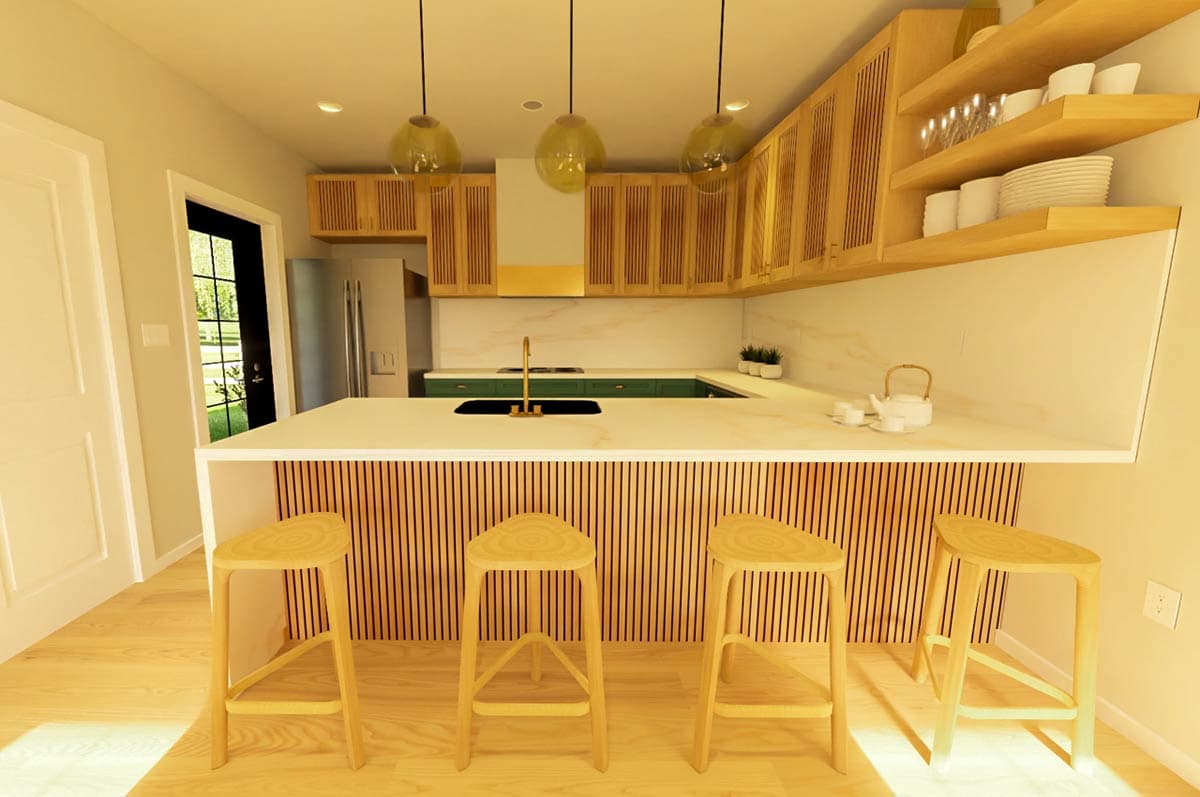

  • This compact house plan features 1 bedroom, 1 bathroom and a fully equipped kitchen with a large pantry and eating bar that comfortably seats up to four.

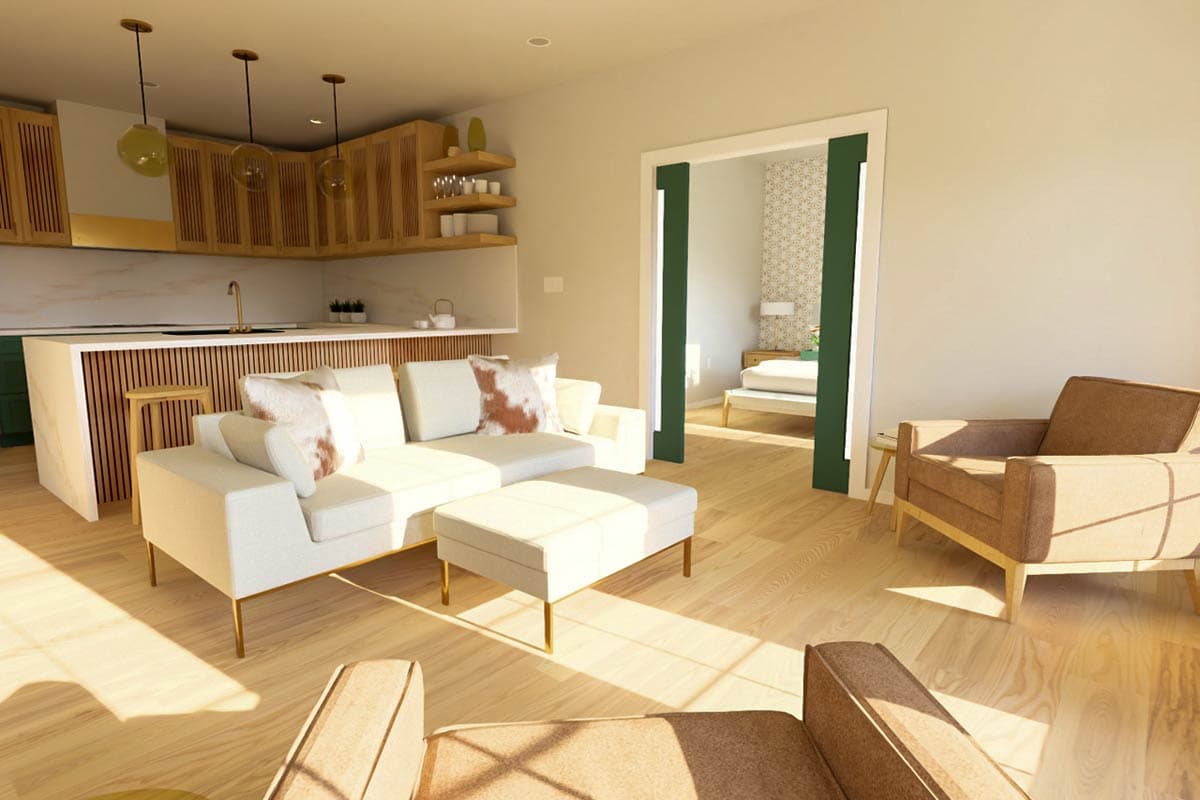

  • The spacious 850 square foot floor plan accommodates full sized furniture and appliances. It has 9' ceilings and pocket doors throughout the home create a spacious and open feeling.

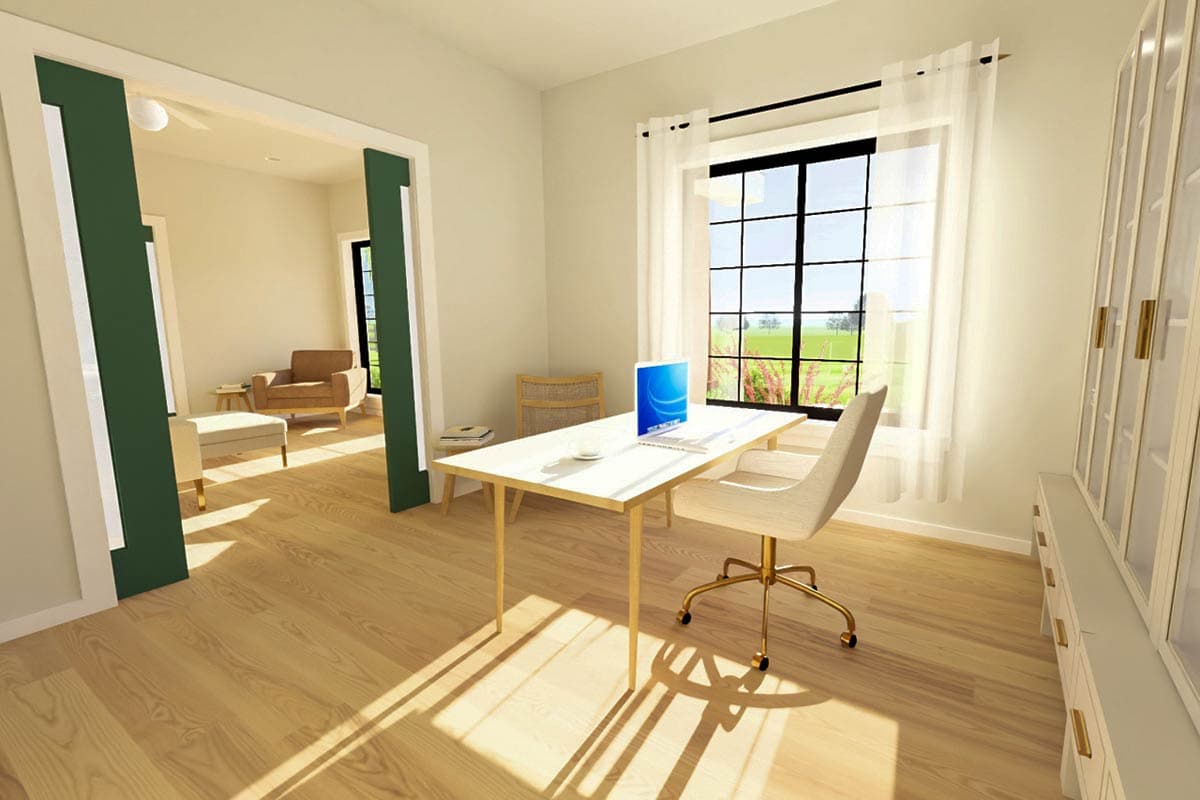

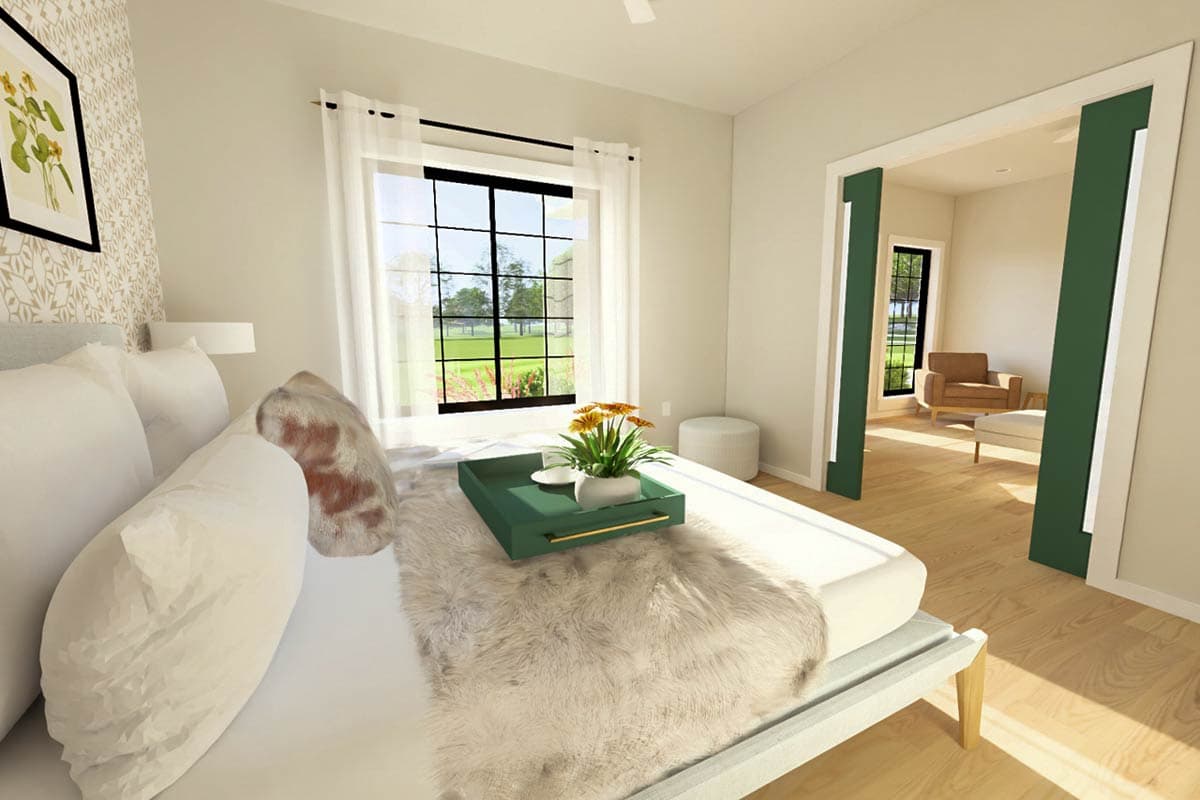

  • The pocket doors leading into the main suite and office can either be closed for privacy or can provide a large 5' wide opening.

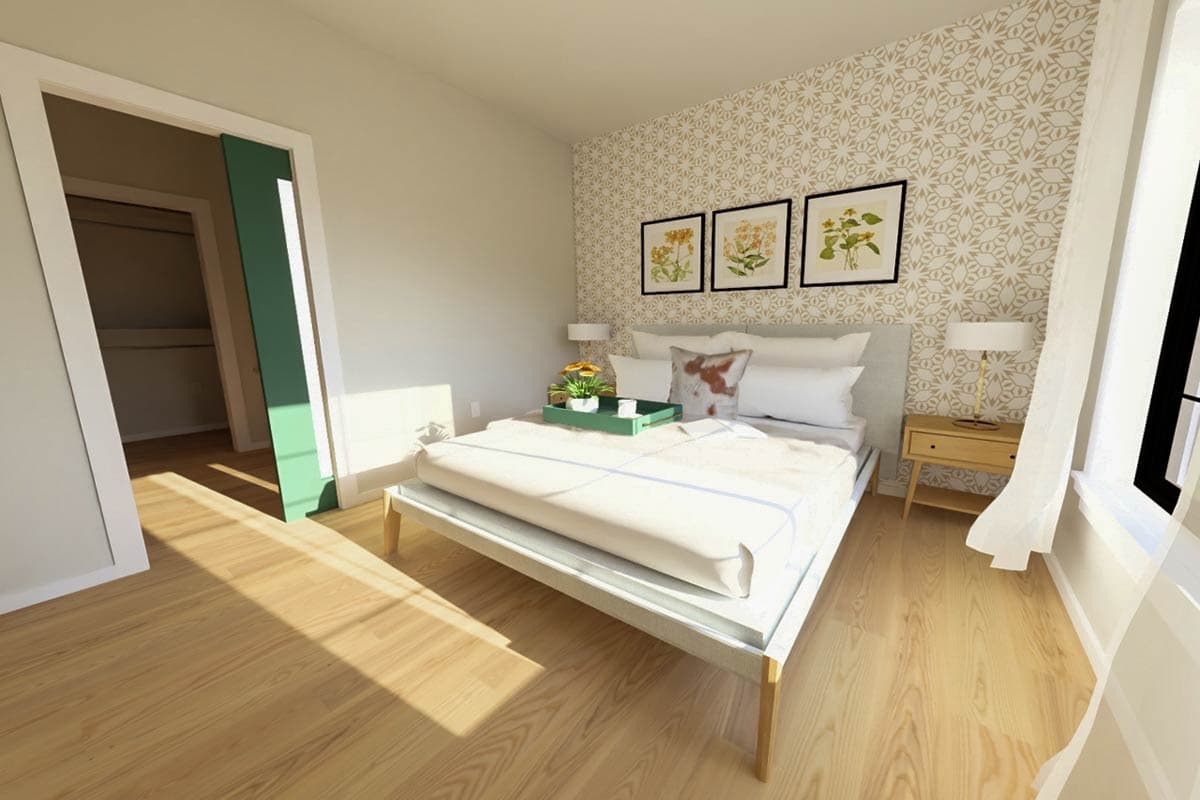

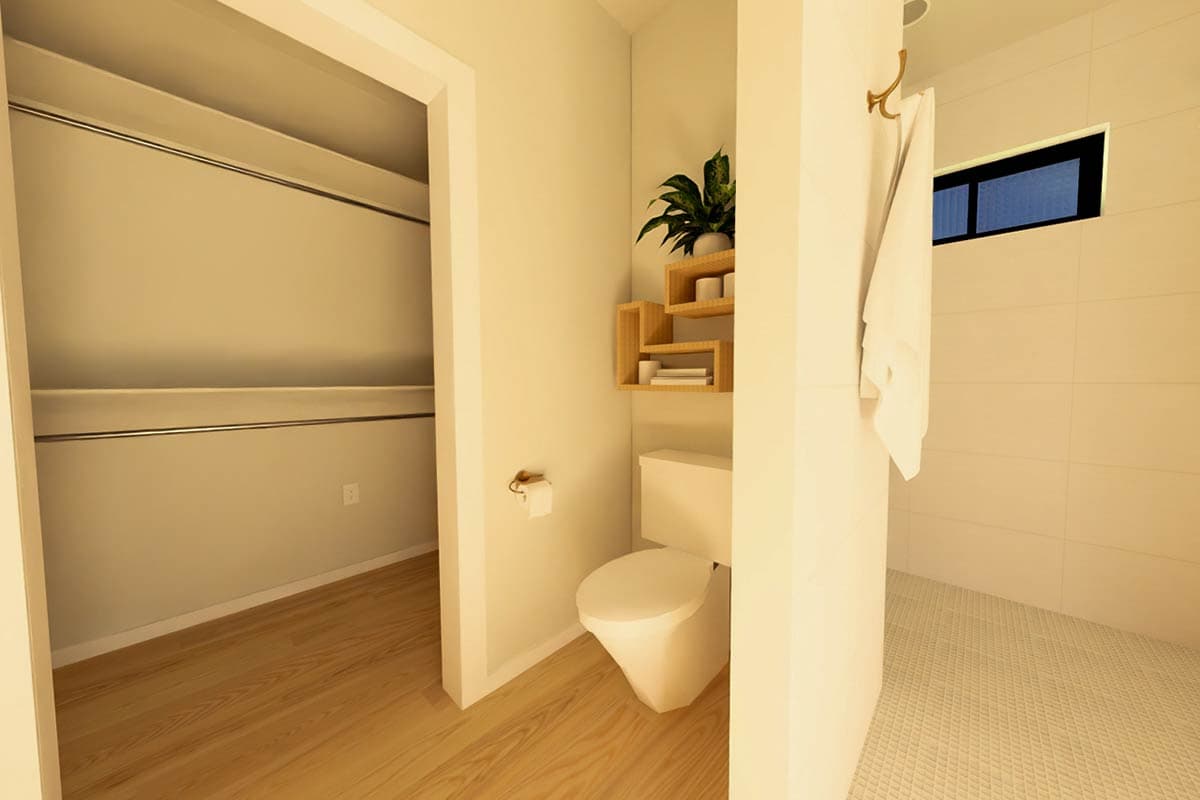

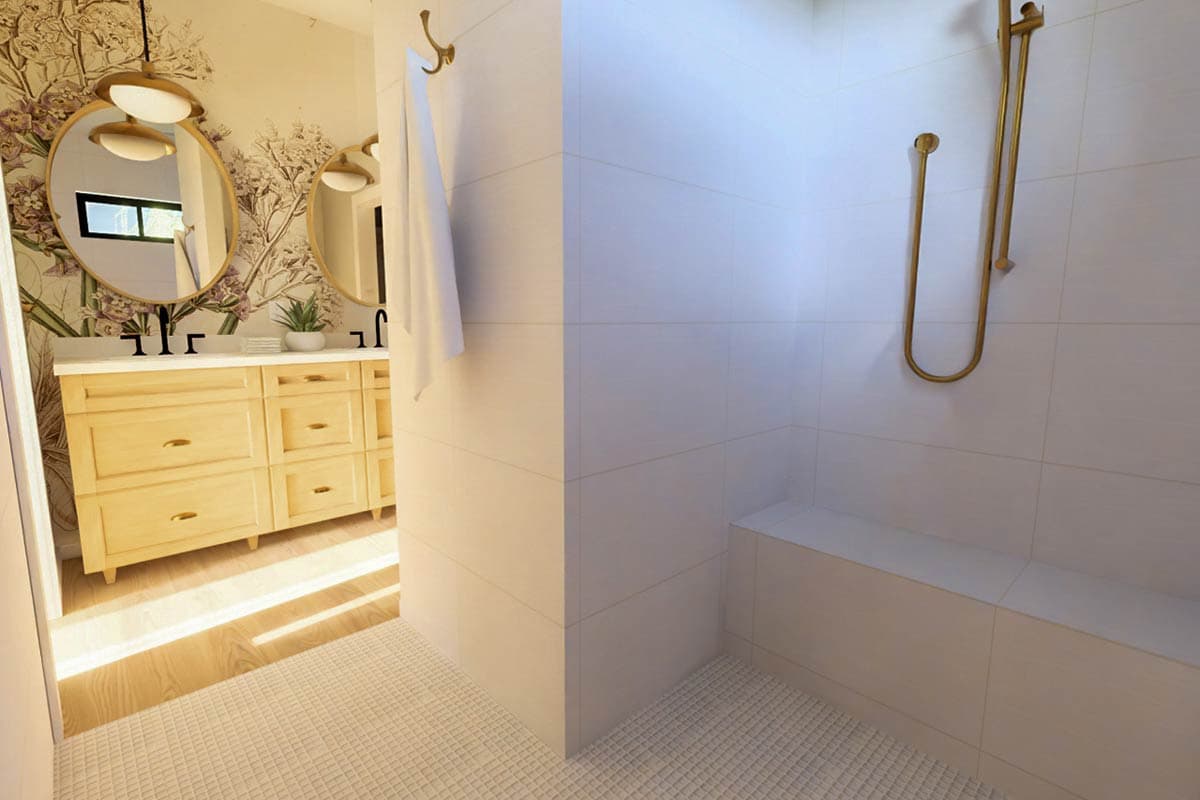

  •  The modern walk-in shower in the main suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The main suite also includes a dual sink vanity and a large walk-in closet.

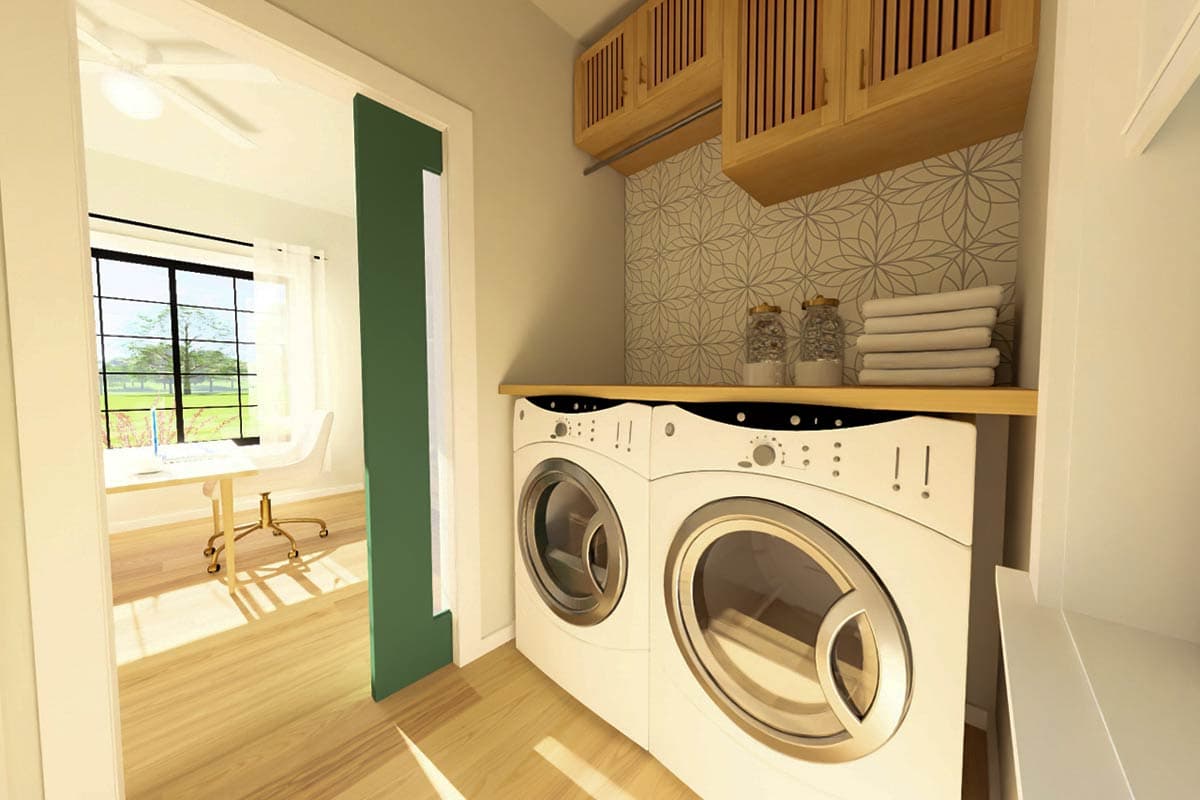

  •  This design also features a laundry room, a covered front porch and a covered rear porch that can be screened in.
  • Related Plan: For an alternate version of this design, see house plan 67843MG (800 sq ft).

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

850 sq. ft.

1st Floor

850 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

90 sq. ft.

Porch, Combined

174 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

32' 0"

Max Ridge Height

18' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Accessible Design

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
