Plan 52537WM

Compact Modern House Plan with Efficient Layout and Private Retreat

Name: Plan 52537WM: Compact Modern House Plan with Efficient Layout and Private Retreat
Brand: Architectural Designs
SKU: 52537WM
Price: 1025.0 USD
Availability: InStock

Heated S.F.

592

Beds

Baths

Stories

Tour

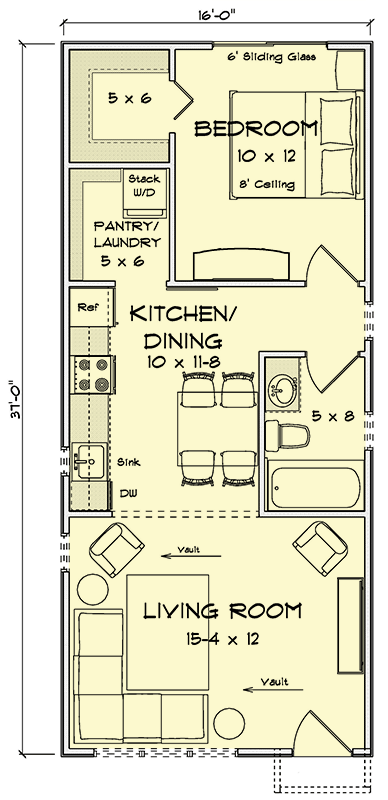

Floor Plan

Main Level

Plan Details

This contemporary house plan offers a compact 592 square feet with one bedroom and one bathroom, designed for efficient living.
As you step inside, the vaulted living room immediately presents an open flow, with generous natural light creating an inviting atmosphere.
The kitchen and dining area serves as a central gathering spot, efficiently laid out with convenient access to the combined pantry and laundry space.
Tucked away at the rear of the home, the primary suite offers a private wing, providing a quiet retreat separated from the main living areas.
The thoughtfully integrated pantry and laundry area acts as an effective drop zone, keeping daily essentials organized and easily accessible from the kitchen.
A six-foot sliding glass door in the bedroom offers a seamless outdoor extension, inviting you to create your own private patio space for relaxation.

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
