Compact Modern Mountain House Plan with Wraparound Deck

Plan 68909VR

  • 832

    Heated s.f.

  • 1-2

    Beds

  • 1 - 2

    Baths

  • 2

    Stories

  • The compact footprint of this Modern Mountain house plan keeps budget in mind, while still offering an amenity-rich interior.
  • The sloped roof allows clerestories to illuminate the interior space, which easily flows onto the wraparound deck through french and sliding doors.
  • An eating bar at the kitchen island provides a simple way to grab a bite.
  • The bedroom neighbors a 4-fixture bathroom with a separate tub and shower.
  • Finish the lower level to double the square footage and enjoy a secondary gathering space accessible by a spiral staircase, a home office / bedroom, and a full bath.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

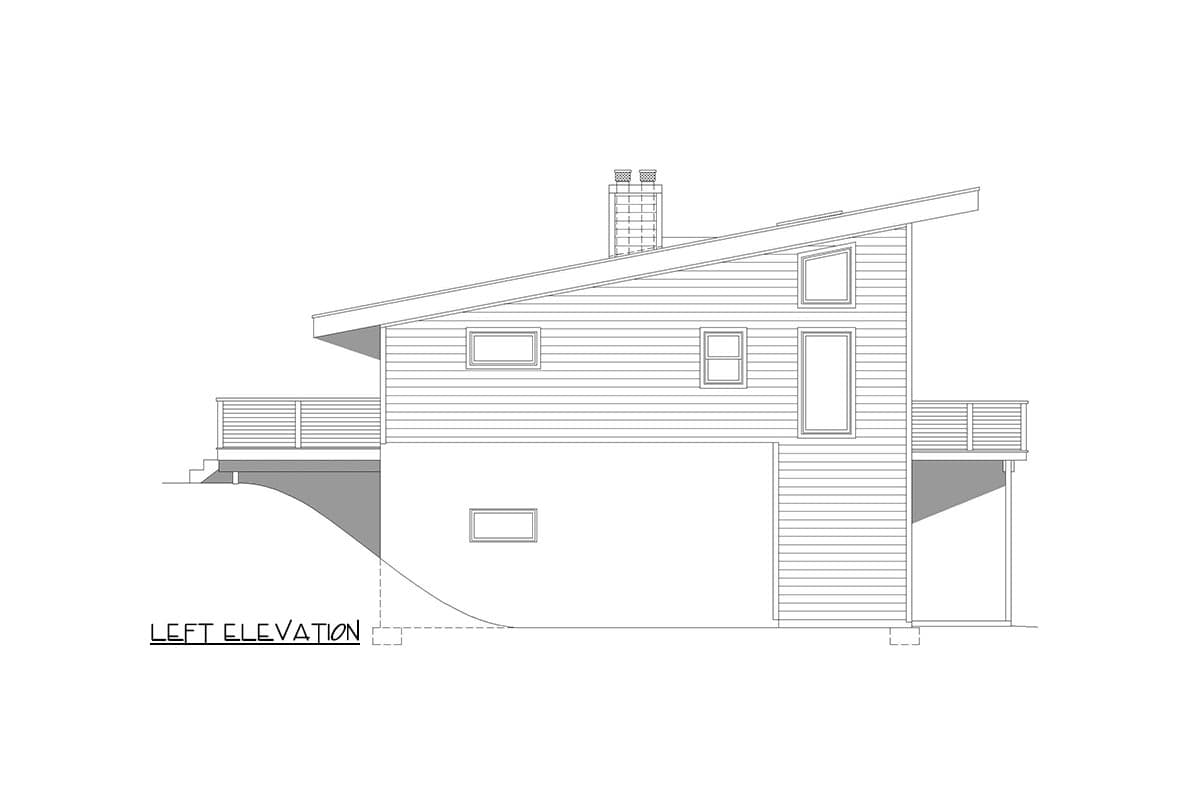

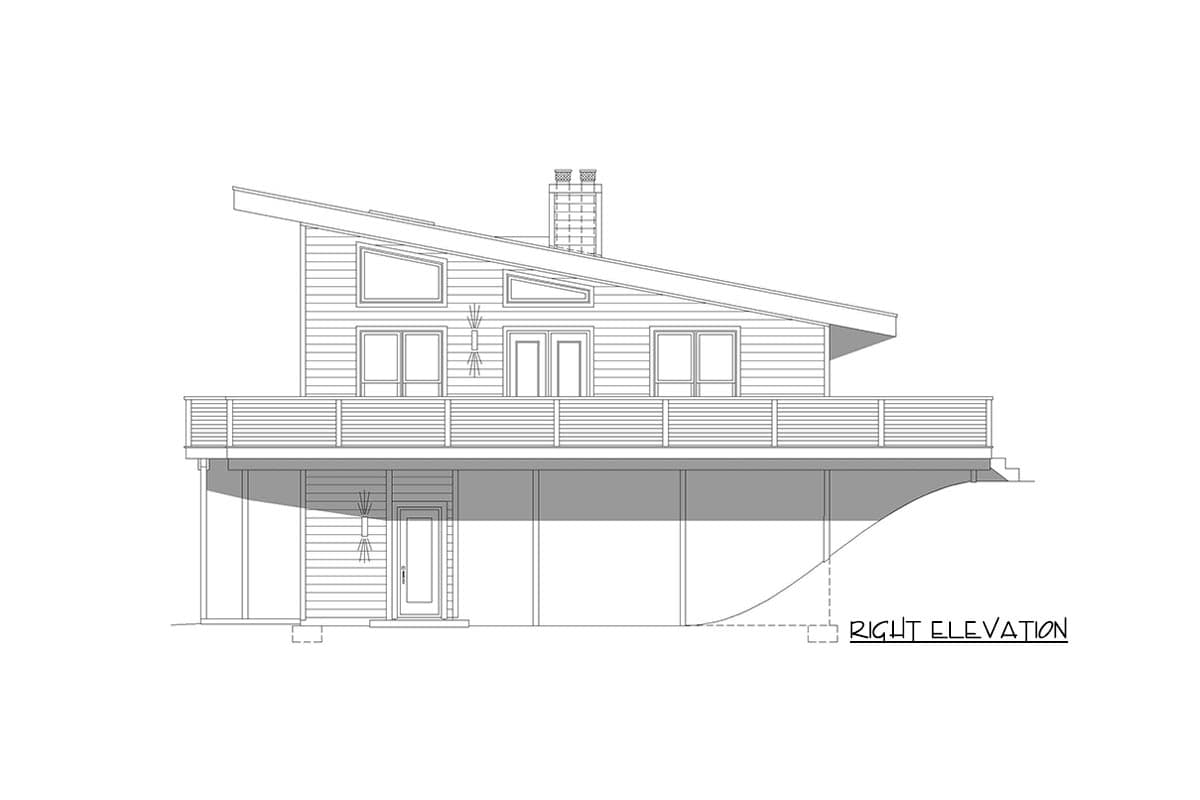

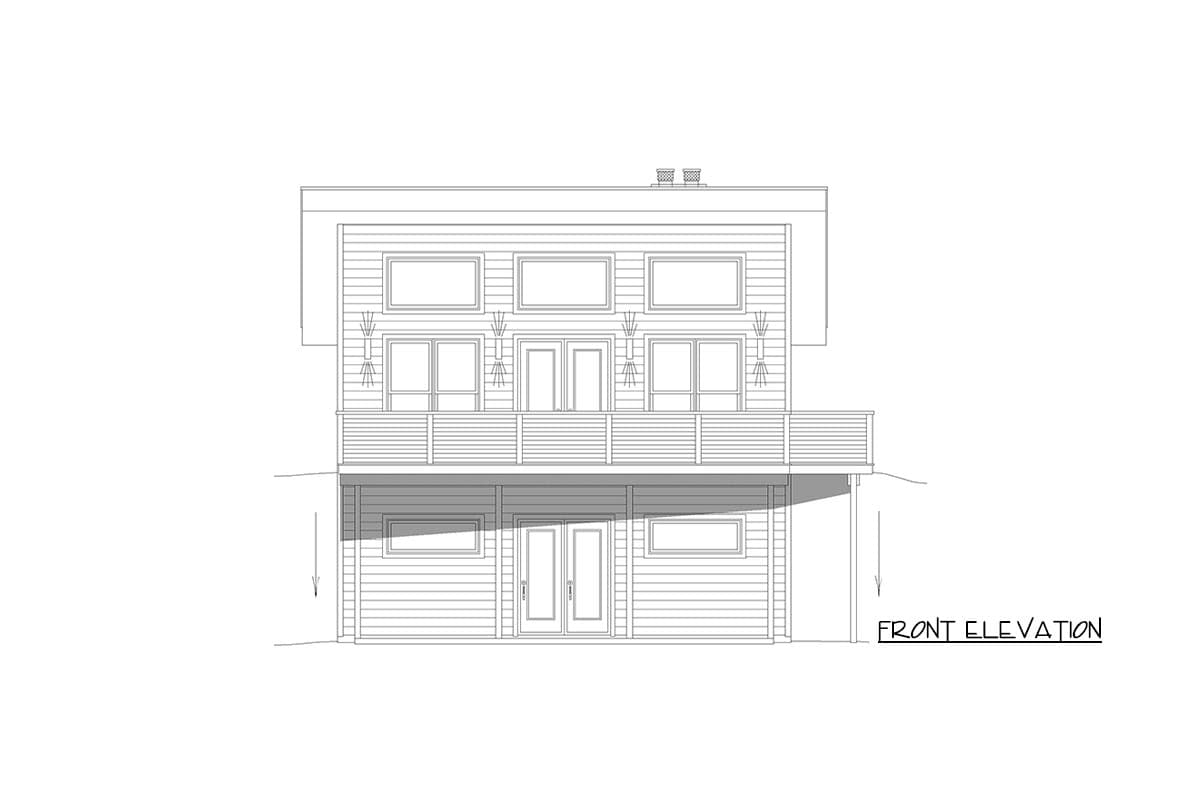

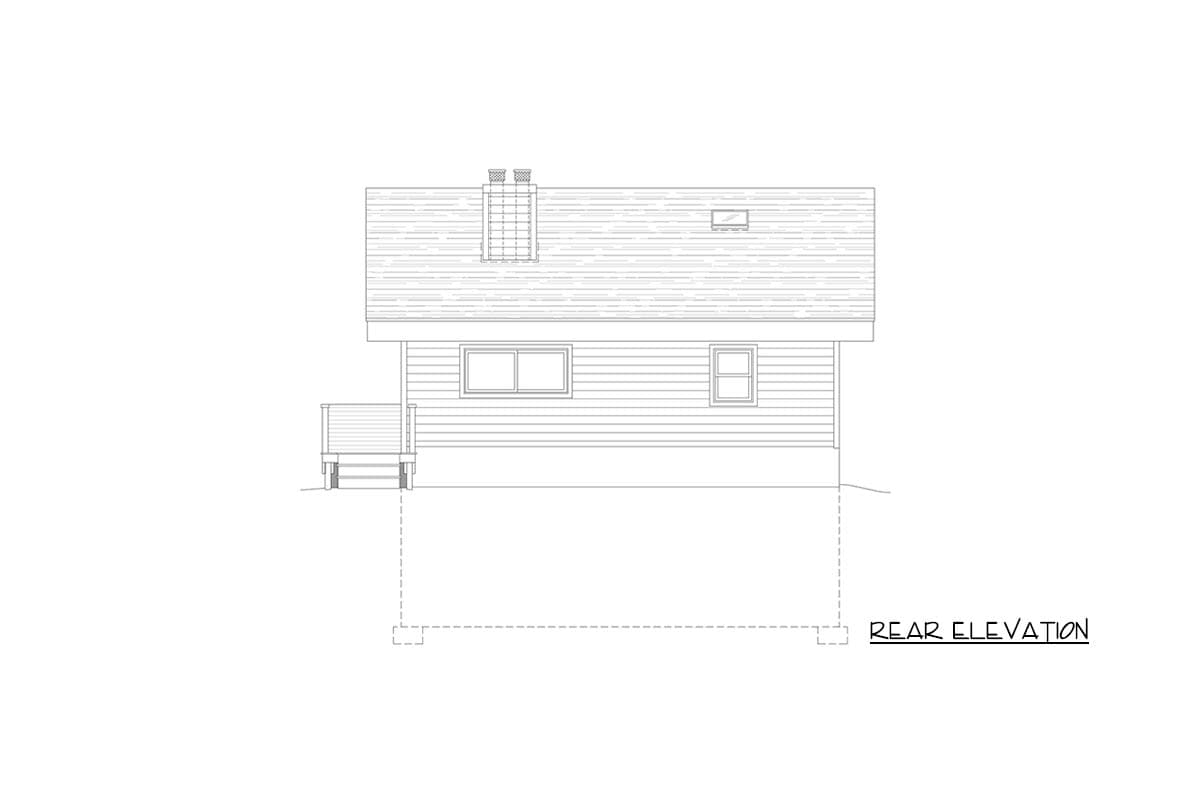

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

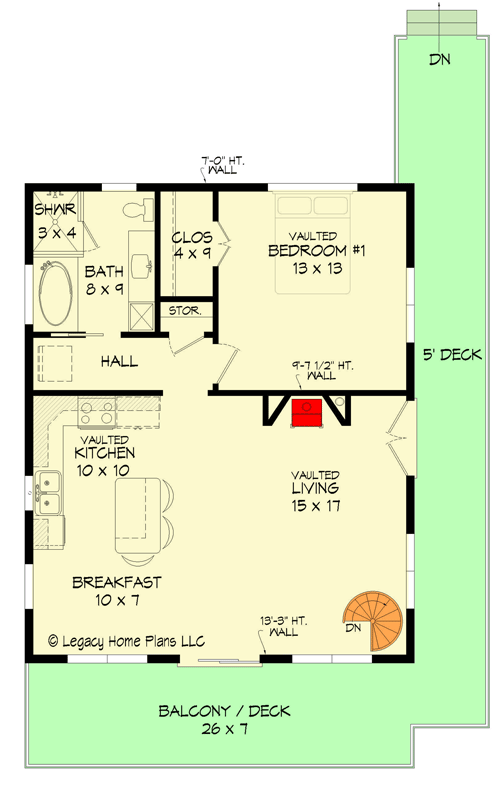

Compact Modern Mountain House Plan with Wraparound Deck - 68909VR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

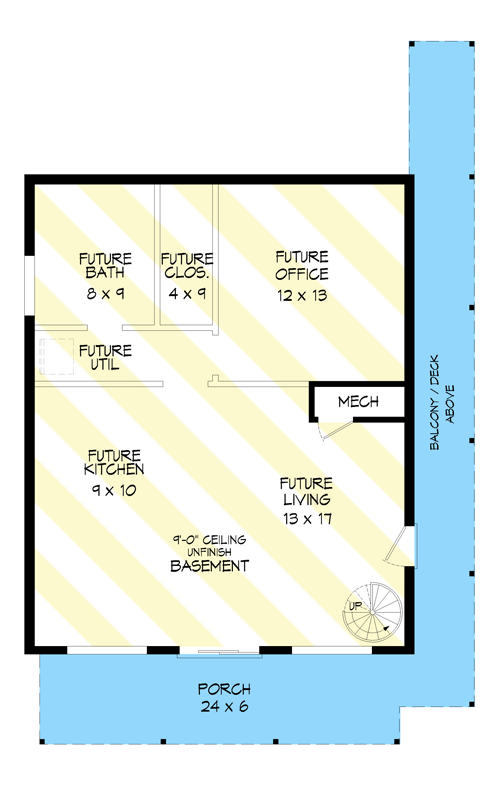

Compact Modern Mountain House Plan with Wraparound Deck - 68909VR floor plan - Lower Level
