Plan 72155DA

Compact Northwest Ranch House Plan with Open Living and 3 Beds

Heated S.F.
1,237
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 72155DA

Main Level
Main Level
Basement Stair Location
Basement Stair Location

Plan 72155DA

M-F 9am-5pm EST |

1-203-761-8500

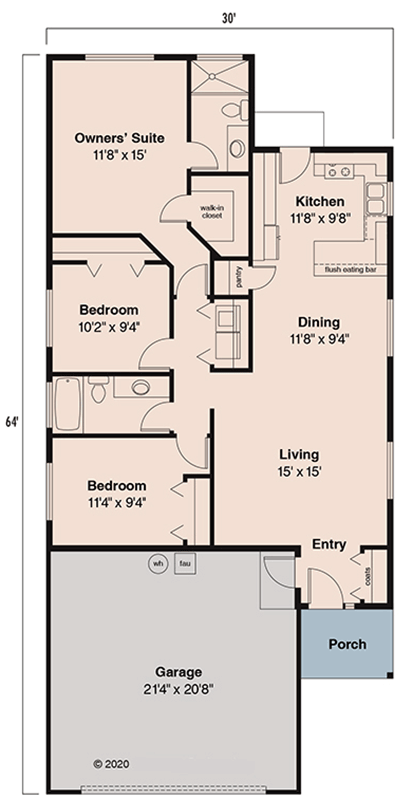

Main Level

Plan 72155DA: Compact Northwest Ranch House Plan with Open Living and 3 Beds - Floor Plan - Main Level - Northwest, Ranch

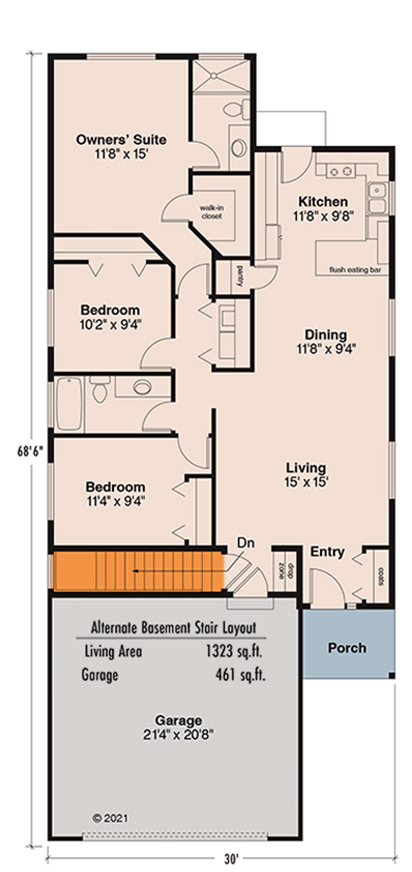

Basement Stair Location

Plan 72155DA: Compact Northwest Ranch House Plan with Open Living and 3 Beds - Floor Plan - Basement Stair Location - Northwest, Ranch

Plan Details

  • This 1,237 sq. ft. Northwest Ranch style House Plan offers 3 bedrooms, 2.5 bathrooms, and an attached 459 sq. ft. 2-car garage, featuring clean-lined wooden siding with distinctive cedar battens and trim.
  • Step inside from the inviting front porch into an airy, open-concept living space where family areas seamlessly flow together, with a convenient coat closet and direct garage access near the entry.
  • The bright, expansive main living area encompasses a comfortable living room, a dining space, and a well-appointed kitchen featuring ample counter and cupboard space, a step-in pantry, and a flush eating bar perfect for casual meals. Natural light floods these spaces through wide windows.
  • The private Owners' Suite, located at the rear of the home, provides a tranquil retreat with a generous walk-in closet and an oversized shower, while two additional bedrooms share a full bathroom with a combination tub and shower, all conveniently situated near a main-level laundry alcove.
  • An inviting front porch offers a welcoming entrance, framing the home with its slender support post and grid work doors, hinting at the cozy living within.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

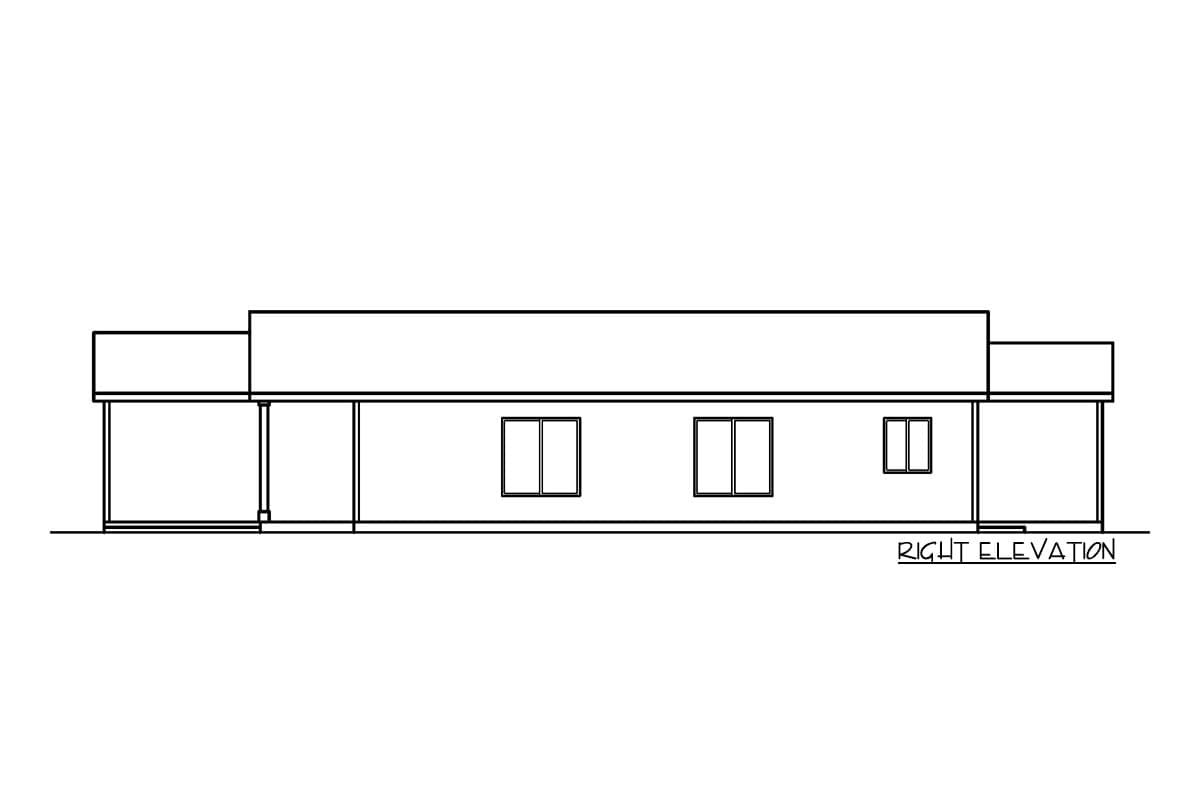

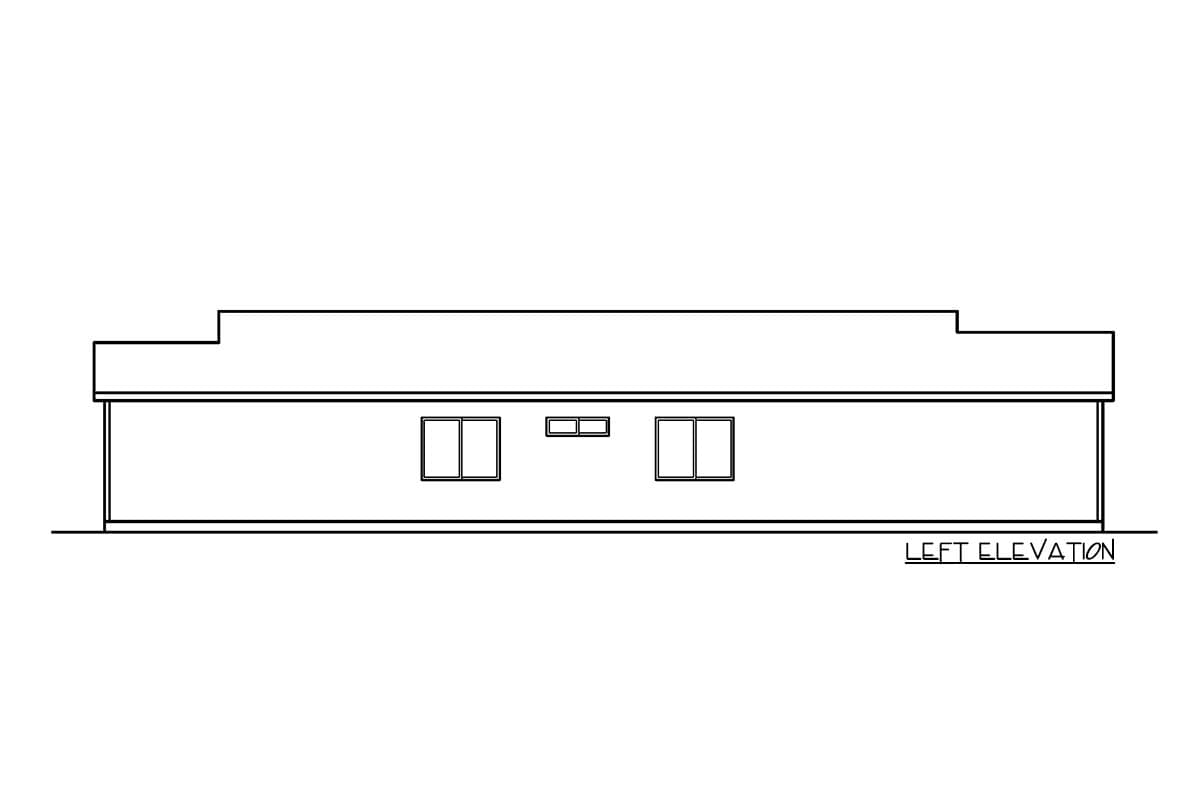

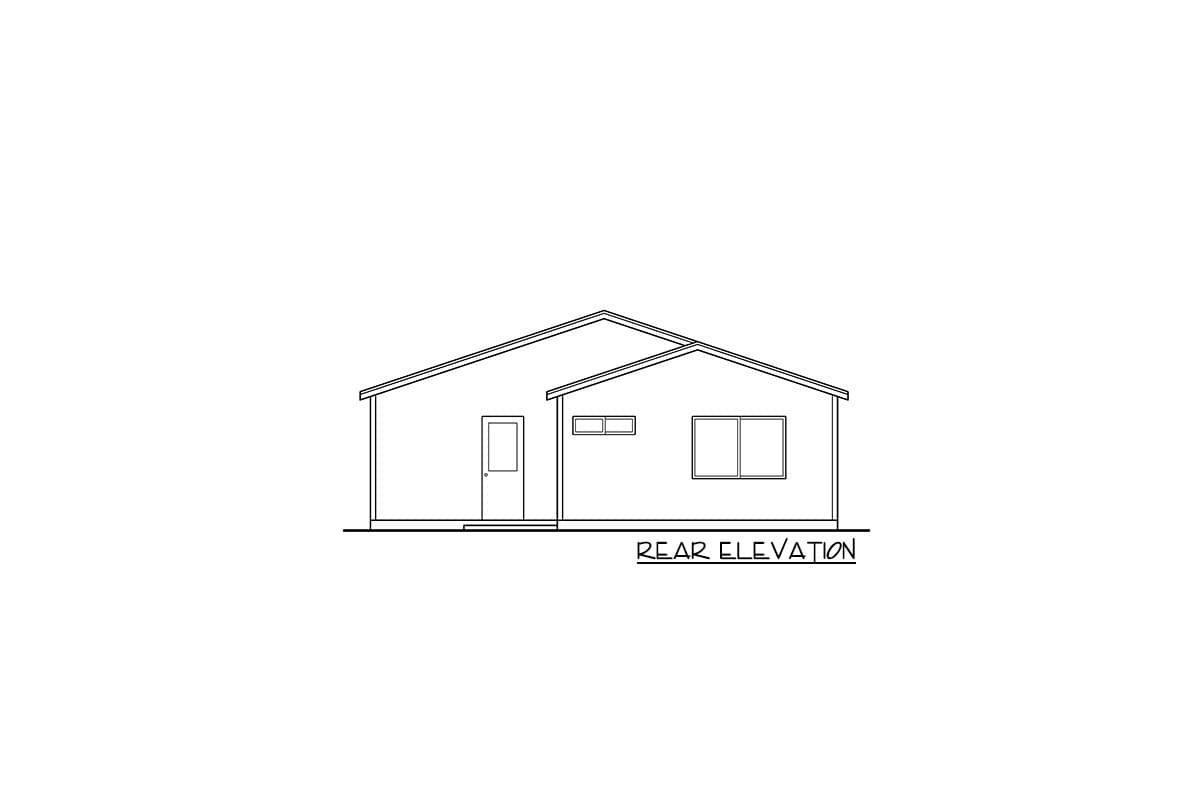

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,237 sq. ft.

1st Floor

1,237 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

64' 0"

Max Ridge Height

14' 0"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,237 sq. ft.

1st Floor

1,237 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

64' 0"

Max Ridge Height

14' 0"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
