Plan 72643DA
Compact One Level Home Plan
Heated S.F.
1,532
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Craftsman detailing adds charm to this compact single-level home plan with a surprisingly spacious gathering space. Craftsman features include the characteristic gridded window uppers and the front-facing gables with decorative corbels at their apexes. The house plan's 42-foot width allows the home to fit neatly onto a city lot.
  • Entering, you step into a living room that's windowed on the front and sides. This space flows into the dining room, which is open to the kitchen on the right. Wide sliding glass doors at the rear access a partially covered patio that could easily be screened.
  • A flush eating bar rims the counter that separates the dining room and kitchen. Counters, cabinetry and built-in appliances wrap around the other three sides of the kitchen.
  • Natural light from a skylight illuminates a front bathroom that is right next to the pass-through utility room which links the house and garage. Storage closets line the hallway that runs the bedrooms and passes the utility room before reaching the living room.
  • The owners' suite has its own private bathroom with a dual vanity, oversized shower, and walk-in closet. The toilet and shower can be closed off for steam containment and privacy.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

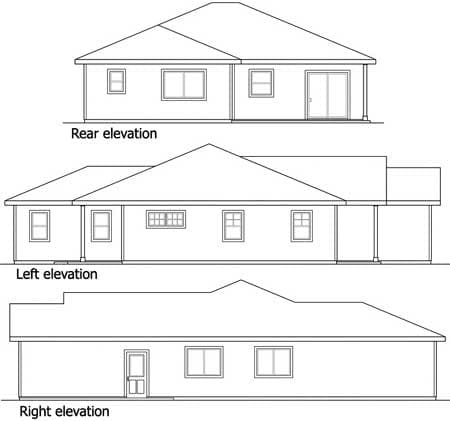

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact One Level Home Plan

  • 1,532

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

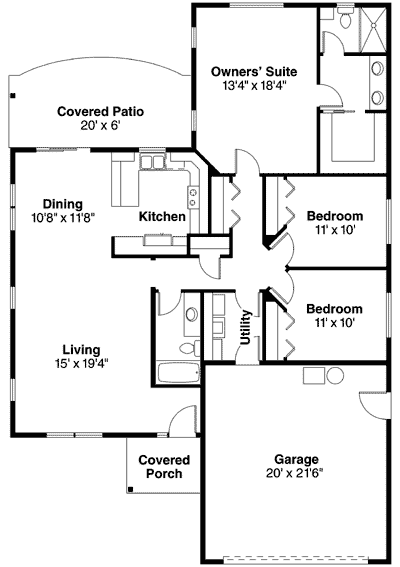

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,532 sq. ft.
  • 1st Floor: 1,532 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 62' 0"
  • Max ridge height: 17' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
