Plan 80010PM

Compact One Level Home Plan

2,001 3 2.5 1 3
Pageloader

Compact One Level Home Plan

Plan 80010PM

  • 2,001

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

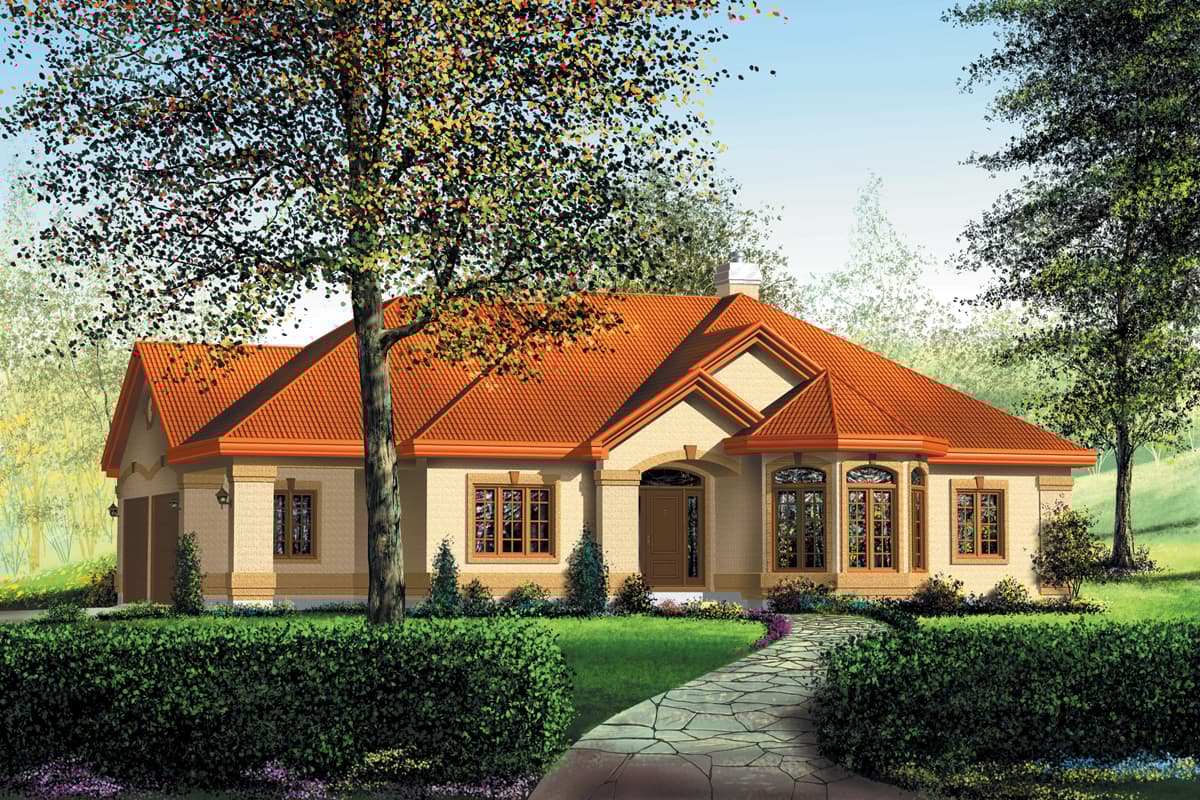

  • An attractive bay window in the front-facing study draws your attention to this one level home plan.
  • Another bay window extends the breakfast nook and brings in lots of light.
  • Sliding glass doors open the family room to the rear patio.
  • The master suite is especially spacious and boasts a large walk-in closet and private bathroom.
  • Two other bedrooms share a hall bath.
  • There is ample parking for your cars with a 2-car garage and single carport.
  • The unfinished basement has 7'8" ceilings and gives you room for expansion or storage. Or both!

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**

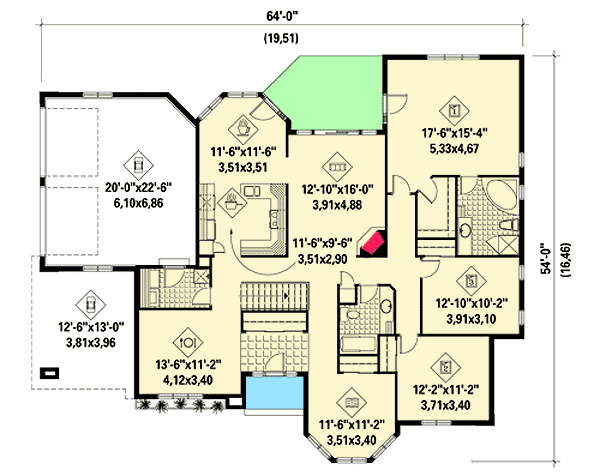

Floor Plan

Plan details

Architectural Style

Plan Collections



Compact One Level Home Plan

  • 2,001

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,035
  • 8 Sets $1,080
  • Reproducible Set $1,225
  • PDF - single-use $1,225
  • CAD $1,845
  • View all purchase option online

About This Plan

  • An attractive bay window in the front-facing study draws your attention to this one level home plan.
  • Another bay window extends the breakfast nook and brings in lots of light.
  • Sliding glass doors open the family room to the rear patio.
  • The master suite is especially spacious and boasts a large walk-in closet and private bathroom.
  • Two other bedrooms share a hall bath.
  • There is ample parking for your cars with a 2-car garage and single carport.
  • The unfinished basement has 7'8" ceilings and gives you room for expansion or storage. Or both!

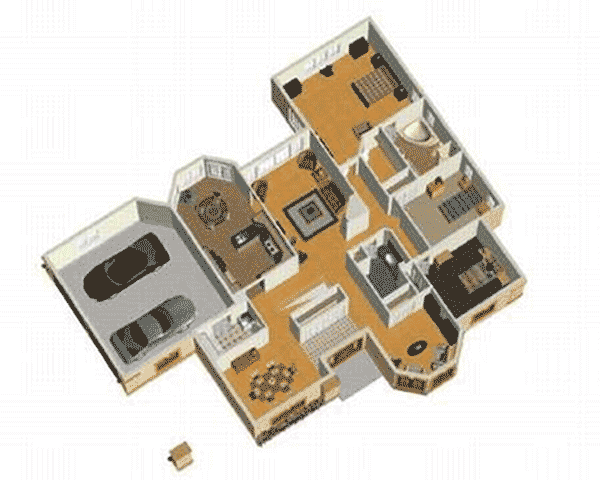

Floor Plans

  • Main Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,001 sq. ft.
  • 1st Floor: 2,001 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 54' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
