Plan 311006RMZ
EXCLUSIVE
Compact One-level Home Plan with Open-Concept Living Space
Heated S.F.
1,502
Beds
2
Baths
2
Stories
1
Cars
1
What's Included
Plan Details
  • This compact floor plan features just over 1,500 square feet of living space and an open-concept living area. This design is exclusive to Architectural Designs.
  • A friendly front porch invites you inside to find a comfortable and open space to gather with friends and family.
  • The kitchen boasts a prep island with seating for casual meals and a large range. Slip through the sliding doors off the dining area to grill or enjoy the outdoors.
  • Down the hallway, discover two bedrooms, with the largest reserved for the homeowner.
  • Enter from the single garage bay to find a combined mud / laundry room.
What's Included

Each plan set includes:


General notes
Floor plans
Roof plan
Sections
Framing detail
Foundation plan
Elevations (all four sides)
Electrical plans
Window and door schedules


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact One-level Home Plan with Open-Concept Living Space

  • 1,502

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

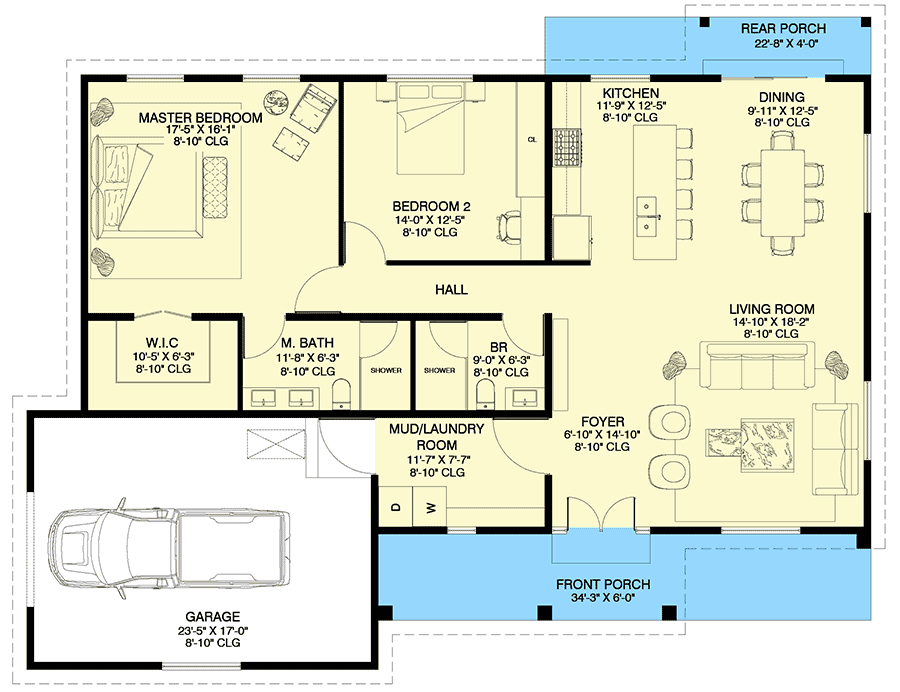

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,502 sq. ft.
  • 1st Floor: 1,502 sq. ft.

Dimensions

  • Width: 58' 7"
  • Depth: 41' 3"
  • Max ridge height: 20' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 352 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
