Compact Ranch House Plan with Rear Patio - 1369 Sq Ft

Heated S.F.
1,369
Beds
3
Baths
2
Stories
1-2
Cars
2

Floor Plan

Plan 72697DA

Main Level
Main Level
Optionally Finished Bonus Room
Optionally Finished Bonus Room

Plan 72697DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

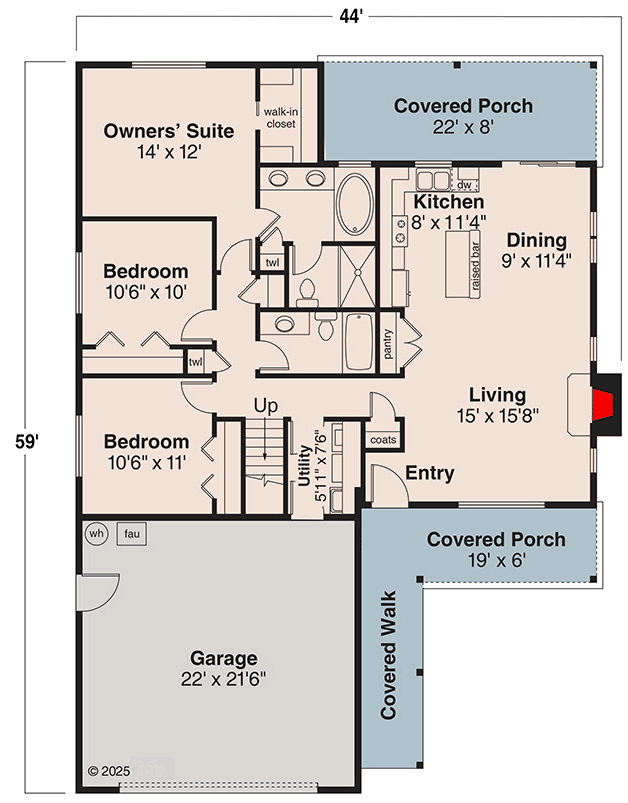

Plan 72697DA: Compact Ranch House Plan with Rear Patio - 1369 Sq Ft - Floor Plan - Main Level - Northwest, Ranch

Optionally Finished Bonus Room

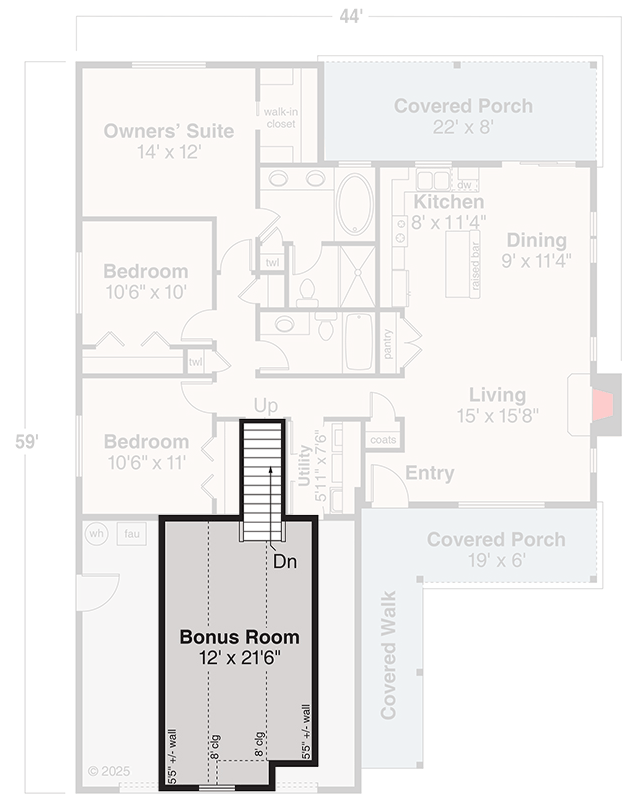

Plan 72697DA: Compact Ranch House Plan with Rear Patio - 1369 Sq Ft - Floor Plan - Optionally Finished Bonus Room - Northwest, Ranch

Plan Details

  • This compact 1,369 square foot ranch-style home plan exudes a measure of traditional country charm, while being fairly inexpensive to build and maintain.
  • A conversation bar fronts the kitchen's long work island, which doubles as a dining room buffet.
  • Standing at the kitchen sink, you can keep tabs on the porch and rear yard, while staying attuned to indoor activities.
  • Bonus space over the garage can be finished on your own timetable to suit your needs.
  • Related Plan: Add a outdoor patio and get house plan 51931HZ

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
