Plan 470304REY

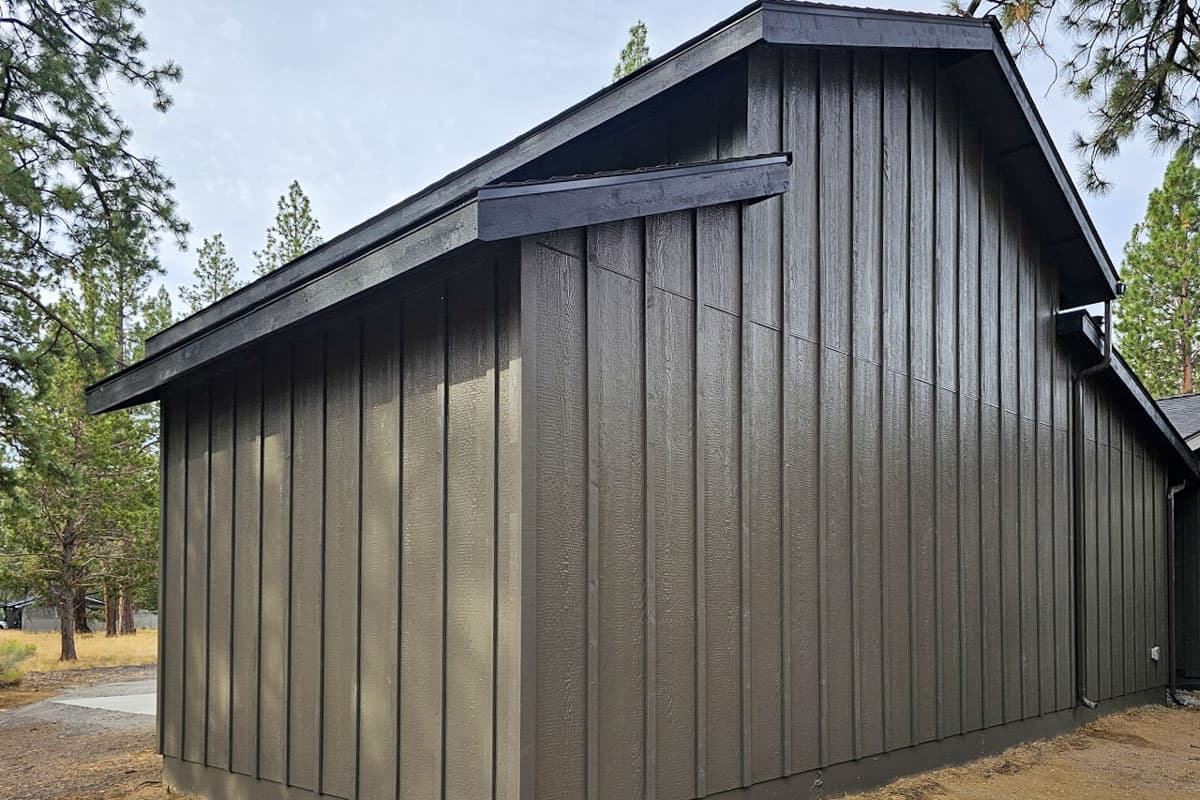

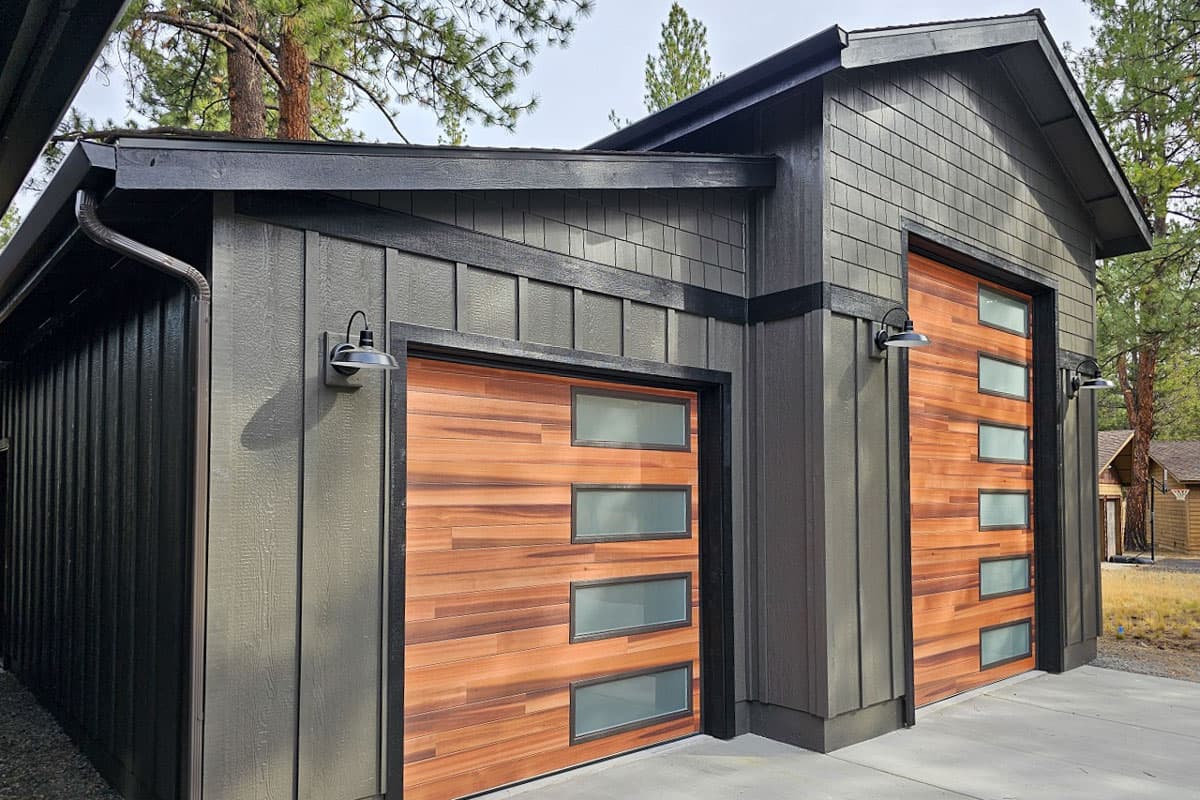

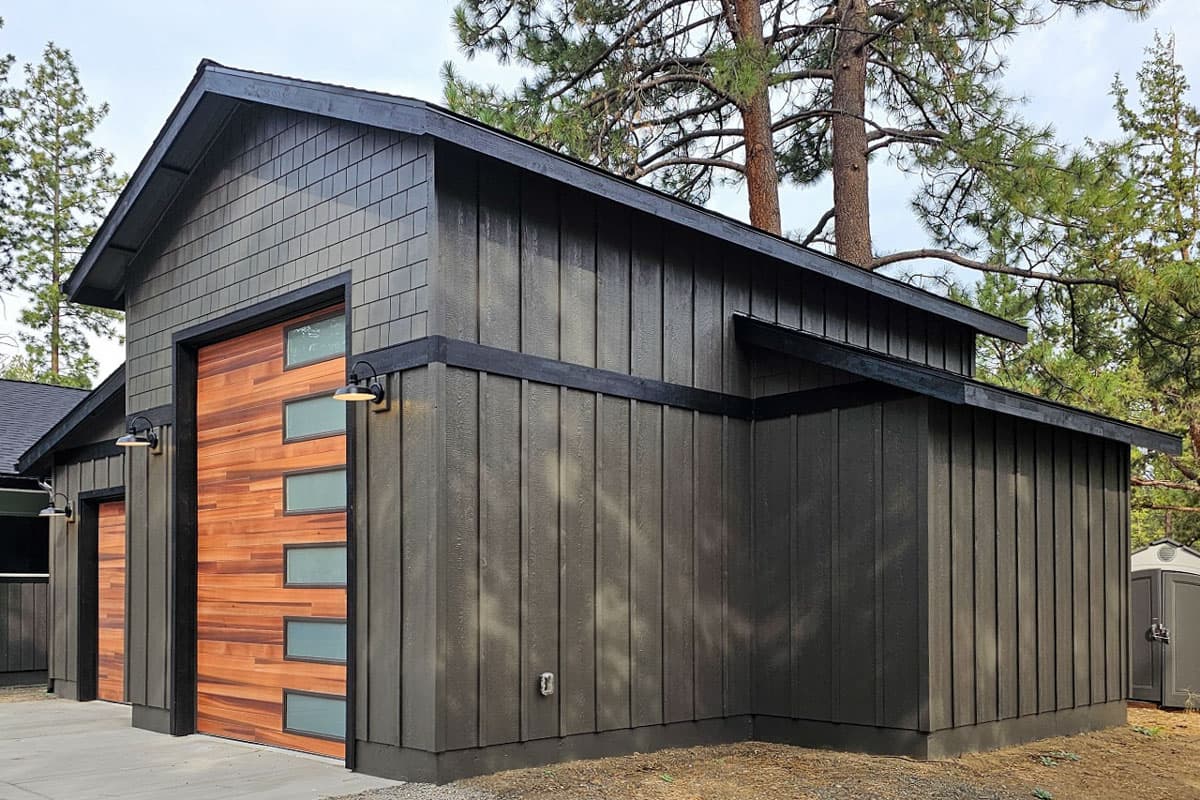

Contemporary 2-Car Detached Garage Plan with RV Bay and Storage or Workshop

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 470304REY

Main Level
Main Level

Plan 470304REY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

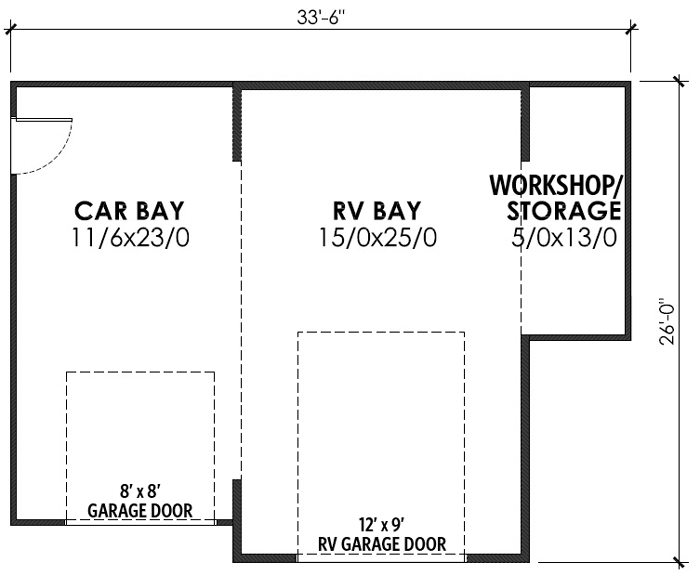

Plan 470304REY: Contemporary 2-Car Detached Garage Plan with RV Bay and Storage or Workshop - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

  • This 2-car detached garage plan offers 781 square feet of unfinished space, with one standard bay for a car or truck and one oversized bay suitable for short RVs, vans, trucks or trailers, along with a small workshop or storage nook.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
  • Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.
  • Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
  • Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
  • Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
  • Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
  • Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
  • Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
  • Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
  • Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.
This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 6"

Depth

26' 0"

Max Ridge Height

18' 7"

Garage

Type

Detached, RV Garage

Area

781 sq. ft.

Count

2 Cars

Ceiling Heights

Garage Car Bay

9' 6''

RV Bay

14' 6''

Storage Alcove

9' 6''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

3 on 12

Framing Type

24" oc

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 6"

Depth

26' 0"

Max Ridge Height

18' 7"

Garage

Type

Detached, RV Garage

Area

781 sq. ft.

Count

2 Cars

Ceiling Heights

Garage Car Bay

9' 6''

RV Bay

14' 6''

Storage Alcove

9' 6''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

3 on 12

Framing Type

24" oc

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Workshop
