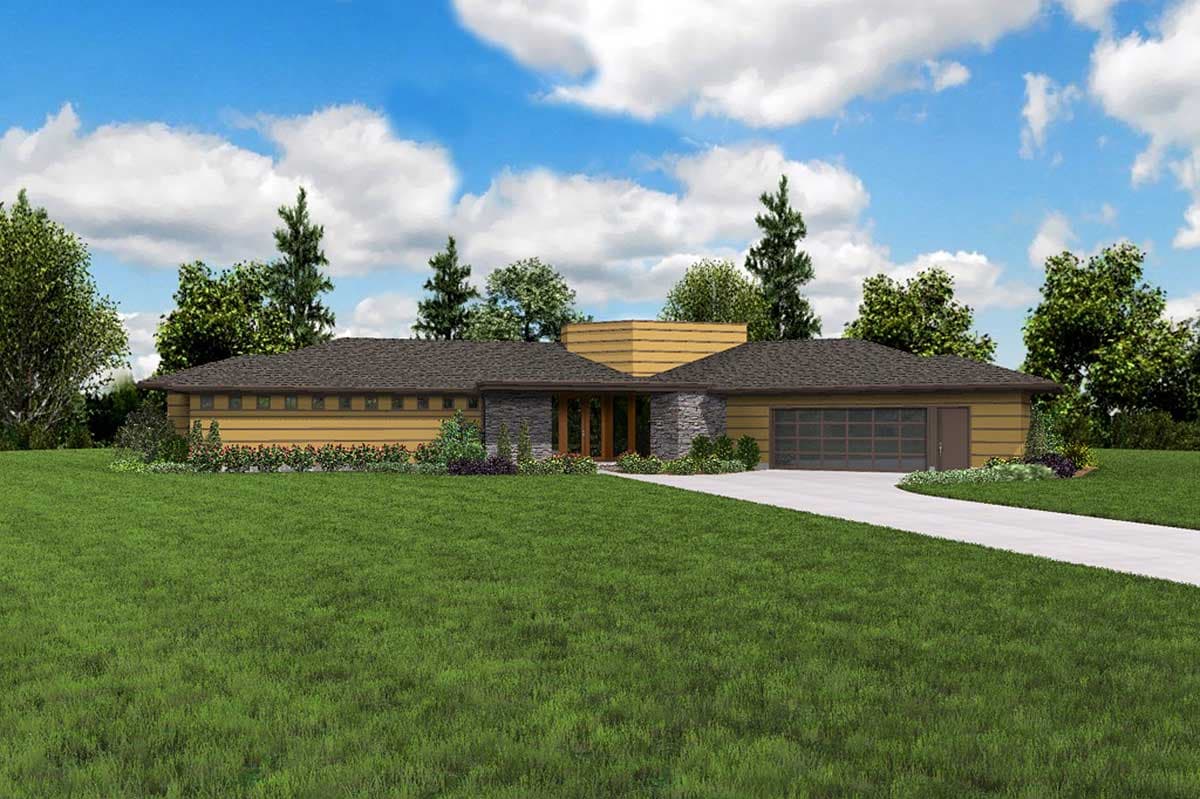

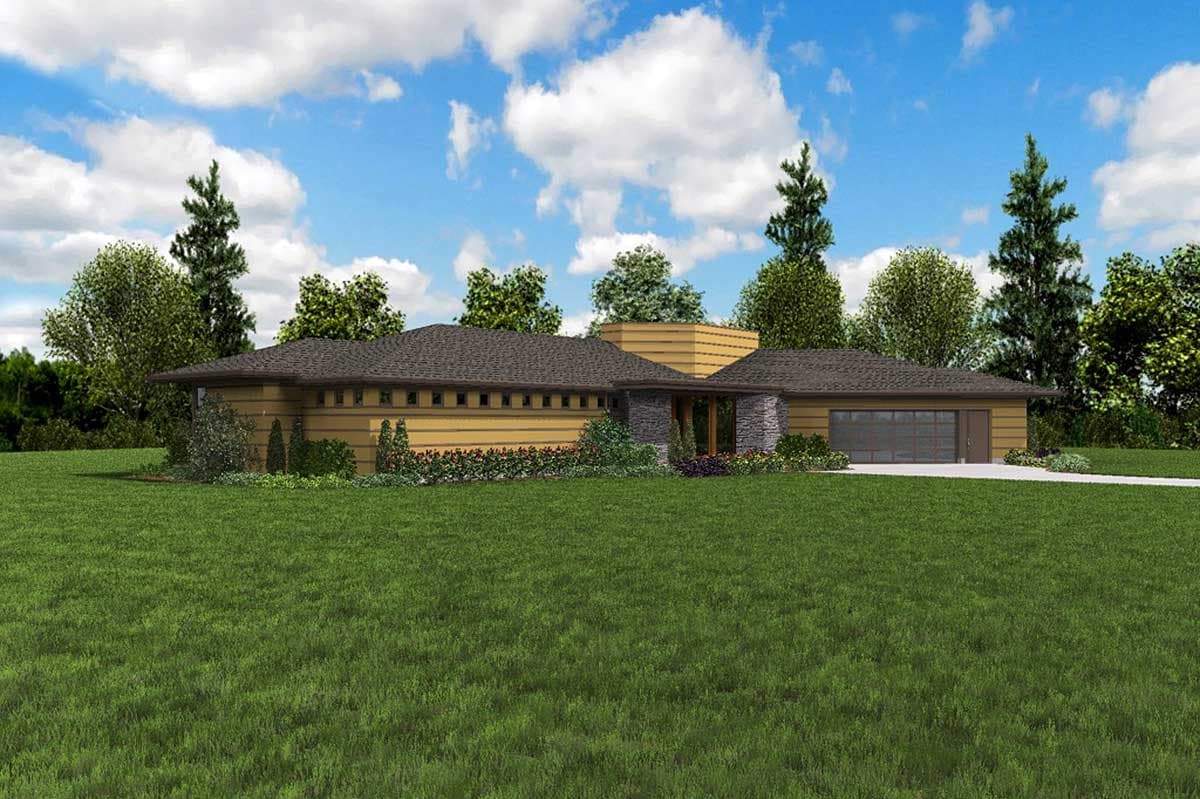

Plan 69699AM Contemporary 3-Bed House Plan with Angled Garage and Living Space

2,122 3 2.5 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 3-Bed House Plan with Angled Garage and Living Space

Plan 69699AM

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3-bed contemporary house plan is functionally divided by the bend in the middle, with the area to the left providing bedrooms and the middle and right portions offering entertaining spaces to share with friends and family.
  • The kitchen is the central point of the home and has views extending through the living room and the outside beyond and the dining room. The island is a parallelogram and gives you casual seating and great work prep space as well as a double sink and dishwasher.

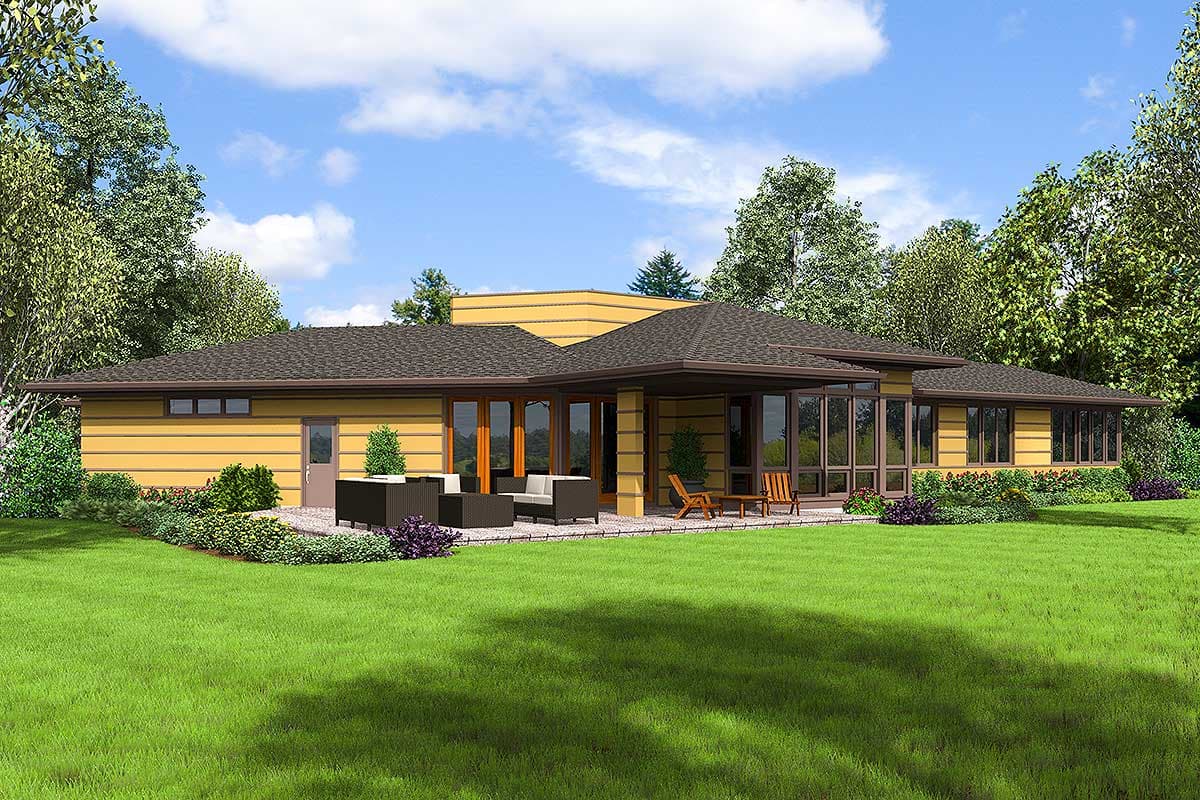

  • French doors off the back of the dining room one to the covered back porch.
  • The wing off of the living area contains three bedrooms, a bath and a convenient laundry room so you won't have to lug laundry across the home.
  • The master suite has access to a beautifully planned master bath, complete with dual sinks, a tiled shower and attached walk-in closet. The bedroom has corner windows giving you great views.
  • The mudroom gives you a place to control clutter as you come in off the porch or the garage.It has a a pantry making unloading groceries a breeze as they come in from the garage.
  • NOTE: Please allow 10 to 15 business days for delivery.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

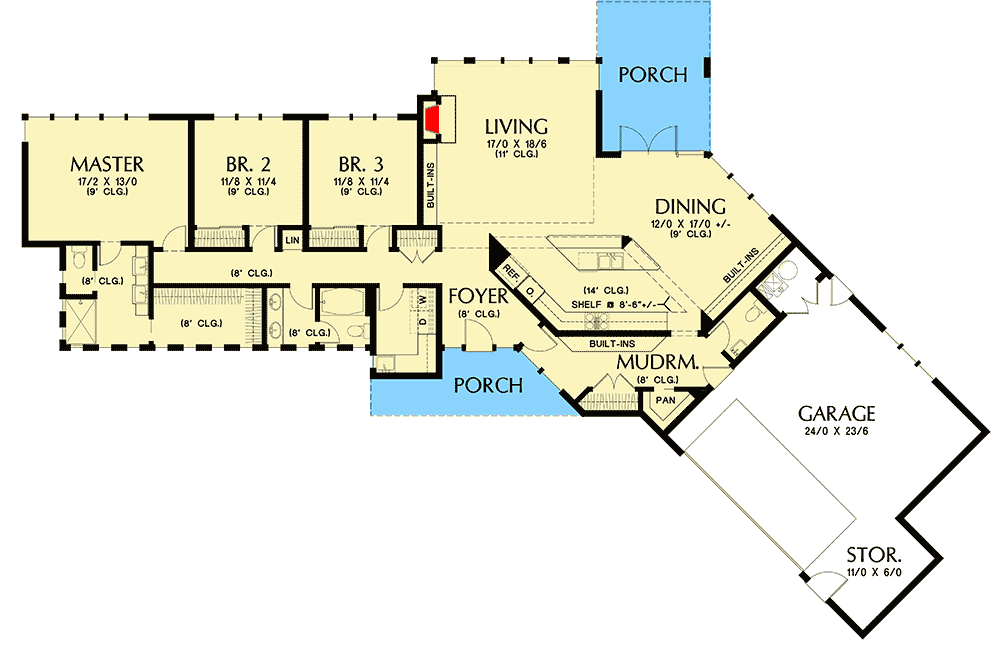

Contemporary 3-Bed House Plan with Angled Garage and Living Space - 69699AM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,122 sq. ft.
  • 1st Floor: 2,122 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 67' 8"
  • Max ridge height: 16' 2"

Garage

  • Type: Attached
  • Area: 703 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary 3-Bed House Plan with Angled Garage and Living Space

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,482
  • 5 Sets $1,682
  • 5 Sets + PDF $1,732
  • CAD + PDF - Unlimited Build $2,964
  • View all purchase option online

About This Plan

  • This 3-bed contemporary house plan is functionally divided by the bend in the middle, with the area to the left providing bedrooms and the middle and right portions offering entertaining spaces to share with friends and family.
  • The kitchen is the central point of the home and has views extending through the living room and the outside beyond and the dining room. The island is a parallelogram and gives you casual seating and great work prep space as well as a double sink and dishwasher.
  • French doors off the back of the dining room one to the covered back porch.
  • The wing off of the living area contains three bedrooms, a bath and a convenient laundry room so you won't have to lug laundry across the home.
  • The master suite has access to a beautifully planned master bath, complete with dual sinks, a tiled shower and attached walk-in closet. The bedroom has corner windows giving you great views.
  • The mudroom gives you a place to control clutter as you come in off the porch or the garage.It has a a pantry making unloading groceries a breeze as they come in from the garage.
  • NOTE: Please allow 10 to 15 business days for delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,122 sq. ft.
  • 1st Floor: 2,122 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 67' 8"
  • Max ridge height: 16' 2"

Garage

  • Type: Attached
  • Area: 703 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 69699AM
