Plan 16947WG

Contemporary 3-Bedroom House Plan with 2669 Sq Ft and Open Living

Name: Plan 16947WG: Contemporary 3-Bedroom House Plan with 2669 Sq Ft and Open Living
Brand: Architectural Designs
SKU: 16947WG
Price: 1295.0 USD
Availability: InStock

Heated S.F.

2,669

Beds

Baths

2.5

Stories

Cars

Floor Plan

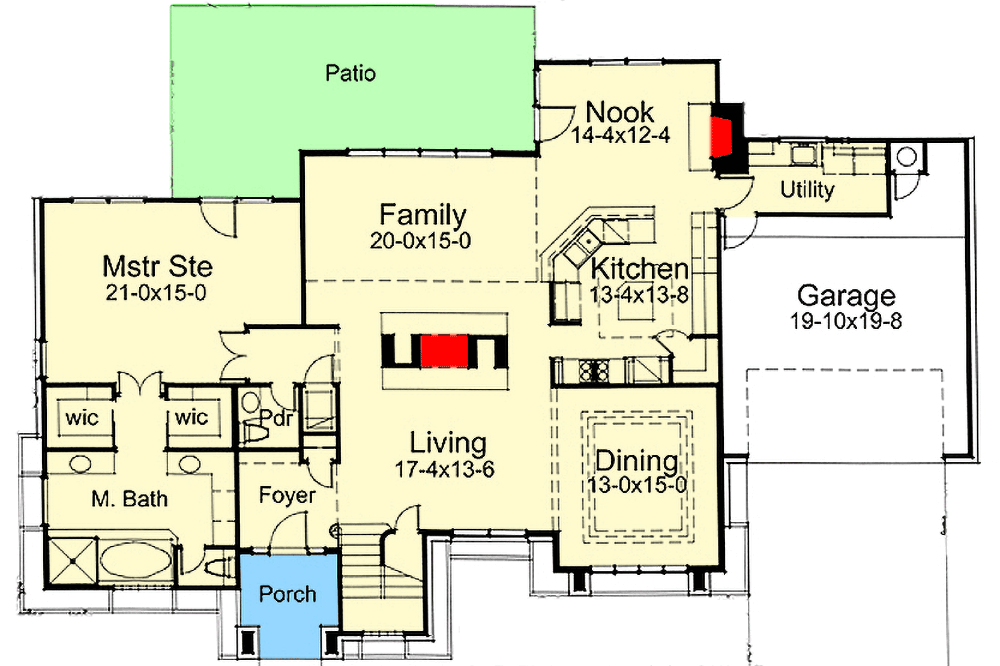

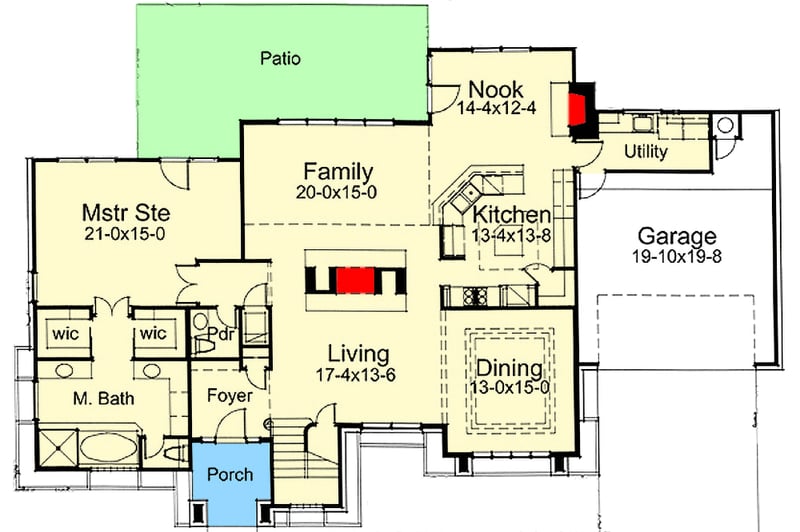

Main Level

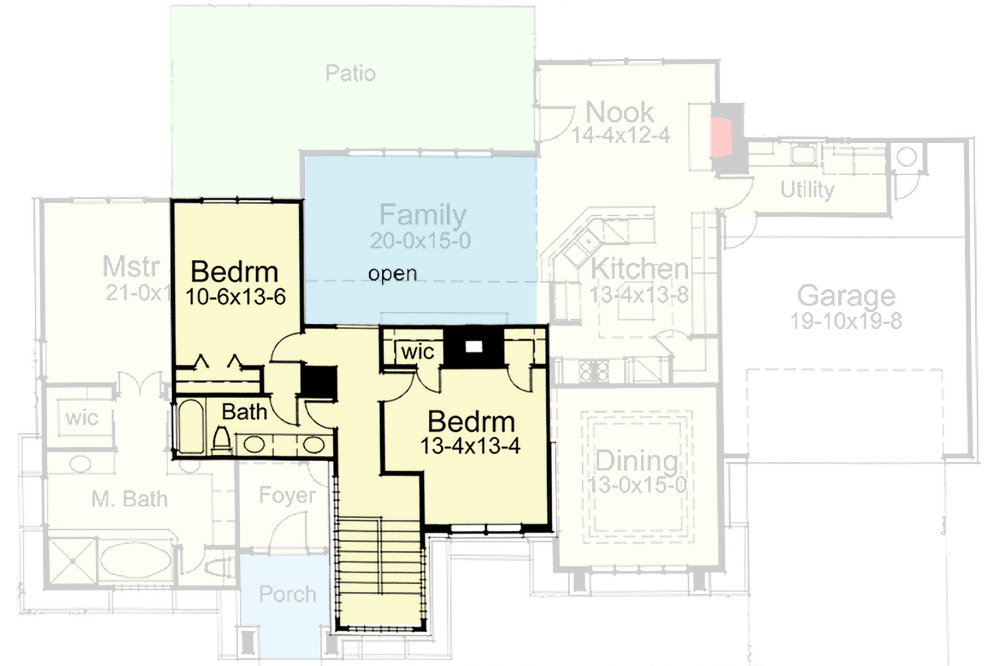

2nd Floor

Plan Details

This contemporary house plan offers 2,669 sq. ft. of heated living space with 3 bedrooms, 2.5 bathrooms, and an attached 448 sq. ft. 2-car garage.
Step through the welcoming front porch into a grand foyer that leads to the heart of the home.
The open-concept living area seamlessly connects the family room, dining room, and kitchen, featuring a striking two-story great room with a soaring 16' 9'' ceiling.
The private primary suite, located on the first floor, offers a serene retreat with ample closet space and an en-suite bathroom.
A dedicated mudroom provides practical entry from the garage, keeping living spaces tidy.
Enjoy outdoor living with a generous patio space accessible from the main living area.
The second floor includes two additional bedrooms and a full bathroom, ideal for family or guests.

What's Included

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
