Contemporary 3-Car Garage with Rooftop Deck

Plan 68840VR

  • 0

    Heated s.f.

  • 1

    Stories

  • 3

    Cars

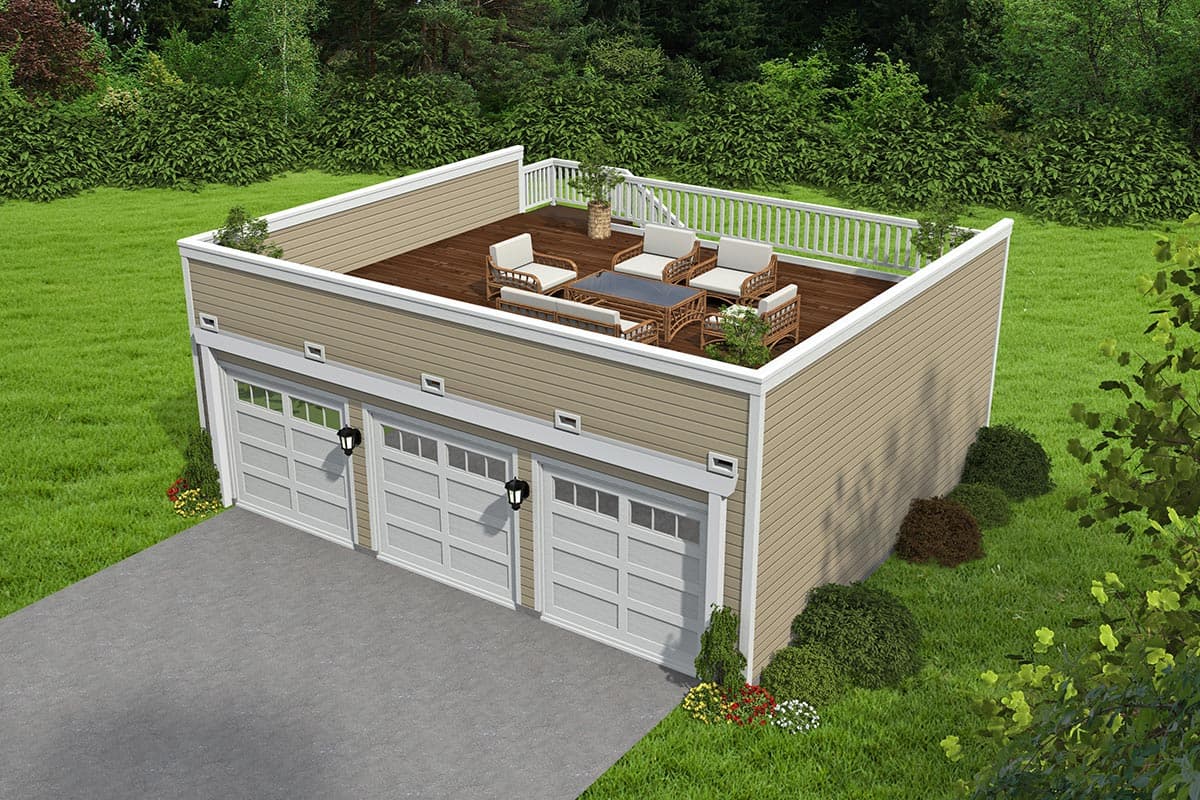

  • Get a spacious roof top deck with this 3-car contemporary garage plan.
  • The stairs to the roof are outside in back and there's a rear person door into the garage too.
  • Each car has its own bay with matching 8' by 7' garage doors.
  • Related Plans: Get a 2-car version with garage plan 68436VR (437 square feet), 68437VR (526 square feet) and get a drive-through garage with plan 68726VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

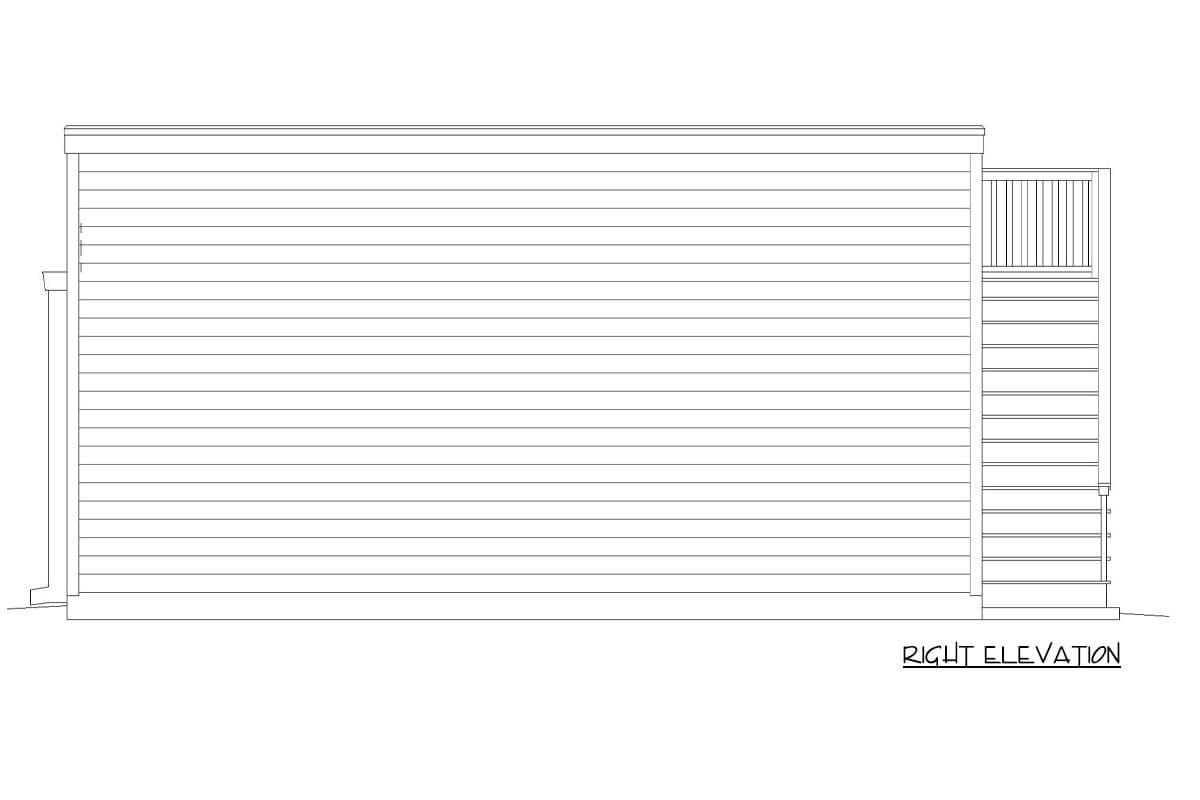

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

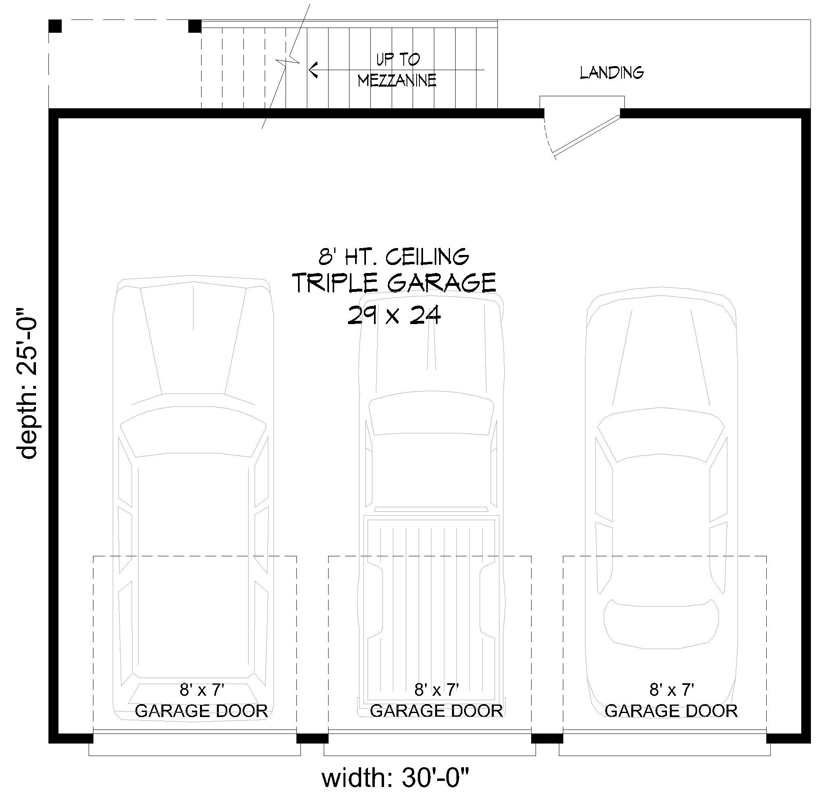

Contemporary 3-Car Garage with Rooftop Deck - 68840VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

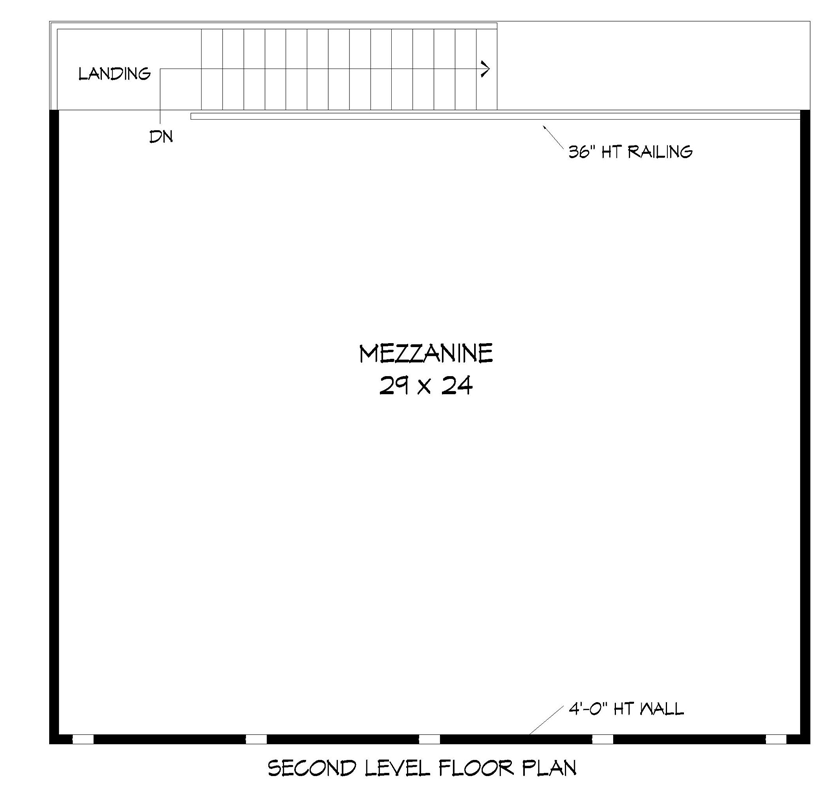

Contemporary 3-Car Garage with Rooftop Deck - 68840VR floor plan - Upper Level

Plan details

Architectural Style

Contemporary 3-Car Garage with Rooftop Deck

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $875
  • 5 Sets $950
  • 5 Sets + PDF $1,000
  • CAD + PDF - Single-Build $1,175
  • View all purchase option online

About This Plan

  • Get a spacious roof top deck with this 3-car contemporary garage plan.
  • The stairs to the roof are outside in back and there's a rear person door into the garage too.
  • Each car has its own bay with matching 8' by 7' garage doors.
  • Related Plans: Get a 2-car version with garage plan 68436VR (437 square feet), 68437VR (526 square feet) and get a drive-through garage with plan 68726VR.

Floor Plans

  • Main Level

  • Upper Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Deck: 750 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 0"
  • Depth: 25' 0"
  • Max ridge height: 13' 0"

Garage

  • Type: Detached
  • Area: 750 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Stick
