Plan 370044SEN

Contemporary ADU Studio House Plan with 1-Car Garage - 400 Sq Ft

Heated S.F.
400
Beds
0
Baths
1
Stories
1
Cars
1

Floor Plan

Plan 370044SEN

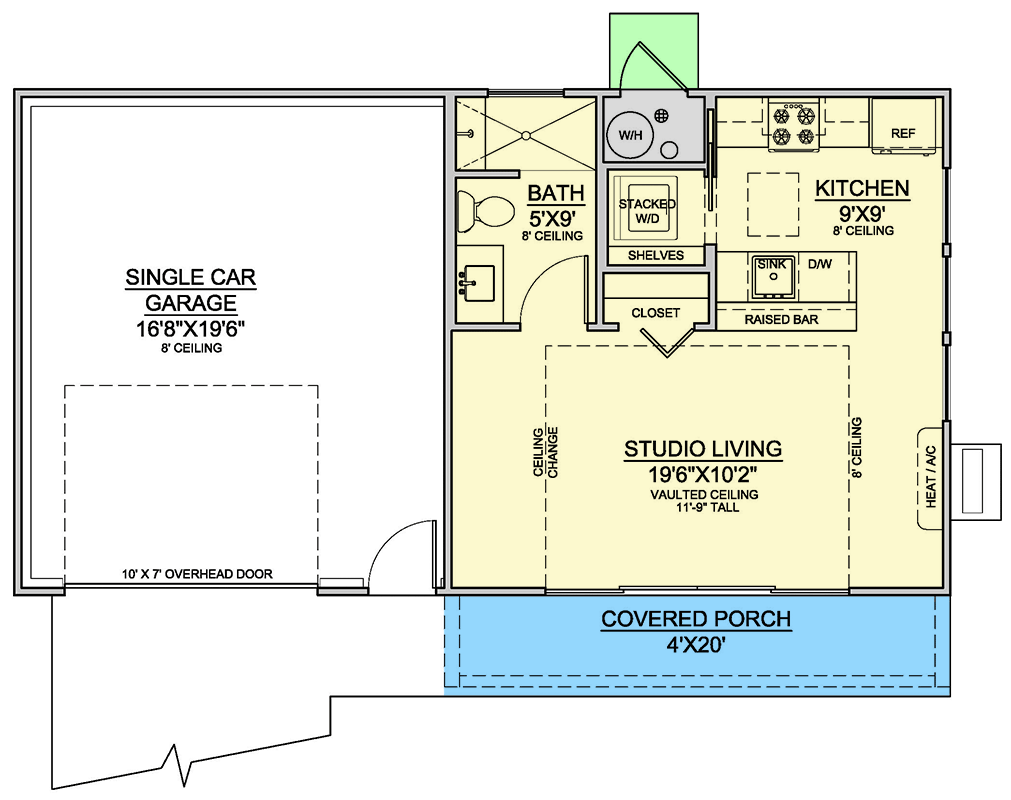

Main Level
Main Level

Plan 370044SEN

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 370044SEN: Contemporary ADU Studio House Plan with 1-Car Garage - 400 Sq Ft - Floor Plan - Main Level - Contemporary

Plan Details

  • This contemporary ADU house plan offers you 400 square feet of heated living space with 1 full bath and a 280 square foot 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • COVER SHEET
  • GENERAL NOTES

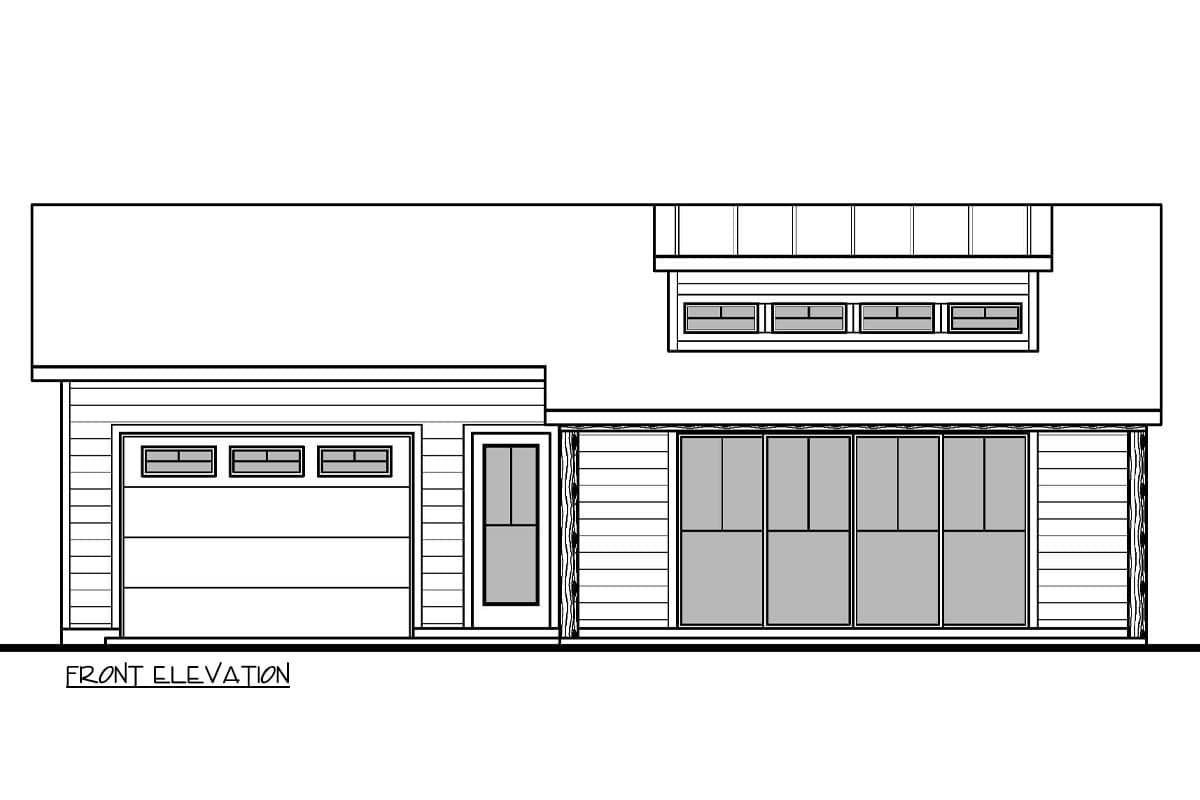

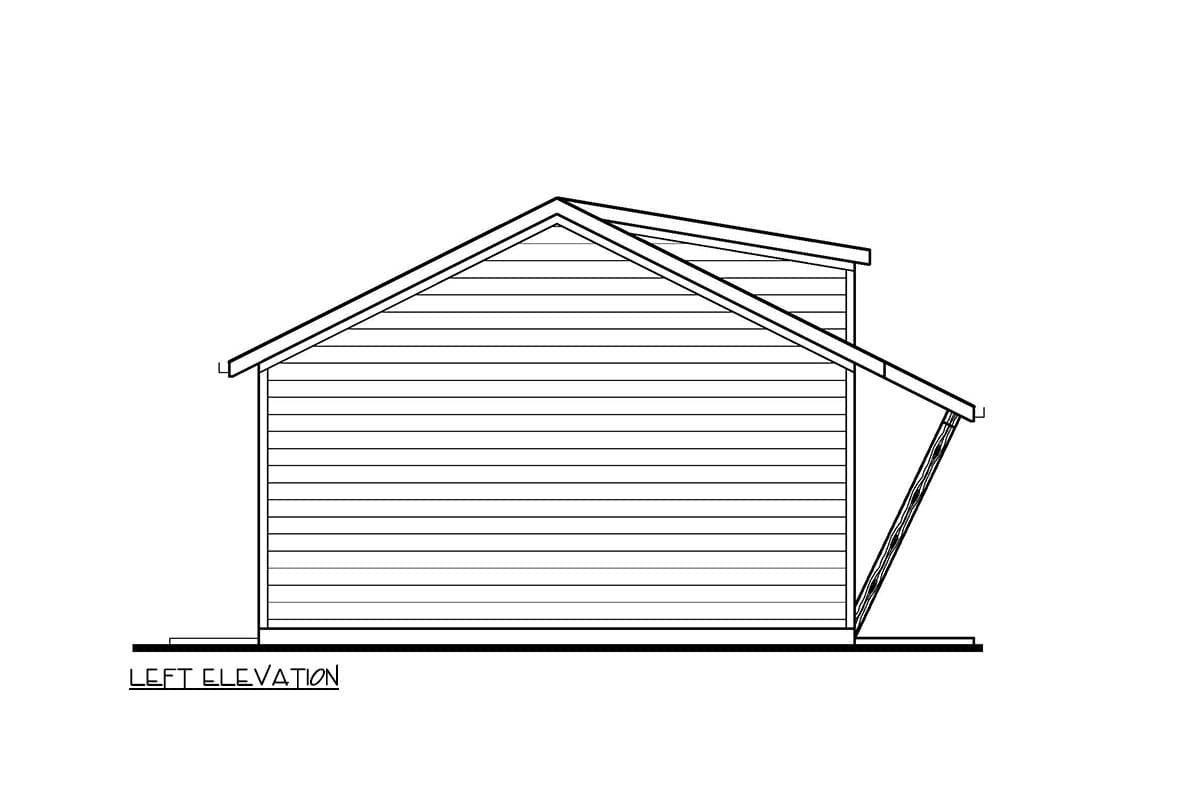

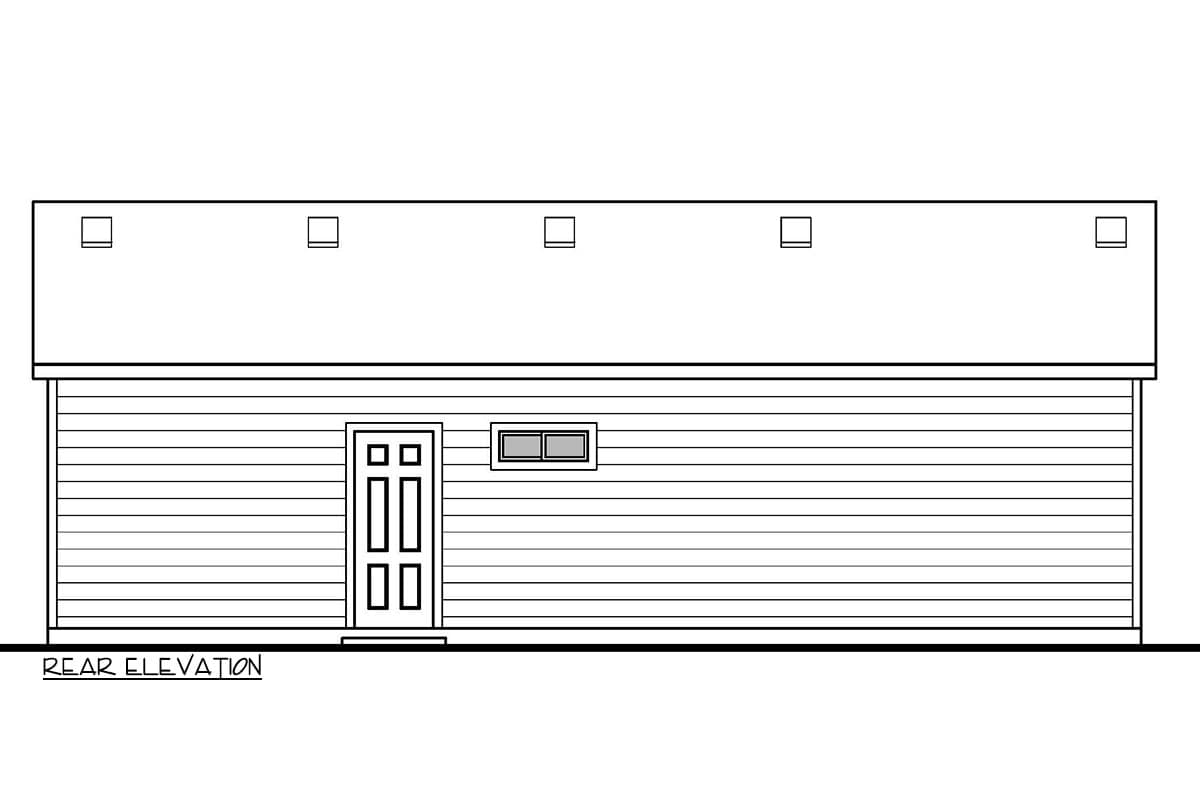

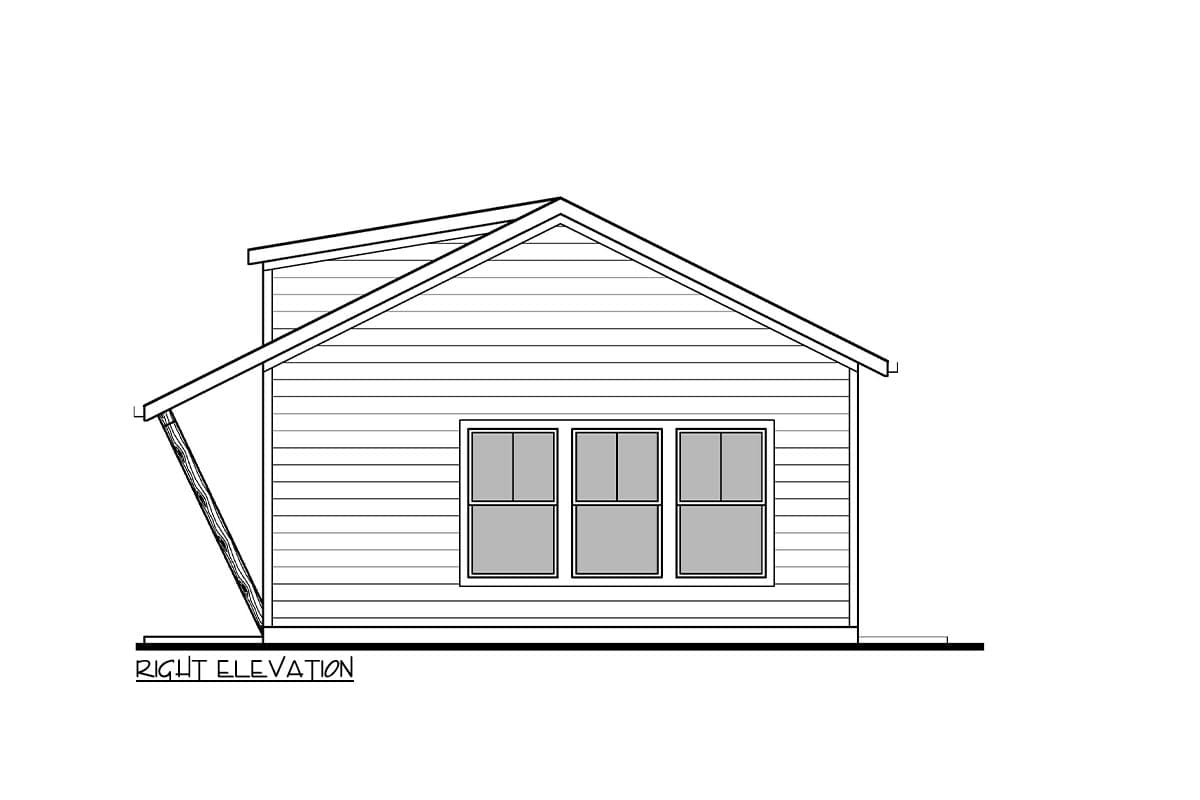

  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

400 sq. ft.

1st Floor

400 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

20' 0"

Max Ridge Height

14' 6"

Garage

Type

Attached

Area

280 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 1"

Room

Ceiling Type

Height

Great Room

Box Vault

11' 6''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Special Features

Accessible Design

Laundry - Main Level

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

400 sq. ft.

1st Floor

400 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

20' 0"

Max Ridge Height

14' 6"

Garage

Type

Attached

Area

280 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 1"

Room

Ceiling Type

Height

Great Room

Box Vault

11' 6''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Special Features

Accessible Design

Laundry - Main Level

Plan Collections

ADU
