Plan 52492WM

Contemporary Cabin House Plan with Open Living and Main Level Laundry

Name: Plan 52492WM: Contemporary Cabin House Plan with Open Living and Main Level Laundry
Brand: Architectural Designs
SKU: 52492WM
Price: 1025.0 USD
Availability: InStock

Heated S.F.

384

Beds

Baths

Stories

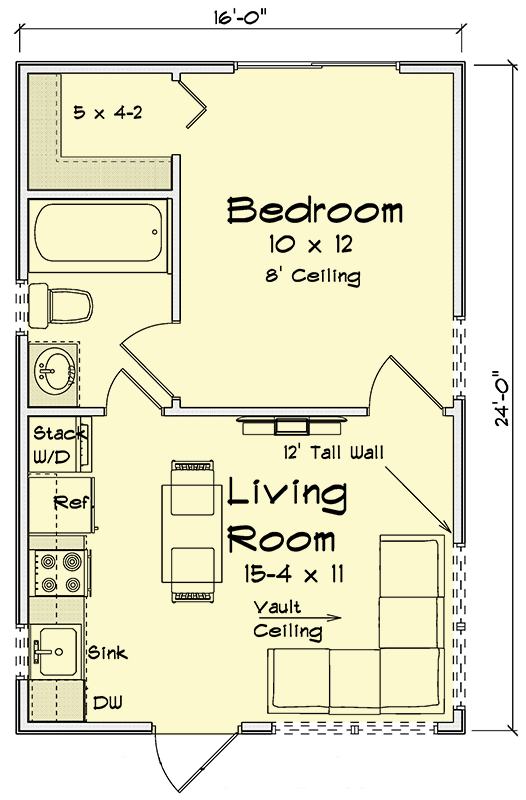

Floor Plan

Main Level

Plan Details

This efficient 384 sq. ft. contemporary cabin house plan features 1 bed, 1 bath, and a striking modern exterior with dark siding and stone accents.
Upon entering, you are greeted by an immediately open-concept living space, where natural light from the large front window illuminates a versatile area for relaxation and daily living.
The compact yet thoughtfully designed layout seamlessly connects the living area with a practical kitchen zone and a dedicated main level laundry space, ensuring effortless daily routines.
The private master suite, conveniently located on the first floor, offers a serene retreat with easy access to the full bathroom, completing this self-contained dwelling.

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
