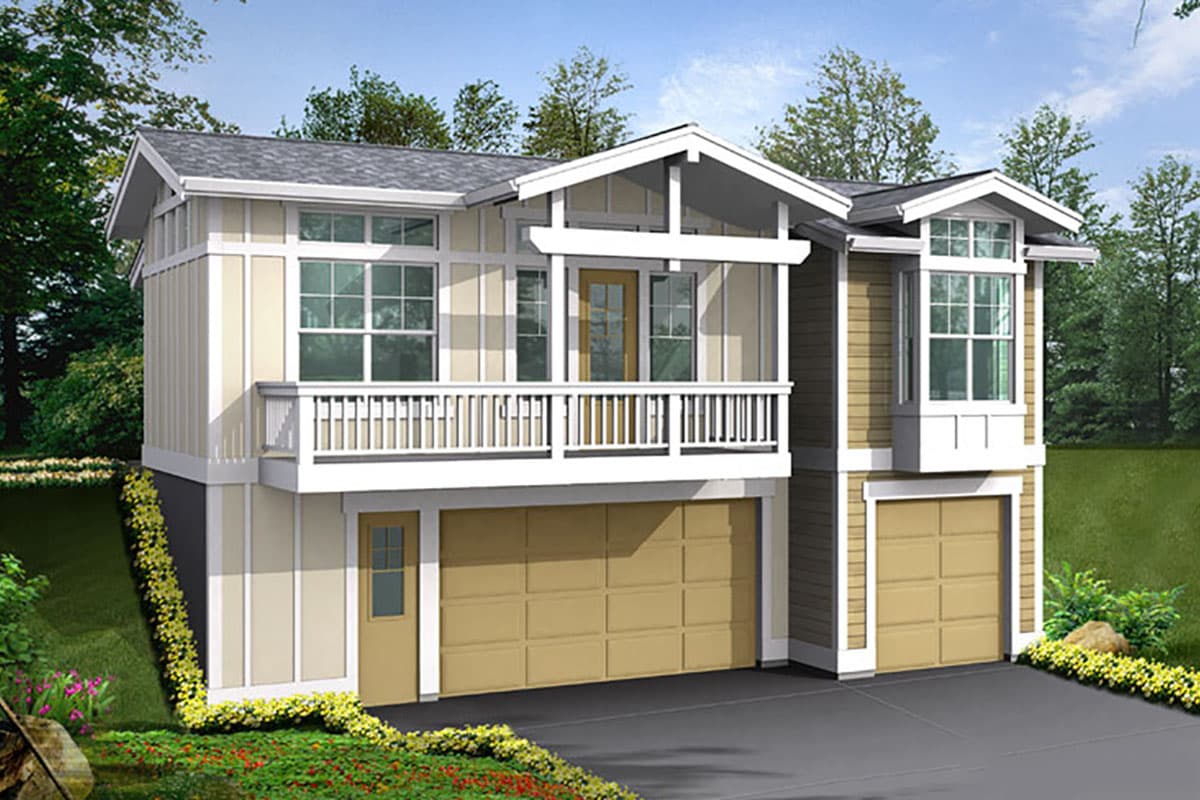

Contemporary Carriage House Plan

Plan 23378JD

  • 850

    HEATED S.F.

  • 1

    BEDS

  • 1

    BATHS

  • 1

    FLOORS

  • 3

    CAR GARAGE

About this Plan

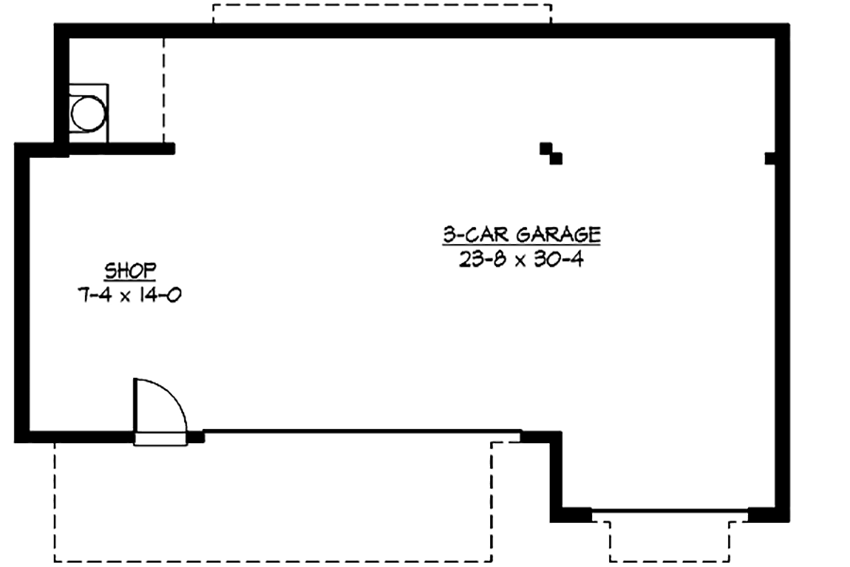

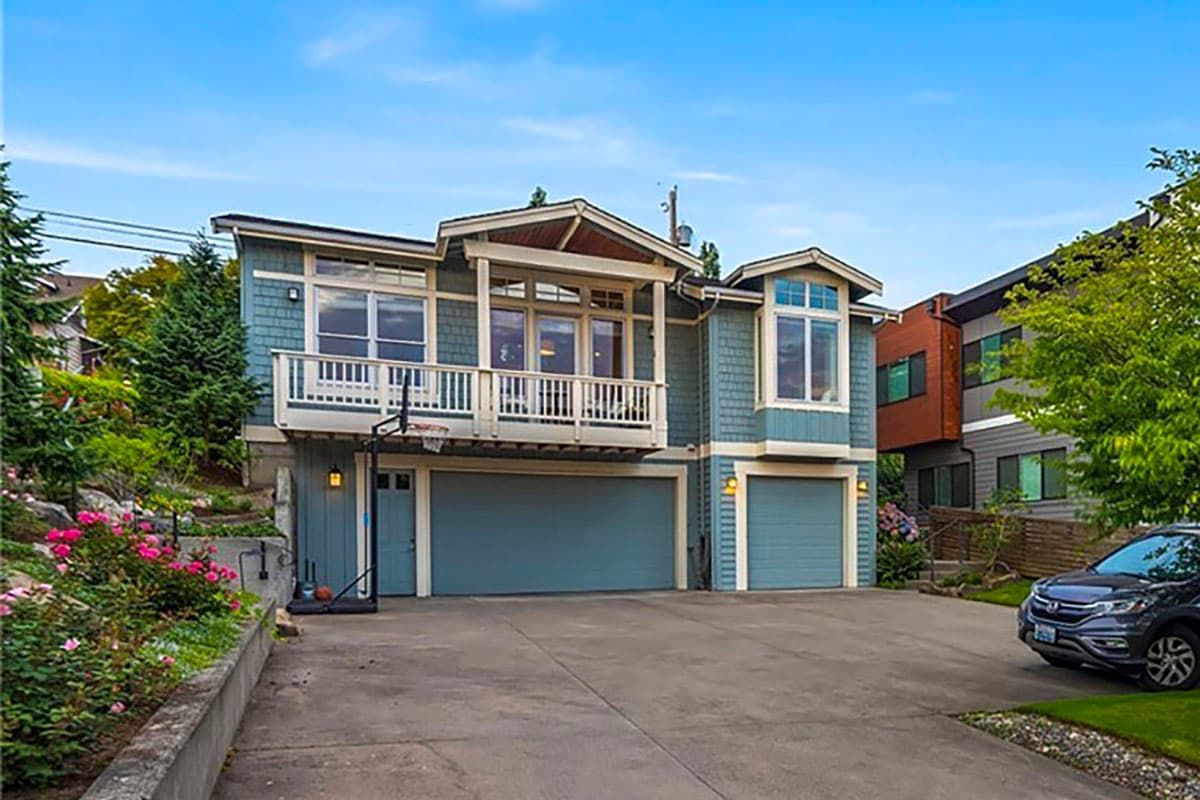

  • This contemporary carriage house plan is perfect for the sloping lot with room for 3 cars plus your shop on the lower level.

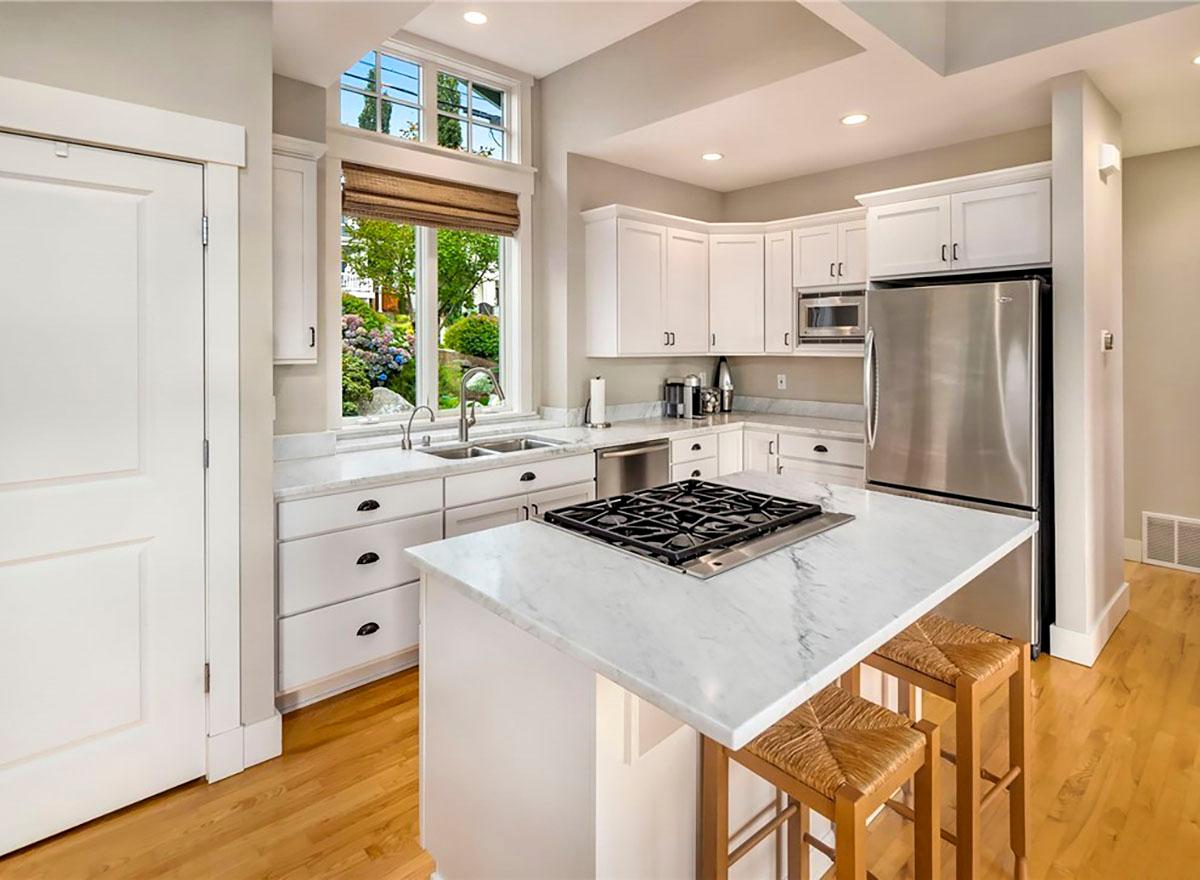

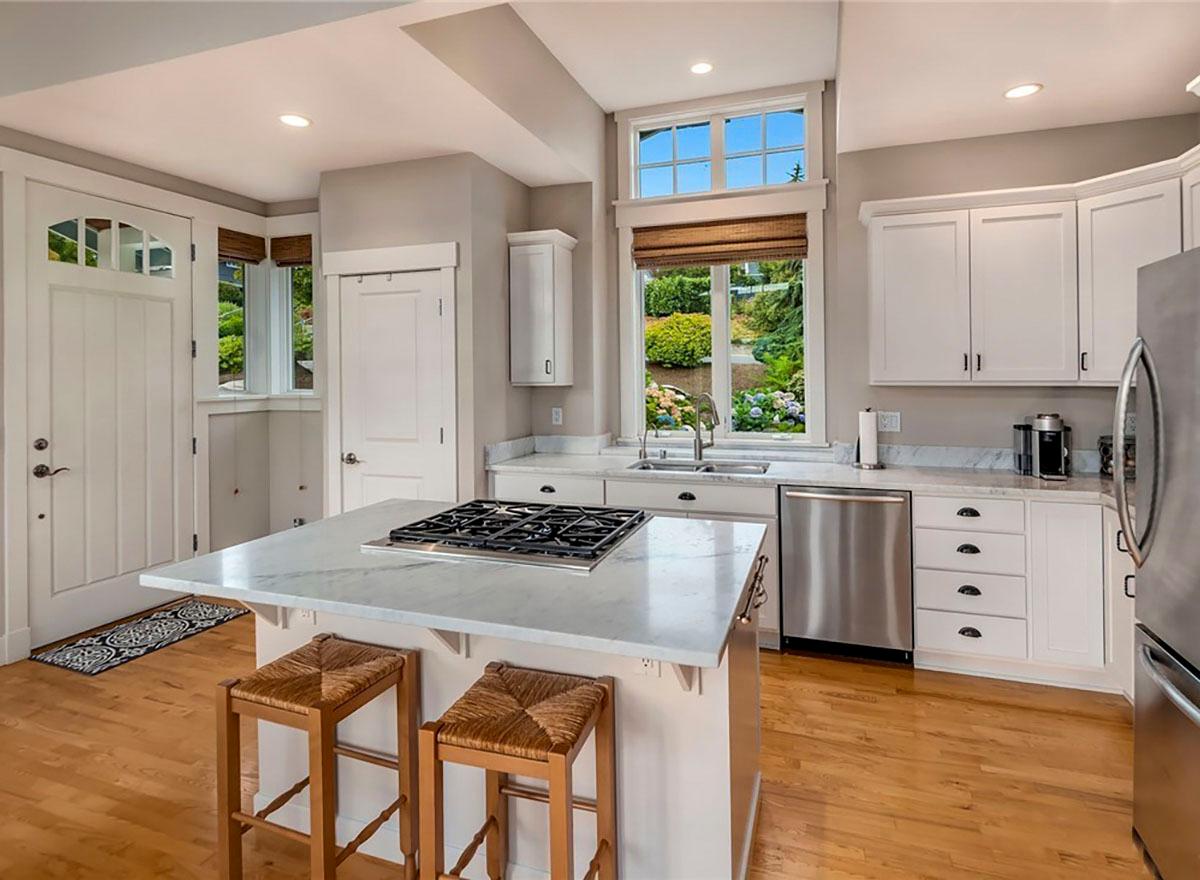

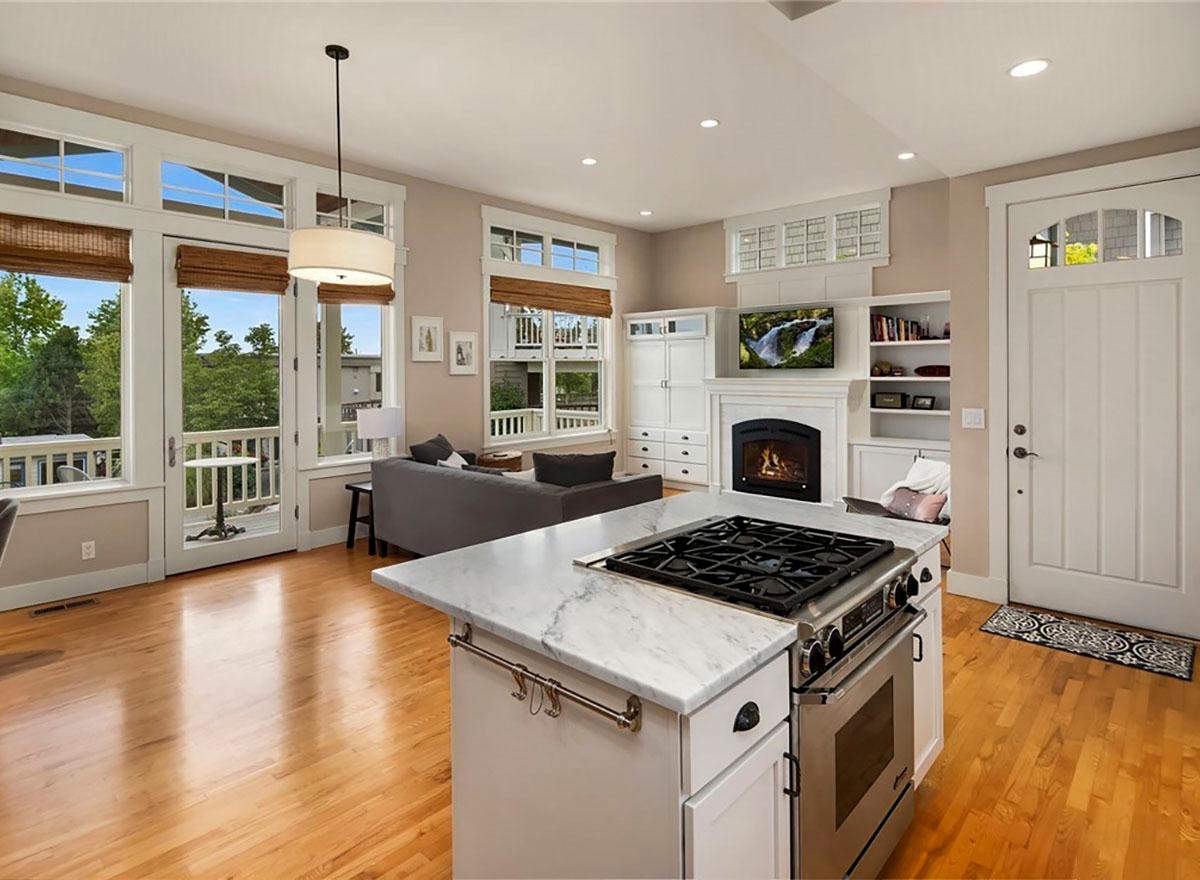

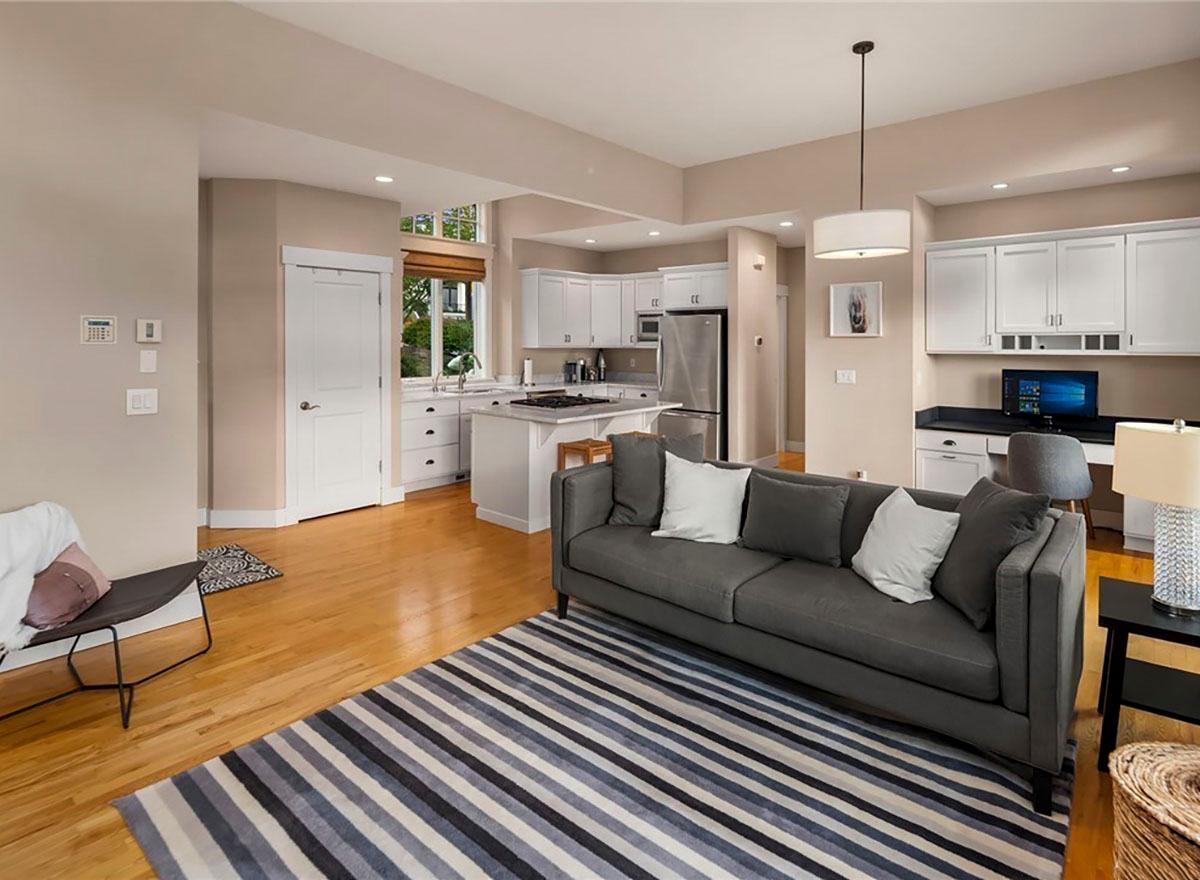

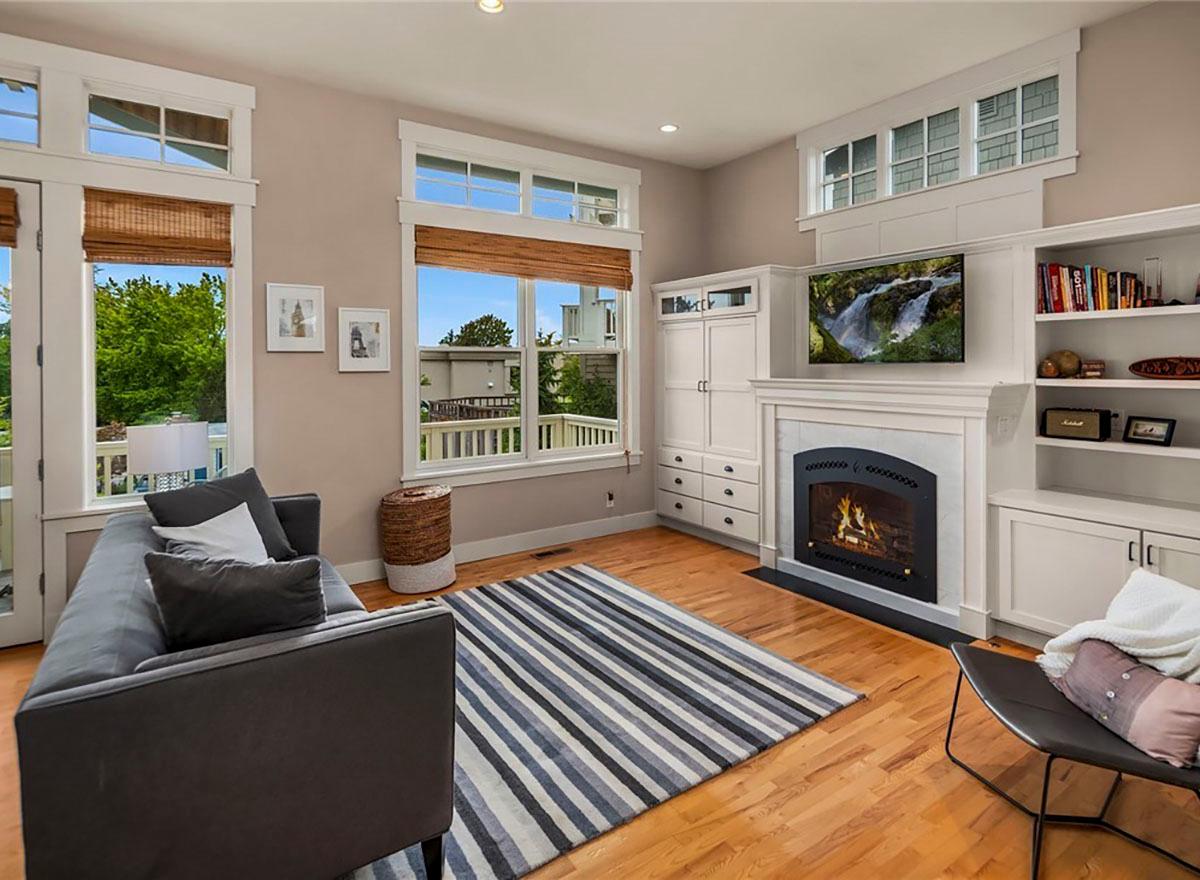

  • On the main floor you'll enjoy an open floor plan with the living room, kitchen and nook all open to each other.

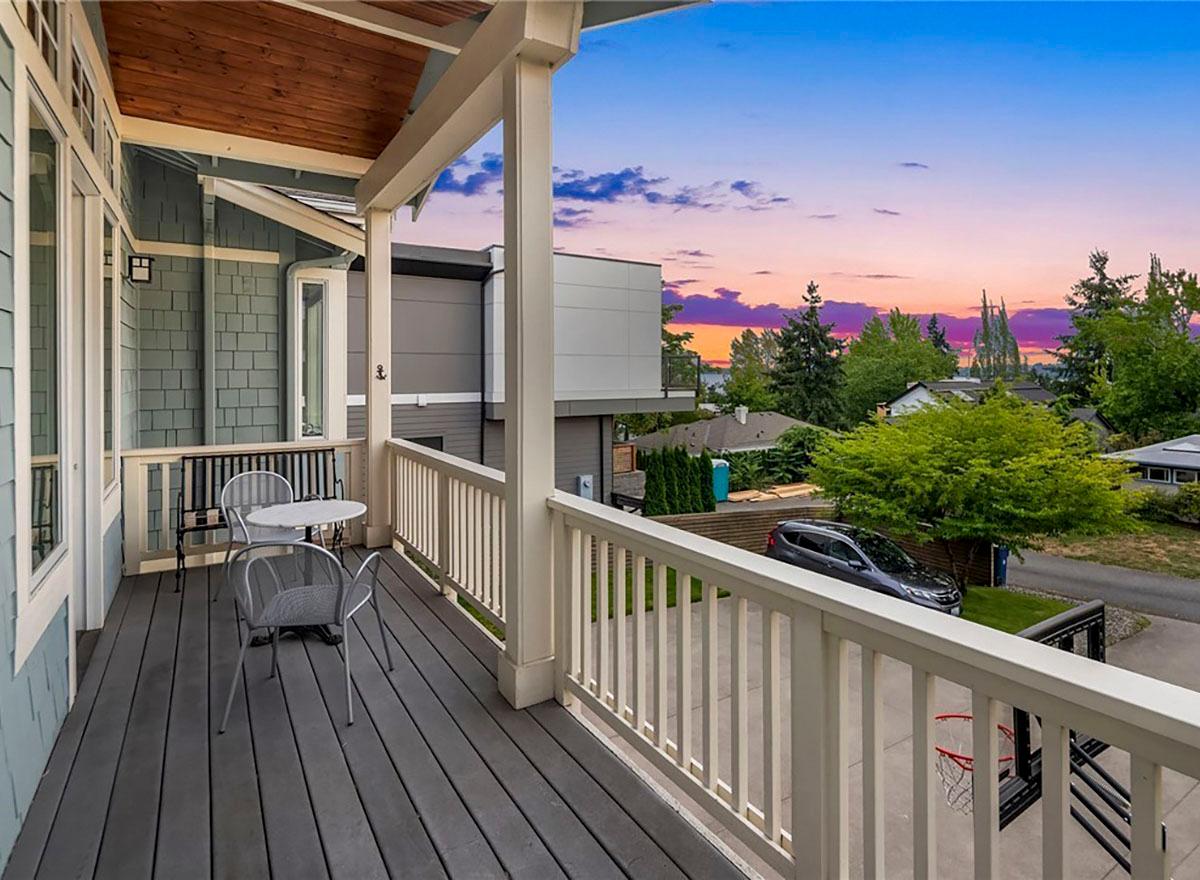

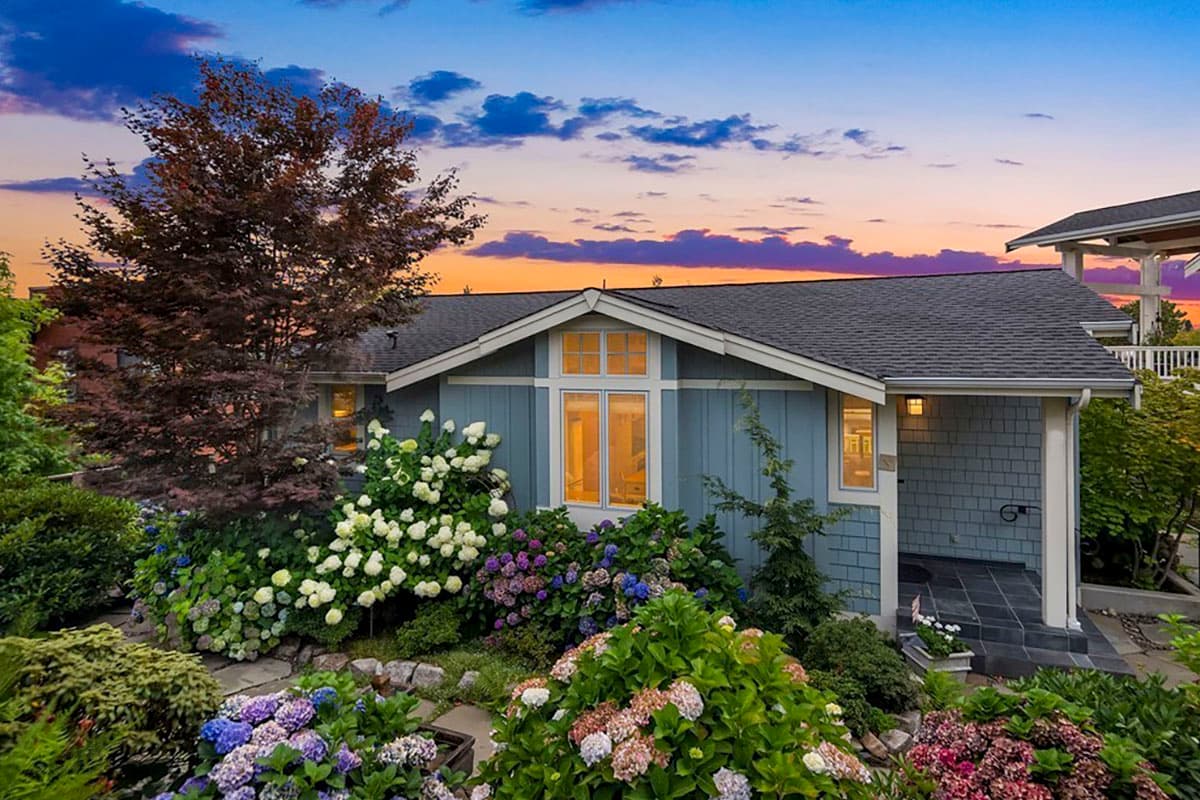

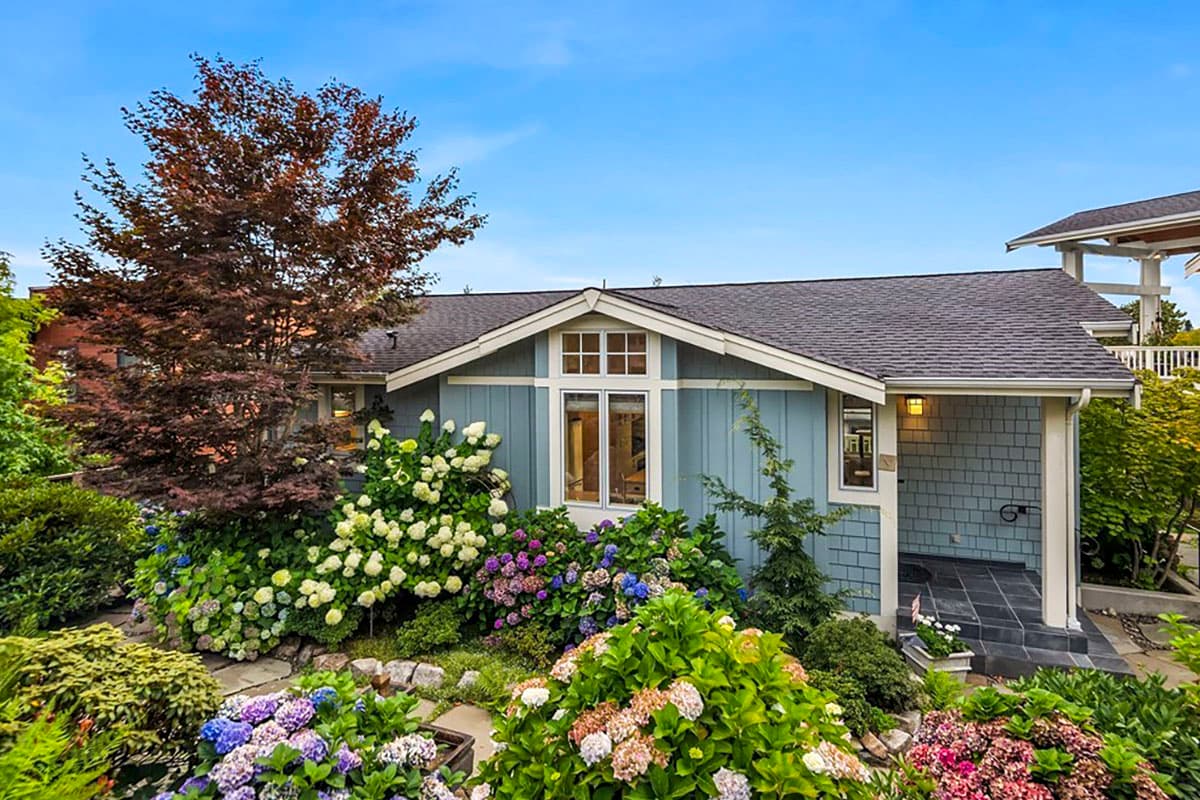

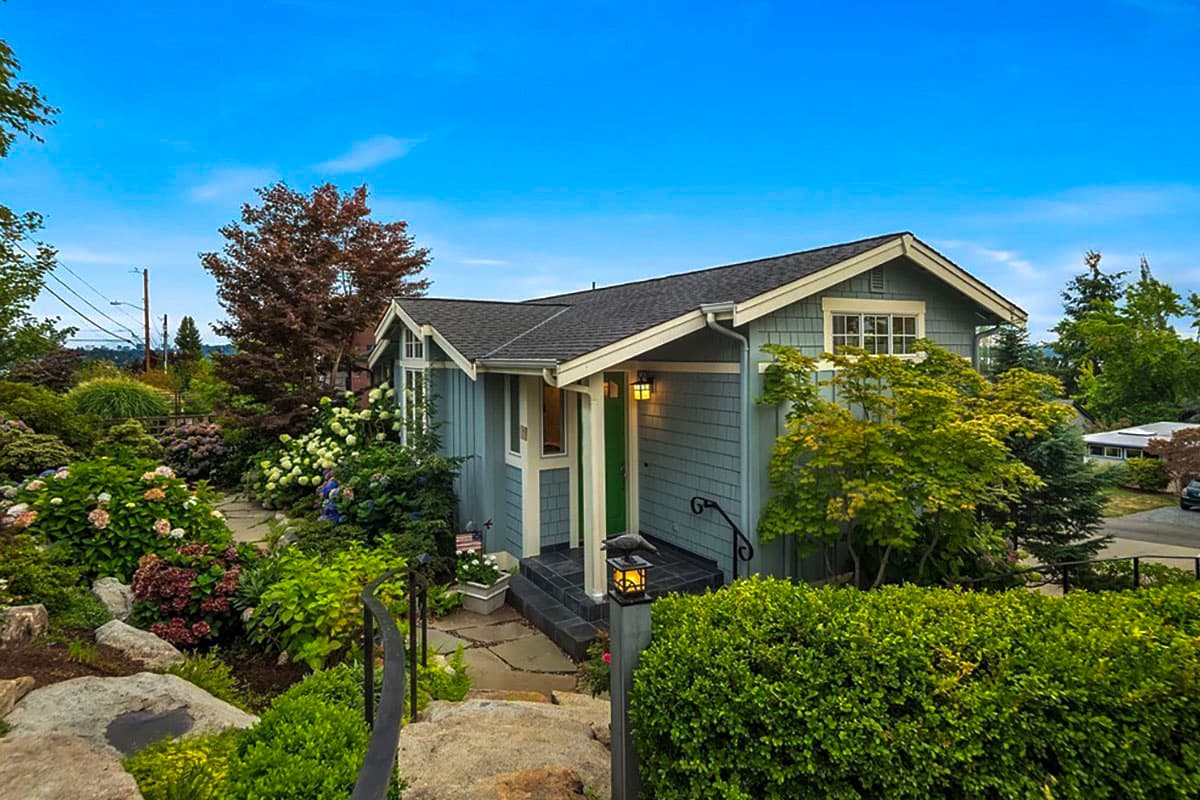

  • Note the corner covered oprch entry and the spacious covered deck on the down-slope side.

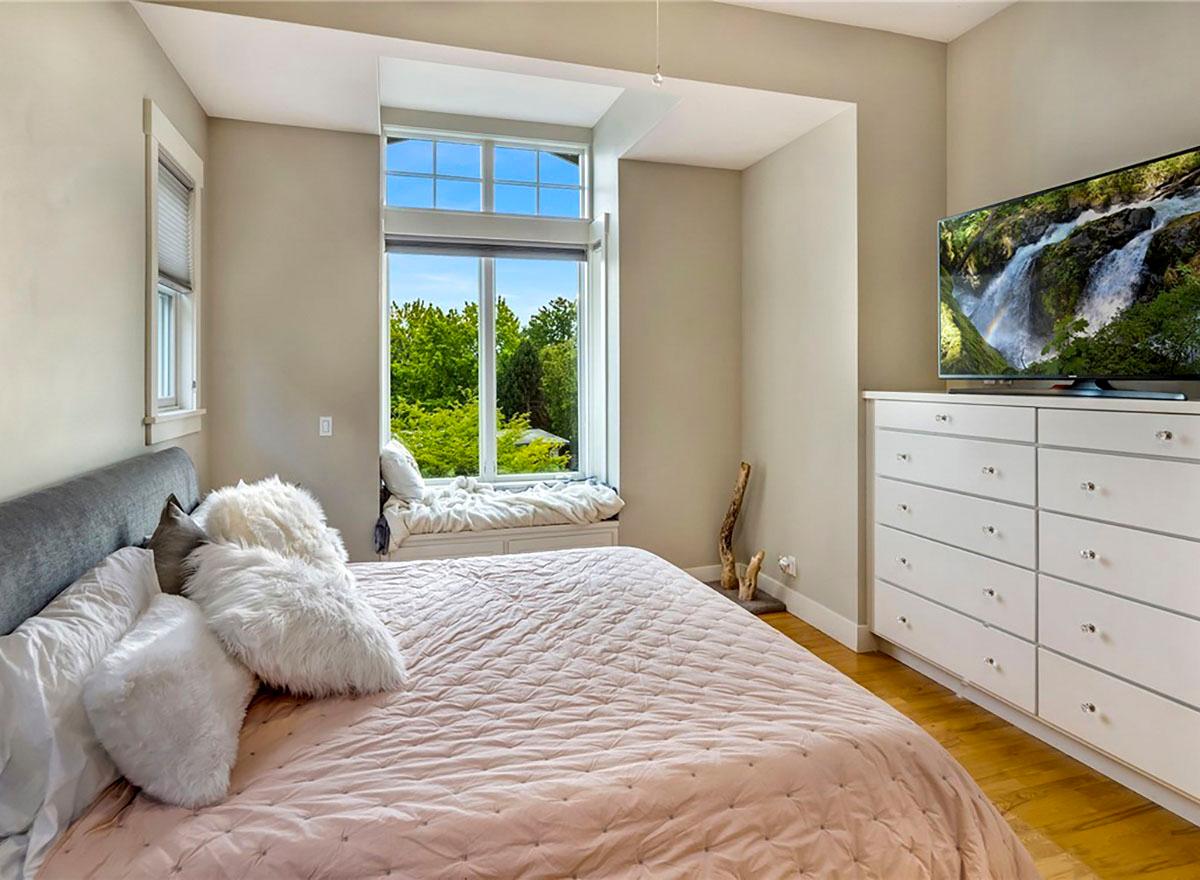

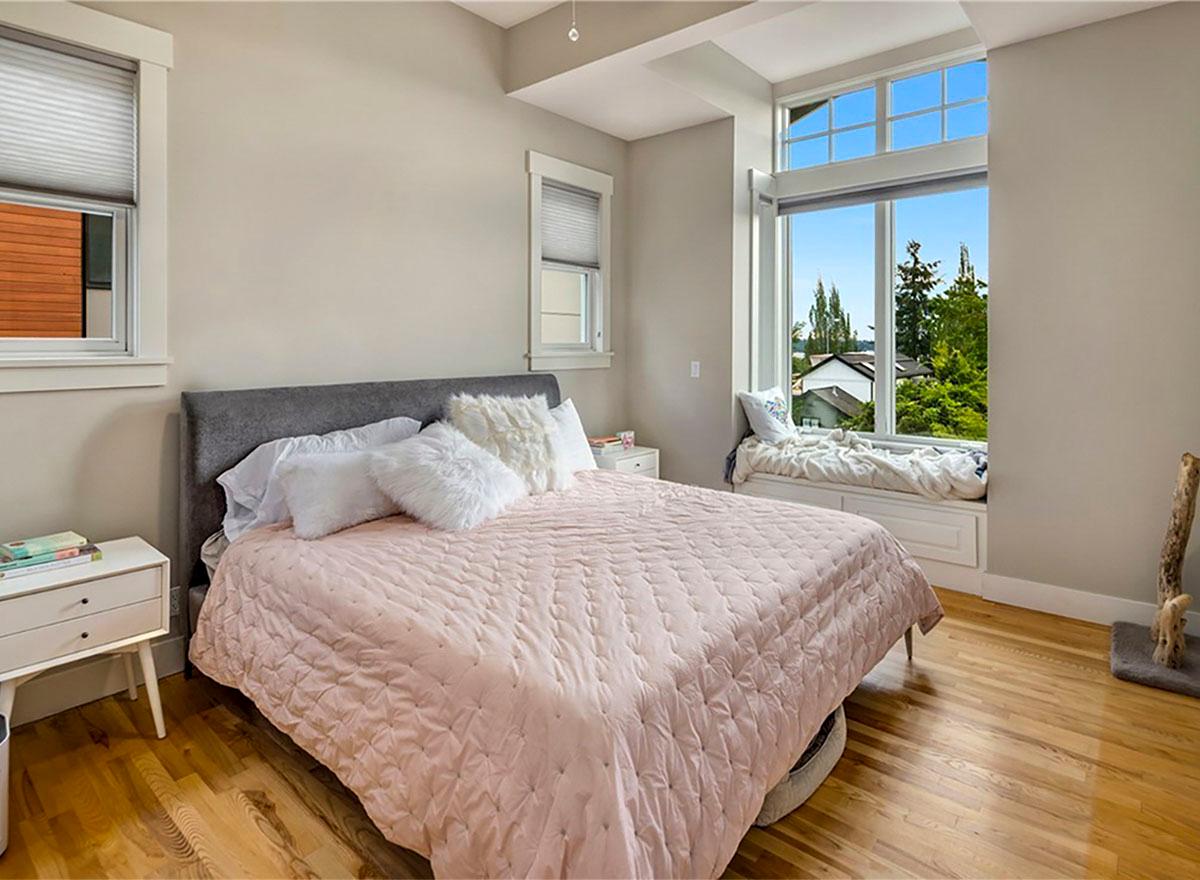

  • The bedroom has a brightly lit dormer and his and her closets.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

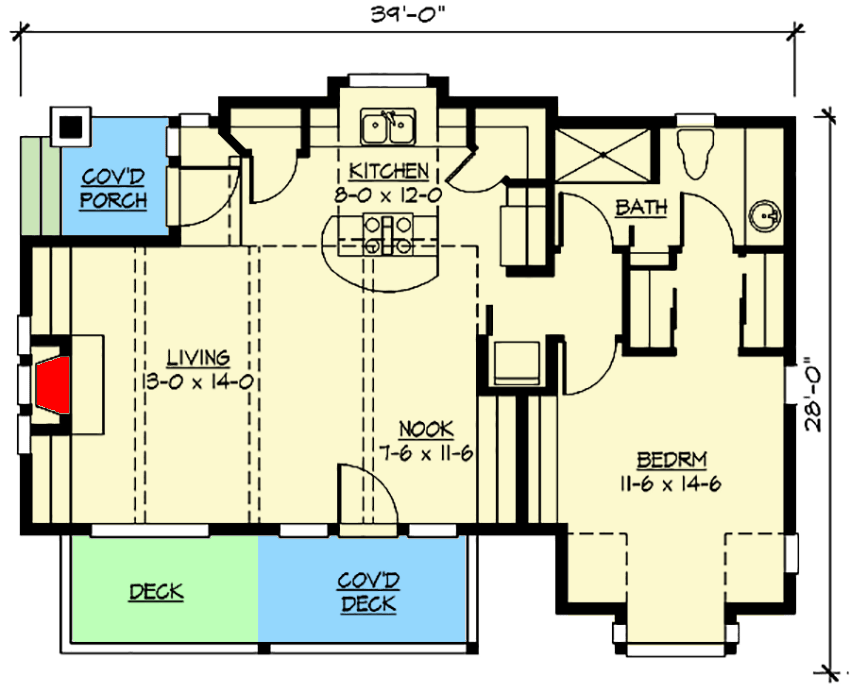

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 850 sq. ft.
  • 1st Floor: 850 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Dimensions

  • Width: 39' 0"
  • Depth: 25' 0"
  • Max ridge height: 14' 0"

Garage

  • Type: Drive Under
  • Area: 855 sq. ft.
  • Details: 3 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
