Plan 68621VR

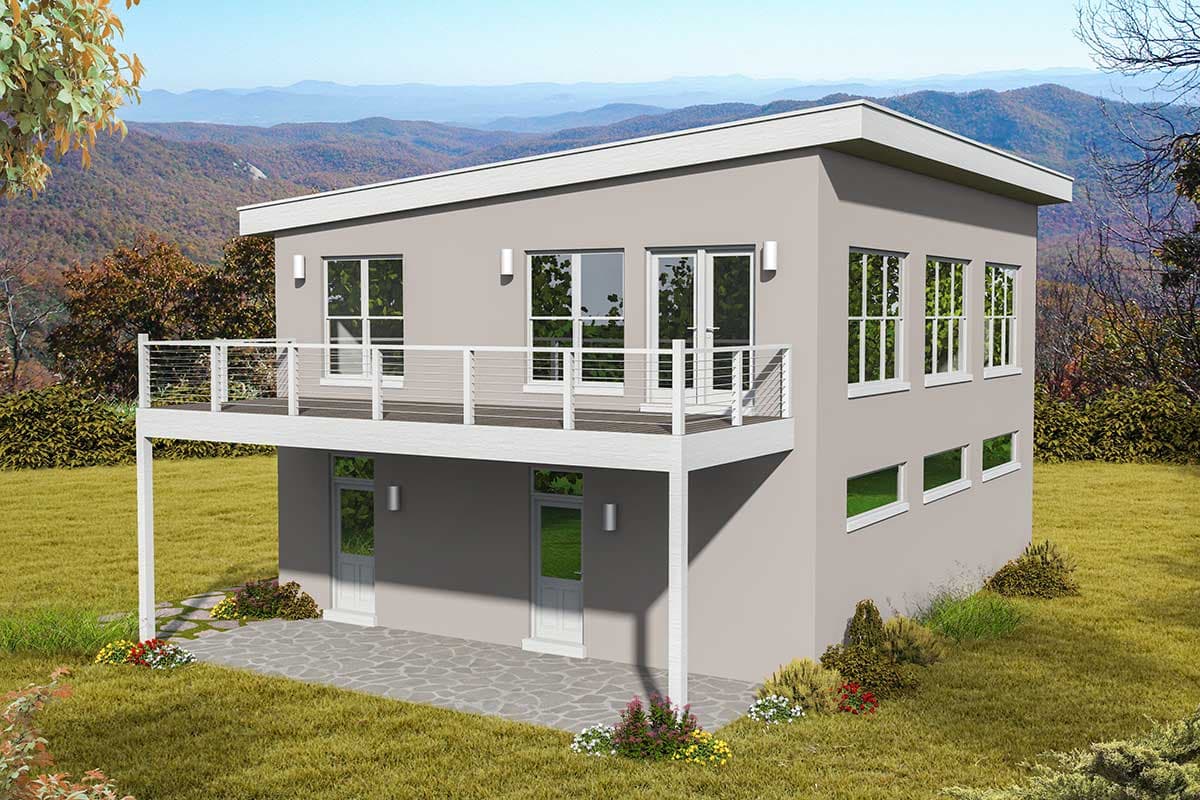

Contemporary Carriage House Plan with Upstairs Balcony

Heated S.F.
1,220
Beds
1
Baths
1.5
Stories
2
Cars
4

Floor Plan

Plan 68621VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 68621VR

M-F 9am-5pm EST |

1-203-761-8500

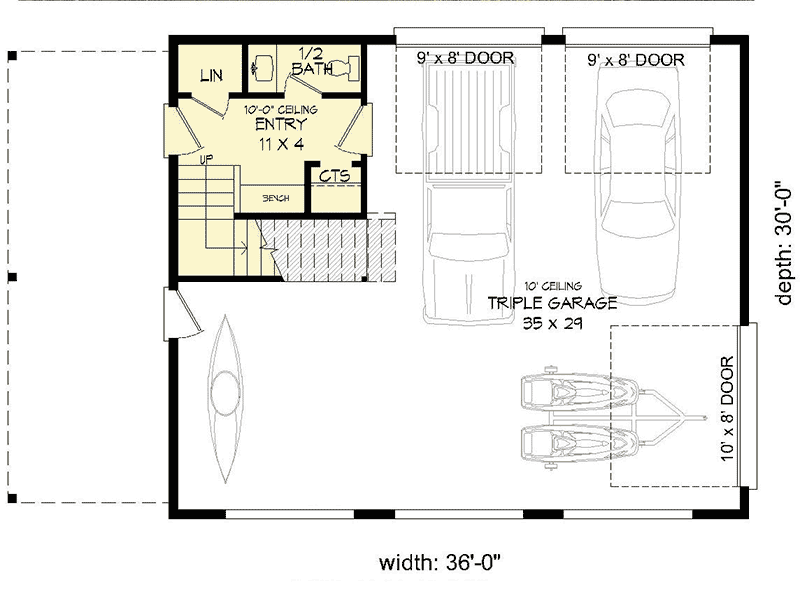

Main Level

Plan 68621VR: Contemporary Carriage House Plan with Upstairs Balcony - Floor Plan - Main Level - Mountain, Vacation

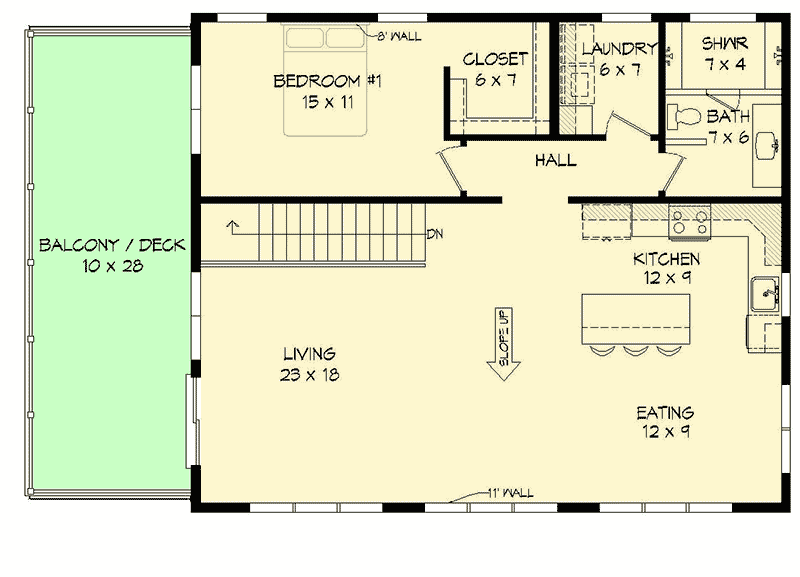

2nd Floor

Plan 68621VR: Contemporary Carriage House Plan with Upstairs Balcony - Floor Plan - 2nd Floor - Mountain, Vacation

Plan Details

  • A simple rectangular footprint and a single slope to the roof helps cut down construction costs on this contemporary carriage house plan.
  • The lower level gives you parking for two cars side-by-side and a perpendicular full-length bay. An enclosed area with a half bath, linen closet, a bench and storage complete the main floor.
  • The upper floor has an open living area combing the living room and the kitchen/dining area. In back, a bedroom, full bath and laundry complete the heated living space.
  • A 10'-deep deck - note, this is not factored into the 10' width of the home - gives you a ton of space to enjoy with friends.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

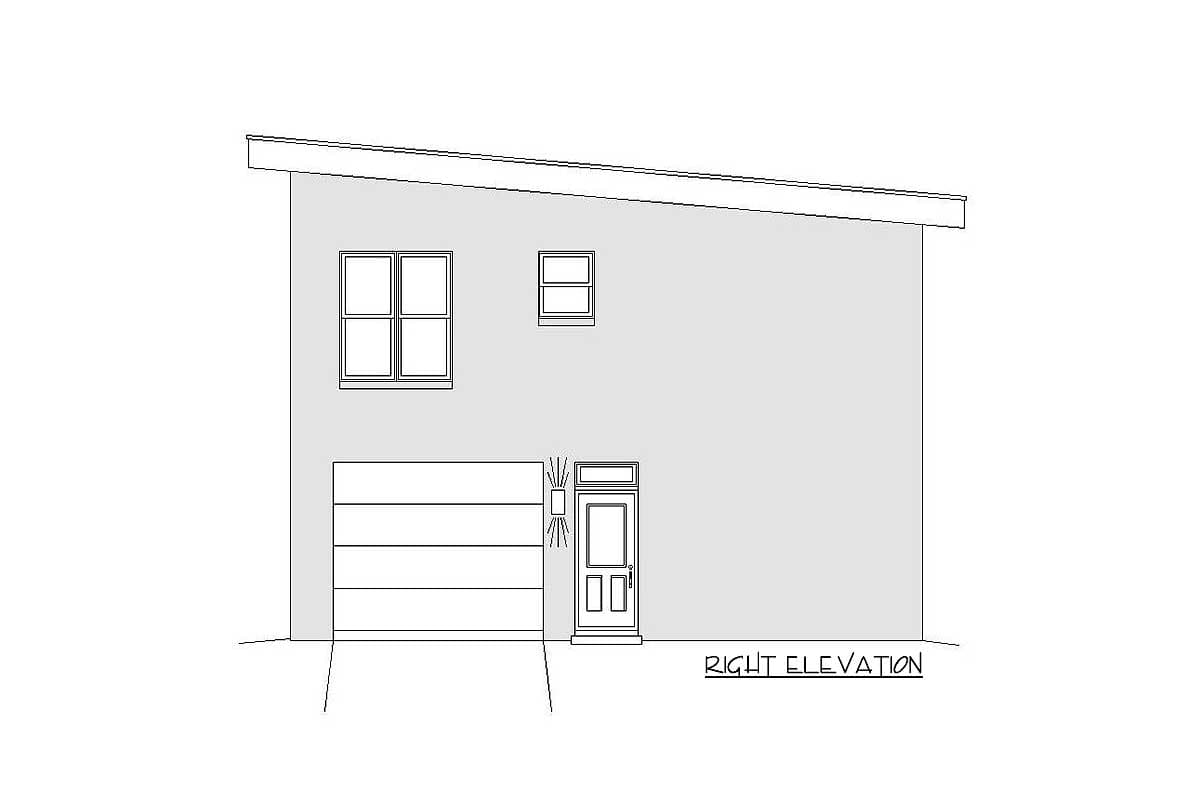

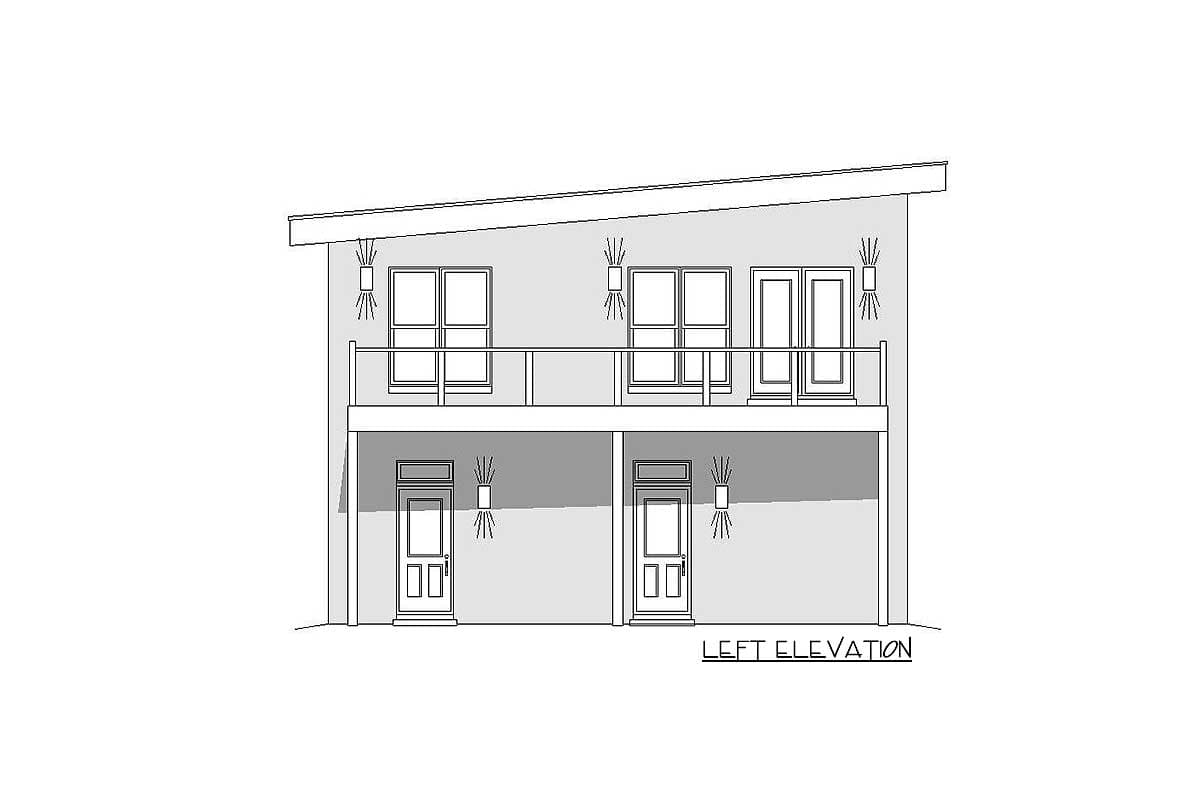

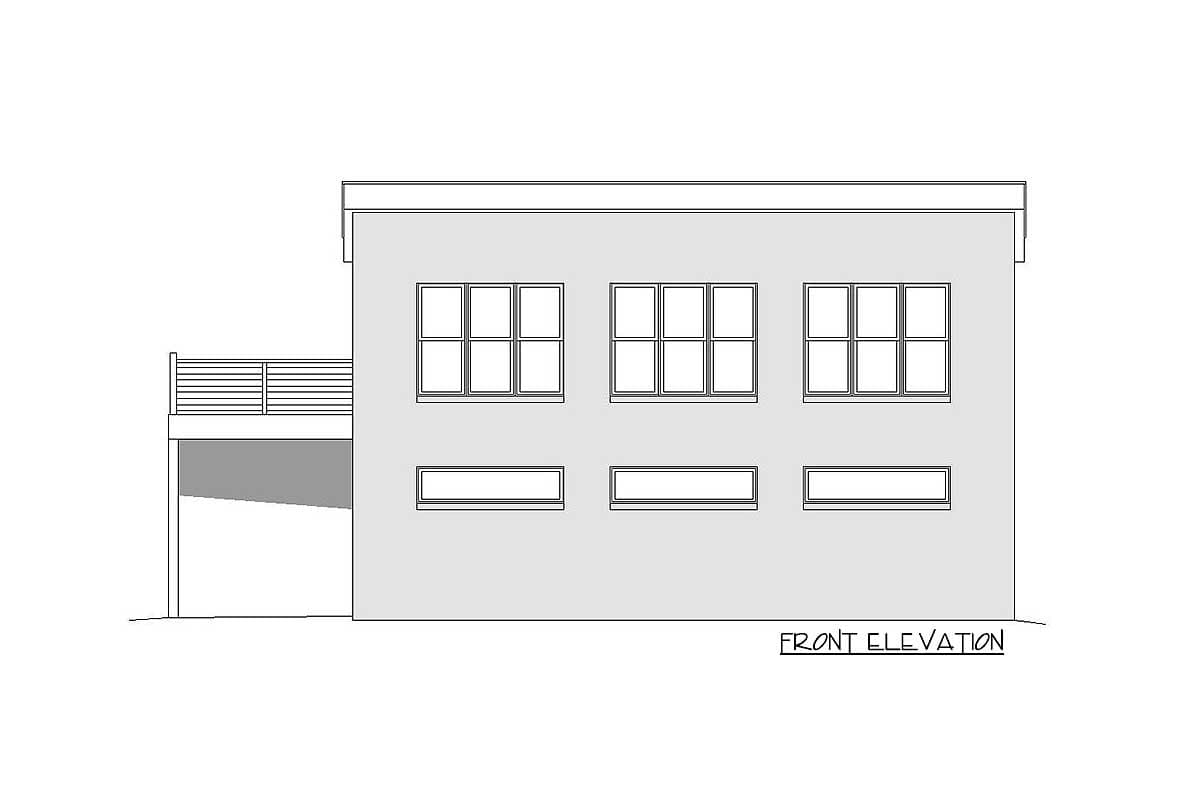

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,220 sq. ft.

1st Floor

140 sq. ft.

2nd Floor

1,080 sq. ft.

Balcony / Veranda

280 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

940 sq. ft.

Count

4 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

10'

Second Floor

8' 11"

Roof Details

Primary Pitch

1 on 12

Architectural Style

Mountain

Vacation

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Wraparound Porch

Square Footage Breakdown

Total Heated Area

1,220 sq. ft.

1st Floor

140 sq. ft.

2nd Floor

1,080 sq. ft.

Balcony / Veranda

280 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

940 sq. ft.

Count

4 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

10'

Second Floor

8' 11"

Roof Details

Primary Pitch

1 on 12

Architectural Style

Mountain

Vacation

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Two Story Great Room

Wraparound Porch
