Plan 86054BW

Contemporary Coastal 3-Bed Home Plan

Pageloader

Contemporary Coastal 3-Bed Home Plan

Plan 86054BW

  • 2,586

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • With its striking good looks and wide open layout, this Florida house plan gives you an upscale family home.
  • Beautiful tray ceilings can be found throughout the home, giving it a custom touch.
  • Sliding doors open to reval the front facing study that is a generous size.
  • In the kitchen, the large island has seating for 4 and wonderful views of the great room and dining area.
  • A wall of sliding glass doors open to the huge covered lanai where you can enjoy the outdoors in shaded comfort.
  • Occupying the whole right side of the house, the luxurious master suite has double doors to the lanai, a tray ceiling and a huge master bathroom with two walk-in closets.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

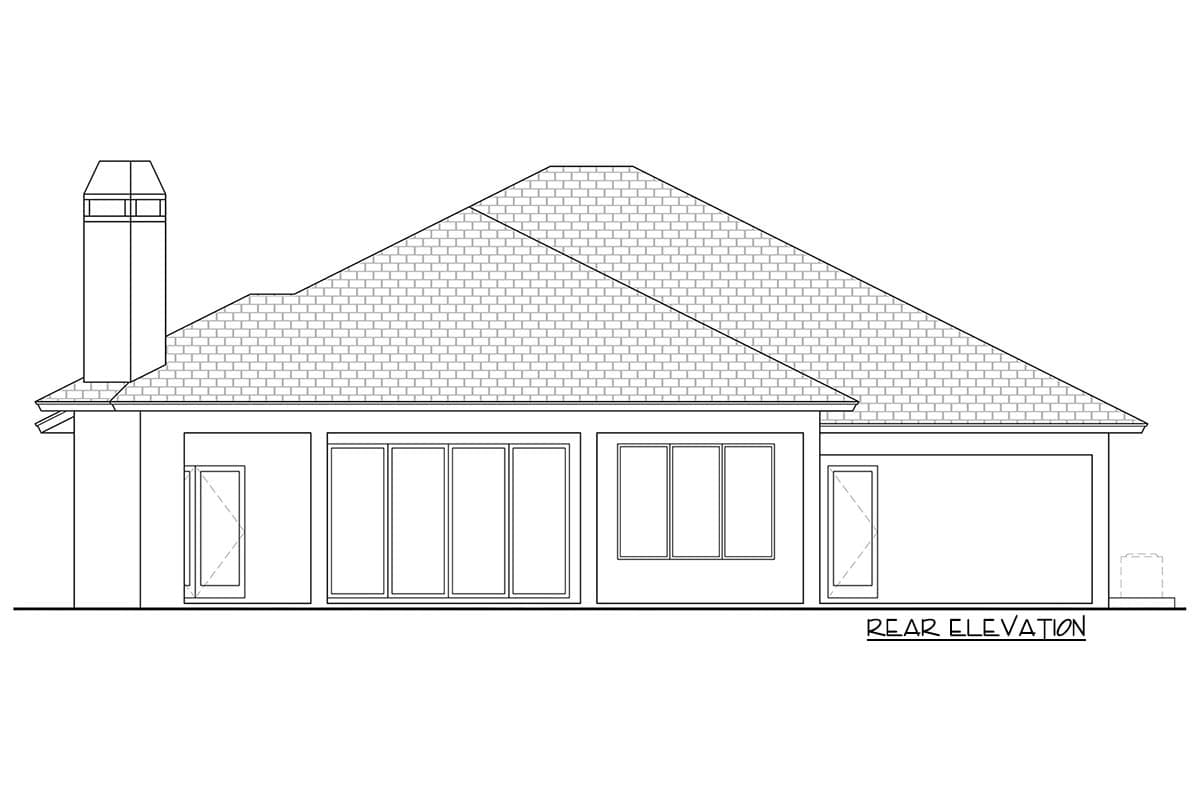

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Contemporary Coastal 3-Bed Home Plan

  • 2,586

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,325
  • CAD $2,325
  • View all purchase option online

About This Plan

  • With its striking good looks and wide open layout, this Florida house plan gives you an upscale family home.
  • Beautiful tray ceilings can be found throughout the home, giving it a custom touch.
  • Sliding doors open to reval the front facing study that is a generous size.
  • In the kitchen, the large island has seating for 4 and wonderful views of the great room and dining area.
  • A wall of sliding glass doors open to the huge covered lanai where you can enjoy the outdoors in shaded comfort.
  • Occupying the whole right side of the house, the luxurious master suite has double doors to the lanai, a tray ceiling and a huge master bathroom with two walk-in closets.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

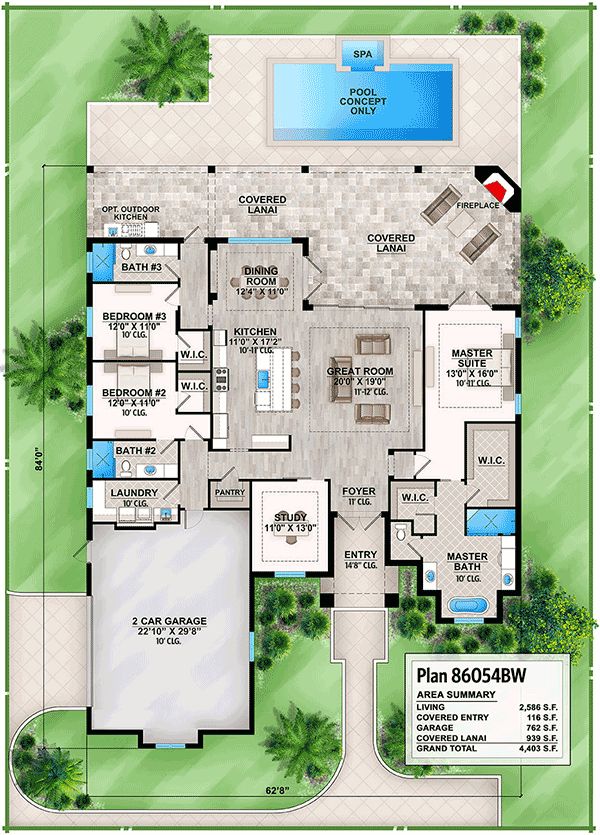

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,586 sq. ft.
  • 1st Floor: 2,586 sq. ft.
  • Entry: 116 sq. ft.
  • Lanai: 939 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 8"
  • Depth: 84' 0"

Garage

  • Type: Attached
  • Area: 762 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
